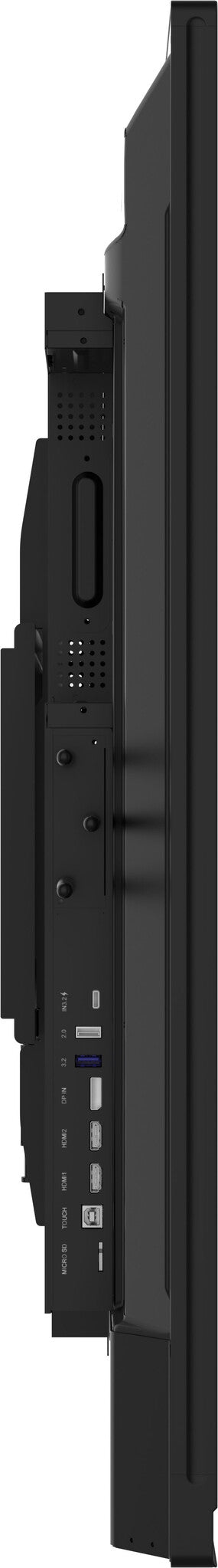

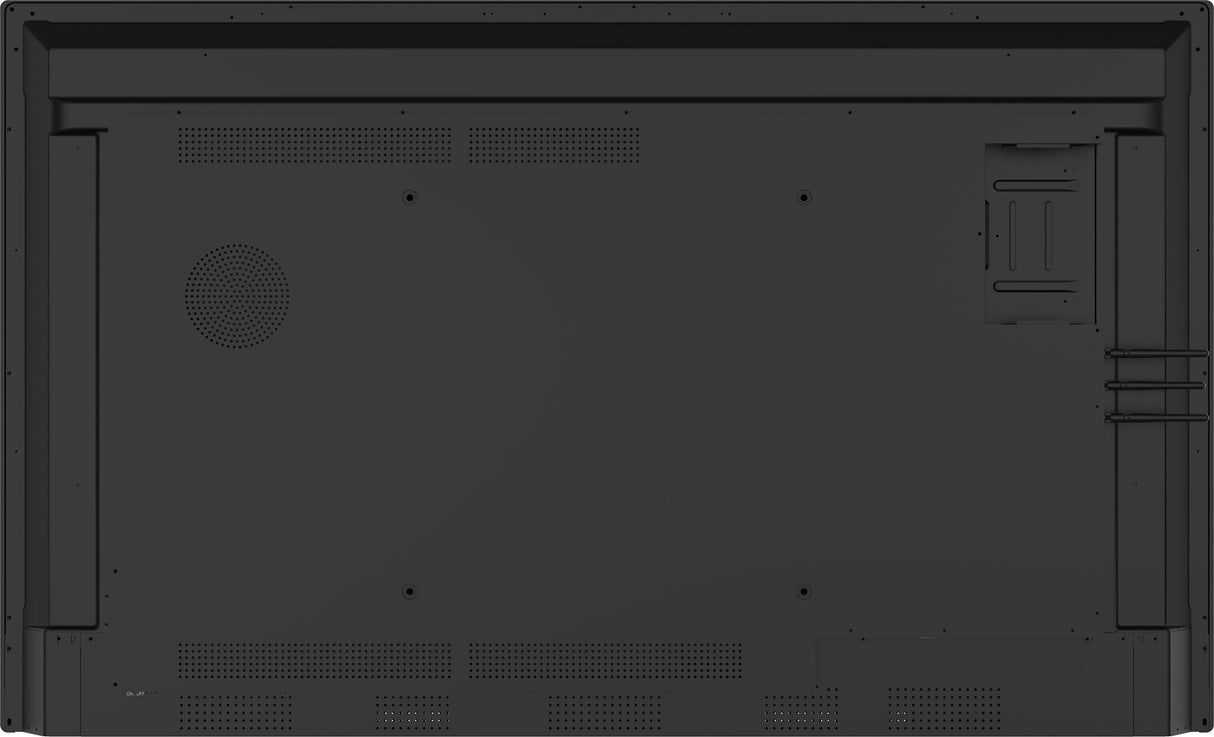

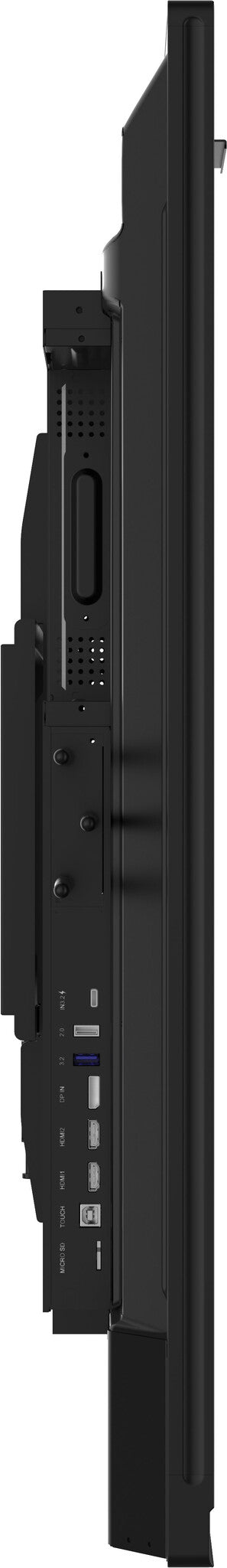

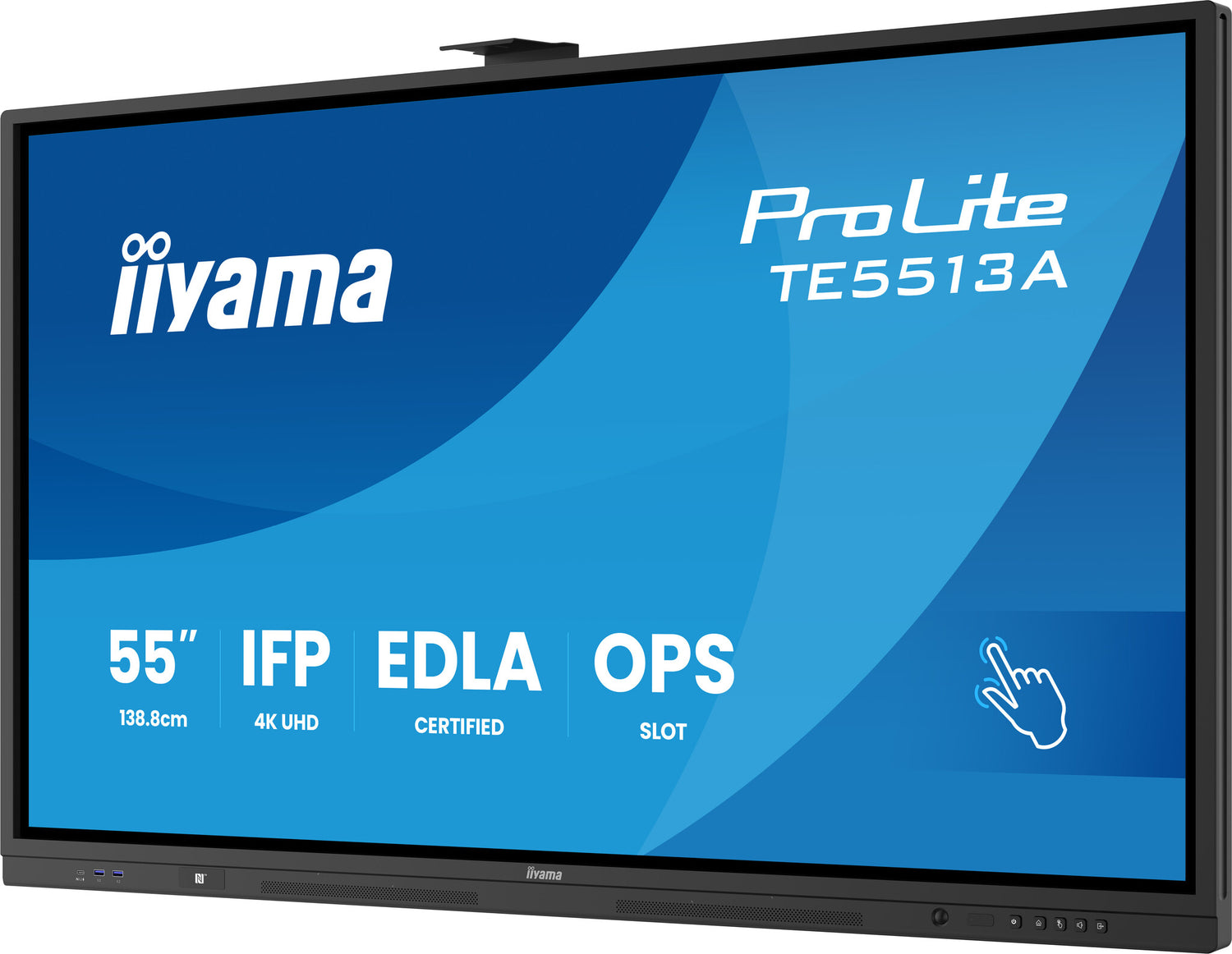

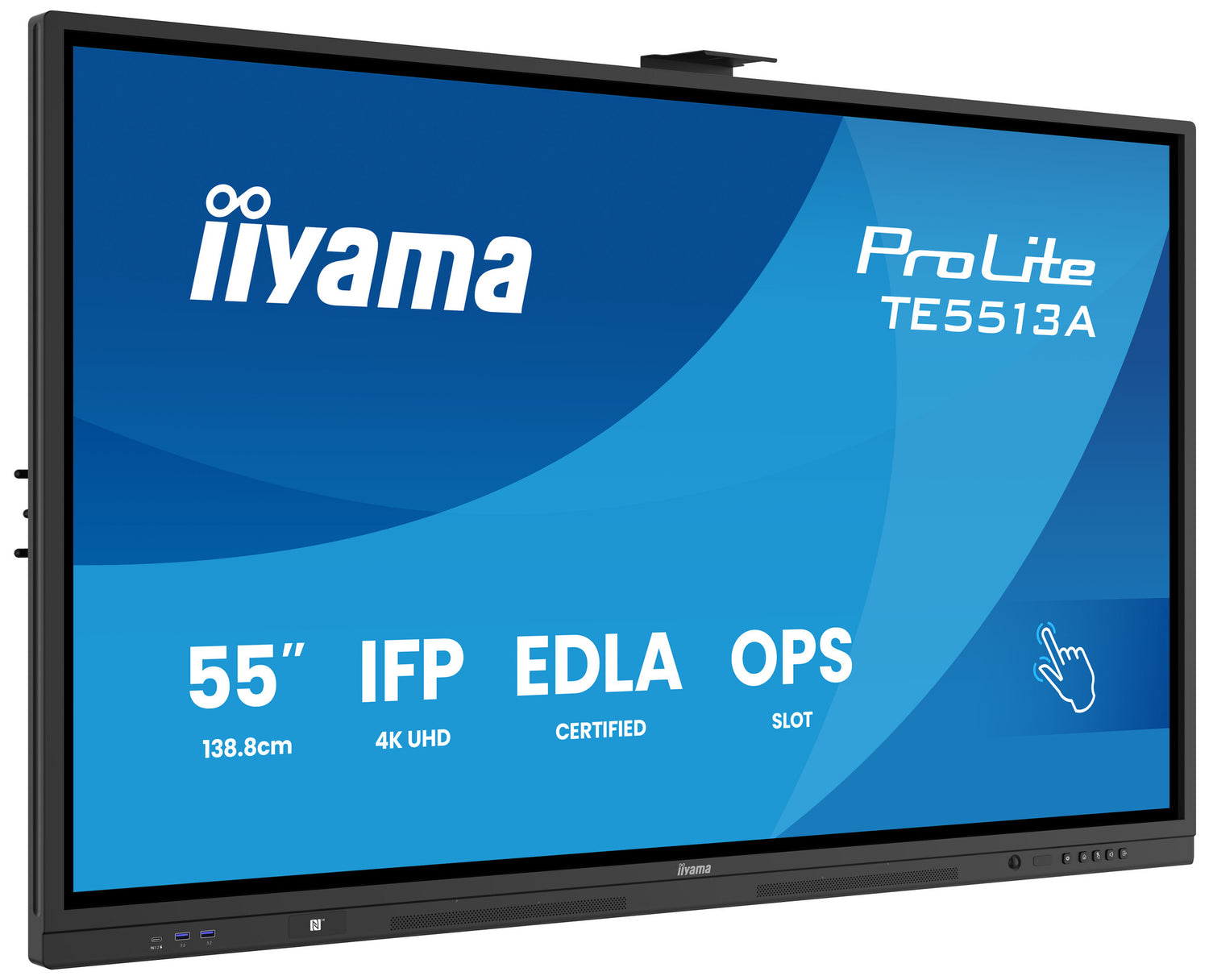

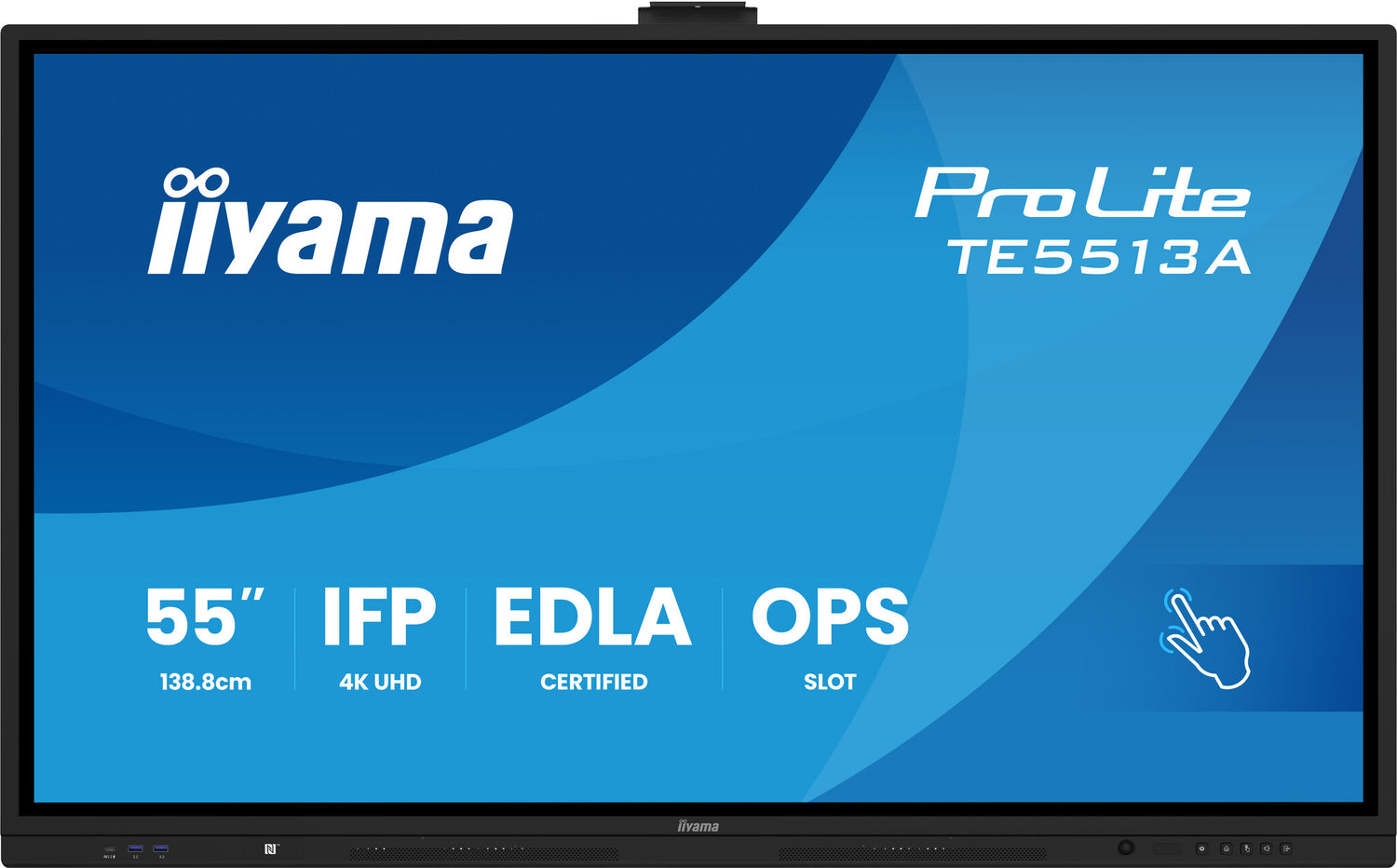

iiyama TE5513A-B2AG Signage Display Interactive flat panel 138.7 cm (54.6") Wi-Fi 500 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 24/7
iiyama | Varenummer:
TE5513A-B2AG
Beskrivelse
Beskrivelse

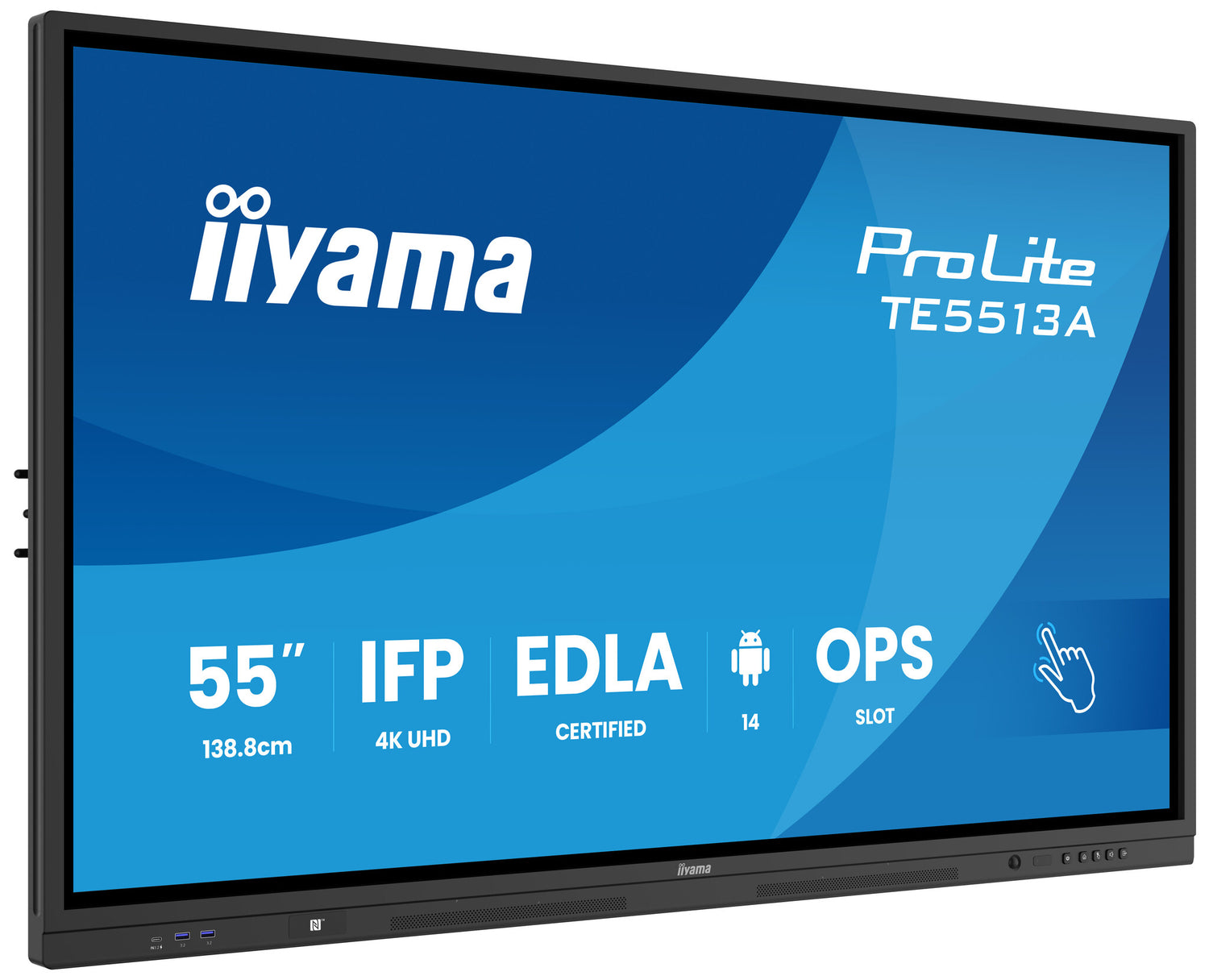

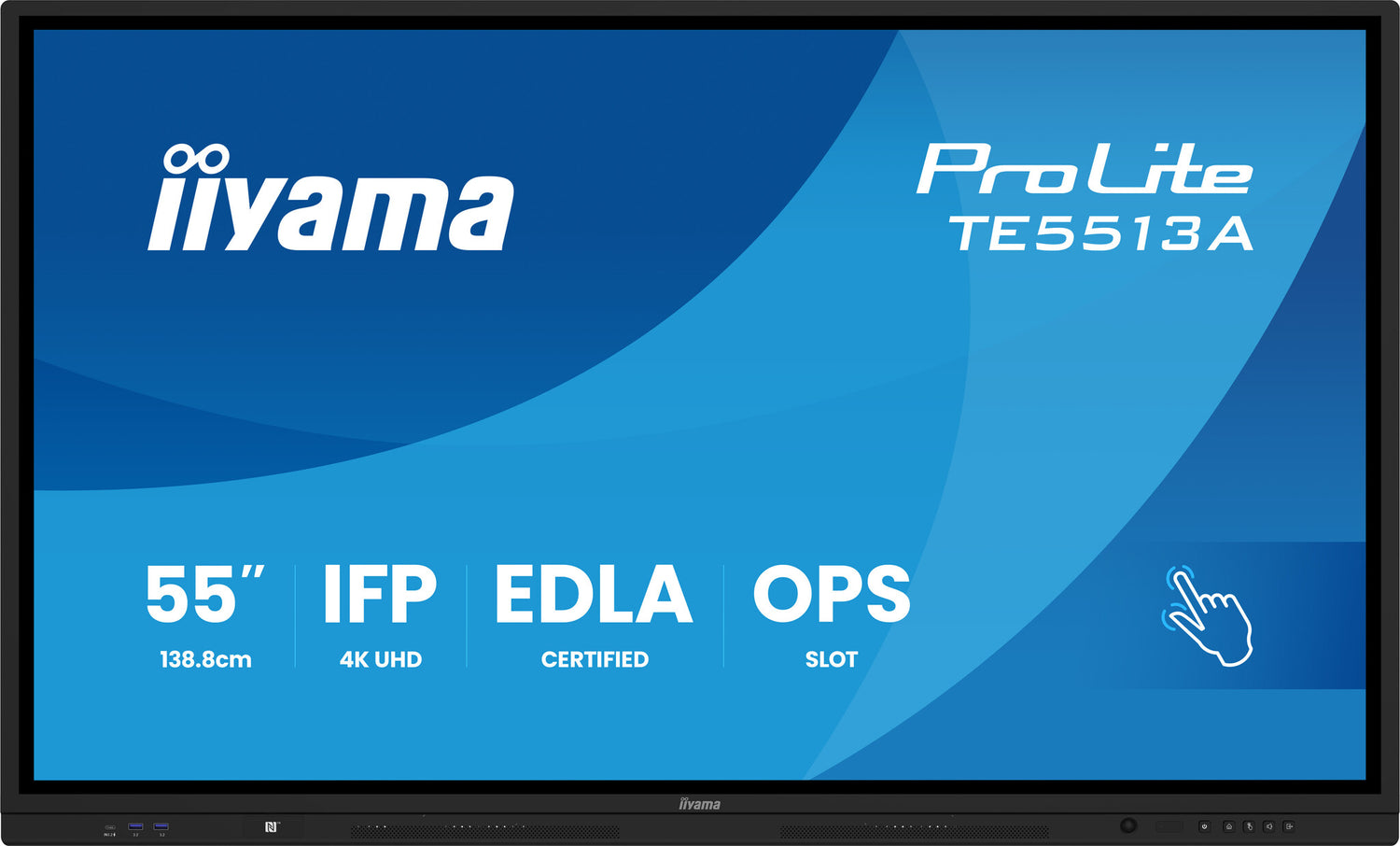

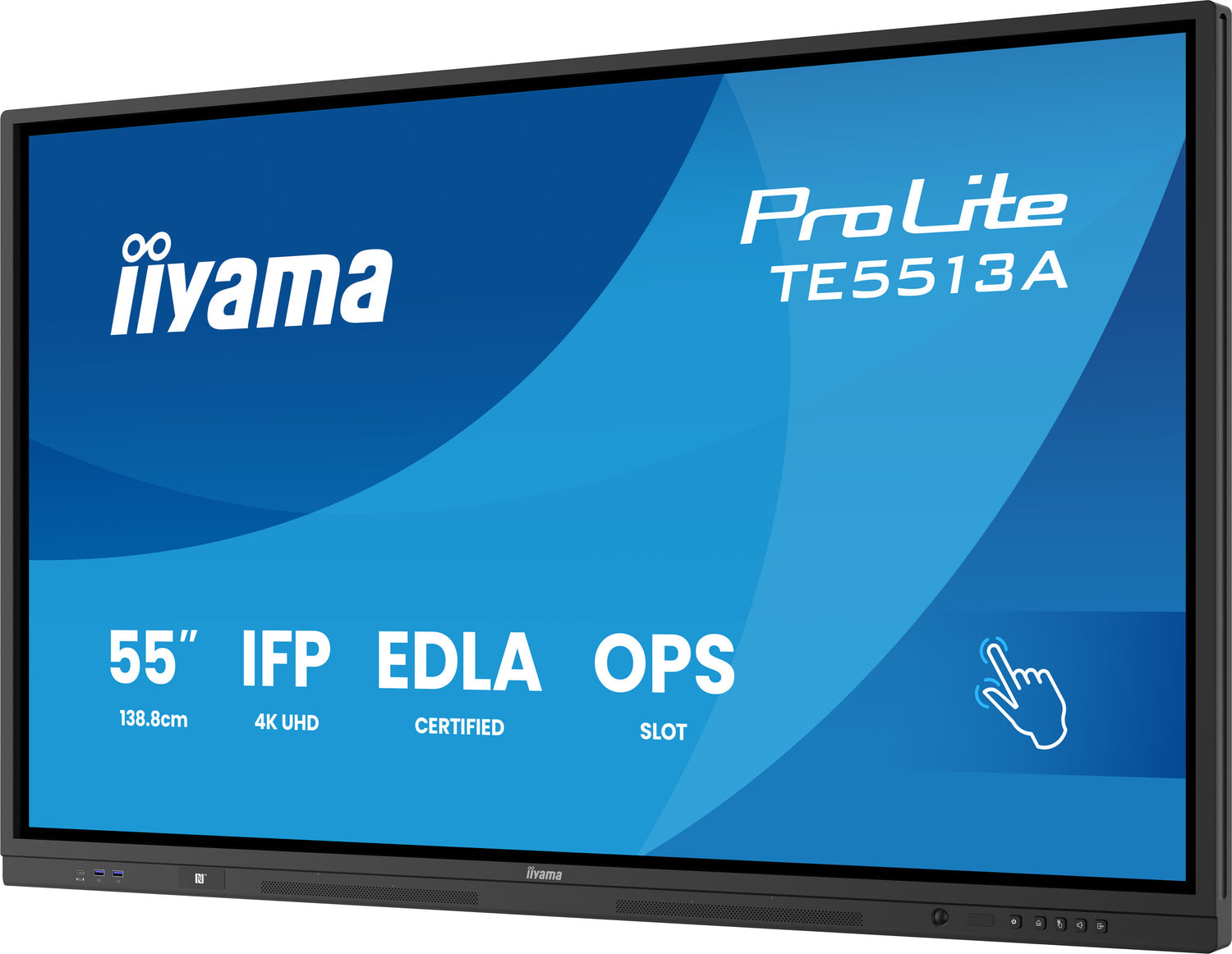

55" Google EDLA Certified IFP - Interactive display for seamless integration and collaboration in education and enterprise
The TE5513A-B2AG is a cutting-edge 4K UHD Google EDLA Certified interactive display that redefines performance and precision. Featuring a Zero-Gap Air Bonding LCD screen to eliminate parallax and with PureTouch-IR+ with Palm Rejection, it ensures smooth, accurate interaction. Powered by iiWare 21E with Android 14-EDLA, WiFi-6E with Bluetooth 5.0 connectivity, iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), it integrates seamlessly into your ecosystem. Enjoy added features like a PIR motion sensor for energy efficiency; perfect for workplaces and educational spaces, it fosters collaboration, communication, and progress.
Specifikationer
Specifikationer
| Display | |
|---|---|
| Display diagonal | 138.7 cm (54.6") |
| Panel type | IPS |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Touchscreen technology | PureTouch-IR |
| Number of simultaneous touchpoints | 40 |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.315 x 0.315 mm |
| Active display area (W x H) | 1209.6 x 680.4 mm |
| Display diagonal (metric) | 138.8 cm |
| Touch response time | 5 ms |
| Surface hardness | 7H |
| Glass thickness | 3.2 mm |
| Horizontal scan range | 30 - 135 kHz |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| USB port | Yes |
| USB ports quantity | 6 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-C, USB Type-A |
| USB 2.0 Type-B ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| RS-232C | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Audio Return Channel (ARC) | Yes |
| OPS module slot | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 60 W |
| Design | |
|---|---|
| Product design | Interactive flat panel |
| Product colour | Black |
| Placement supported | Indoor |
| Orientation | Horizontal |

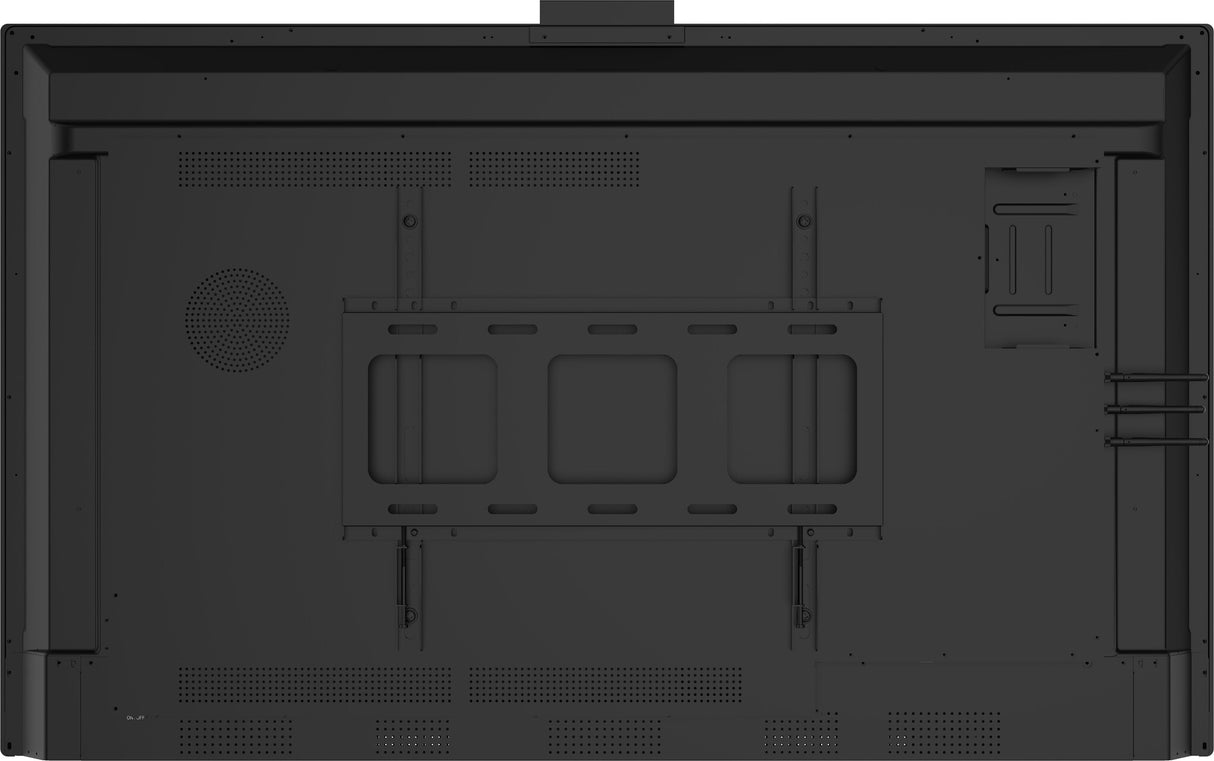

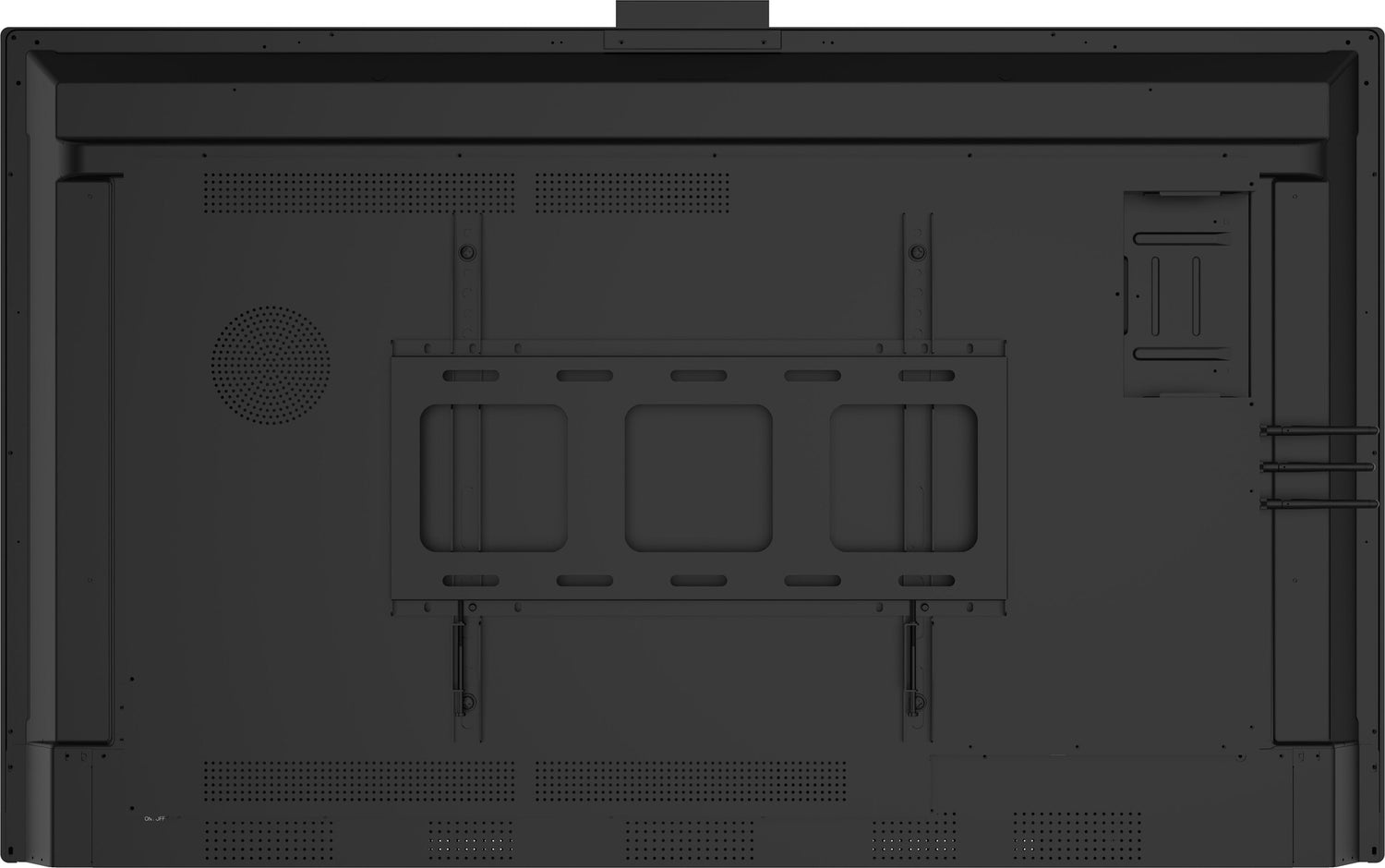

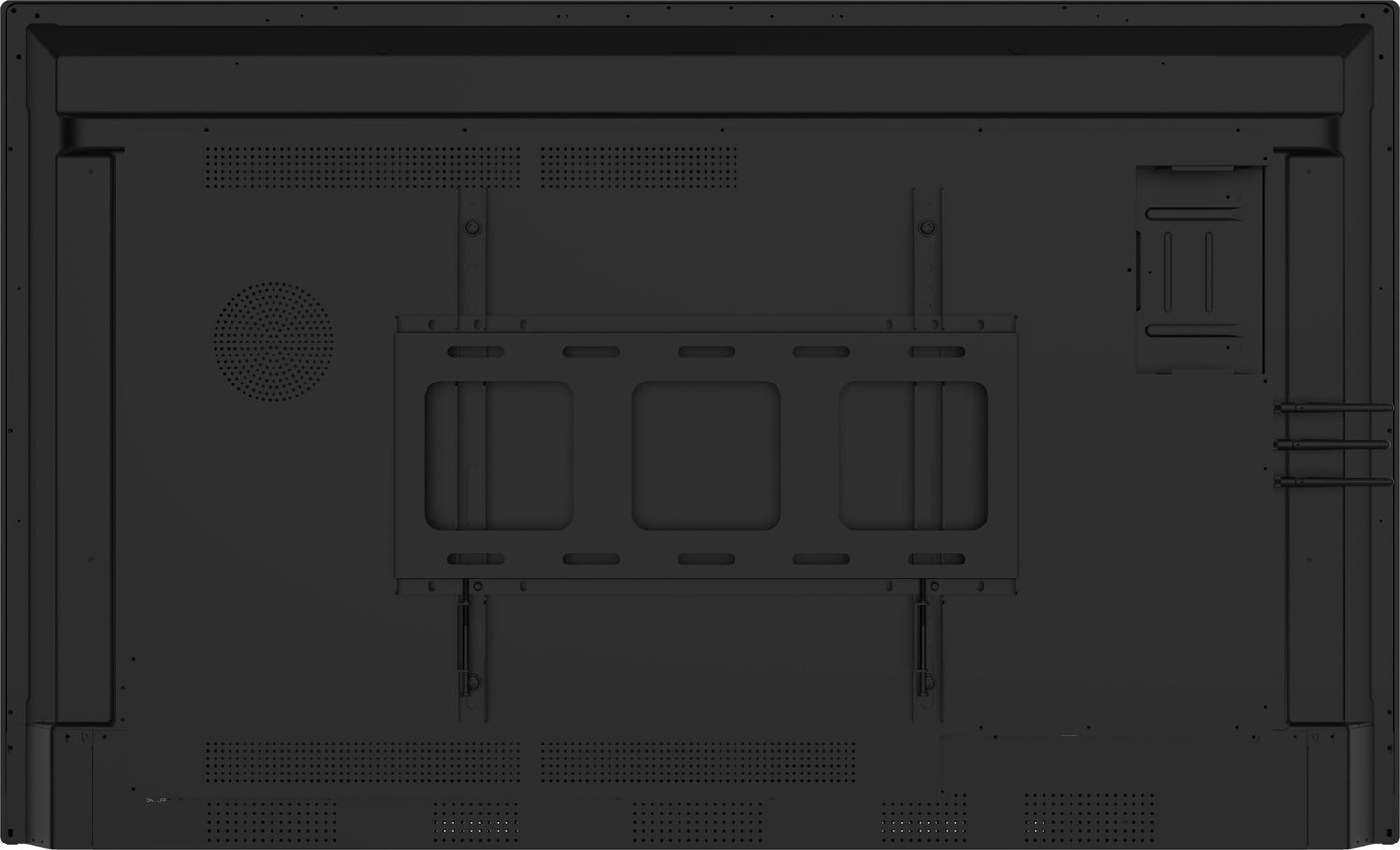

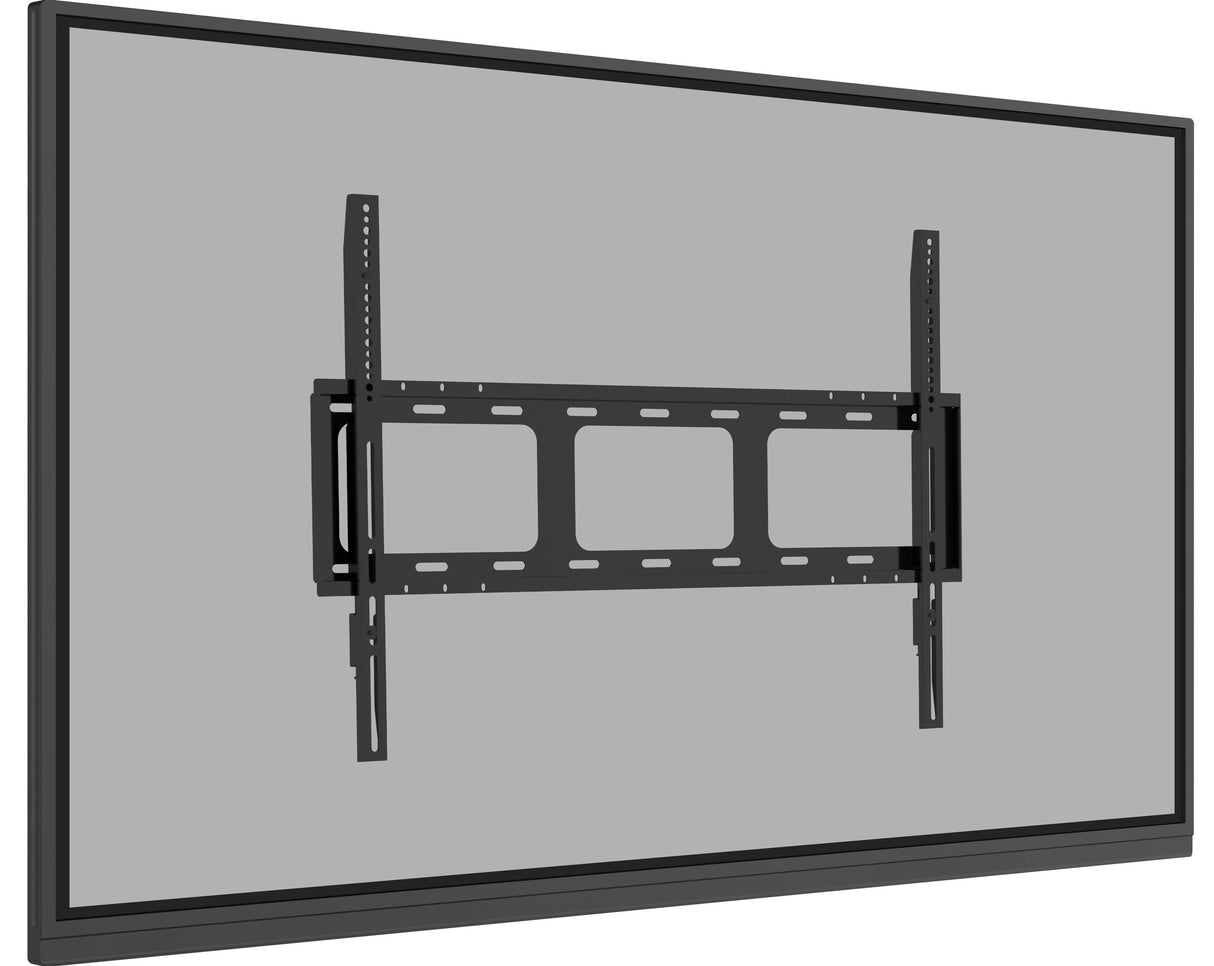

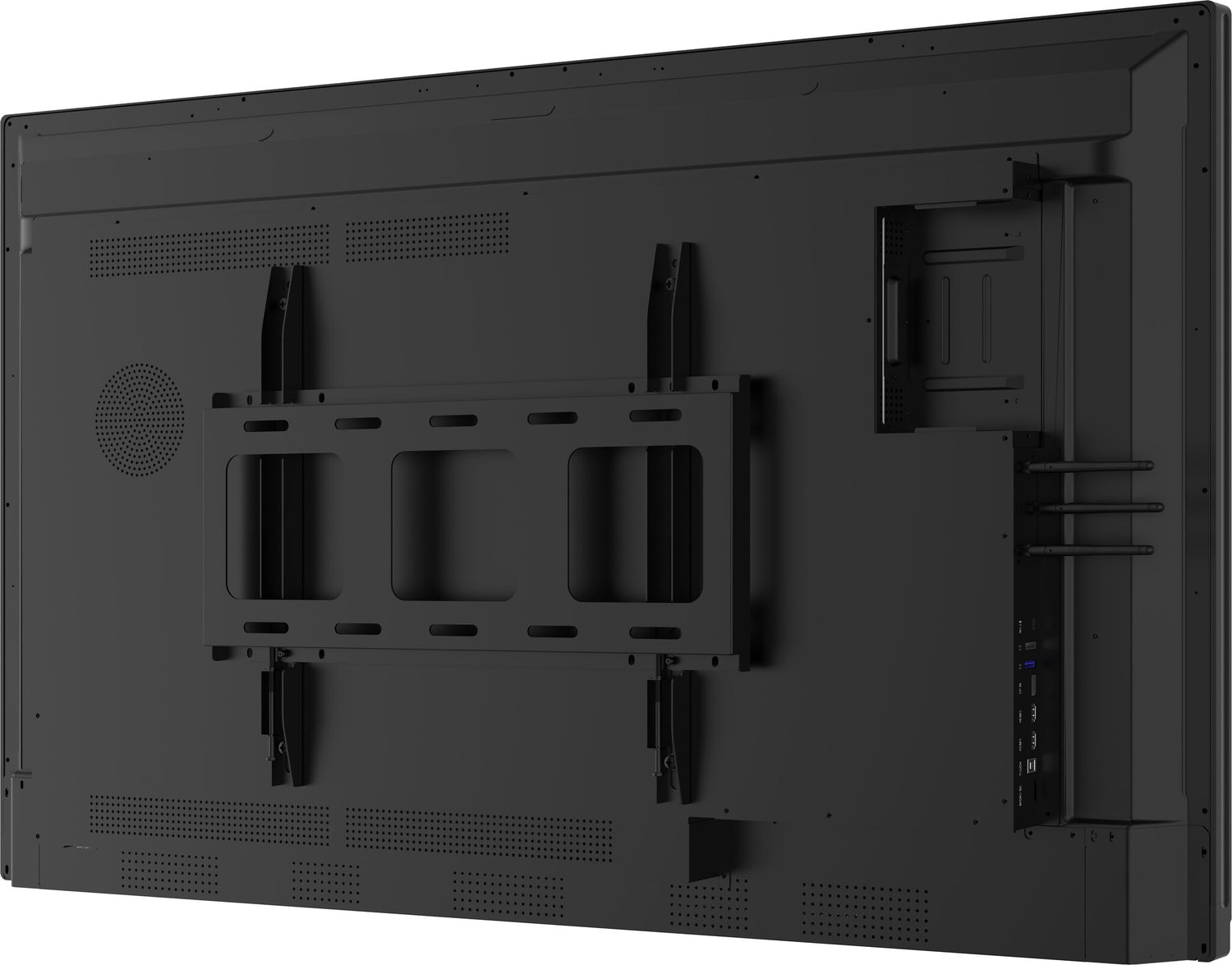

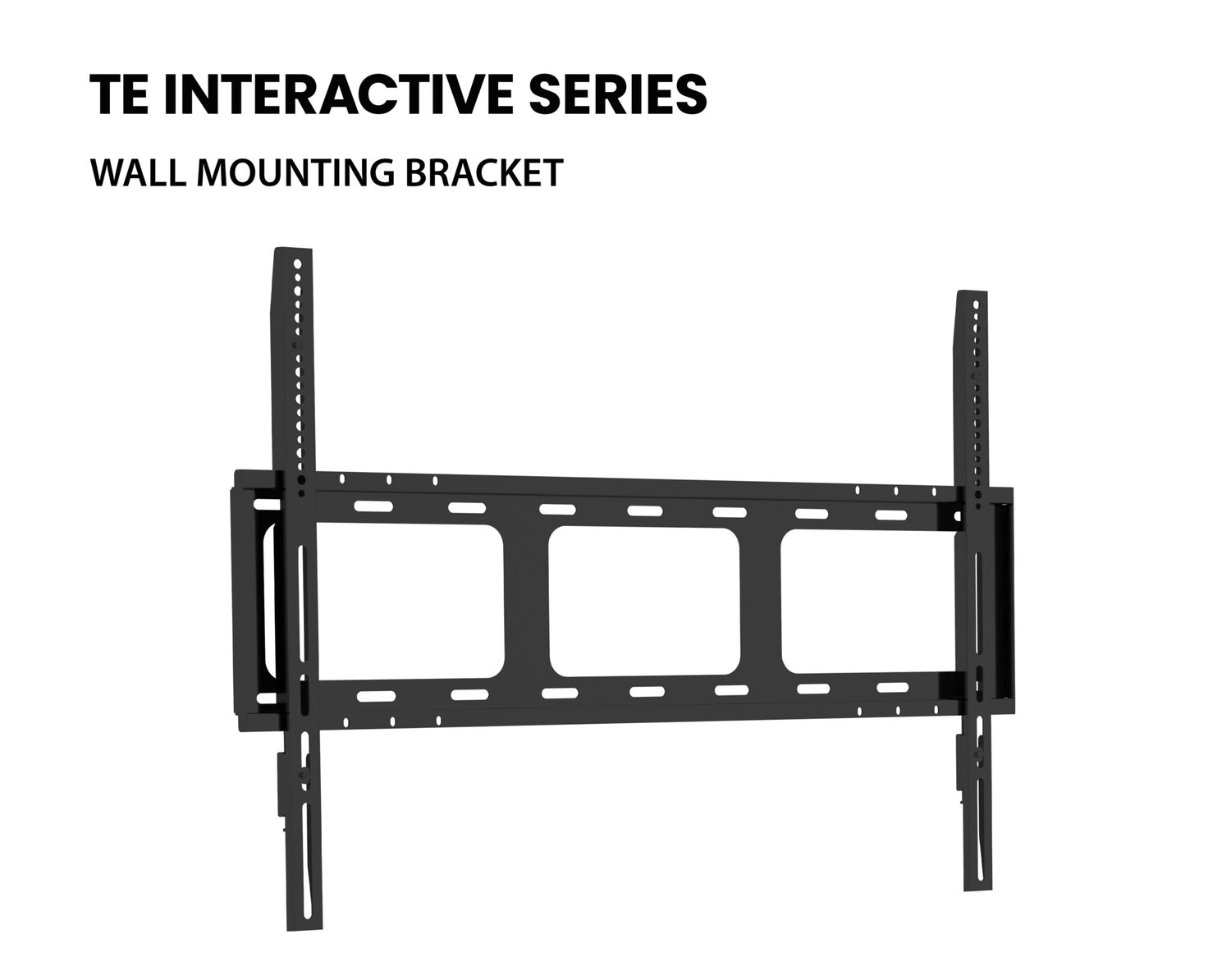

| VESA mounting | Yes |

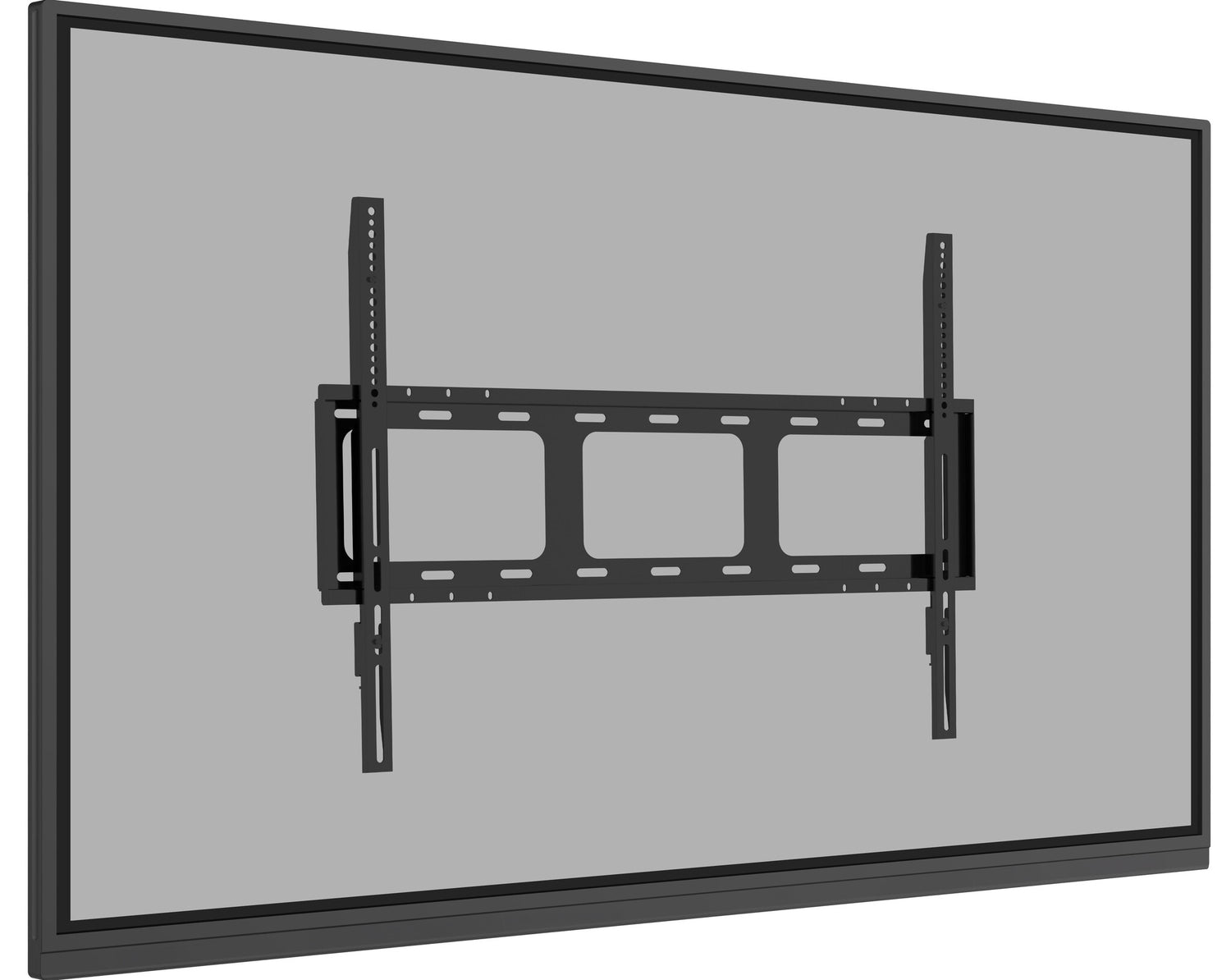

| Panel mounting interface | 400 x 400 mm |
| Bezel colour | Black |
| Positioning accuracy | 1 mm |
| Anti-glare screen | Yes |
| Performance | |
|---|---|
| Purpose | Education |
| On Screen Display (OSD) languages | CAT, Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, Lithuanian, LAT, Norwegian, Dutch, Polish, Russian, Swedish, Ukrainian |
| Number of OSD languages | 13 |
| On Screen Display (OSD) | Yes |
| Operating hours (hours/days) | 24/7 |
| HDCP version | 2.2 |
| HDCP | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
|---|---|
| Power consumption (typical) | 126 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 126 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Computer system | |
|---|---|
| Computer system | Yes |
| Built-in processor | Yes |
| Processor architecture | ARM Cortex-A53+Cortex-A72 |
| Internal memory | 8 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 128 GB |
| Operating system installed | Android |
| Operating system version | 14 |
| Weight & dimensions | |
|---|---|
| Display width | 1267 mm |
| Display depth | 117.5 mm |
| Display height | 765.5 mm |
| Display weight | 28.7 kg |
| Width | 1267 mm |
| Depth | 117.5 mm |
| Height | 765.5 mm |
| Weight | 28.7 kg |
| Packaging content | |
|---|---|
| Remote control included | Yes |

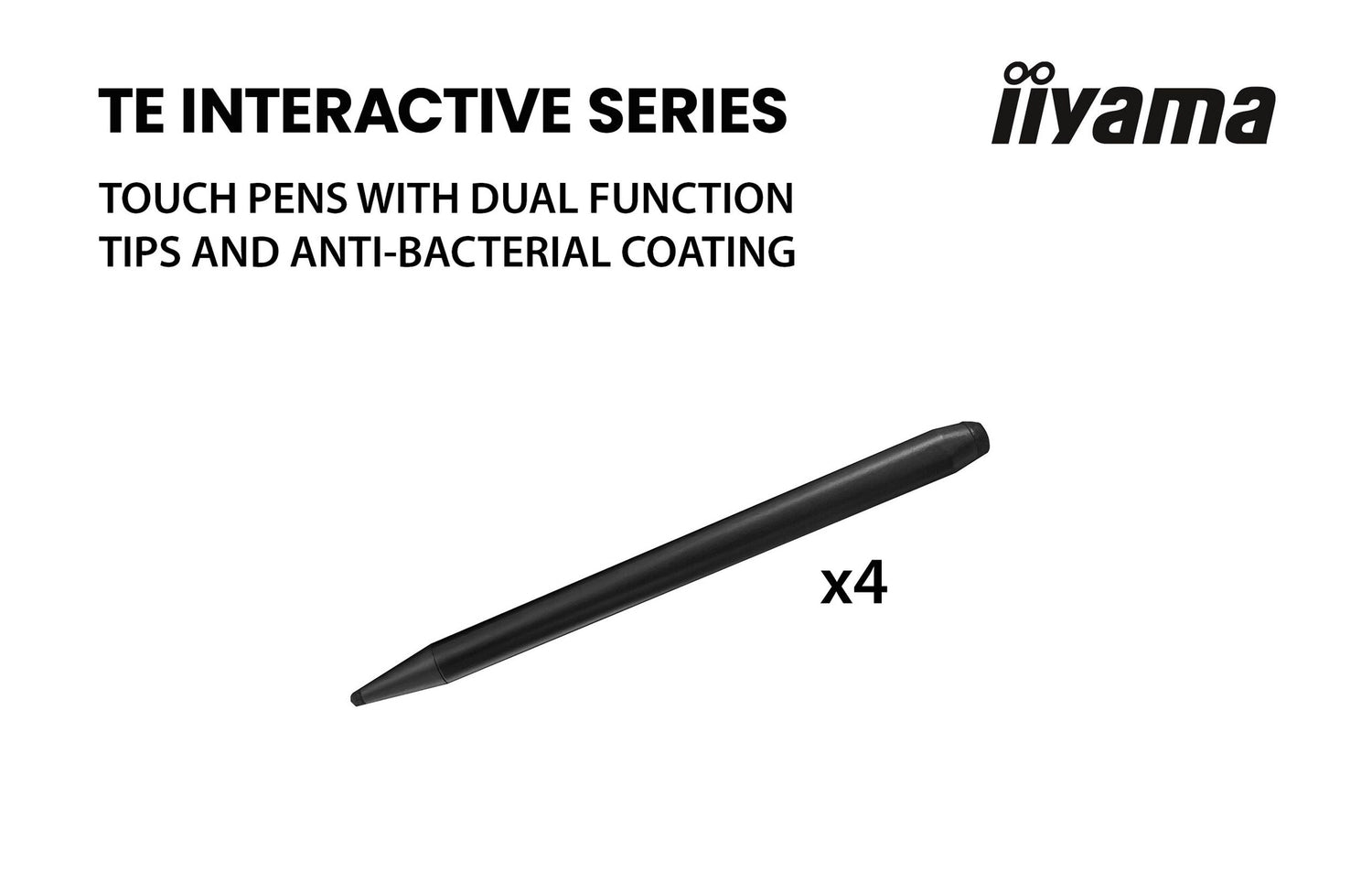

| Number of stylus pens | 4 |
| Stylus pen | Yes |
| Cables included | AC, USB, HDMI |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Technical details | |
|---|---|
| OPS slot | 1 |
| Warranty period | 5 year(s) |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE |
| Sustainability certificates | ErP |
| User controls | general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode colour temp), settings (wireless & networks, share, device, personal, system) |
| Playback media | Y |
| Audio in (mini jack) | Yes |
| Other features | |
|---|---|
| Brightness | 500 cd/m² |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Power supply type | Internal |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Quick start guide | Yes |
