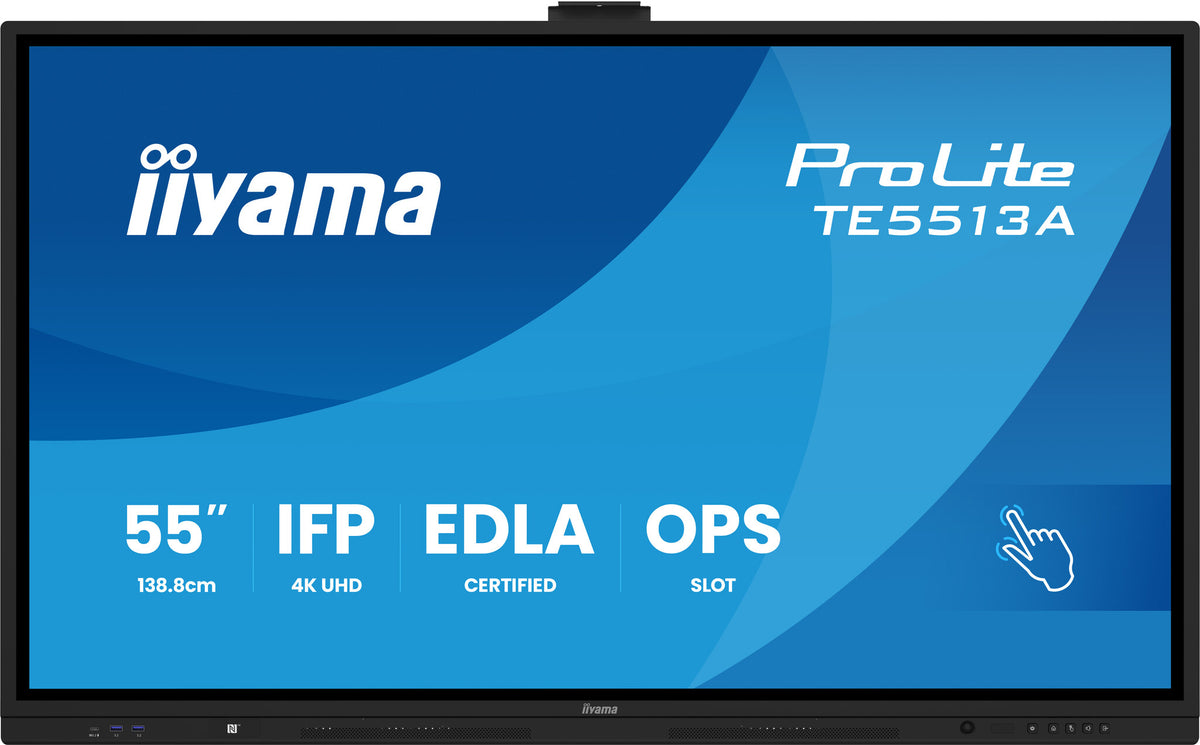

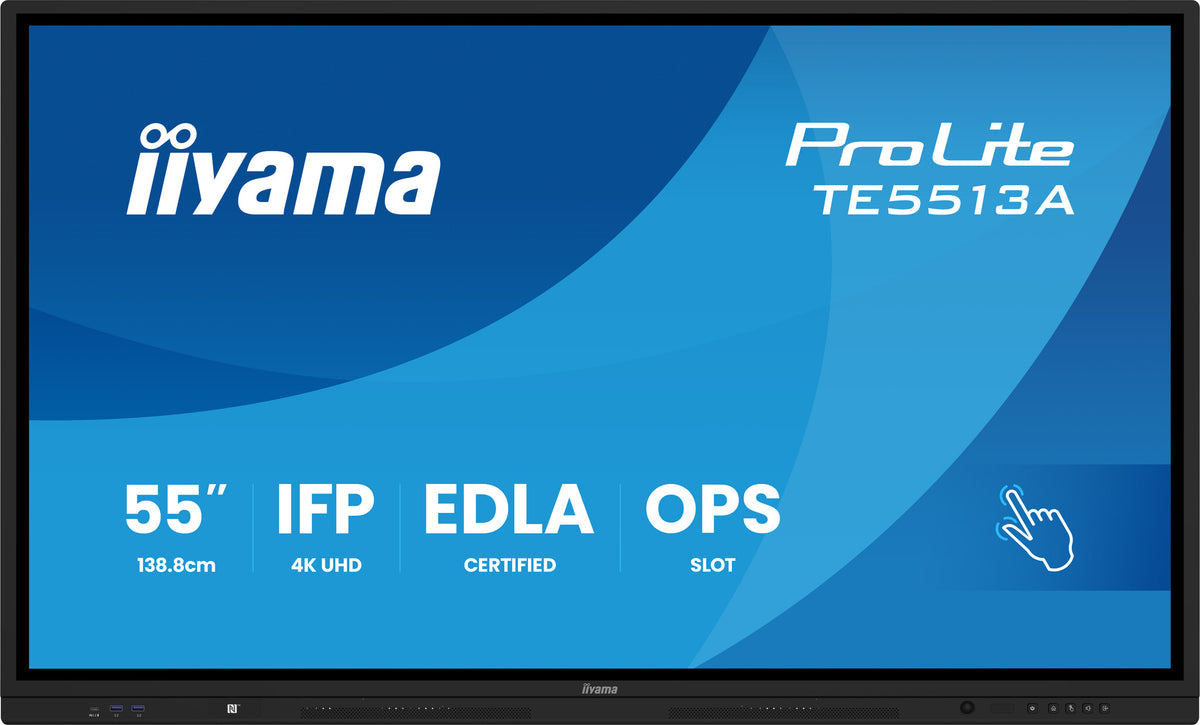

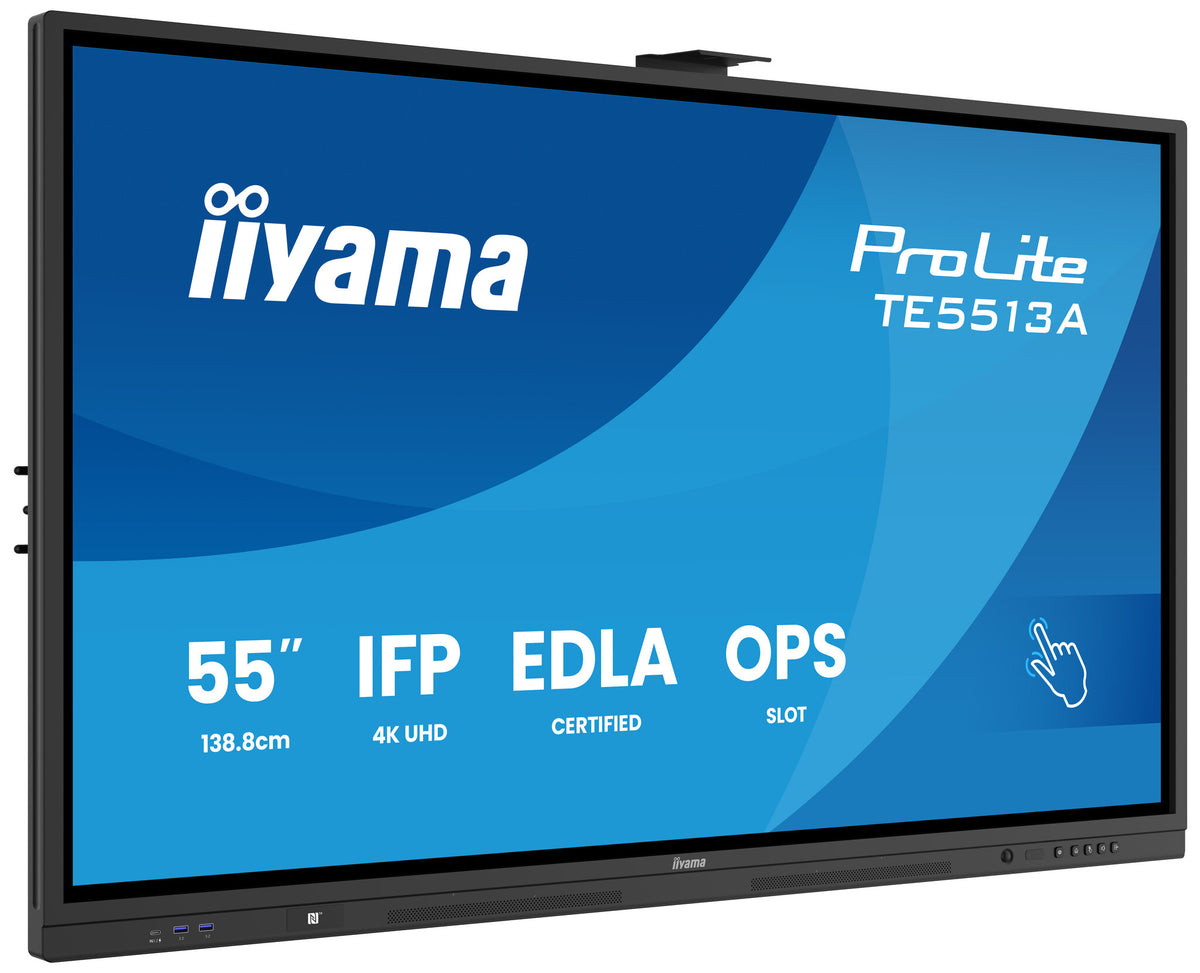

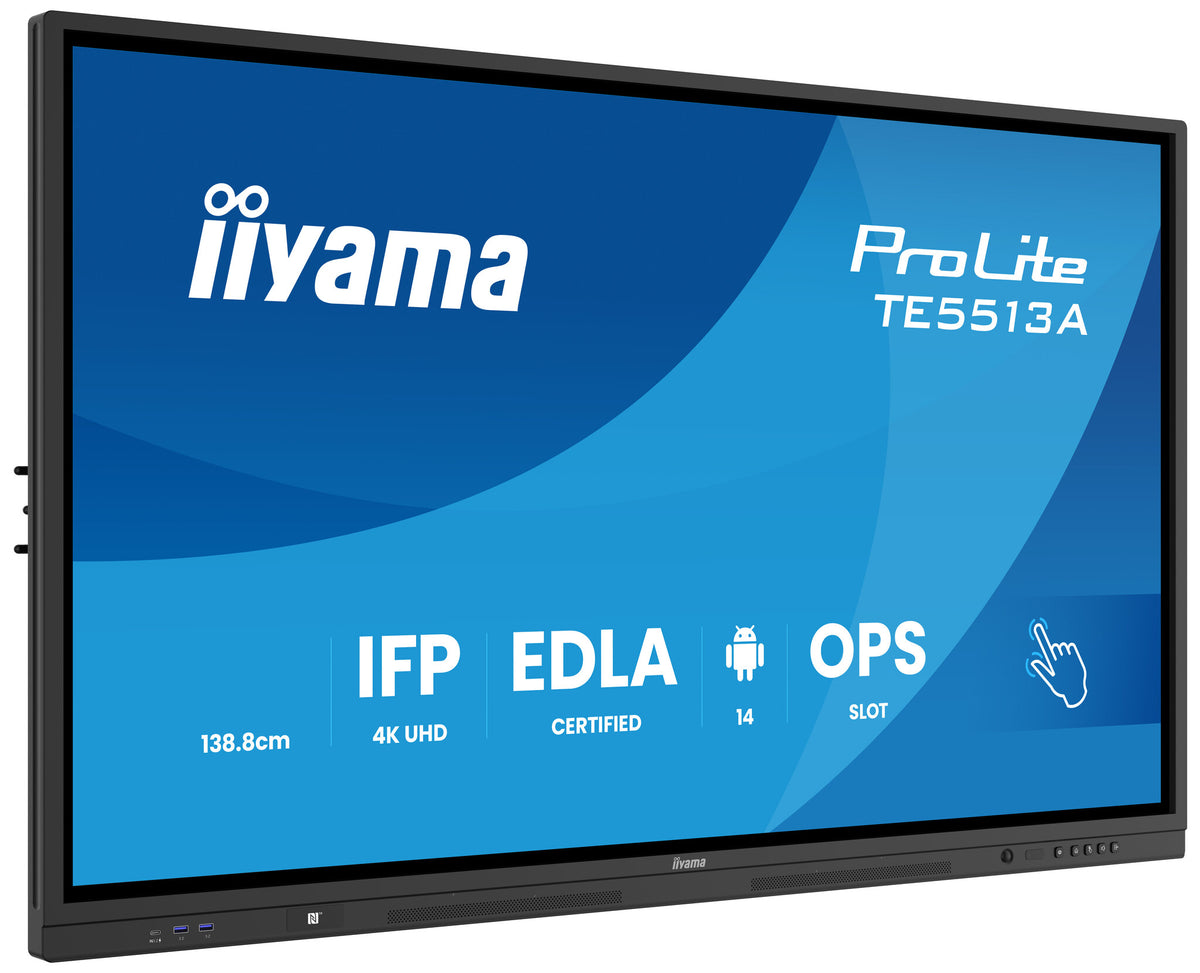

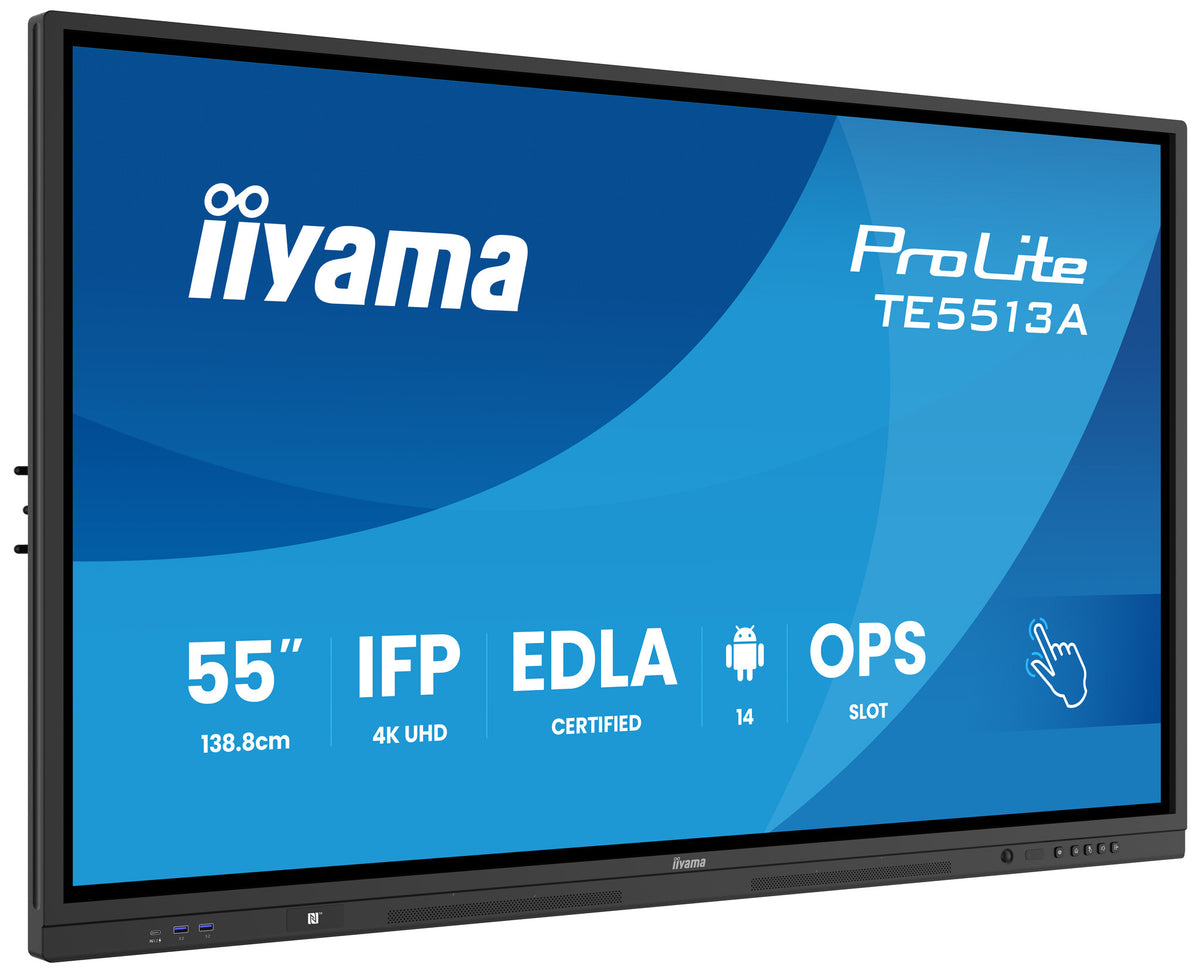

55" Google EDLA Certified IFP - Interactive display for seamless integration and collaboration in education and enterprise
The TE5513A-B3AG is a 4K UHD Google EDLA Certified interactive display that redefines performance and precision. Featuring a Zero-Gap Air Bonding LCD screen to eliminate parallax and with PureTouch-IR+ with Palm Rejection, it ensures smooth, accurate interaction. Powered by iiWare 21E with Android 14-EDLA, WiFi-6E with BT 5.0 connectivity, iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), it integrates seamlessly into your ecosystem. Enjoy added features like a PIR motion sensor for energy efficiency; perfect for workplaces and educational spaces, it fosters collaboration, communication, and progress.
| Display |
|---|
| Display diagonal |
138.7 cm (54.6") |
| Display technology |
LCD |
| Panel type |
IPS |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
500 cd/m² |
| HD type |
4K Ultra HD |
| Touchscreen |
Yes |
| Touchscreen technology |
PureTouch-IR |
| Number of simultaneous touchpoints |
40 |
| Multi-touch |
Yes |
| Native aspect ratio |
16:9 |
| Response time |
8 ms |
| Contrast ratio (typical) |
1200:1 |
| Viewing angle, vertical |
178° |
| Display number of colours |
1.07 billion colours |
| Pixel pitch |
0.315 x 0.315 mm |
| Active display area (W x H) |
1209.6 x 680.4 mm |
| Display diagonal (metric) |
138.8 cm |
| Colour saturation |
72% |
| Touch response time |
5 ms |
| Surface hardness |
7H |
| Glass thickness |
3.2 mm |
| Native refresh rate |
60 Hz |
| Horizontal scan range |
30 - 135 kHz |
| Ports & interfaces |
|---|
| HDMI ports quantity |
3 |
| HDMI version |
2.0 |
| HDMI input ports quantity |
1 |
| HDMI output ports quantity |
1 |
| Consumer Electronics Control (CEC) |
Yes |
| DVI port |
No |
| DisplayPorts quantity |
1 |
| DisplayPort version |
1.2 |
| USB port |
Yes |
| USB ports quantity |
6 |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
100 W |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
2 |
| Ethernet LAN data rates |
1000 Mbit/s |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| RS-232 interface |
Yes |
| RS-232C |
Yes |
| Audio Return Channel (ARC) |
Yes |
| OPS module slot |
Yes |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
2 |
| RMS rated power |
60 W |
| Design |
|---|
| Product design |
Interactive flat panel |
| Product colour |
Black |
| Placement supported |
Indoor |
| Orientation |
Horizontal |
| VESA mounting |
Yes |
| Panel mounting interface |
400 x 400 mm |
| Bezel width (bottom) |
4.67 cm |
| Bezel width (side) |
1.67 cm |
| Bezel width (top) |
1.41 cm |
| Bezel colour |
Black |
| Anti-glare screen |
Yes |
| Performance |
|---|
| Purpose |
Commercial |
| On Screen Display (OSD) languages |
CAT, Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, Lithuanian, LAT, Norwegian, Dutch, Polish, Russian, Swedish, Ukrainian |
| On Screen Display (OSD) |
Yes |
| Operating hours (hours/days) |
24/7 |
| HDCP version |
2.2 |
| HDCP |
Yes |
| Mean time between failures (MTBF) |
50000 h |
| Power |
|---|
| Power consumption (typical) |
126 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (off) |
0.3 W |
| Energy efficiency class (SDR) |
G |
| Energy efficiency class (HDR) |
Not available |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Computer system |
|---|
| Computer system |
Yes |
| Computer system type |
System on Chip (SoC) |
| Built-in processor |
Yes |
| Processor manufacturer |
Rockchip |
| Processor family |
ARM Rockchip |
| Processor architecture |
ARM Cortex-A53+Cortex-A72 |
| Processor model |
RK3576 |
| Processor cores |
8 |
| Internal memory |
6 GB |
| On-board graphics card model |
ARM Mali-G52 |
| Internal storage capacity |
128 GB |
| Operating system installed |
Android |
| Operating system version |
14 |
| Weight & dimensions |
|---|
| Display width |
1267 mm |
| Display depth |
117.5 mm |
| Display height |
765.5 mm |
| Display weight |
28.7 kg |
| Width |
1267 mm |
| Depth |
117.5 mm |
| Height |
765.5 mm |
| Weight |
28.7 kg |
| Packaging data |
|---|
| Package width |
1385 mm |
| Package depth |
185 mm |
| Package height |
865 mm |
| Package weight |
34.8 kg |
| Packaging content |
|---|
| Remote control included |
Yes |
| Number of stylus pens |
4 |
| Stylus pen |
Yes |
| Cables included |
AC, USB, HDMI |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Logistics data |
|---|
| Products per pallet |
6 pc(s) |
| Technical details |
|---|
| OPS slot |
1 |
| Warranty period |
5 year(s) |
| Compliance certificates |
CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE |
| Sustainability certificates |
ErP |
| User controls |
general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, display mode colour temp), settings (wireless & networks, share, device, personal, system) |
| Playback media |
Y |
| Audio in (mini jack) |
Yes |
| Other features |
|---|
| Brightness |
500 cd/m² |
| Compatible operating systems |
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Power supply type |
Internal |
| Bluetooth version |
5.0 |
| Quick start guide |
Yes |
