86", 3840x2160, 16:9, 400 cd/m², 1400:1, 6.5ms, VA DLED, HDMI, DP, VGA, USB-C, RS-232C, RJ-45, RMS 2x 16W, Android 14

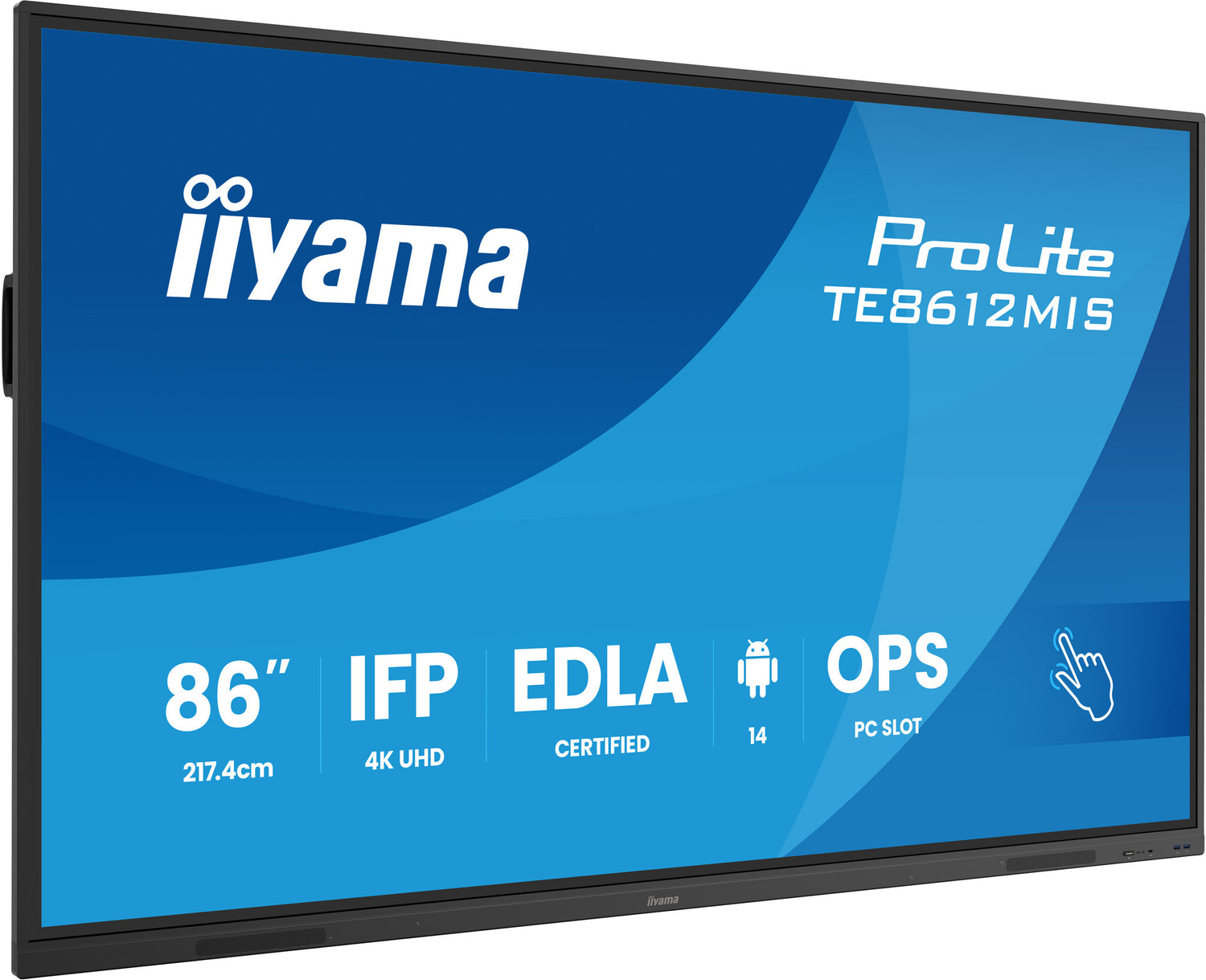

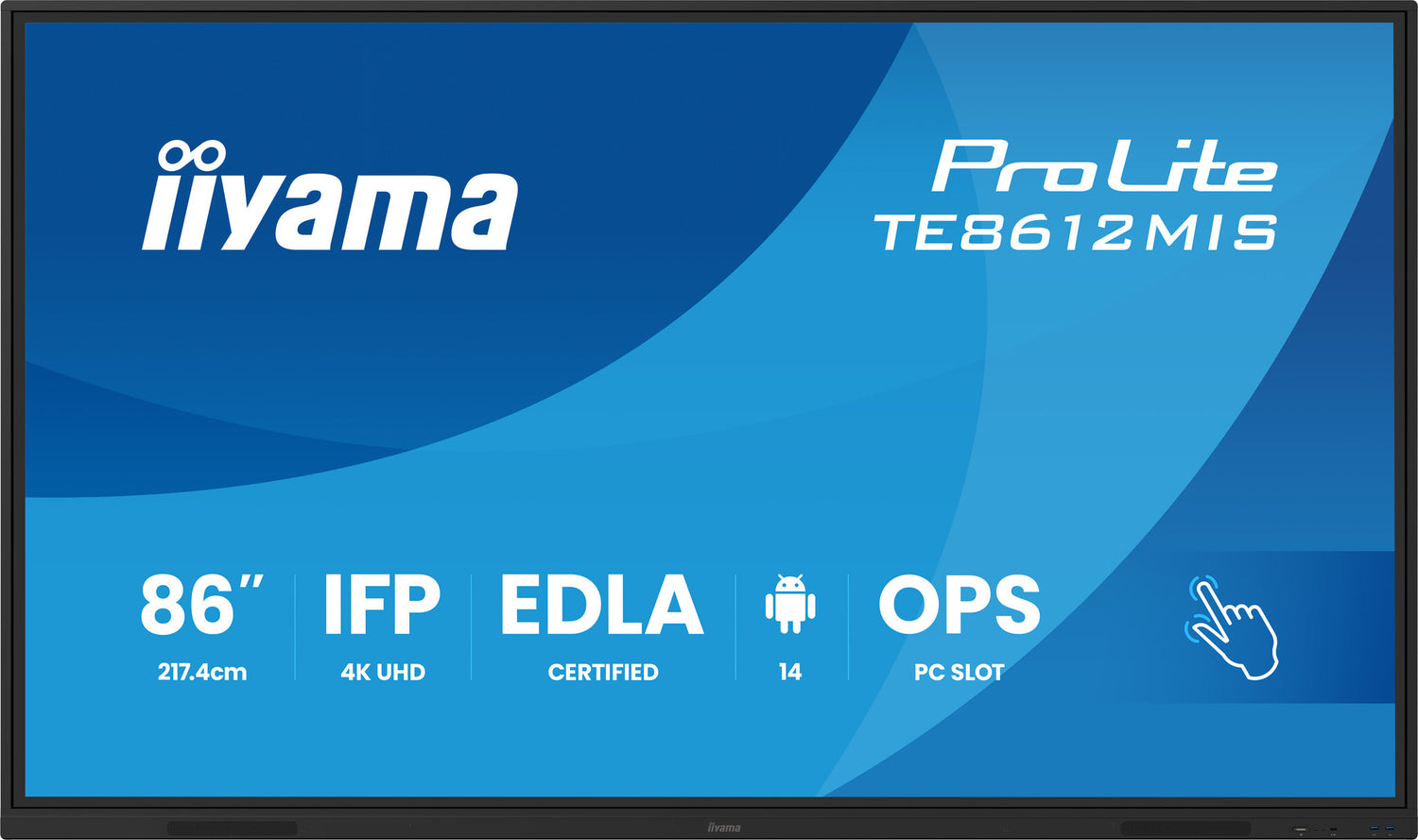

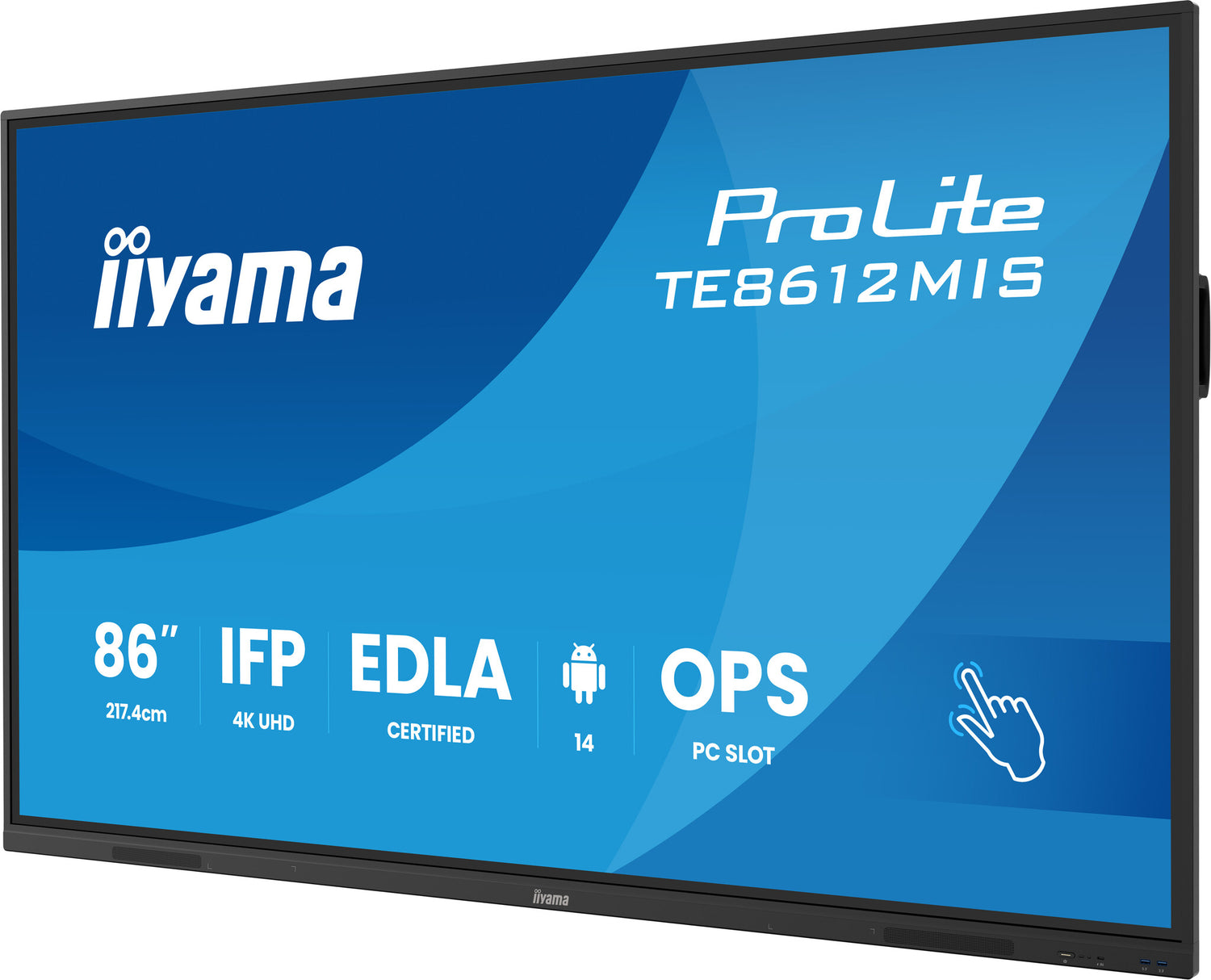

The TE8612MIS-B4AG is an exceptional 4K UHD interactive display designed by iiyama to enhance collaboration, communication, and engagement. With key features like Zero Airgap LCD DLED screen eliminating parallax, accurate PureTouch-IR, iiWare 13E with Android 14, WiFi and the iiyama DMS (Device management System), this display transforms the way you engage with content, making it an indispensable tool for modern workspaces and educational settings.
Boasting a new 4K Interface with User Profiles for simple login and access to your very own bespoke application and Cloud Drives or harmonize with your existing estate and unleash the true power of Windows and Office applications. iiyama TE8612MIS-B4AG becomes a highly personalised & flexible device within a busy hybrid environment for multiple users.
Share wirelessly more easily than ever before with iiyama Share and EShare app, bringing effortless ideation and efficient collaboration in your enterprise or school. This affordable display transforms the modern workplaces, educational institutions, dynamic meeting spaces and beyond. Elevate your interactive experience with the iiyama TE12 SERIES displays and embrace the future of visual communication.
Google EDLA Certified
Google Enterprise Device License Agreement allows Google apps, accounts, files, and collaborative tools to be easily accessed directly from the Google EDLA certified iiyama displays, offering seamless integration with the Google ecosystem and the entire Microsoft 386 suite for enhanced user experience, productivity, and collaboration in all environments, especially the education and enterprise sectors alike.
iiyama DMS
iiyama DMS provides organizations with a convenient and fast unified management solution for terminal equipment, builds an efficient and real-time equipment management system, helps digitize the campus/office estate environment and makes device management ultra convenient. iiyama DMS is committed to maintaining compliance with GDPR.
iiyama Share
Connect up to 9 devices and easily share, stream and edit content from your device to your interactive display and vice versa, back to your laptop, tablet or phone. iiyama Share supports AirPlay, Chromecast and Miracast.
iiWare 13E
Empower your presentations with iiWare 13E, featuring Google EDLA, iiyama DMS, iiyama Share, Note, Browser, Cloud Drive via an intuitive and user-friendly software that allows you to effortlessly manage, customize, and access various applications with ease.
PureTouch-IR
Delivers 1mm Touch accuracy for the smoothest and fastest annotation with 40pt infrared Touch technology.
Multi-Window Mode
You can easily read and control your content when standing in front of your audience. Simply can drag and drop information between the apps. The windows are flexible, easy-to-use, designed specifically for large screen presentation and education.
Built-in speakers
The built-in front-facing speakers support conferencing configurations.
Standalone Solution
Unlock all of the security and flexibility of Windows IoT with the optional OPS Slot PC.
USB-C Connection
Delivers the latest in video, audio and Touch signal, all through one port and even charges your device with 86W power delivery.
| Display |
|---|
| Horizontal scan range |
30 - 135 kHz |
| Display diagonal (metric) |
217.4 cm |
| Active display area (W x H) |
1895 x 1066 mm |
| Pixel pitch |
0.493 x 0.493 mm |
| Display number of colours |
1.07 billion colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (dynamic) |
4000:1 |
| Contrast ratio (typical) |
1200:1 |
| Response time |
6.5 ms |
| Native aspect ratio |
16:9 |
| Multi-touch |
Yes |
| Number of simultaneous touchpoints |
40 |
| Touchscreen technology |
Infrared |
| Touchscreen |
Yes |
| HD type |
4K Ultra HD |
| Display brightness |
400 cd/m² |
| Display resolution |
3840 x 2160 pixels |
| LED backlighting type |
Direct-LED |
| Panel type |
VA |
| LED backlight |
Yes |
| Display technology |
LCD |
| Display diagonal |
165.1 cm (65") |
| Ports & interfaces |
|---|
| Compatible memory cards |
MicroSD (TransFlash) |
| Card reader integrated |
Yes |
| Remote (IR) input |
1 |
| RS-232C |
Yes |
| PC Audio in |
Yes |
| Wi-Fi |
Yes |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Ethernet LAN (RJ-45) ports |
2 |
| Ethernet LAN |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB connector type |
USB Type-A, USB Type-C |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity |
5 |
| USB port |
Yes |
| DisplayPort version |
1.2 |
| DisplayPorts in |
1 |
| DisplayPorts quantity |
1 |
| VGA (D-Sub) input ports |
1 |
| HDMI output ports quantity |
1 |
| HDMI input ports quantity |
2 |
| HDMI version |
2.0 |
| HDMI ports quantity |
3 |
| Audio |
|---|
| RMS rated power |
32 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Mounting type |
Wall |
| Anti-glare screen |
Yes |
| Bezel colour |
Black |
| Bezel width (top) |
1.65 cm |
| Bezel width (side) |
1.65 cm |
| Bezel width (bottom) |
4.5 cm |

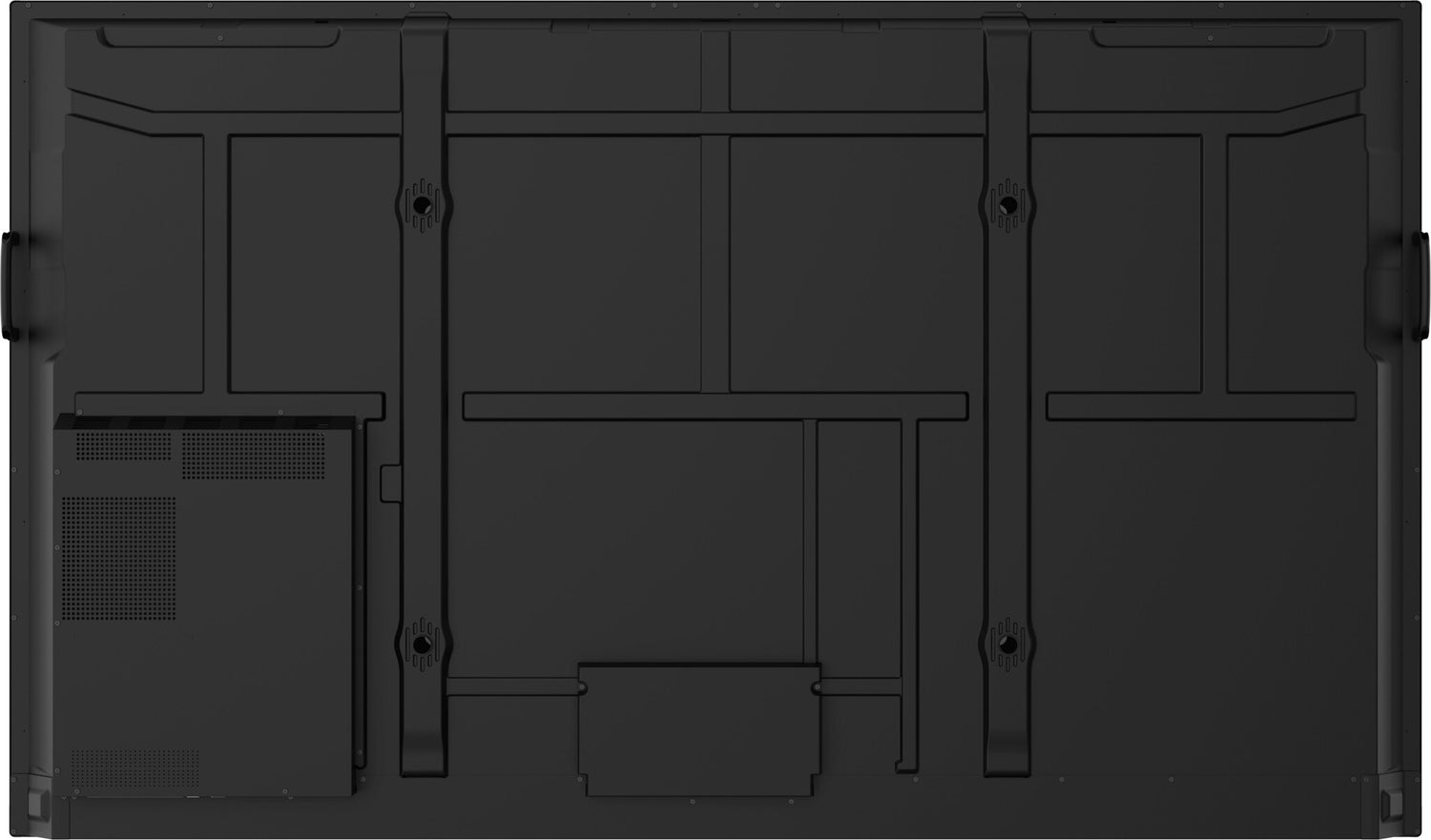

| Panel mounting interface |
800 x 600 mm |
| VESA mounting |
Yes |
| Orientation |
Horizontal |
| Placement supported |
Indoor |
| Product colour |
Black |
| Product design |
Digital signage flat panel |
| Performance |
|---|
| Mean time between failures (MTBF) |
50000 h |
| HDCP |
Yes |
| HDCP version |
2.2 |
| Operating hours (hours/days) |
24/7 |
| On Screen Display (OSD) |
Yes |
| Number of OSD languages |
14 |
| On Screen Display (OSD) languages |
Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Polish, Russian, Swedish |
| Purpose |
Universal |
| Power |
|---|
| Energy efficiency scale |
A to G |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Energy consumption (SDR) per 1000 hours |
181 kWh |
| Energy efficiency class (SDR) |
G |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
181 W |
| Computer system |
|---|
| Operating system installed |
Android 11 |
| Internal storage capacity |
128 GB |
| On-board graphics card model |
ARM Mali-G52 |
| Internal memory |
8 GB |
| Processor architecture |
ARM Cortex-A53+Cortex-A73 |
| Processor family |
ARM Cortex |
| Processor manufacturer |
ARM |
| Built-in processor |
Yes |
| Computer system |
Yes |
| Weight & dimensions |
|---|
| Display weight |
28.5 kg |
| Display height |
897 mm |
| Display depth |
98 mm |
| Display width |
1488 mm |
| Packaging data |
|---|
| Package weight |
37 kg |
| Package height |
1014 mm |
| Package depth |
185 mm |
| Package width |
1628 mm |
| Packaging content |
|---|
| Cables included |

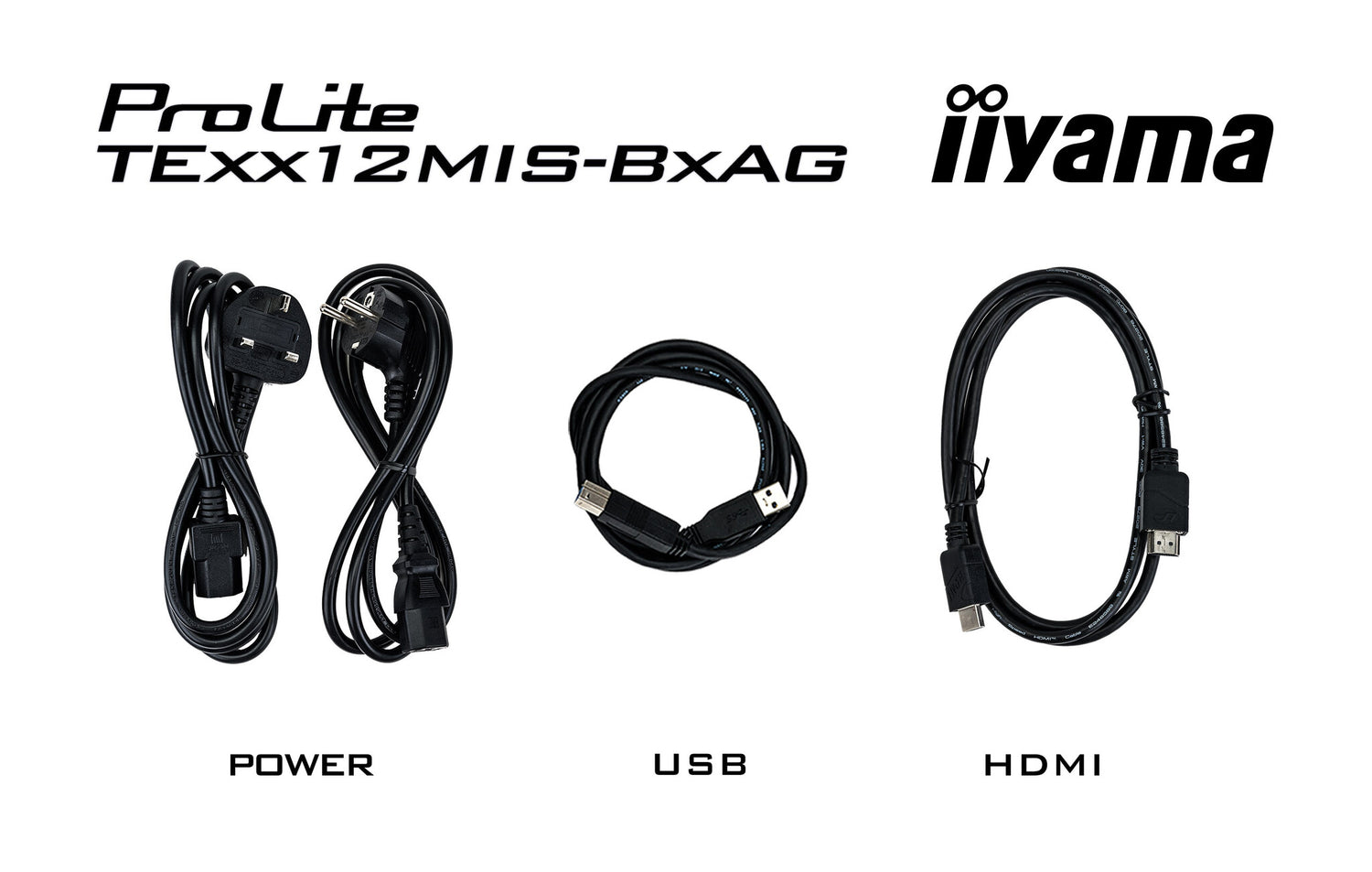

AC, HDMI, RS-232 |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Certification |
CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH |
| Technical details |
|---|
| Warranty period |
5 year(s) |
| Compliance certificates |
RoHS |
| Other features |
|---|
| Plug and Play |
Yes |
| Headphone connectivity |
3.5 mm |
| Headphone outputs |
1 |
| Quick start guide |
Yes |
| Audio output |
3.5mm |
| Housing material |
Metal |
