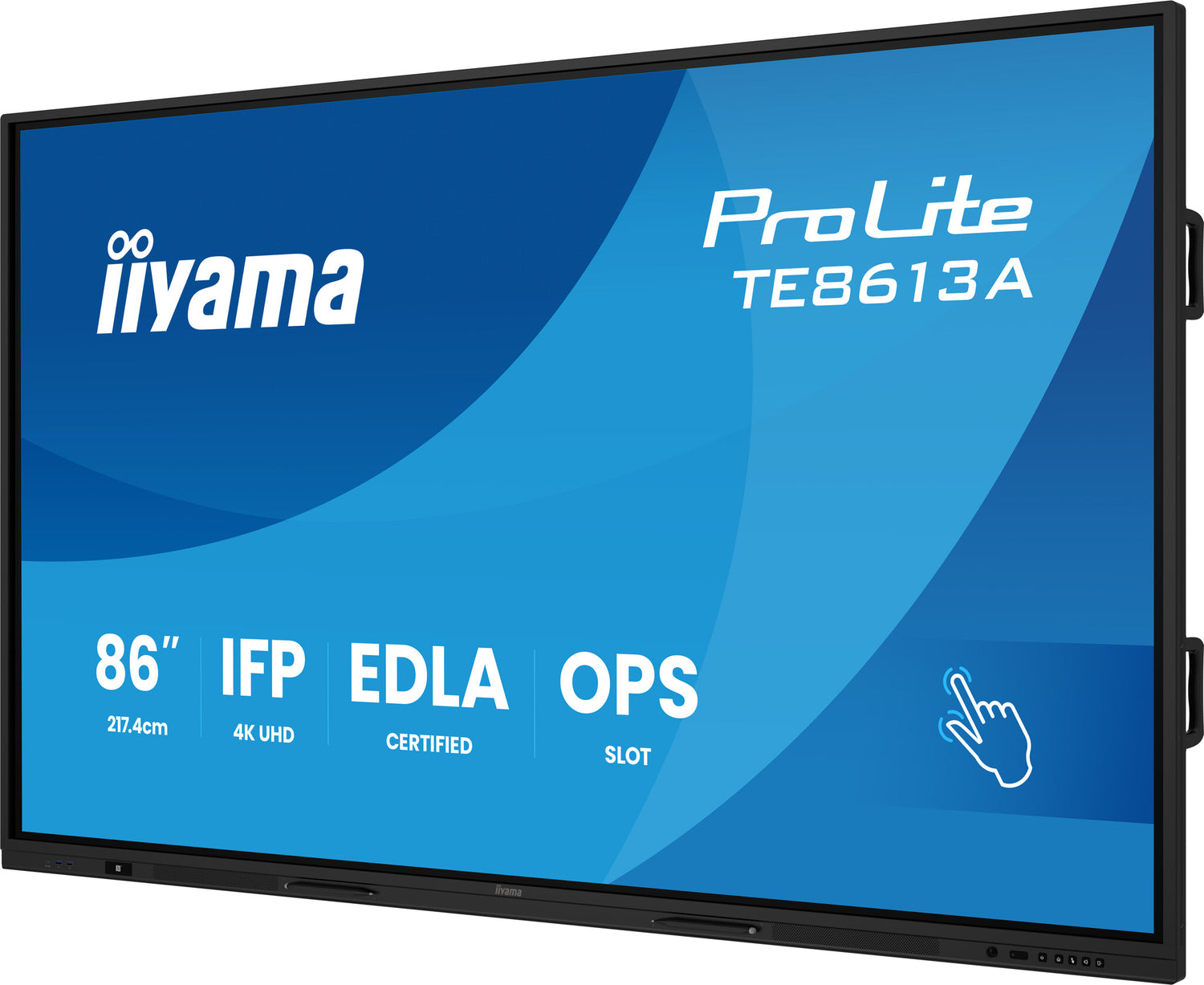

iiyama TE8613A-B2AG Signage Display Kiosk design 2.17 m (85.6") Wi-Fi 500 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 24/7

Name: iiyama TE8613A-B2AG Signage Display Kiosk design 2.17 m (85.6") Wi-Fi 500 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 24/7
Brand: iiyama
SKU: TE8613A-B2AG
Price: 25147.73 DKK
Availability: InStock

iiyama | Varenummer: TE8613A-B2AG

Stregkode: 4948570125753

Log ind for at se priser Anmod om login

Beskrivelse

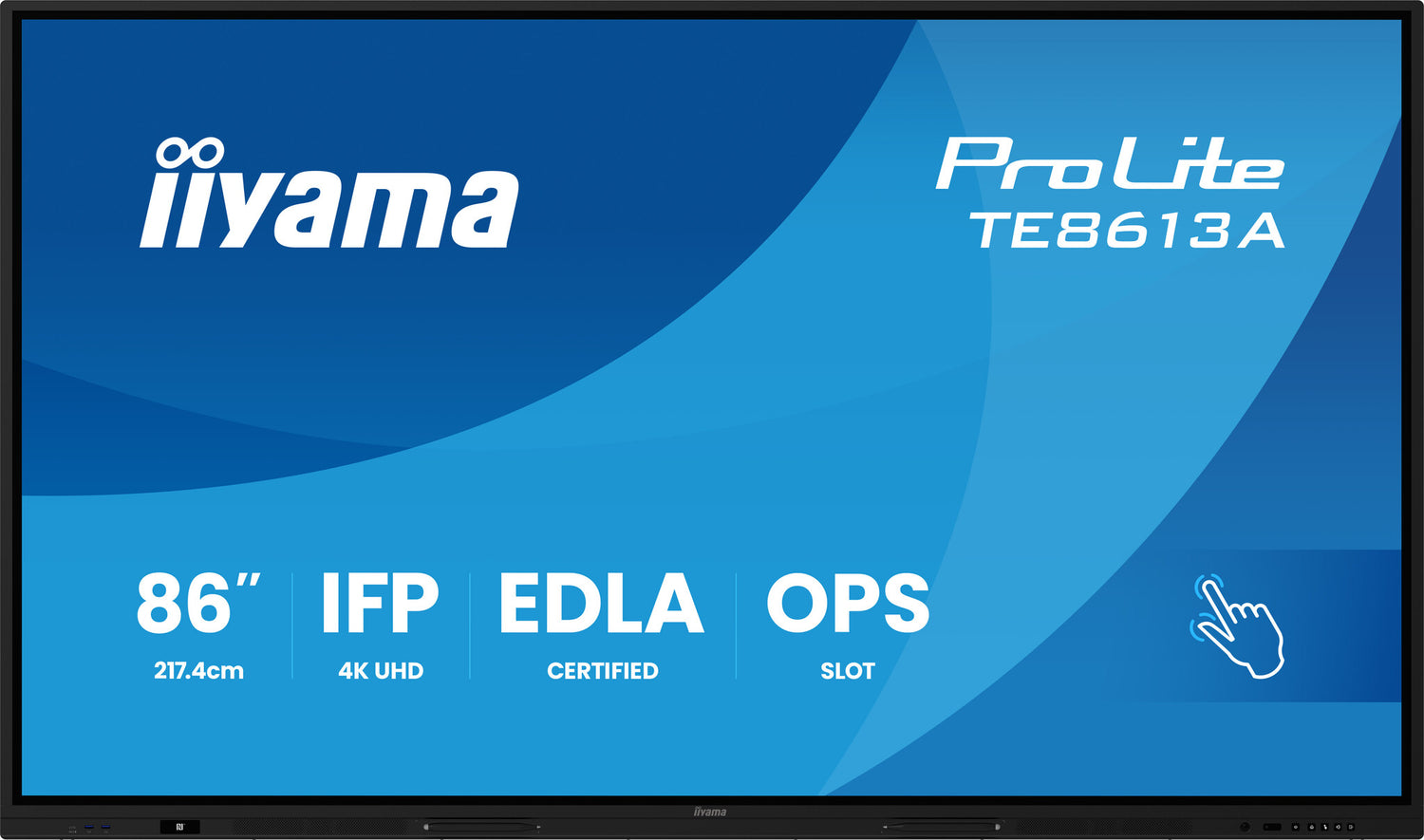

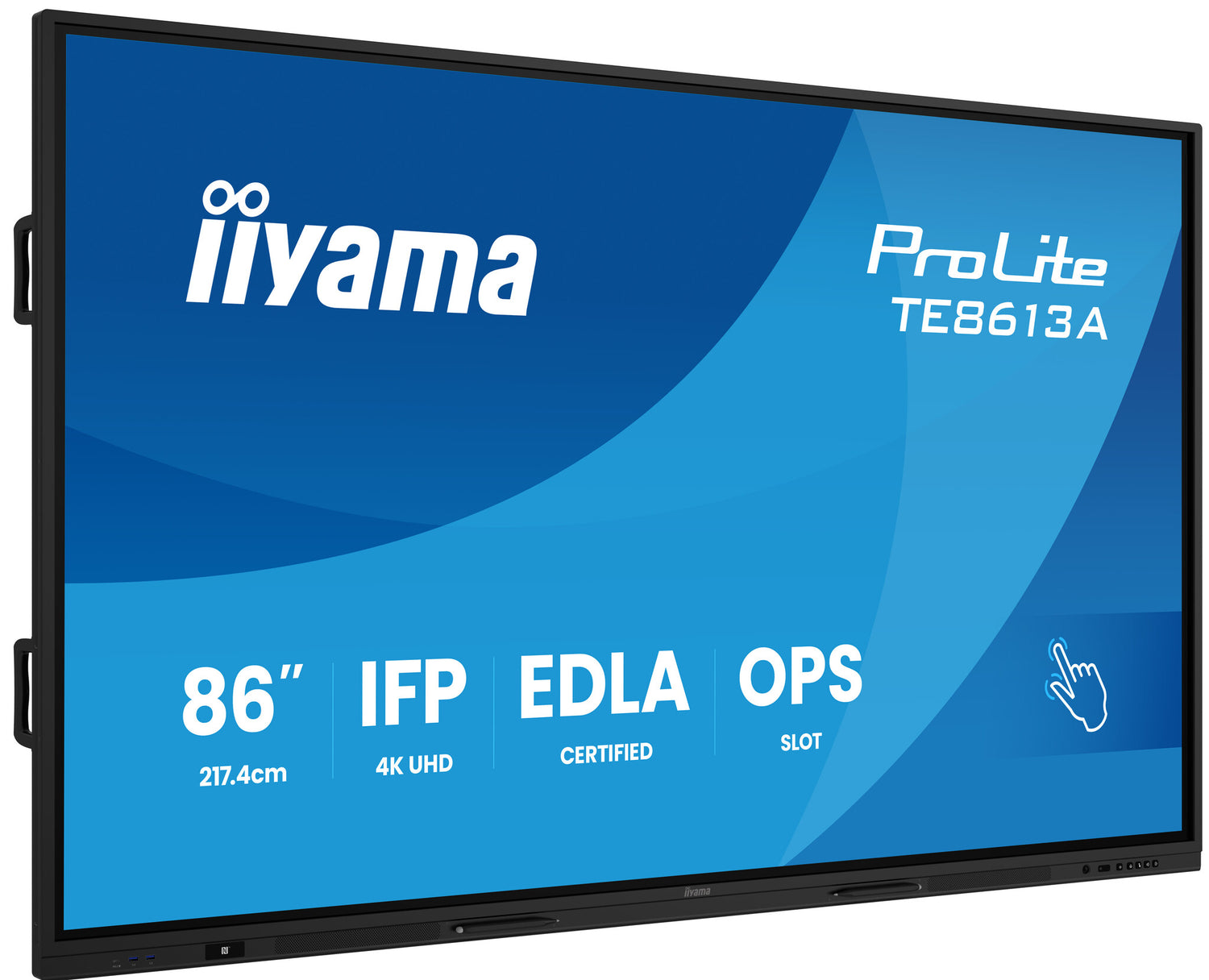

86" Google EDLA Certified IFP - Interactive display for seamless integration and collaboration in education and enterprise

The TE8613A-B2AG is a cutting-edge 4K UHD Google EDLA Certified interactive display that redefines performance and precision. Featuring a Zero-Gap Air Bonding LCD screen to eliminate parallax and with PureTouch-IR+ with Palm Rejection, it ensures smooth, accurate interaction. Powered by iiWare 21E with Android 14-EDLA, WiFi-6 with Bluetooth 5.0 connectivity, iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), it integrates seamlessly into your ecosystem. Enjoy added features like a PIR motion sensor for energy efficiency; perfect for workplaces and educational spaces, it fosters collaboration, communication, and progress.

Specifikationer

Display
Display diagonal	2.17 m (85.6")
Panel type	IPS
Display resolution	3840 x 2160 pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Touchscreen	Yes
Touchscreen technology	PureTouch-IR
Number of simultaneous touchpoints	40
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	1200:1
Contrast ratio (dynamic)	5000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.07 billion colours
Pixel pitch	0.493 x 0.493 mm
Active display area (W x H)	1895 x 1066 mm
Display diagonal (metric)	217.4 cm
Touch response time	5 ms
Surface hardness	7H
Glass thickness	3.2 mm
Horizontal scan range	30 - 135 kHz

Ports & interfaces
HDMI ports quantity	3
HDMI version	2.0
HDMI input ports quantity	1
HDMI output ports quantity	1
DisplayPorts quantity	1
DisplayPort version	1.2
USB port	Yes
USB ports quantity	6
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type	USB Type-A, USB Type-B, USB Type-C
USB 2.0 Type-B ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
USB Type-C DisplayPort Alternate Mode	Yes
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	2
Ethernet LAN data rates	1000 Mbit/s
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
RS-232C	Yes
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Audio Return Channel (ARC)	Yes
OPS module slot	Yes

Audio
Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	60 W

Design
Product design	Kiosk design
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal

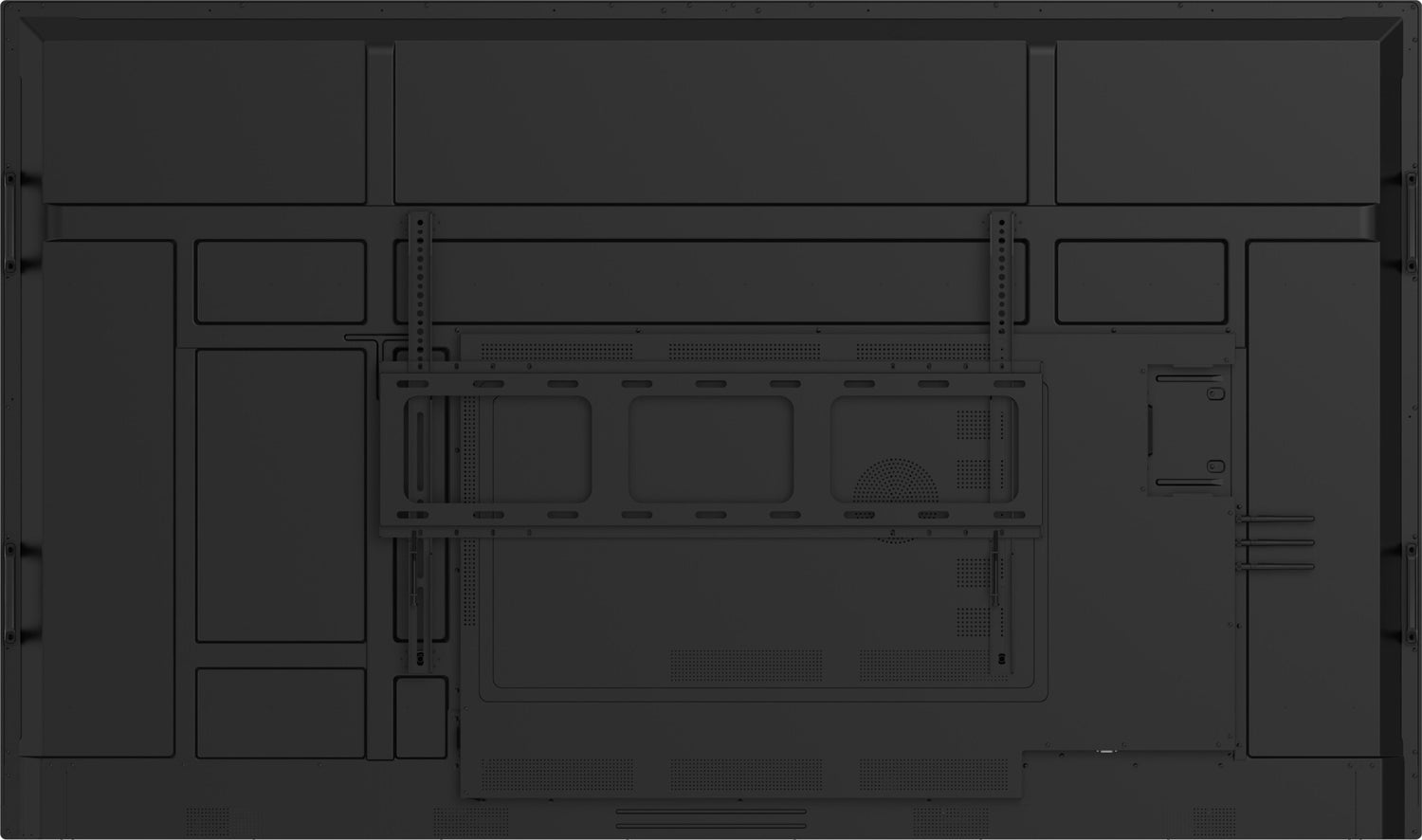

VESA mounting	Yes
Panel mounting interface	800 x 600 mm
Bezel width (bottom)	4.1 cm
Bezel width (side)	1.65 cm
Bezel width (top)	1.65 cm
Bezel colour	Black
Positioning accuracy	1 mm
Anti-glare screen	Yes

Performance
Purpose	Education
On Screen Display (OSD) languages	Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, Lithuanian, LAT, Norwegian, Dutch, Polish, Russian, Swedish, Ukrainian
Number of OSD languages	13
On Screen Display (OSD)	Yes
Operating hours (hours/days)	24/7
HDCP version	2.2
HDCP	Yes
Mean time between failures (MTBF)	50000 h

Power
Power consumption (typical)	282 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	260 kWh
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G

Computer system
Computer system	Yes
Built-in processor	Yes
Processor architecture	ARM Cortex-A73
Processor frequency	1.4 GHz
Processor cores	4
Internal memory	8 GB
On-board graphics card model	ARM Mali-G52
Internal storage capacity	128 GB
Operating system installed	Android
Operating system version	14

Weight & dimensions
Display width	1955.6 mm
Display depth	87.1 mm
Display height	1154 mm
Display weight	63.8 kg
Width	1955.6 mm
Depth	87.1 mm
Height	1154 mm
Weight	63.8 kg

Packaging data
Package width	2095 mm
Package depth	185 mm
Package height	1265 mm
Package weight	76.5 kg

Packaging content
Remote control included	Yes

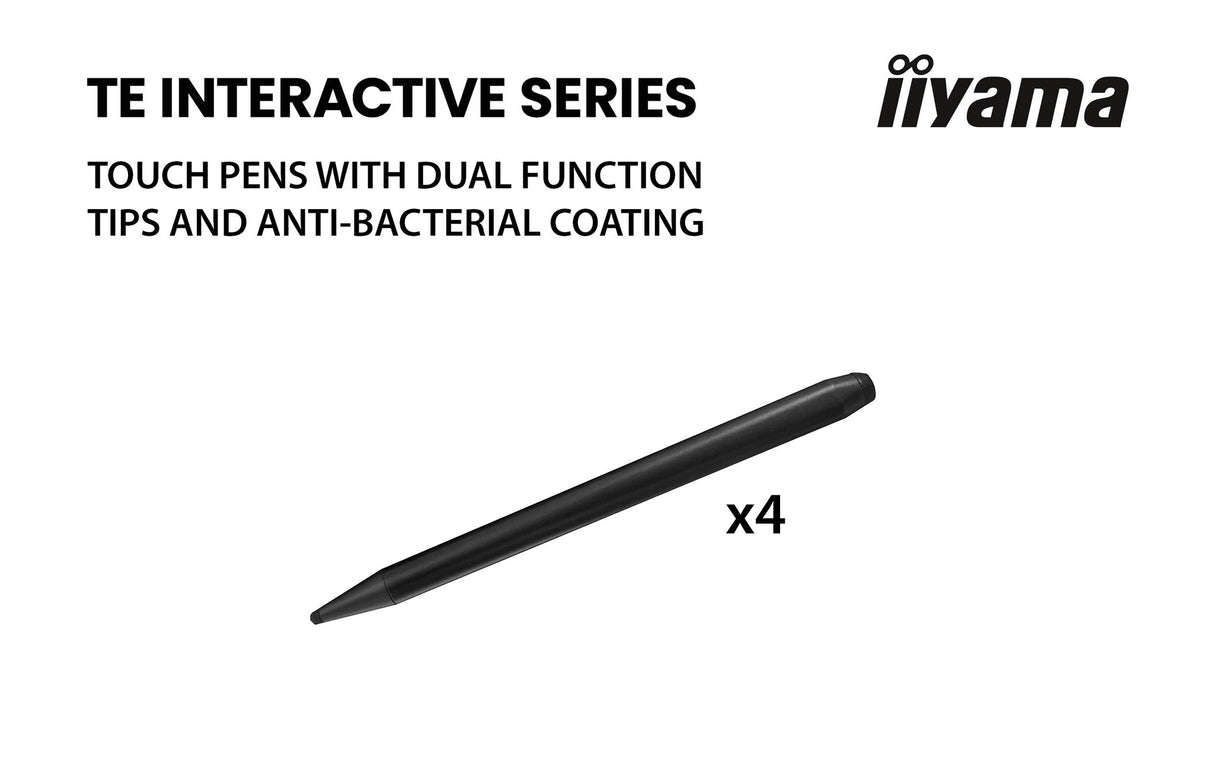

Number of stylus pens	4
Stylus pen	Yes
Cables included	AC, USB, HDMI

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C

Logistics data
Products per pallet	4 pc(s)

Technical details
OPS slot	1
Warranty period	5 year(s)
Compliance certificates	CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE
Sustainability certificates	ErP
User controls	general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode colour temp), settings (wireless & networks, share, device, personal, system)
Playback media	Y
Audio in (mini jack)	Yes

Other features
Brightness	500 cd/m²
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Power supply type	Internal
Bluetooth version	5.0
Bluetooth	Yes
Quick start guide	Yes
