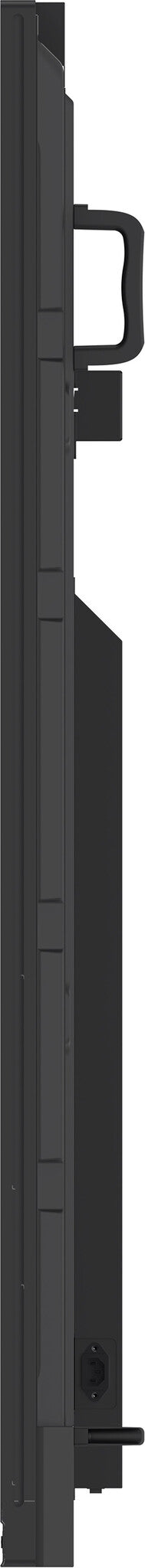

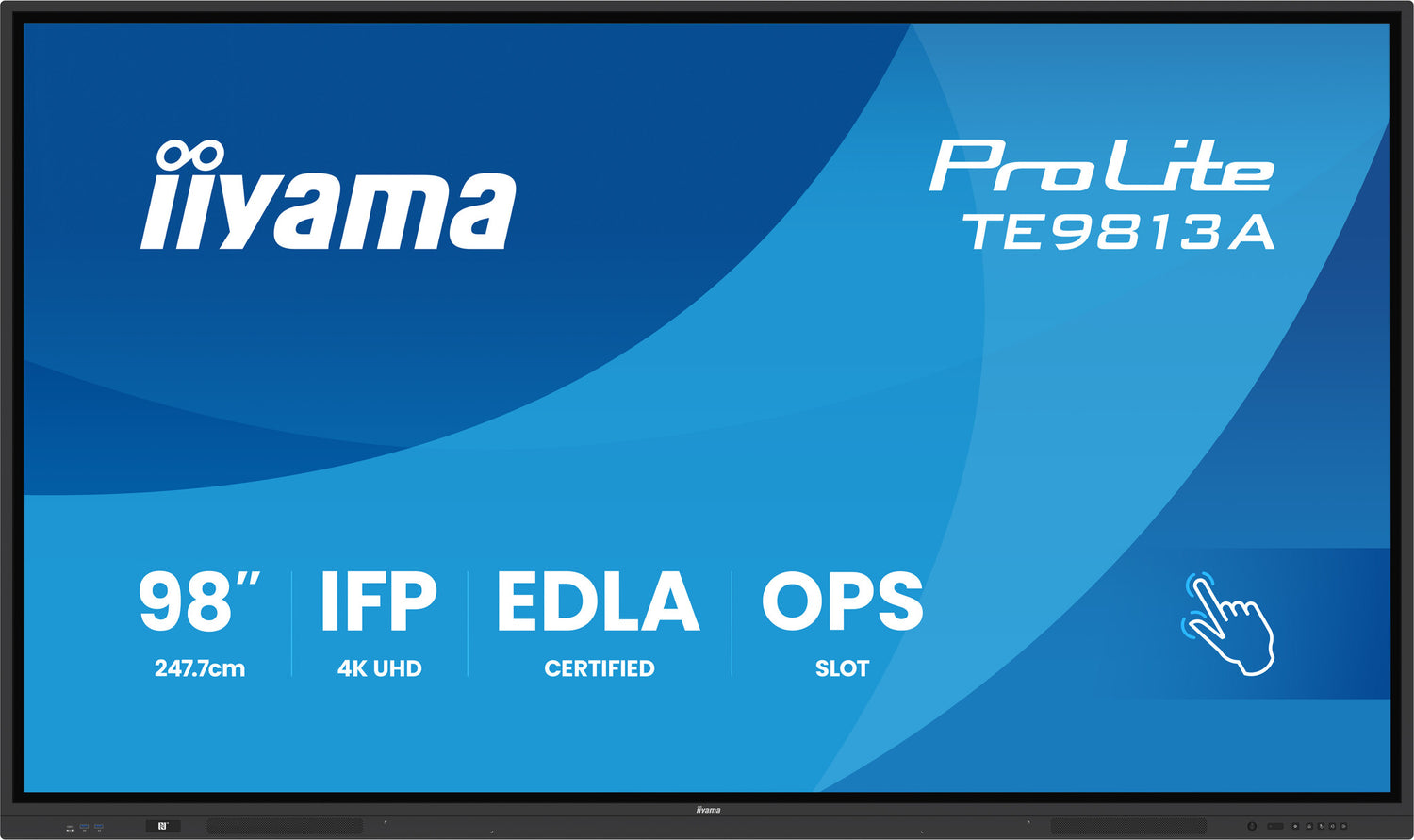

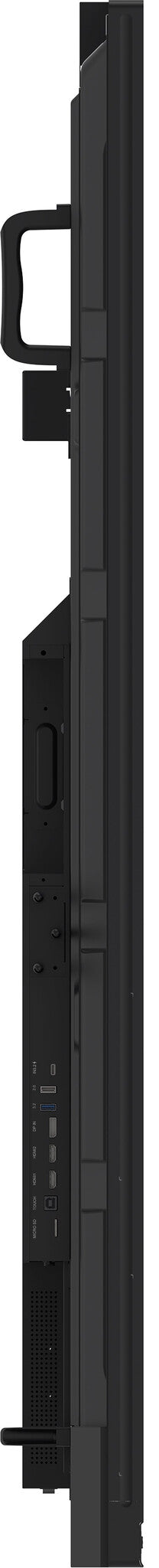

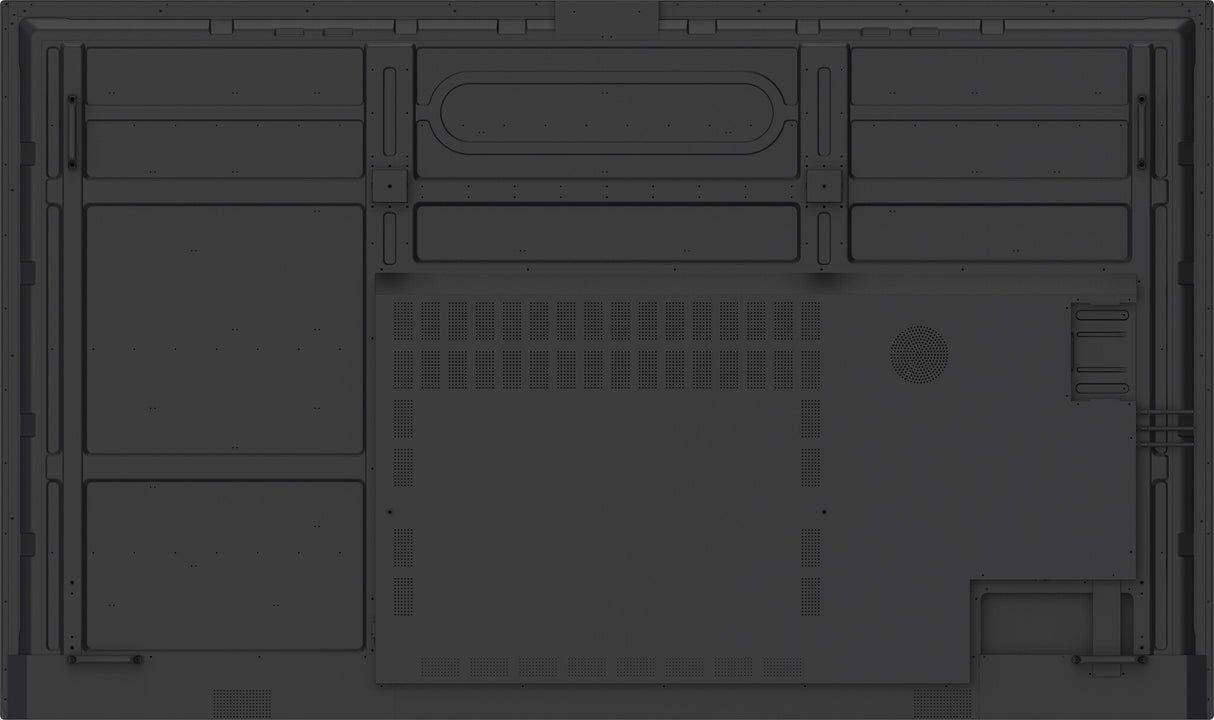

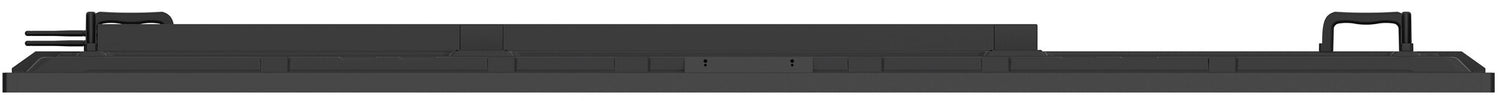

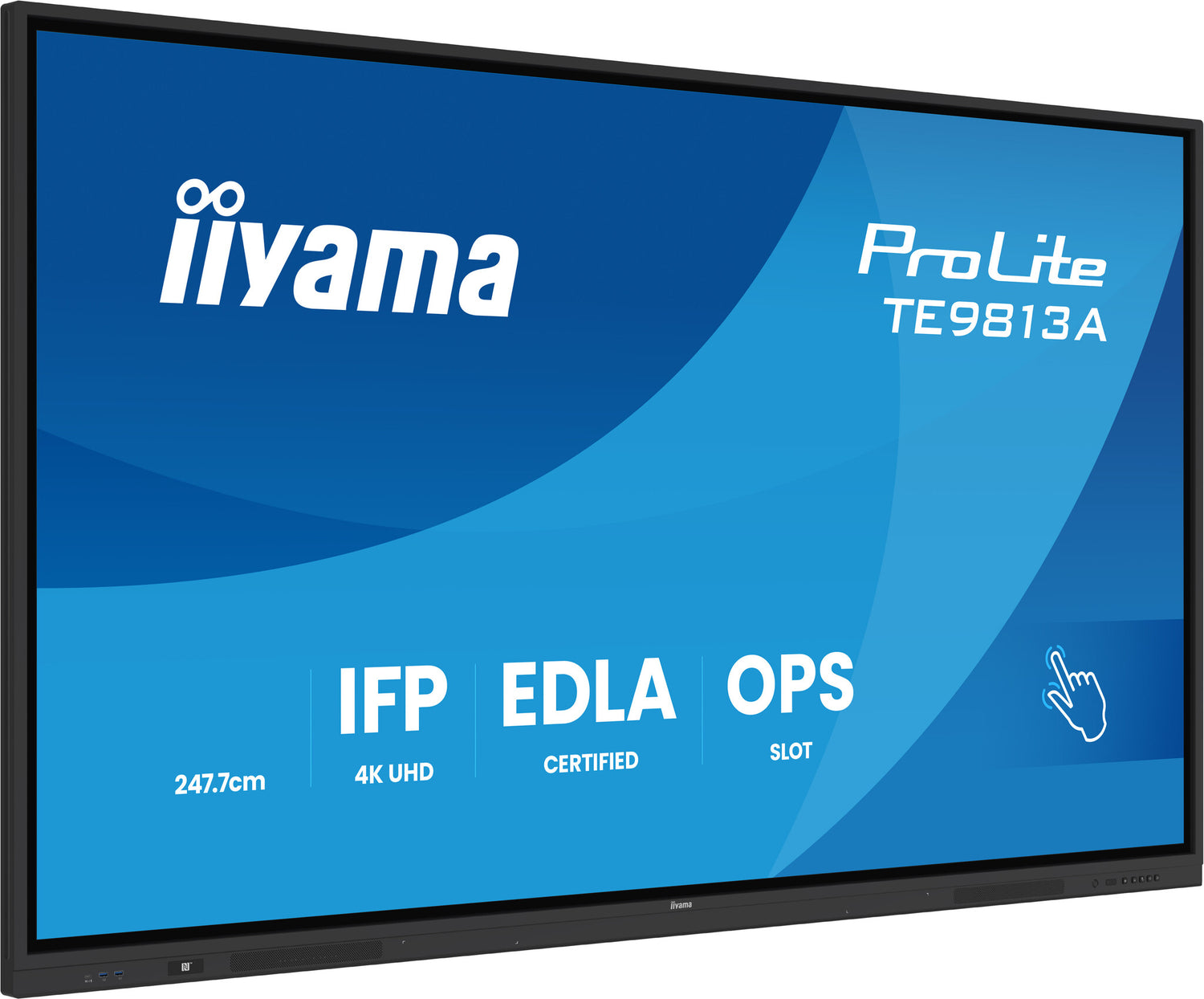

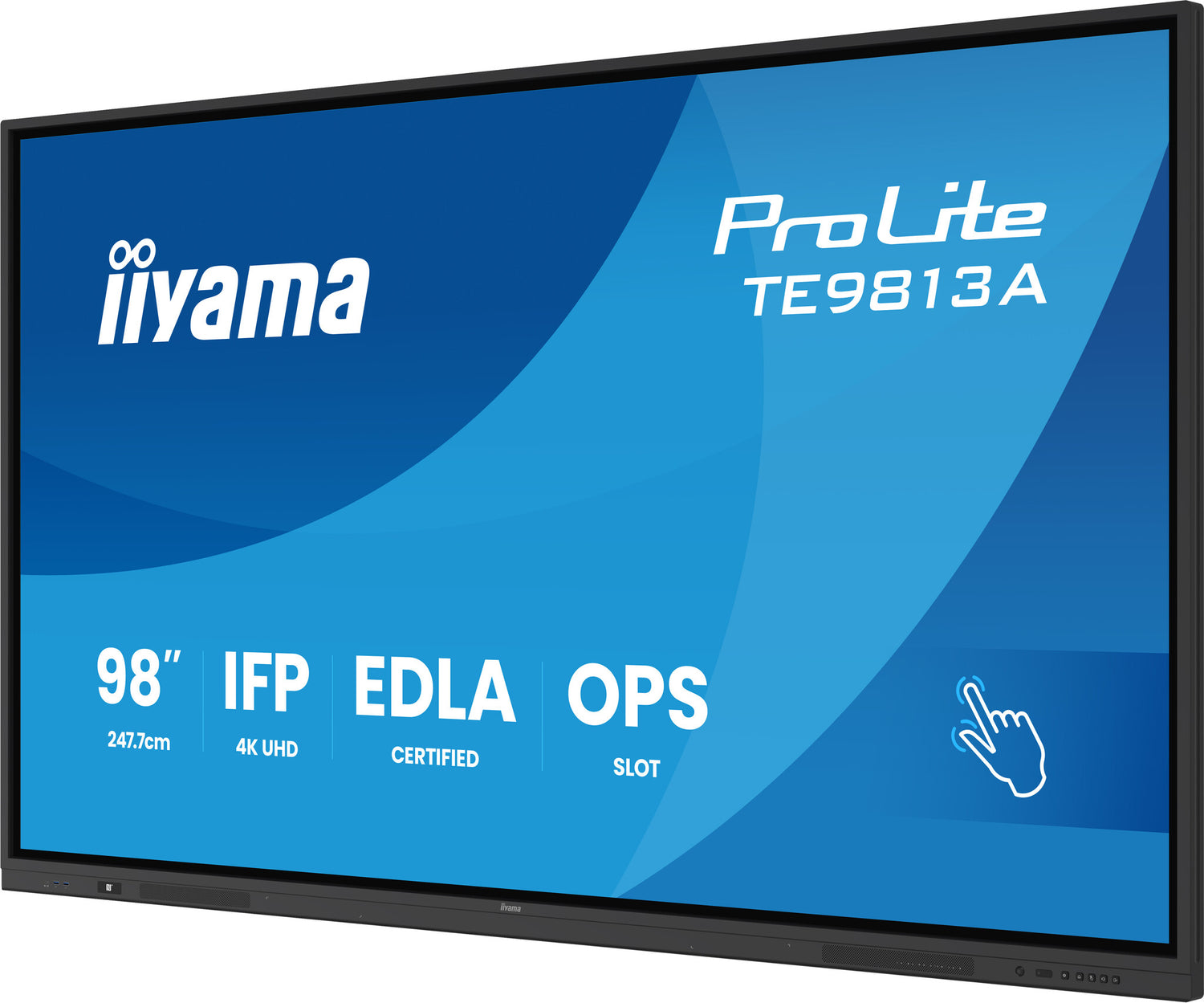

iiyama TE9813A-B1AG Signage Display Interactive flat panel 2.48 m (97.5") Wi-Fi 500 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 18/7
iiyama | Varenummer:
TE9813A-B1AG
Beskrivelse
Beskrivelse

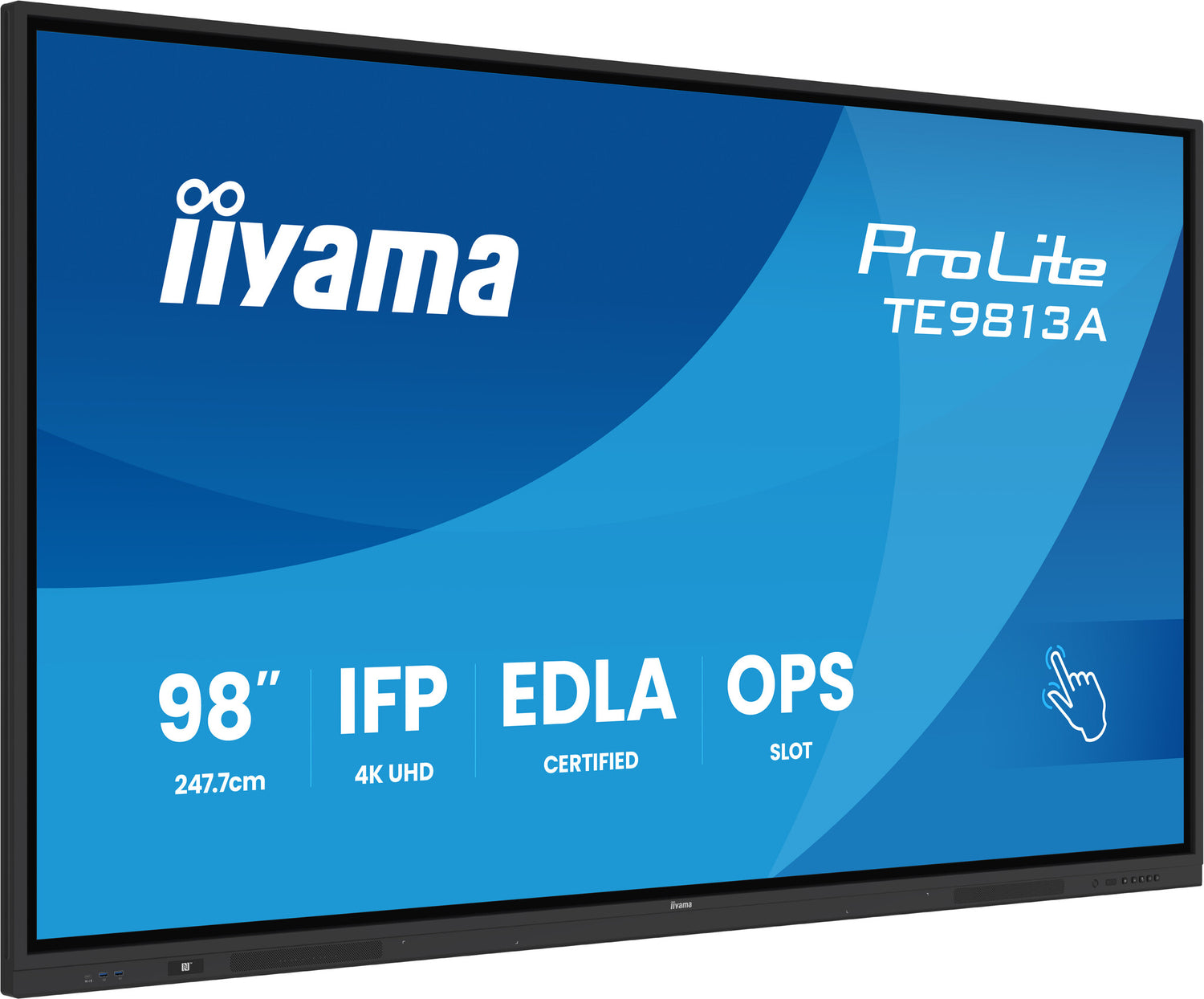

98" Google EDLA Certified IFP - Interactive display for seamless integration and collaboration in education and enterprise
The TE9813A-B1AG is a cutting-edge 4K UHD Google EDLA Certified interactive display that redefines performance and precision. Featuring a Zero-Gap Air Bonding LCD screen to eliminate parallax and with PureTouch-IR+ with Palm Rejection, it ensures smooth, accurate interaction. Powered by iiWare 21E with Android 14-EDLA, WiFi-6 with Bluetooth 5.0 connectivity, iControl (DMS), iiShare and integrated EShare app (wireless screen sharing), it integrates seamlessly into your ecosystem. Enjoy added features like a PIR motion sensor for energy efficiency; perfect for workplaces and educational spaces, it fosters collaboration, communication, and progress.
Specifikationer
Specifikationer
| Display | |
|---|---|
| Native refresh rate | 60 Hz |
| Glass thickness | 4 mm |
| Surface hardness | 7H |
| Horizontal scan range | 30 - 135 kHz |
| Display diagonal (metric) | 247.7 cm |
| Active display area (W x H) | 2159 x 1214 mm |
| Pixel pitch | 0.562 x 0.562 mm |
| Display number of colours | 1.07 billion colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Contrast ratio (typical) | 1200:1 |
| Response time | 8 ms |
| Native aspect ratio | 16:9 |
| Number of simultaneous touchpoints | 40 |
| Touchscreen technology | PureTouch-IR |
| Touchscreen | Yes |
| HD type | 4K Ultra HD |
| Display brightness | 500 cd/m² |
| Display resolution | 3840 x 2160 pixels |
| Panel type | IPS |
| Display diagonal | 2.48 m (97.5") |
| Ports & interfaces | |
|---|---|
| Audio Return Channel (ARC) | Yes |
| OPS module slot | Yes |
| RS-232C | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery up to | 100 W |
| USB Power Delivery (USB PD) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB ports quantity | 5 |
| USB port | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI output ports quantity | 1 |
| HDMI input ports quantity | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 3 |
| Audio | |
|---|---|
| RMS rated power | 60 W |
| Number of built-in speakers | 2 |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Anti-glare screen | Yes |
| Positioning accuracy | 1 mm |
| Bezel colour | Black |

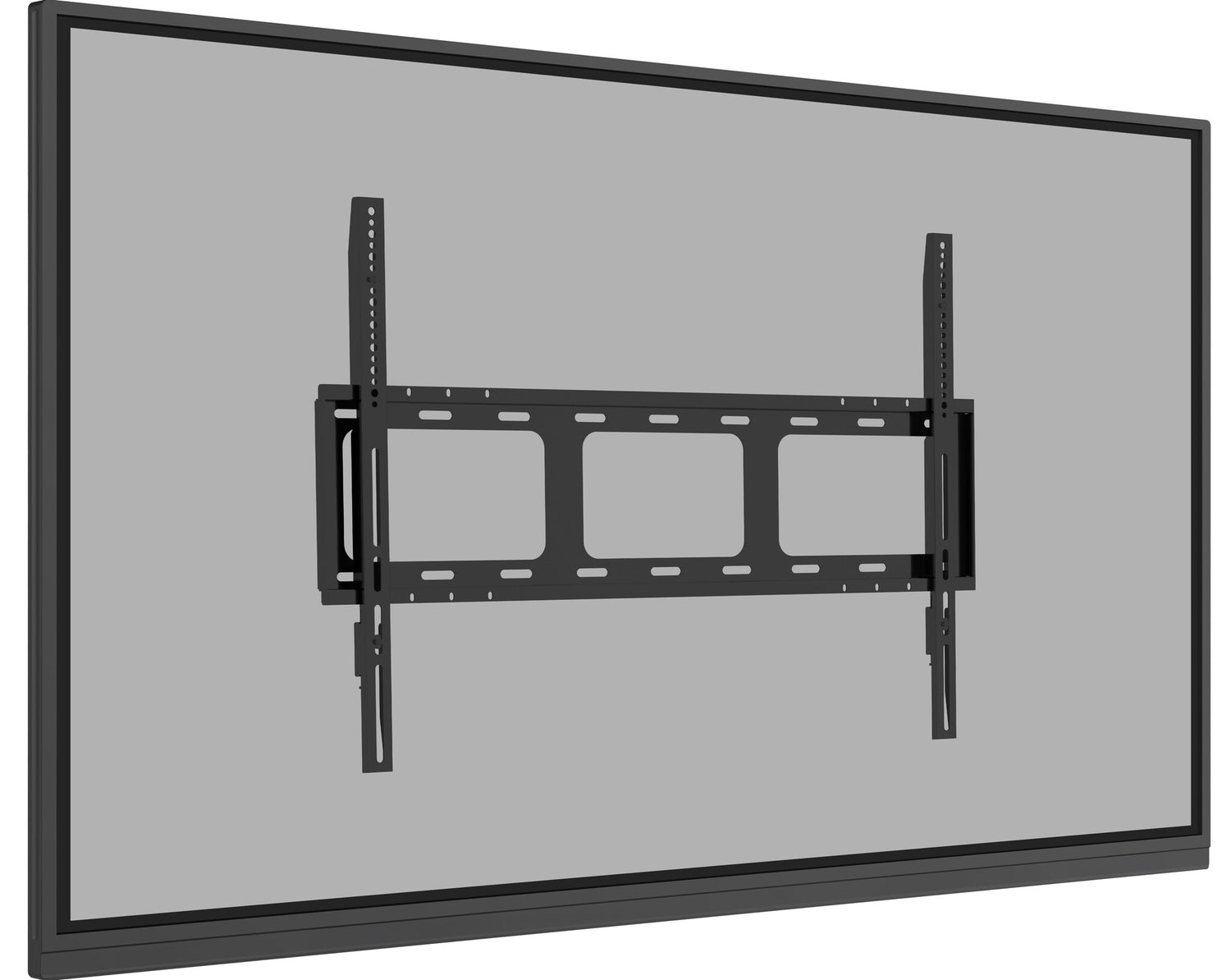

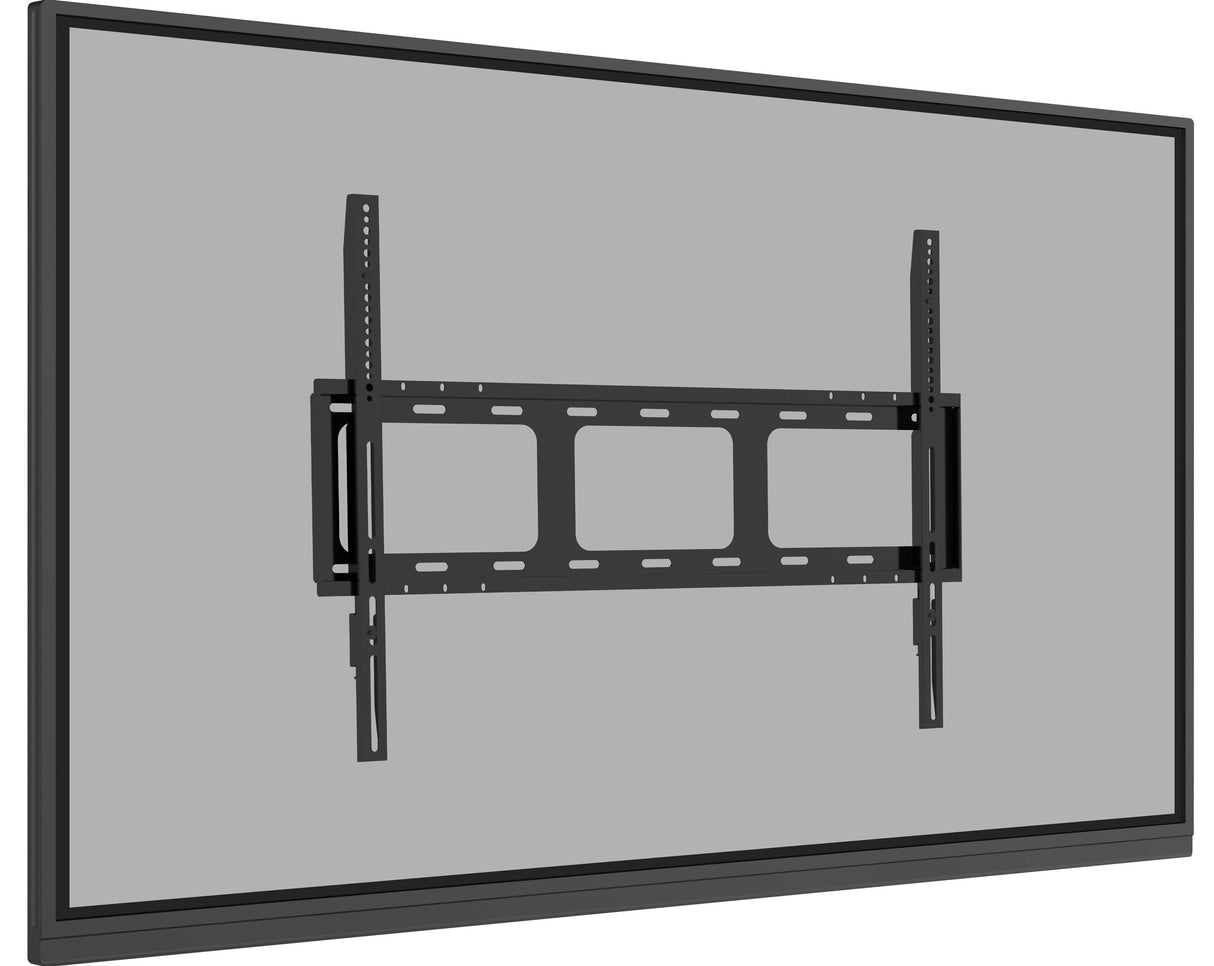

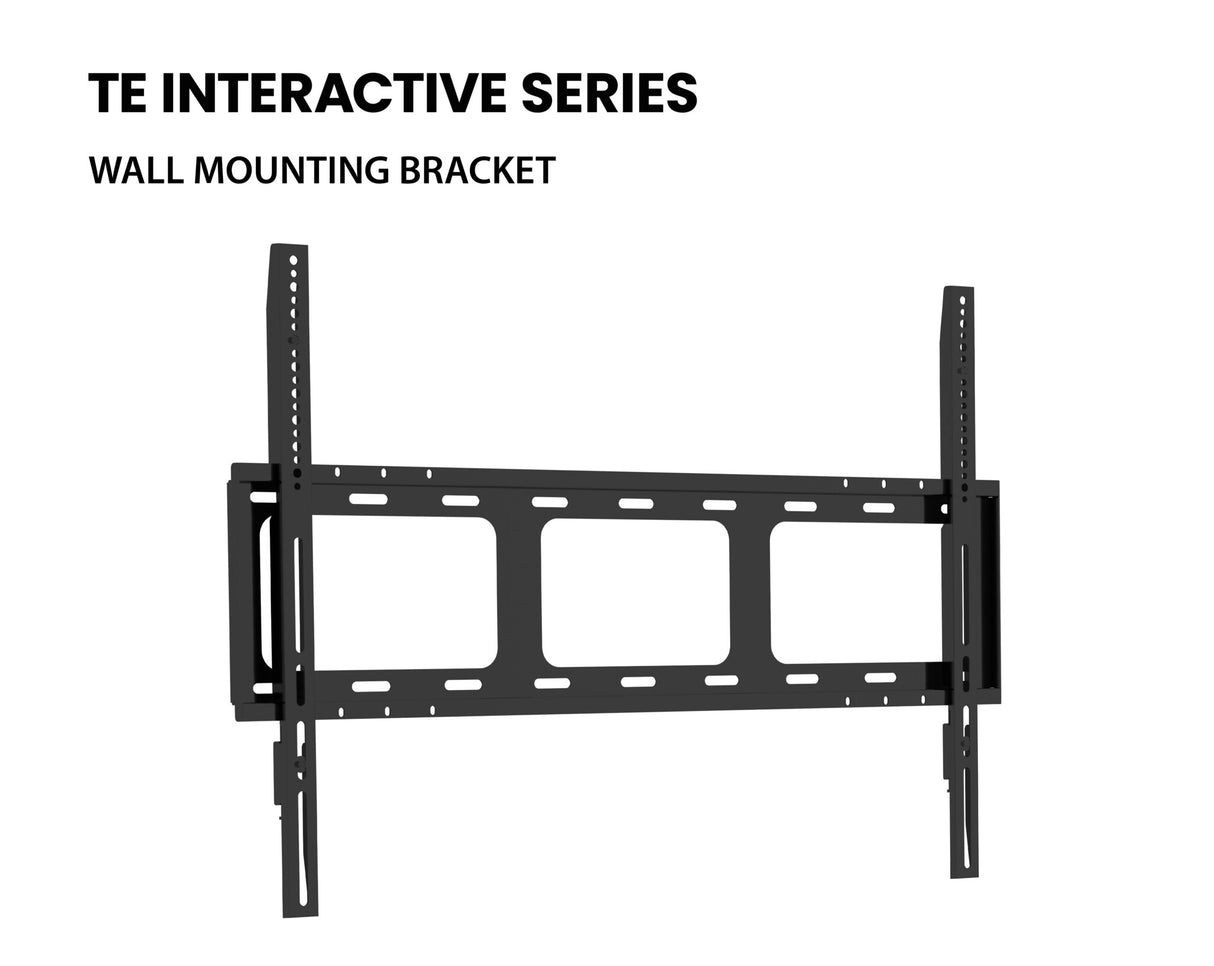

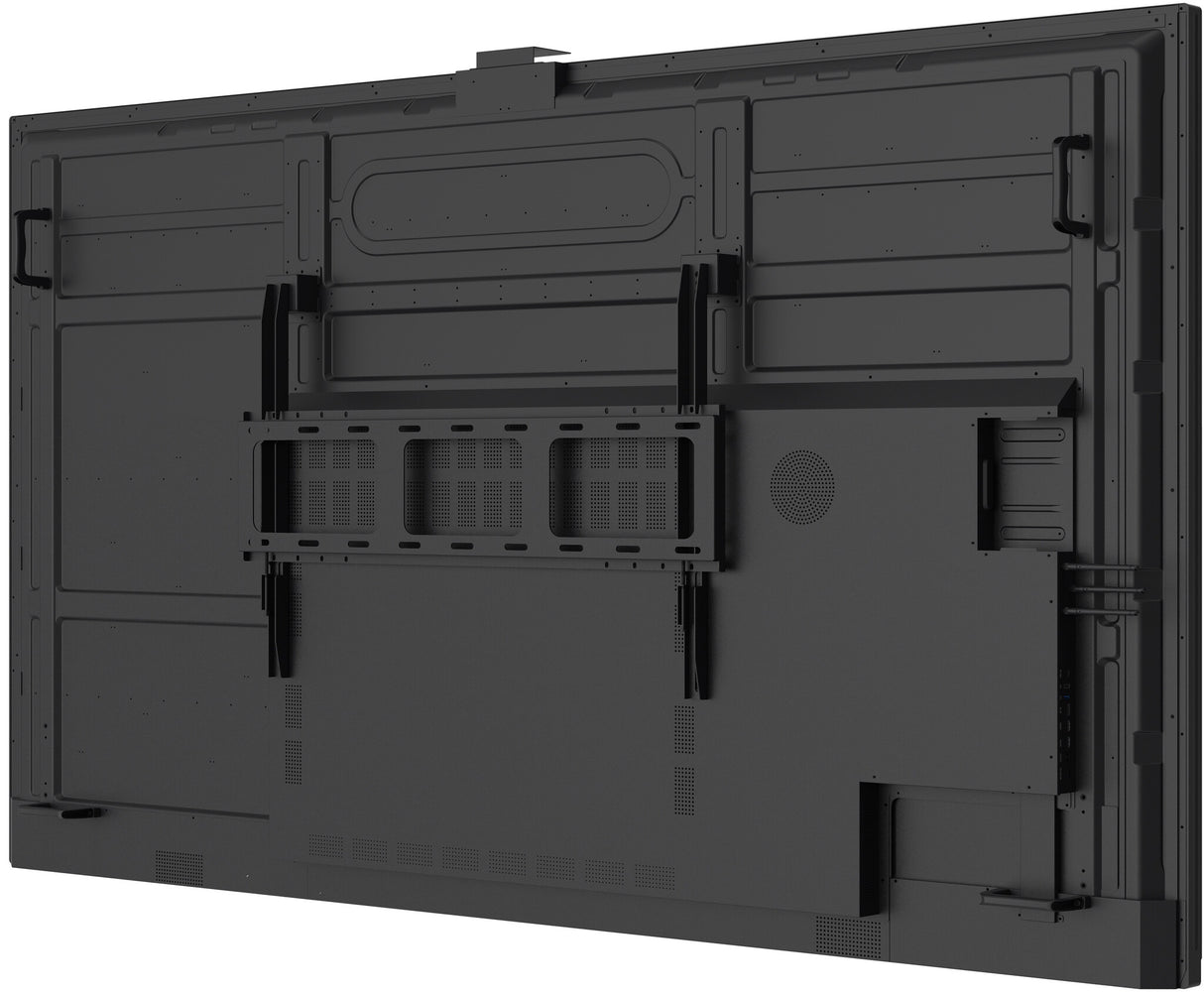

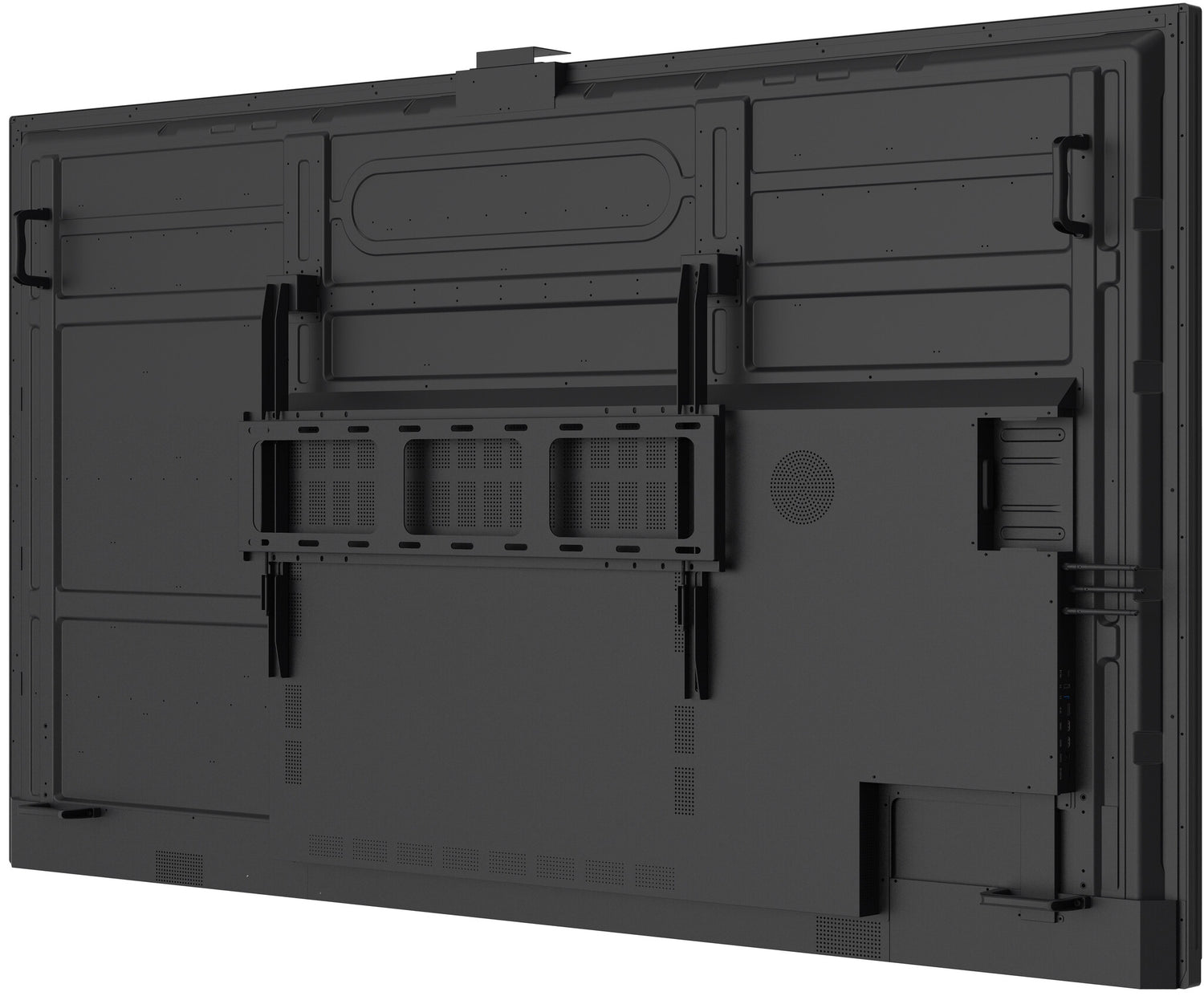

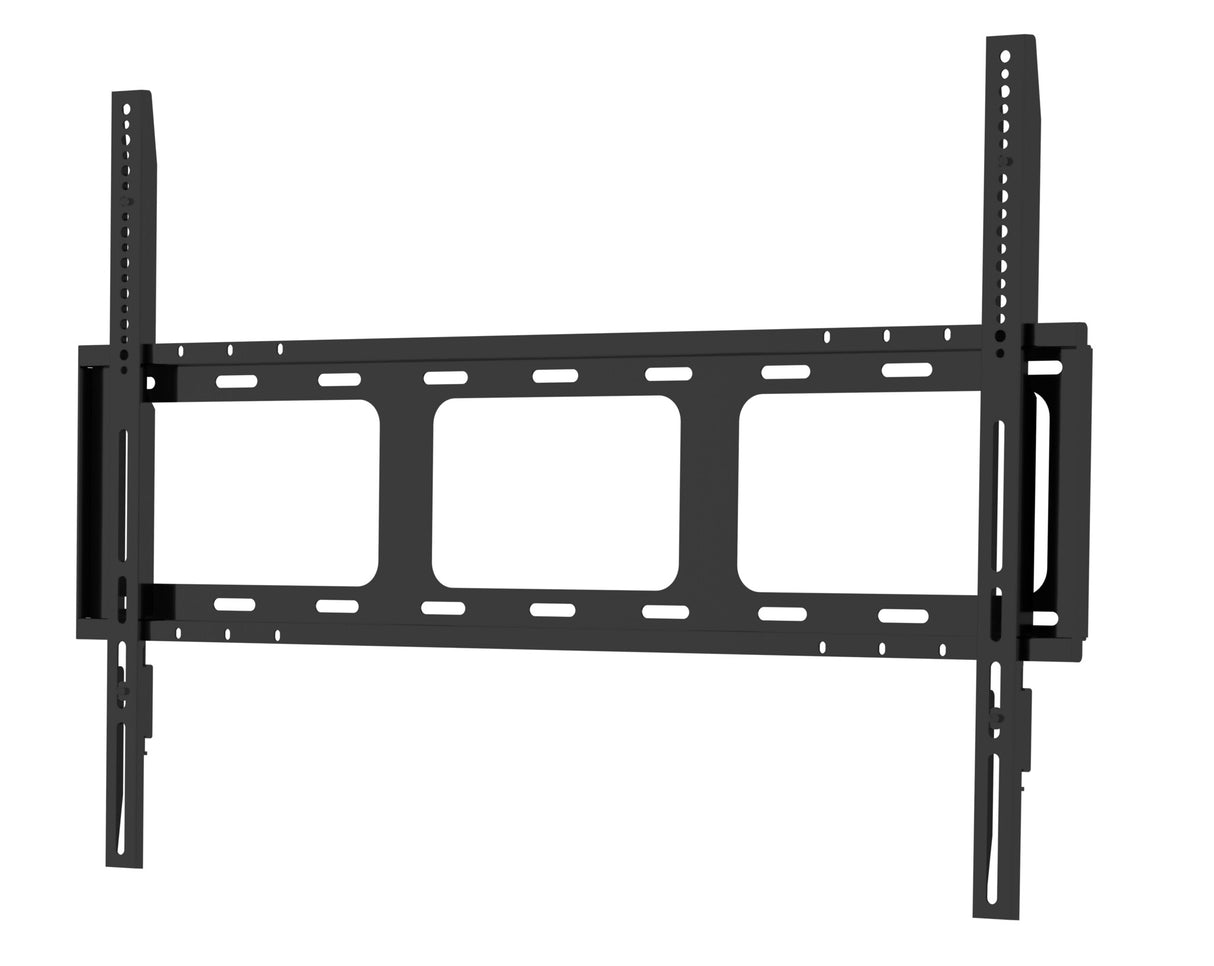

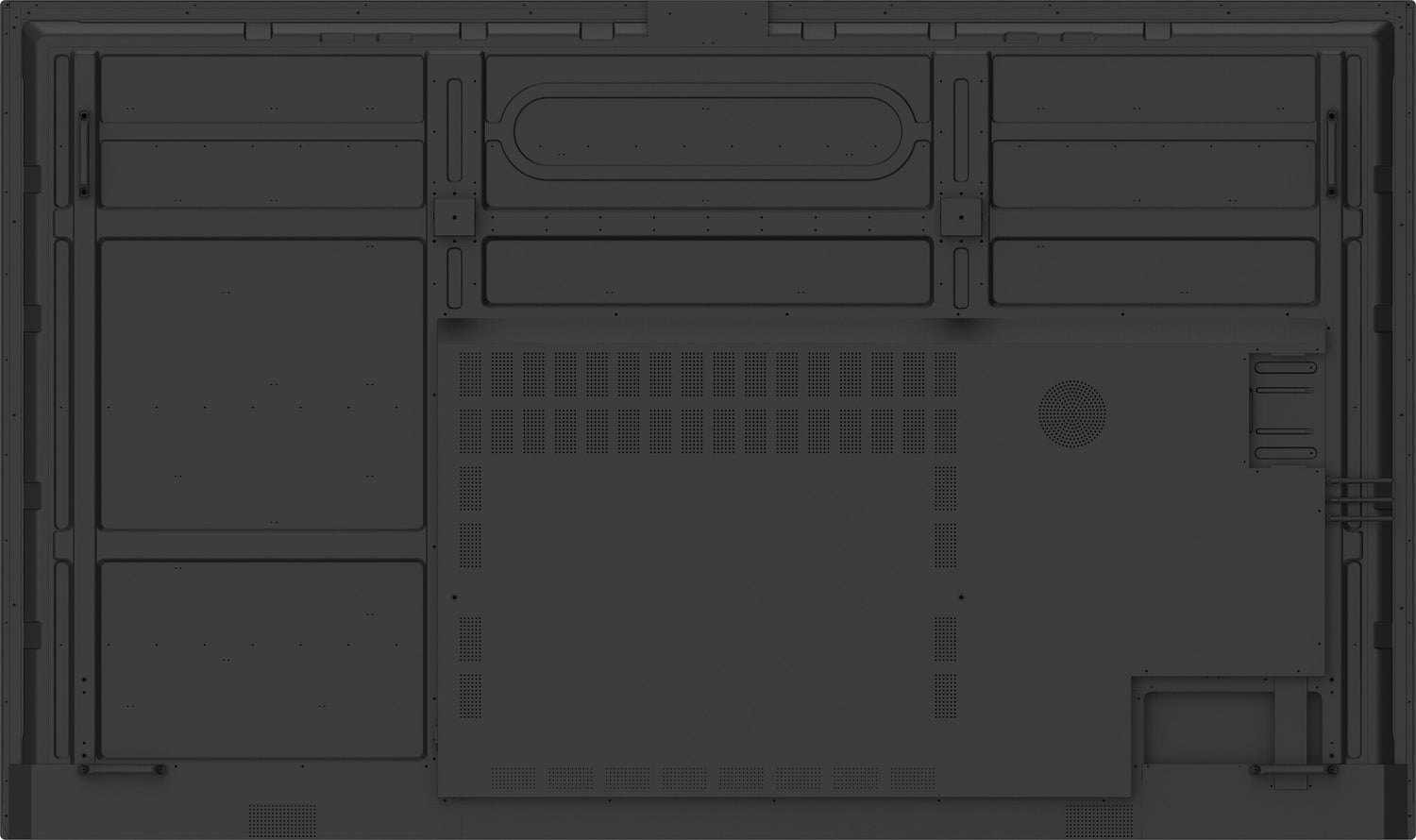

| Panel mounting interface | 800 x 600 mm |

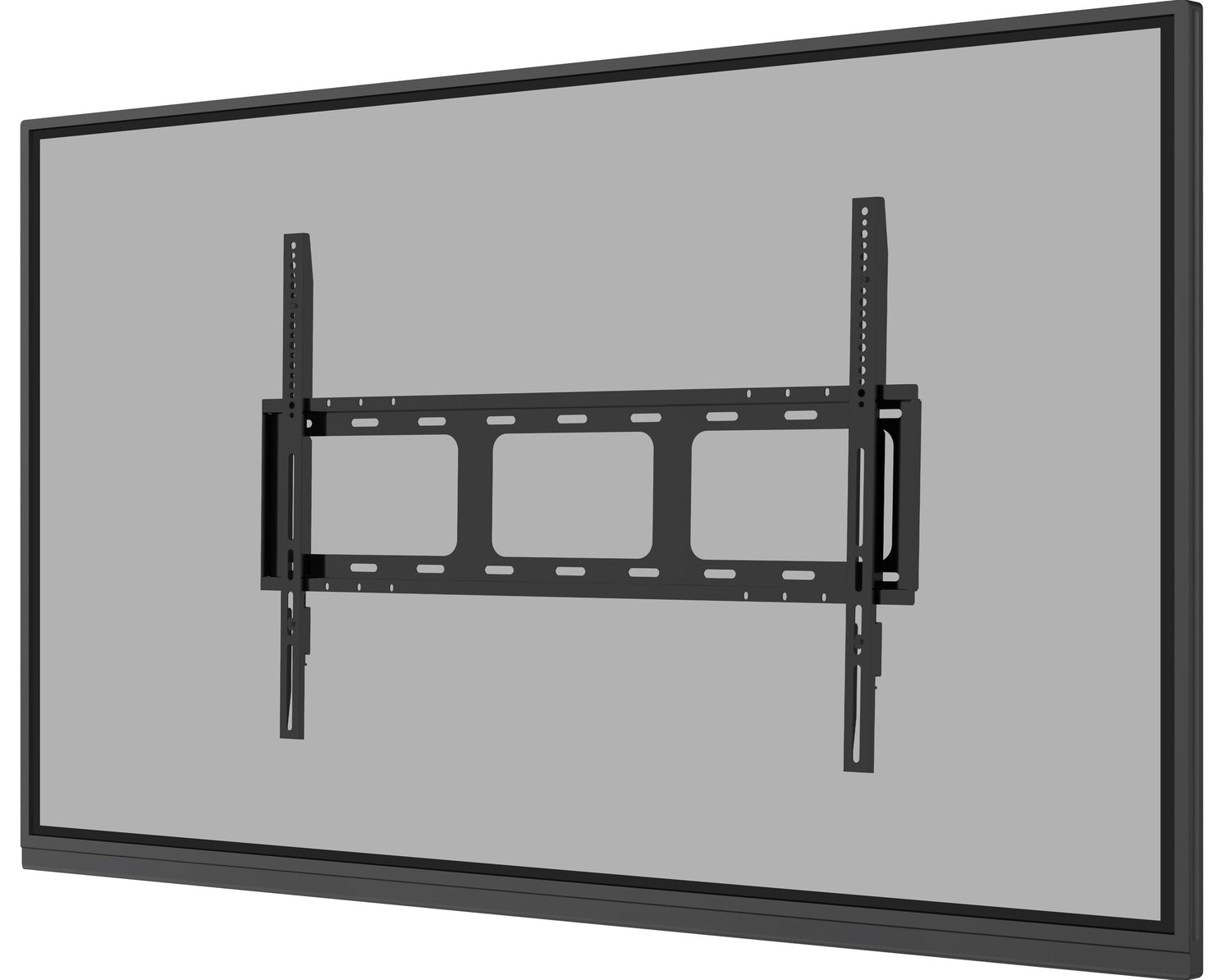

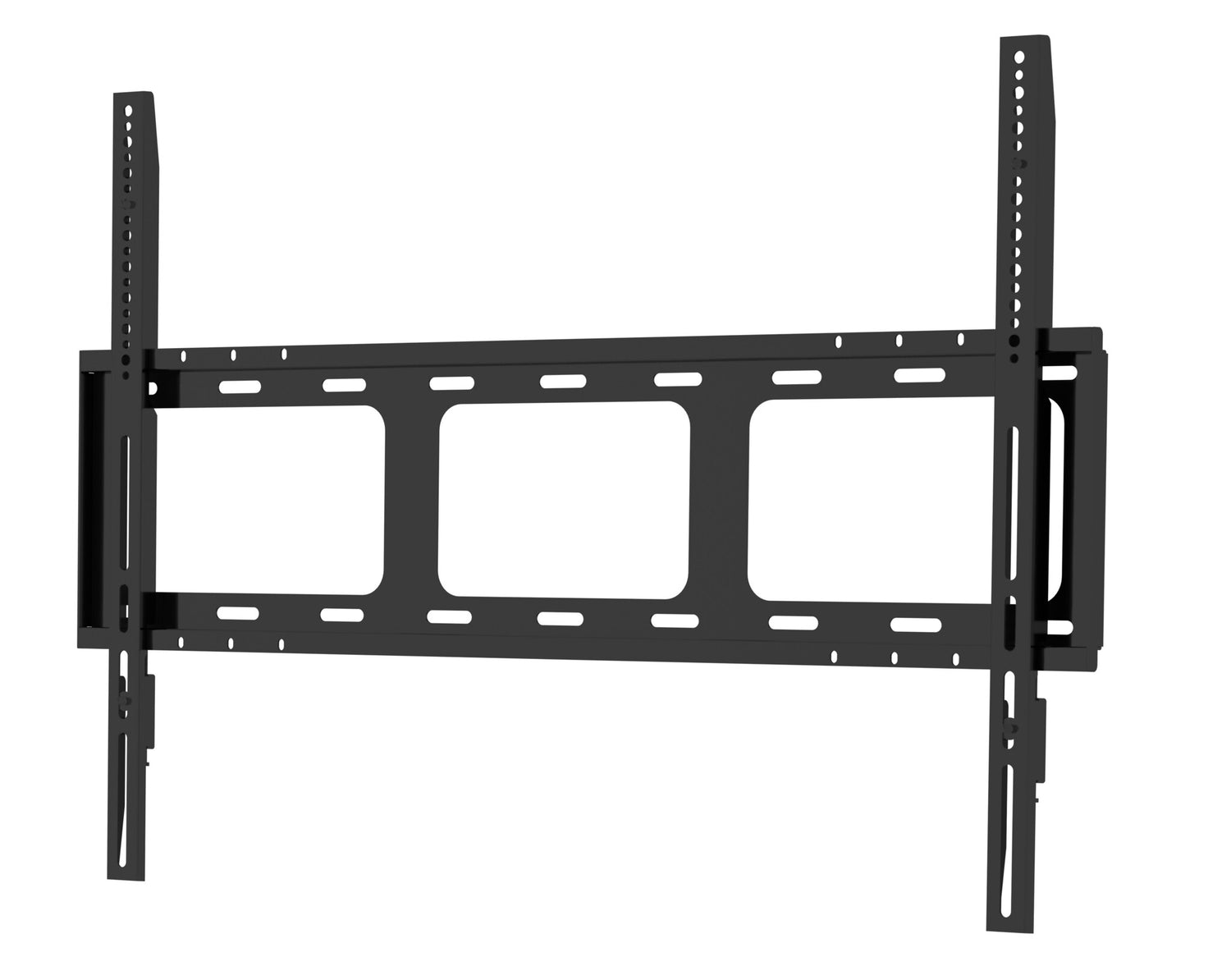

| VESA mounting | Yes |
| Orientation | Horizontal |
| Placement supported | Indoor |
| Product colour | Black |
| Product design | Interactive flat panel |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 50000 h |
| HDCP | Yes |
| HDCP version | 2.2 |
| Operating hours (hours/days) | 18/7 |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 13 |
| On Screen Display (OSD) languages | Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, Lithuanian, LAT, Norwegian, Dutch, Polish, Russian, Swedish, Ukrainian |
| Purpose | Education |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Energy consumption (SDR) per 1000 hours | 303 kWh |
| Energy efficiency class (HDR) | Not available |
| Energy efficiency class (SDR) | G |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 303 W |
| Computer system | |
|---|---|
| Operating system version | 14 |
| Operating system installed | Android |
| Internal storage capacity | 128 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal memory | 8 GB |
| Processor cores | 4 |
| Processor frequency | 1.4 GHz |
| Processor architecture | ARM Cortex-A73 |
| Built-in processor | Yes |
| Computer system | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 109.6 kg |
| Height | 1326 mm |
| Depth | 103 mm |
| Width | 2235.4 mm |
| Display weight | 109.6 kg |
| Display height | 1326 mm |
| Display depth | 103 mm |
| Display width | 2235.4 mm |
| Packaging data | |
|---|---|
| Package weight | 132.2 kg |
| Package height | 1445 mm |
| Package depth | 280 mm |
| Package width | 2360 mm |
| Packaging content | |
|---|---|
| Cables included | AC, USB, HDMI |

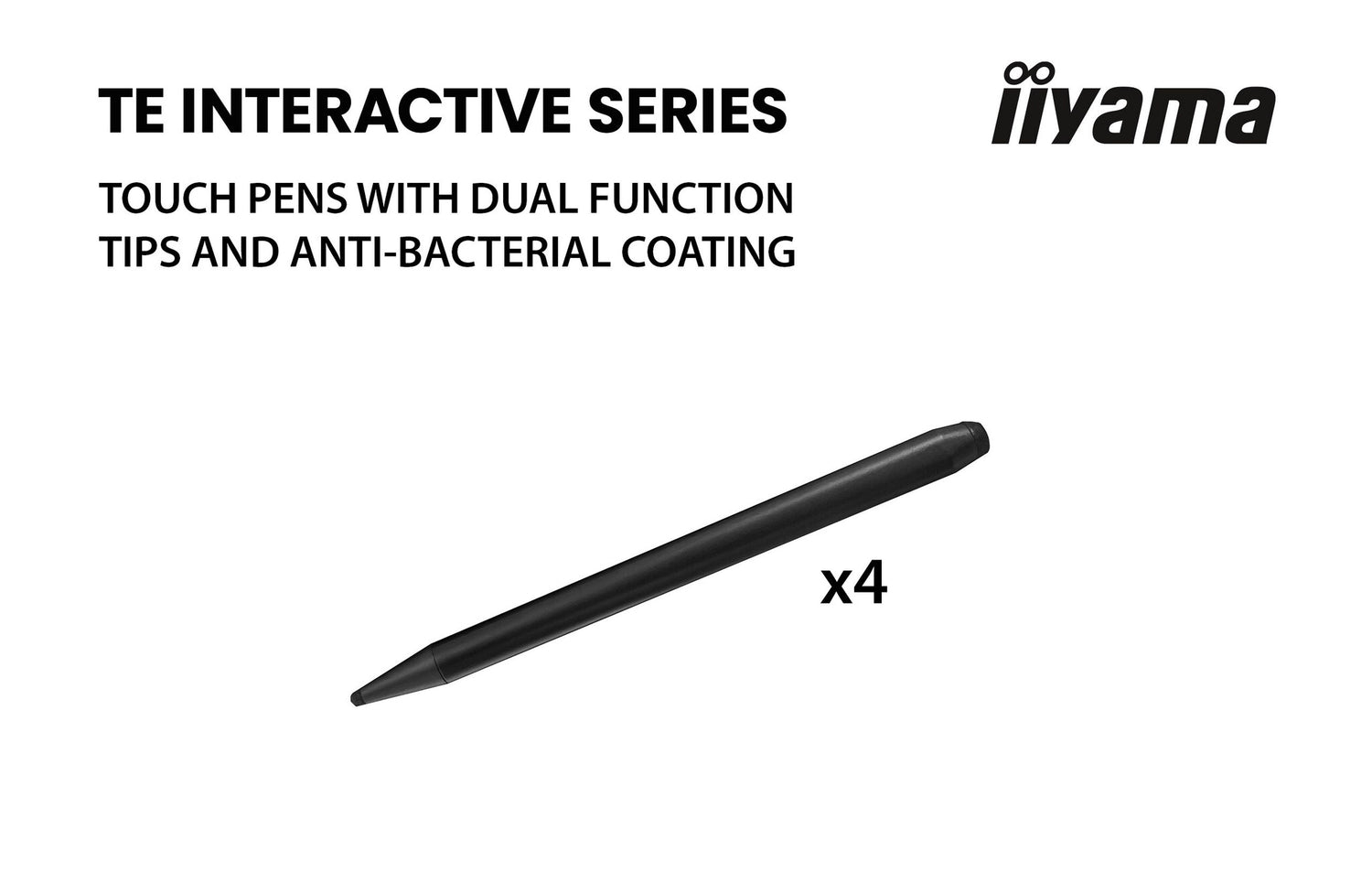

| Stylus pen | Yes |
| Number of stylus pens | 4 |
| Remote control included | Yes |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Technical details | |
|---|---|
| Playback media | Y |
| User controls | general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode colour temp), settings (wireless & networks, share, device, personal, system) |
| Audio in (mini jack) | Yes |
| Warranty period | 5 year(s) |
| OPS slot | 1 |
| Sustainability certificates | ErP |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE |
| Other features | |
|---|---|
| Power supply type | Internal |
| Quick start guide | Yes |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
