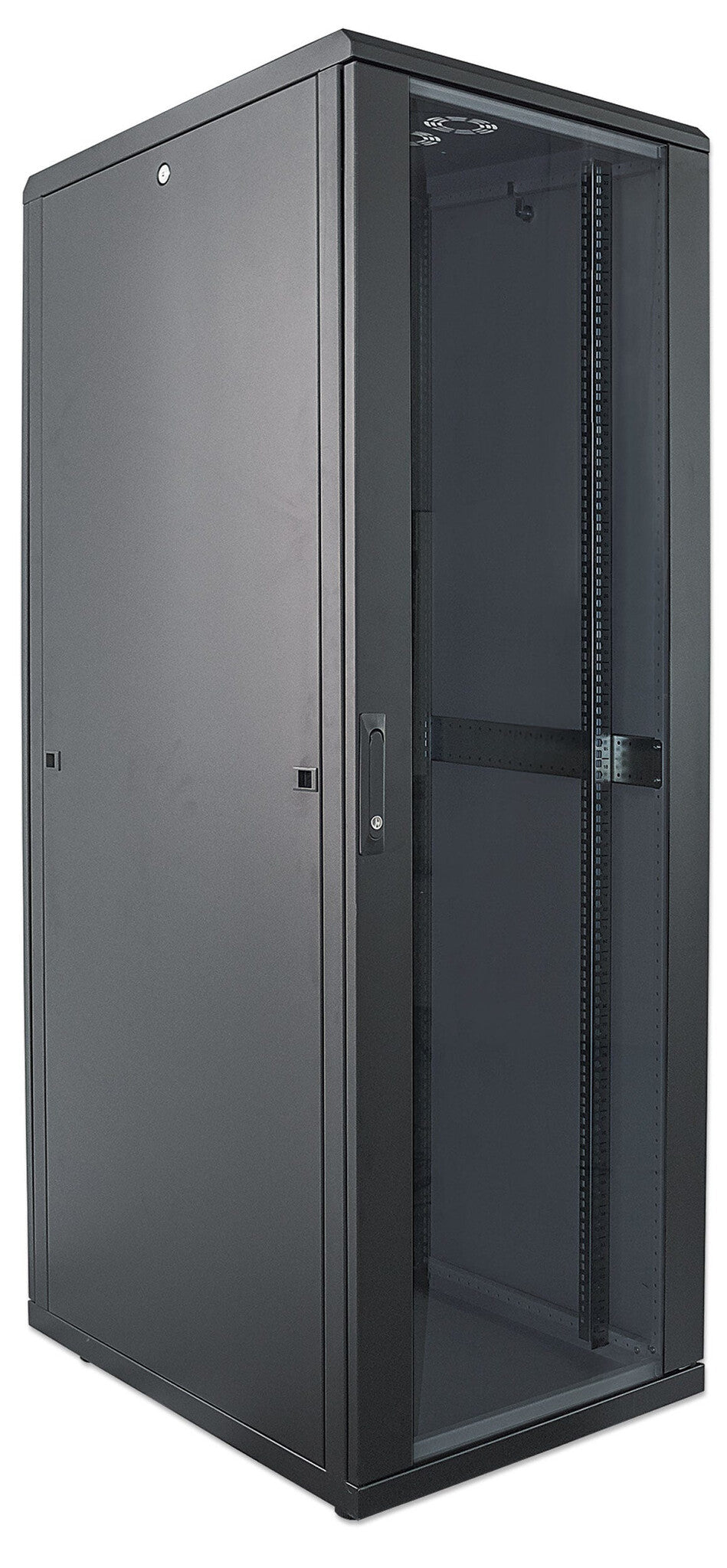

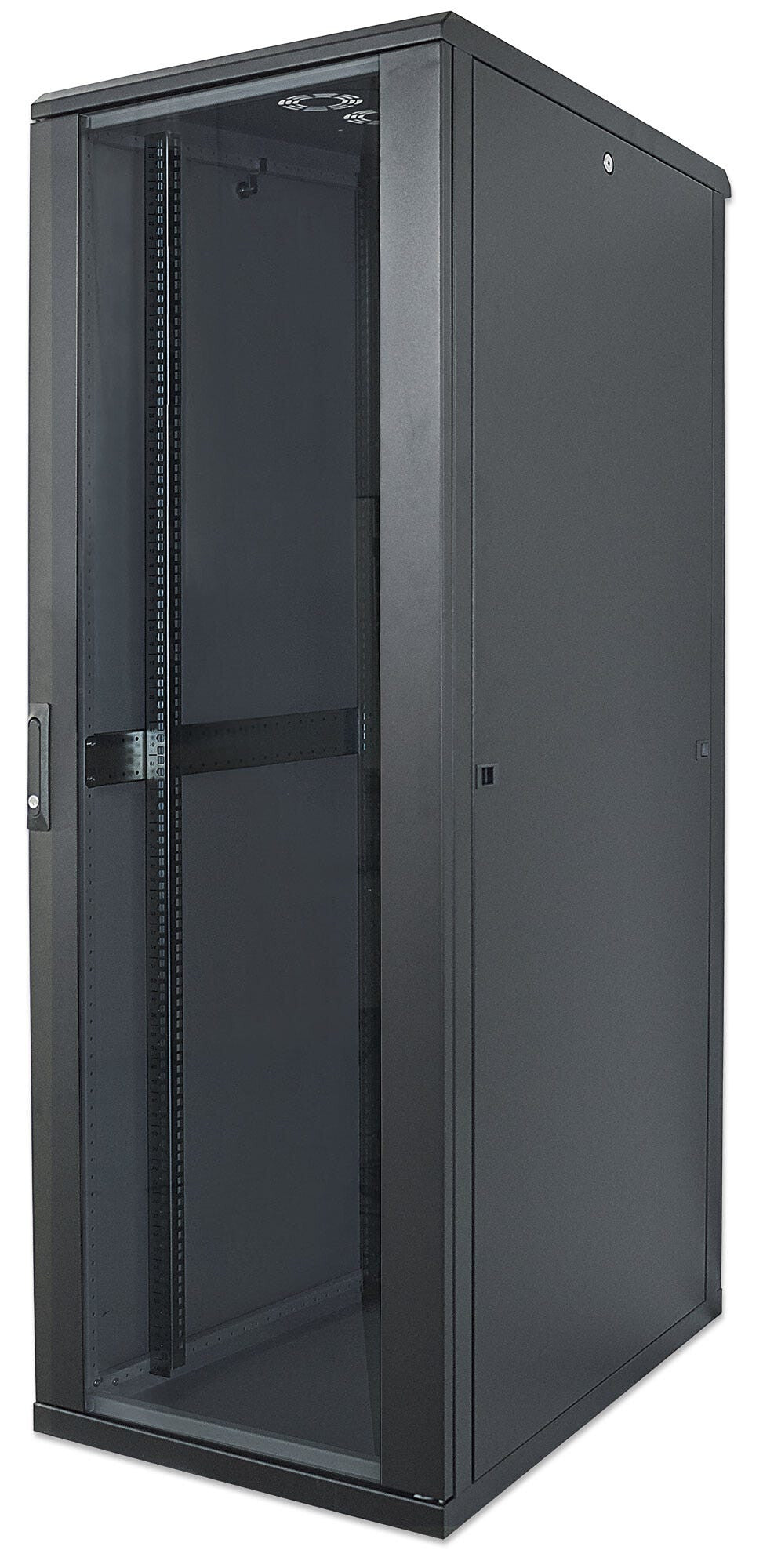

Intellinet 19" Network Cabinet - Free Standing, 42U, 600x600mm (width x depth), Black, Assembled, Max 1500kg, Multi-Point Door Lock, One Lock Per Side Panel, Usable Depth 123 to 373mm, IP20 rated, Rack, Steel

Intellinet  |  Varenummer: 32320700
Stregkode: 0766623713443,766623713443

Beskrivelse

19" Network Cabinet - Free Standing, 42U, 600x600mm (width x depth), Black, Assembled, Max 1500kg, Multi-Point Door Lock, One Lock Per Side Panel, Usable Depth 123 to 373mm, IP20 rated, Rack, Steel

The Intellinet Network Solutions network cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flatpack version._x000D_
_x000D_

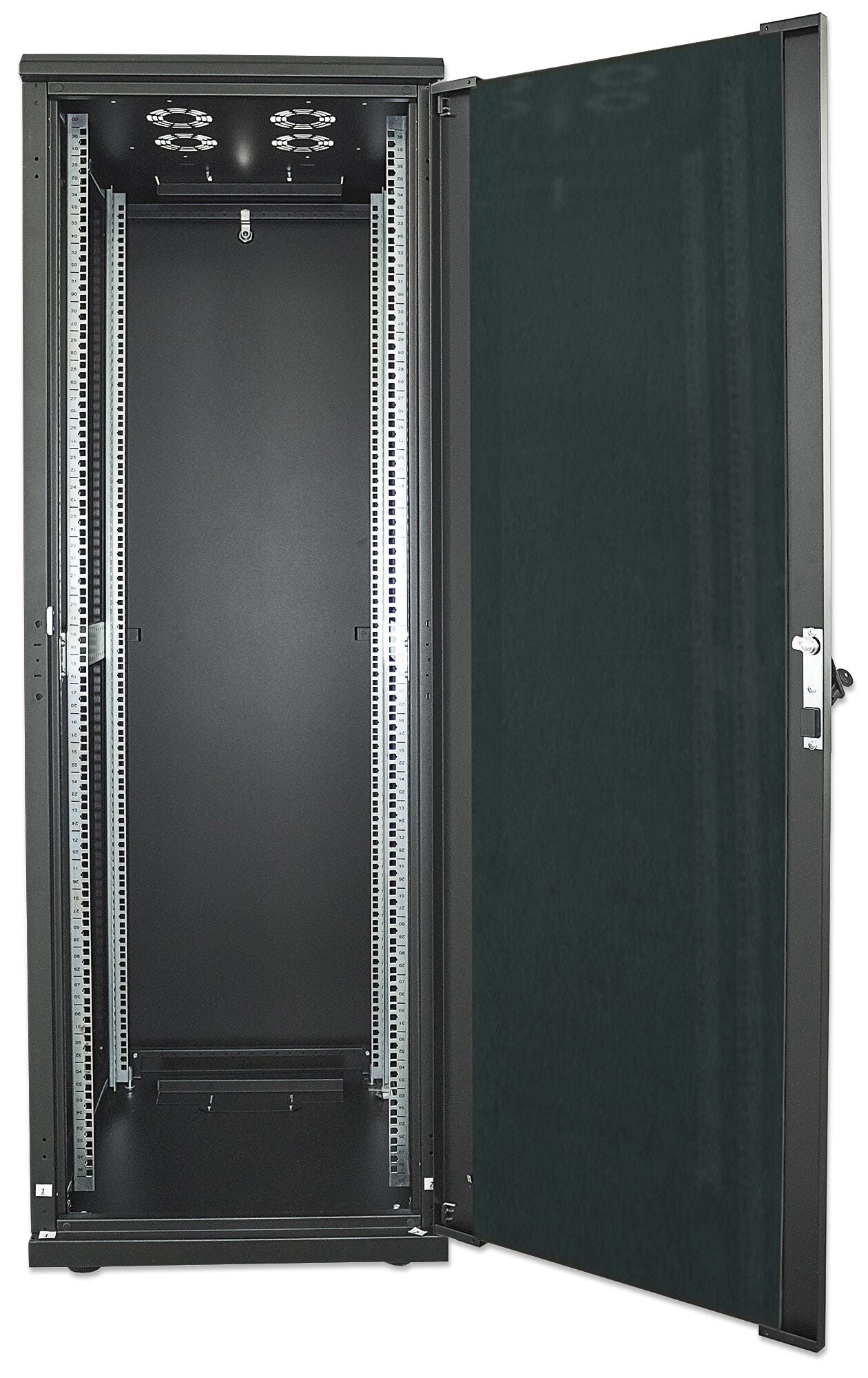

In terms of housing, you have numerous 19″ options with installation depths that range from 600 to 800 mm: With heights from 16 to 42 units in black (RAL9005) or grey (RAL7035), we offer you a solution for every need. The removable side panels and the lockable tempered-glass door make cabling and component exchange particularly easy._x000D_
_x000D_

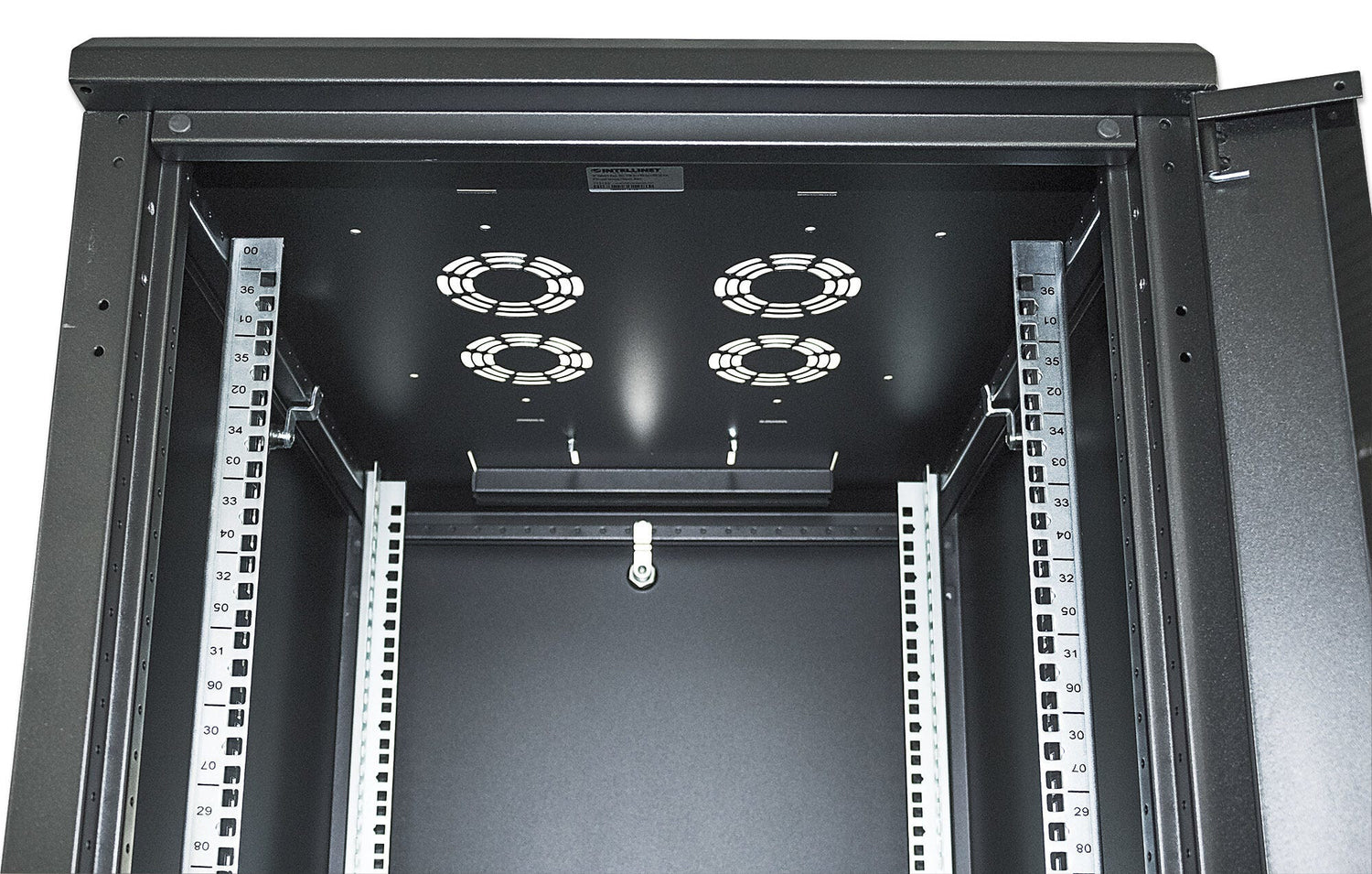

In material and workmanship, we provide top quality. Part of that is a cold-rolled steel frame, zinc-plated 19″ mounting rails and antistatic powder coating on all panels.

Specifikationer

Features
Certification UL, Gost-R
International Protection (IP) code IP20
Adjustable feet Yes
Adjustable mounting rails Yes
Adjustable depth Yes

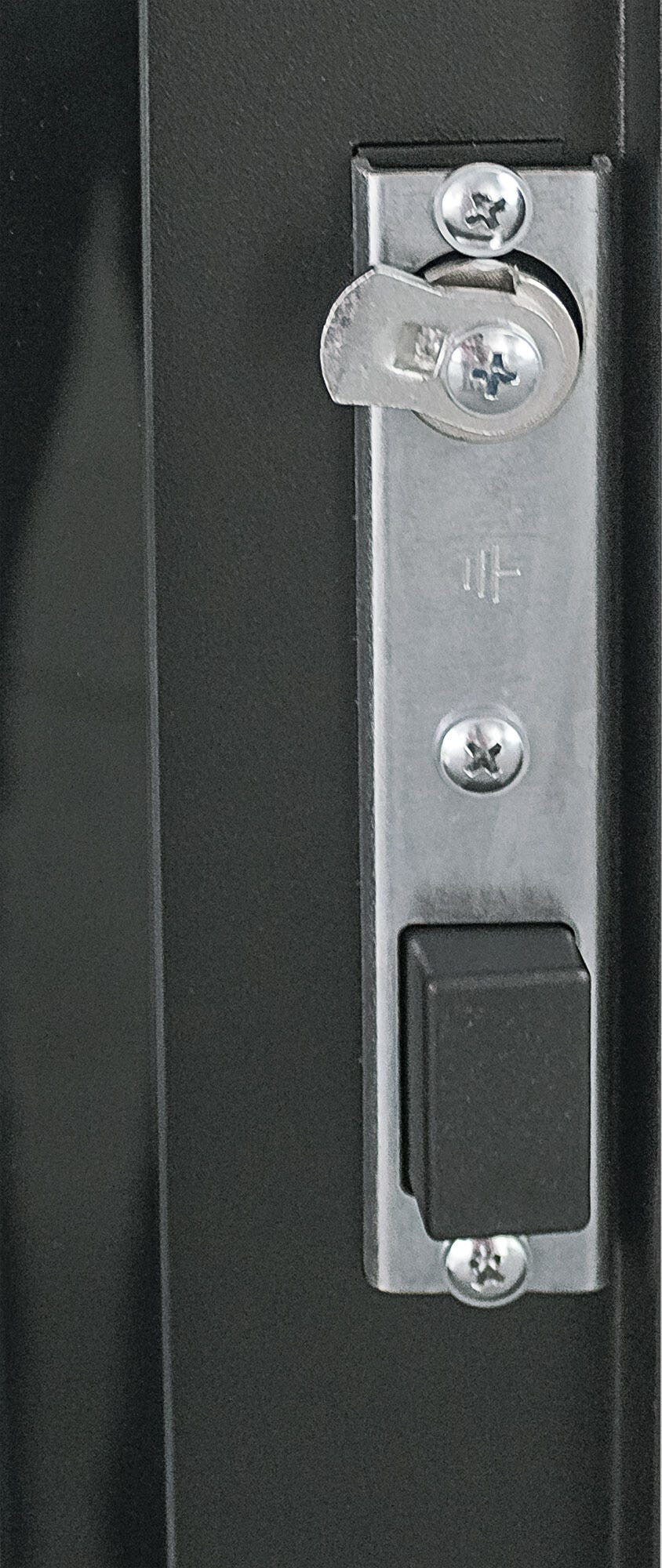

Front door key lock Yes
Key lock Yes
Side panels included Yes
Removable side panels Yes
Front door construction Glass
Frame type Closed
Material Steel
Product colour Black
Maximum weight capacity 1500 kg
Type Freestanding rack
Rack capacity 42U
Weight & dimensions
Weight 103 kg
Height 2033 mm
Depth 600 mm
Width 600 mm
Size (imperial) 48.3 cm (19")
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 85381000
