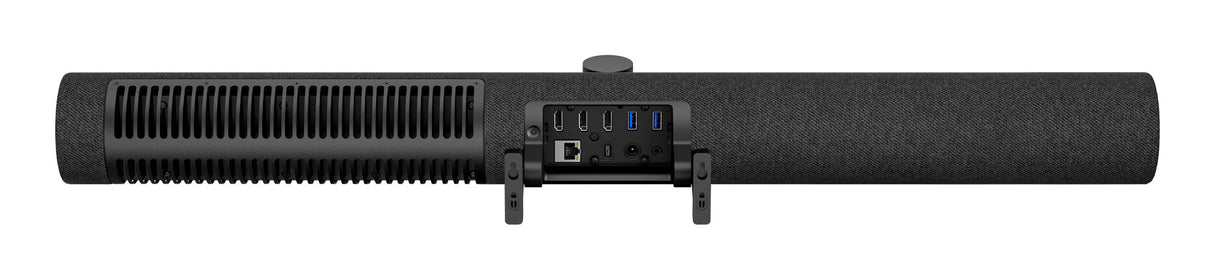

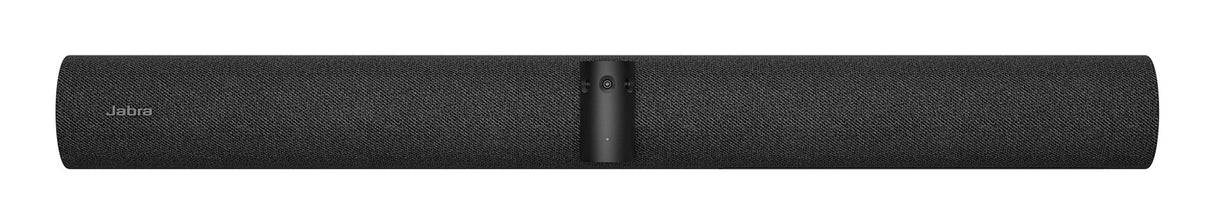

Jabra PanaCast 50 VBS bar only - UC (VB, EMEA Charger-type C)
Jabra | Varenummer:
8530-231
Beskrivelse
Beskrivelse
PanaCast 50 VBS bar only - UC (VB, EMEA Charger-type C)
PanaCast 50 VBS bar only UC VB EMEA Ch-C
Specifikationer
Specifikationer
| Performance | |
|---|---|
| Product type | Video collaboration bar |
| Number of cameras | 3 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Product colour | Black |
| Auto framing | Yes |
| Wall mountable | Yes |
| PTZ control | Yes |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Video | |
|---|---|
| HD type | 4K Ultra HD |
| Total megapixels | 13 MP |
| Picture-in-Picture | No |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 4 |
| Audio system full duplex | Yes |
| Frequency range | 80 - 20000 Hz |
| Line-out impedance | 4 Ω |
| Audio beamforming | Yes |
| Microphone pick-up range | 6 m |
| Echo cancellation | Yes |
| Noise reduction | Yes |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 3 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 2 |
| USB connector type | USB Type-C, USB Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| DC-in jack | Yes |
| AUX out | Yes |
| 3.5 mm connector | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Supported network protocols | IPv4;IPv6 |
| Security algorithms | HTTPS |
| Camera | |
|---|---|
| Megapixel (approx.) | 13 MP |
| Camera type | Triple camera |
| Zoom capability | Yes |
| Digital zoom | 3x |
| Horizontal field of view | 180° |
| Vertical field of view | 54° |
| Diagonal field of view | 180° |
| Privacy type | Privacy cover |
| Privacy camera | Yes |
| Microphone | |
|---|---|
| Microphone sensitivity | -37 dB |
| Microphone frequency | 100 - 16000 Hz |
| Number of microphones | 8 |
| Computer system | |
|---|---|
| Operating system installed | Android |
| Features | |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Operational conditions | |
|---|---|
| Maximum operating altitude | 4876.8 m |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 15 - 80% |
| Operating temperature (T-T) | 5 - 35 °C |
| Power | |
|---|---|
| Power source type | AC |
| AC input voltage | 100-240 V |
| Current | 5 A |
| DC input voltage | 12 V |
| DC output voltage | 12 V |
| Power plug type | Type C |
| Certificates | |
|---|---|
| Certified for Microsoft Teams | Yes |
| Certification | Microsoft Teams Rooms;Zoom Room |
| Weight & dimensions | |
|---|---|
| Width | 730 mm |
| Depth | 146 mm |
| Height | 77 mm |
| Weight | 2.26 kg |
| Package width | 785 mm |
| Package depth | 183 mm |
| Package height | 189 mm |
| Package weight | 4.85 kg |
| Packaging content | |
|---|---|
| Cables included | HDMI, LAN (RJ-45) |
| Networking cable length | 1.83 m |
| HDMI cable length | 1.83 m |
| AC adapter included | Yes |
| Packaging content | Video bar, power supply, wall mount, Privacy cover with sensor, Cable compartment cover and tool, 1 x Ethernet cable 1.83m/6ft, 1 x HDMI cable 1.83m/6ft, 1 x regional power cable |
Download
Download
PDF download:
Jabra PanaCast 50 VBS bar only - UC (VB, EMEA Charger-type C)
Nøgle specifikationer
Nøgle specifikationer
-
SKI nummer50070125-10000211
