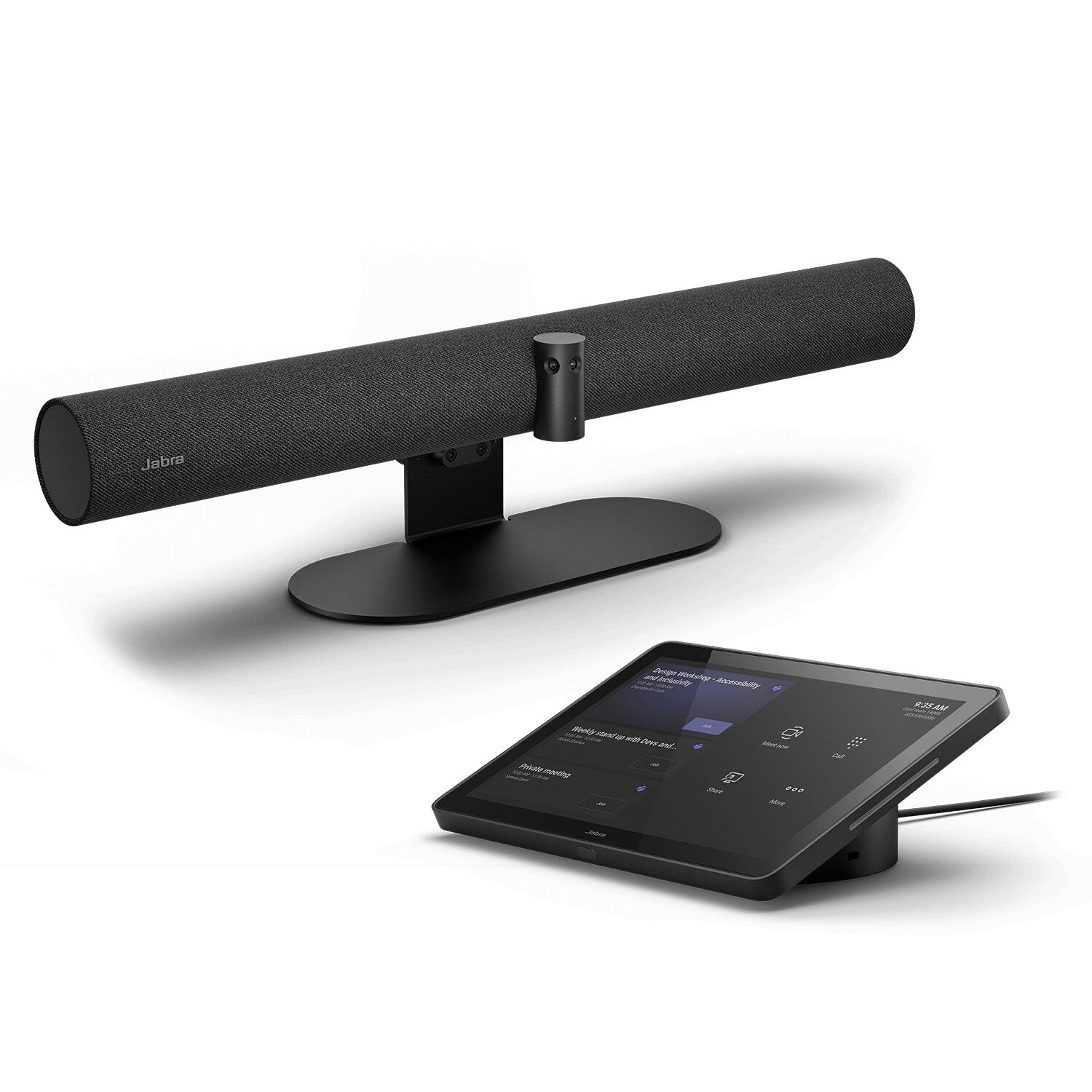

Jabra PanaCast 50 Video Bar System - MS Teams Room (VB & TC, EMEA Charger-C)
Jabra | Varenummer:
8501-231
Beskrivelse
Beskrivelse
PanaCast 50 Video Bar System - MS Teams Room (VB & TC, EMEA Charger-C)
The intelligent video conferencing room system that gives everyone an equal meeting experience
Specifikationer
Specifikationer
| Performance | |
|---|---|
| Product type | Group video conferencing system |
| Number of cameras | 3 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Product colour | Black |
| Auto framing | Yes |
| Wall mountable | Yes |
| PTZ control | Yes |
| Video | |
|---|---|
| HD type | Full HD |
| Maximum video resolution | 3840 x 1080 pixels |
| Maximum frame rate | 30 fps |
| Picture-in-Picture | No |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 4 |
| Frequency range | 80 - 20000 Hz |
| Audio beamforming | Yes |
| Microphone pick-up range | 4.5 m |
| Echo cancellation | Yes |
| Noise reduction | Yes |
| Ports & interfaces | |
|---|---|
| HDMI input ports quantity | 1 |
| USB connector type | USB Type-C, USB Type-A |
| AUX out | Yes |
| 3.5 mm connector | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Networking standards | IEEE 802.3af |
| Supported network protocols | IPv4;IPv6 |
| Security algorithms | HTTPS |
| Camera | |
|---|---|
| Megapixel (approx.) | 13 MP |
| Camera type | Triple camera |
| Horizontal field of view | 180° |
| Vertical field of view | 54° |
| Privacy type | Privacy cover |
| Privacy camera | Yes |
| Display | |
|---|---|
| Built-in display | Yes |
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Microphone | |
|---|---|
| Microphone sensitivity | -37 dB |
| Microphone frequency | 100 - 8000 Hz |
| Number of microphones | 8 |
| Features | |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Operational conditions | |
|---|---|
| Maximum operating altitude | 4876.8 m |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 15 - 80% |
| Operating temperature (T-T) | 5 - 35 °C |
| Power | |
|---|---|
| Power source type | AC |
| AC input voltage | 100-240 V |
| DC output voltage | 12 V |
| DC output current | 5 A |
| Certificates | |
|---|---|
| Certified for Microsoft Teams | Yes |
| Certification | Microsoft Teams Rooms |
| Weight & dimensions | |
|---|---|
| Interface module dimensions (W x D x H) | 248 x 156 x 85 mm |
| Width | 730 mm |
| Depth | 146 mm |
| Height | 77 mm |
| Weight | 2.26 kg |
| Package width | 785 mm |
| Package depth | 183 mm |
| Package height | 189 mm |
| Package weight | 6.09 kg |
| Packaging content | |
|---|---|
| External interface module included | Yes |
| Wall mounting kit | Yes |
| AC adapter included | Yes |
| Packaging content | PanaCast 50 VBS video bar;Power supply;Wall mount;Privacy cover with sensor;Cable compartment cover and tool;Jabra PanaCast Control;PoE Power Injector;1 x Ethernet cable 1.83m/6ft;2 x Ethernet cable 4.57m/15ft;1 x HDMI cable 1.83m/6ft;2 x regional power cable |
