Lenovo 4XC1Q24434 network card Internal WWAN
Lenovo | Varenummer:
4XC1Q24434
Beskrivelse
Beskrivelse

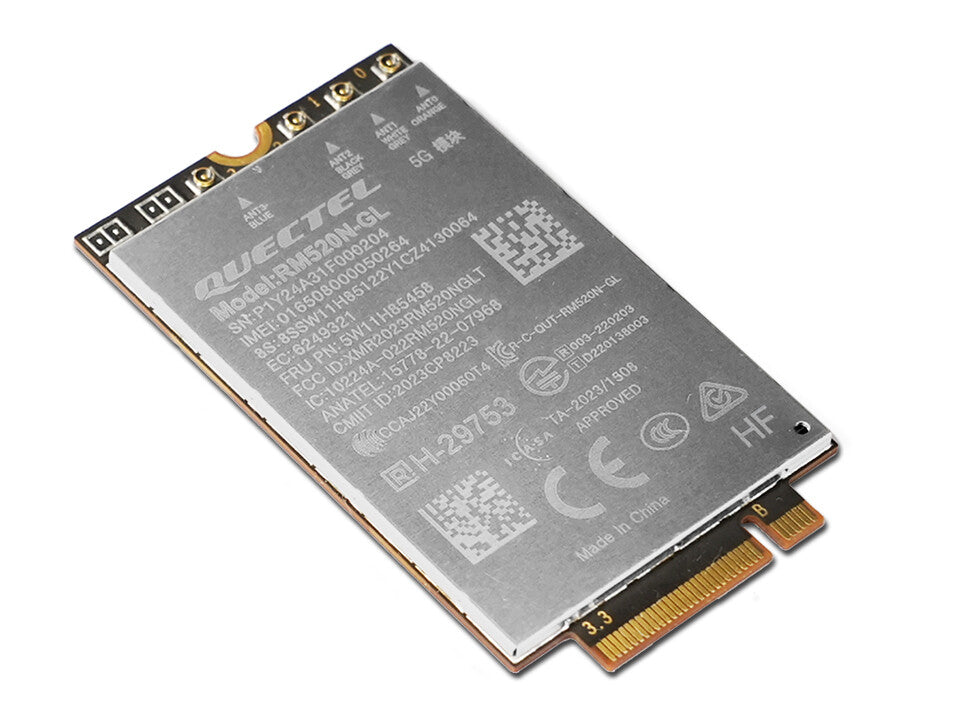

ThinkPad Quectel RM520N-GL 5G M.2 WWAN Module for X1 Carbon Gen 12/T14 Gen 5
ThinkPad Quectel RM520N-GL 5G M.2 WWAN Module for X1 Carbon Gen 12/T14 Gen 5 is a 5G NR/LTE-FDD/LTE-TDD/UMTS/HSPA+ wireless communication module with receive diversity. It provides data connectivity on 5G NR SA and NSA, LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA networks. RM520N-GL is a standard M.2 Key-B WWAN module.
Specifikationer
Specifikationer
| Ports & interfaces | |
|---|---|
| Interface | WWAN |
| Host interface | M.2 |
| Connectivity technology | Wireless |
| Network | |
|---|---|
| Mobile network generation | 5G |
| Design | |
|---|---|
| Compatible products | ThinkPad P14 Series-P14s AMD G5ThinkPad T14 Series-T14 AMD G5ThinkPad T14 Series-T14 G5ThinkPad X1 series-X1 Carbon G12 |
| Certification | NCC/ANATEL/SRRC/NAL/CCC/CE/FCC/IC/RCM/PTCRB/GCF/KC/JATE/TELEC/NBTC/IMDA/ICASA |
| Antenna design | Internal |
| Component for | Laptop |
| Internal | Yes |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 90 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
|---|---|
| Weight | 8.7 g |
| Height | 2.3 mm |
| Depth | 30 mm |
| Width | 52 mm |
| Packaging data | |
|---|---|
| Package weight | 30 g |
| Package height | 177 mm |
| Package depth | 144 mm |
| Package width | 53 mm |
