Lenovo ES-257 Ethernet 100 Mbit/s
Beskrivelse
Beskrivelse
Ethernet to Serial device server providing access to two RS232 serial ports. Data transfer rates up to 230,400 baud rates, coupled with 1Mbit/s line drivers deliver uncompromising performance. Our ES range provides simple instant networked serial ports. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. Serial Port Tunneling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs.
Specifikationer
Specifikationer
Ports & interfaces | |
---|---|
Ethernet LAN (RJ-45) ports | 1 |
Interface | Ethernet |

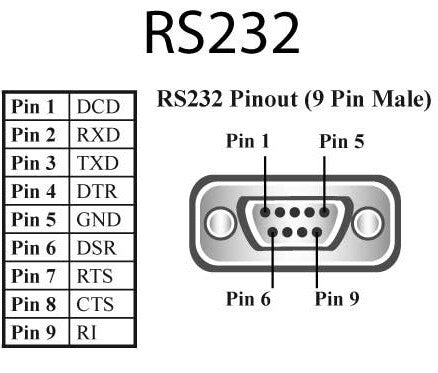

Host interface | RS-232 |
Connectivity technology | Wired |
Network | |
---|---|
Supported network protocols | ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, HTTP, RFC2217 |
Web-based management | Yes |
Cabling technology | 10/100BaseT(X) |
Ethernet LAN data rates | 10,100 Mbit/s |
Ethernet LAN | Yes |
Networking standards | IEEE 802.3, IEEE 802.3u |
Maximum data transfer rate | 100 Mbit/s |
Design | |
---|---|
LED indicators | Yes |
Product colour | Black, Yellow |
Internal | No |
Power | |
---|---|
Power consumption (typical) | 0.92 W |
Output voltage | 5 V |
System requirements | |
---|---|
Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8 Enterprise, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
Operational conditions | |
---|---|
Operating relative humidity (H-H) | 5 - 95% |
Storage temperature (T-T) | -20 - 85 °C |
Operating temperature (T-T) | 0 - 55 °C |

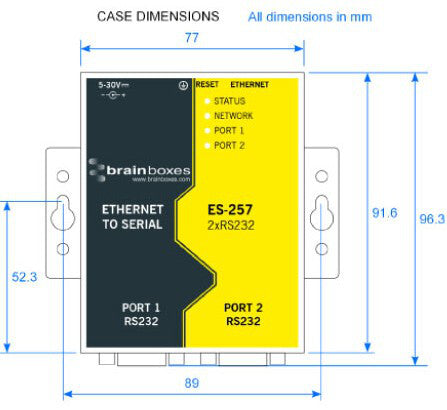

Weight & dimensions | |
---|---|
Weight | 234 g |
Height | 26 mm |
Depth | 100 mm |
Width | 101 mm |
Packaging data | |
---|---|
Package weight | 515 g |
Package height | 62 mm |
Package depth | 235 mm |
Package width | 170 mm |
Technical details | |
---|---|
Compliance certificates | RoHS |
Other features | |
---|---|
Supported data transfer rates | 10 Mbit/s |
Link/Act LED | Yes |
Flow control support | Yes |
Compliance industry standards | IEEE 802.3, IEEE 802.3u |
