Lenovo Fibocom L860-GL-16 4G Internal WWAN 1000 Mbit/s
Lenovo | Varenummer:
4XC1M72798
Beskrivelse
Beskrivelse

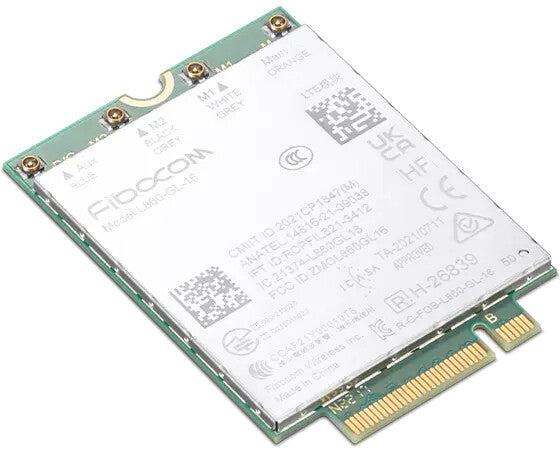

ThinkPad Fibocom L860-GL-16 4G LTE CAT16 M.2 WWAN Module for X1 Carbon Gen 11
ThinkPad Fibocom L860-GL-16 4G LTE CAT16 M.2 WWAN Module is a wireless communication module with receive diversity. It helps provide data connectivity and network with PCIe Gen2 M.2 interface. With downlink speed up to 1Gbps and uplink speed up to 150 Mbps, the 4G LTE CAT16 WWAN module enhances the network reliability and availability of your ThinkPad, and provides a great cellular solution for travelers to sustain mobility while using PC devices.
Specifikationer
Specifikationer
| Ports & interfaces | |
|---|---|
| Interface | WWAN |
| Host interface | M.2 |
| Connectivity technology | Wireless |
| Network | |
|---|---|
| MU-MIMO | Yes |
| 4G standard | LTE-TDD & LTE-FDD |
| Mobile network generation | 4G |
| Maximum data transfer rate | 1000 Mbit/s |
| Design | |
|---|---|
| Compatible products | X1 Carbon Gen 11 |
| Certification | CE for EU, KCC for Korea, IFT for Mexico, NTC for Philippines, ICASA for South Africa, NCC for Taiwan. |
| Antenna design | Internal |
| Component for | Laptop |
| Internal | Yes |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 11 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -10 - 55 °C |
| Weight & dimensions | |
|---|---|
| Weight | 6.2 g |
| Height | 2.3 mm |
| Depth | 42 mm |
| Width | 30 mm |
| Packaging data | |
|---|---|
| Package weight | 30 g |
| Package height | 177 mm |
| Package depth | 144 mm |
| Package width | 53 mm |
