Lenovo ThinkSmart HUB 500 Intel® Core™ i5 i5-7500T 29.5 cm (11.6") 1920 x 1080 pixels Touchscreen All-in-One PC 8 GB DDR4-SDRAM 128 GB SSD Windows 10 IoT Enterprise Wi-Fi 5 (802.11ac) Black

Lenovo  |  Varenummer: 10V50002MT

Beskrivelse

11.6" FHD (1920x1080) WVA Touch, Intel Core i5-7500T (6M Cache, 2.7GHz), 8GB DDR4 2400MHz, 128GB SSD, Integrated Intel HD Graphics 630, Gigabit ethernet, WLAN 802.11ac, Bluetooth 4.1, Windows 10 IoT Enterprise

Because everyone's time is valuable
Meetings are time consuming enough without trying to get the technology to work properly. The average delay is around 10 minutes, but with the ThinkSmart Hub 500, you can avoid costly late starts. As audio and video is already connected, simply hit one button and everyone can begin collaborating right away.

A better way for teams to work together

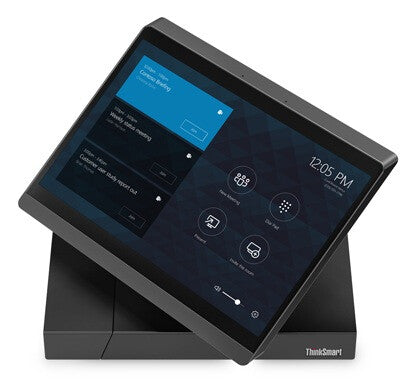

A key feature of the ThinkSmart Hub 500 is its eye-catching anti-glare, anti-smudge display. Rotatable through 360°, anyone within arm reach can take and give control instantly, enabling meetings to run more smoothly—and more fairly. There's also a 3-color LED ring that lets everyone in the room know the status of the call.

Simplify meetings, worldwide
Whether you're a host or attendee, the ThinkSmart Hub 500 will make your life easier. Designed with small to medium-sized conference rooms in mind, it's available in 180 countries. That way, everyone in your organization will be familiar with the system wherever your business takes them.

Enhanced security and manageability features
When it comes to security and practicality, the ThinkSmart Hub 500 has it covered. Windows 10 IoT Enterprise provides intelligent enterprise-grade protection, while the Intel vPro processor helps you to maintain remote devices, and the built-in Skype Room Systems app has a universal lockdown feature. Skype for Business is a universal locked-down app. In addition, an innovative cable management door secures physical ports and prevents cables being accidentally disconnected.

Specifikationer

Display
Display diagonal 29.5 cm (11.6")
Display resolution 1920 x 1080 pixels
Touchscreen Yes
HD type Full HD
LED backlight Yes
Touch technology Multi-touch
Native aspect ratio 16:9
Display brightness 300 cd/m²
Display surface Matt
Panel type WVA
Screen shape Flat
Processor
Processor manufacturer Intel
Processor family Intel® Core™ i5
Processor generation 7th gen Intel® Core™ i5
Processor model i5-7500T
Processor cores 4
Processor threads 4
Processor boost frequency 3.3 GHz
Processor frequency 2.7 GHz
Processor cache 6 MB
Processor cache type Smart Cache
System bus rate 8 GT/s
Thermal Design Power (TDP) 35 W
Configurable TDP-down frequency 1.7 GHz
Tjunction 80 °C
PCI Express configurations 2x8, 1x8+2x4
Maximum number of PCI Express lanes 16
Processor codename Kaby Lake
Bus type DMI3
Processor operating modes 64-bit
Processor lithography 14 nm
Processor socket LGA 1151 (Socket H4)
PCI Express slots version 3.0
Conflict-Free processor Yes
Maximum internal memory supported by processor 64 GB
Memory types supported by processor DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor 1333,1600,2133,2400 MHz
Memory channels supported by processor Dual
ECC supported by processor No
Memory voltage supported by processor 1.35 V
Memory
Internal memory 8 GB
Internal memory type DDR4-SDRAM
Maximum internal memory 8 GB
Memory slots 2
Memory slots type SO-DIMM
Memory clock speed 2400 MHz
Memory layout (slots x size) 2 x 4 GB
Memory form factor DIMM/SO-DIMM
Storage
Total storage capacity 128 GB
Storage media SSD
Number of SSDs installed 1
SSD capacity 128 GB
Optical drive type No
Card reader integrated No
Graphics
Discrete graphics card No
Discrete graphics card model Not available
On-board graphics card Yes
On-board graphics card family Intel® HD Graphics
On-board graphics card model Intel® HD Graphics 630
Number of displays supported (on-board graphics) 3
Maximum on-board graphics card memory 64 GB
On-board graphics card dynamic frequency (max) 1100 MHz
On-board graphics card base frequency 350 MHz
On-board graphics card ID 0x5912
On-board graphics card OpenGL version 4.4
On-board graphics card DirectX version 12.0
Audio
Built-in speaker(s) Yes
Number of speakers 2
RMS rated power 4 W
Built-in microphone Yes
Camera
Built-in camera No
Network
Wi-Fi Yes
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
Wi-Fi standards 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN controller model Intel Dual Band Wireless-AC 8265
Antenna type 1x1
Ethernet LAN Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Bluetooth Yes
Bluetooth version 4.1
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
HDMI ports quantity 2
Microphone in No
Combo headphone/mic port Yes
Design
Product colour Black
Performance
Product type All-in-One PC
Motherboard chipset Intel® Q270
Trusted Platform Module (TPM) Yes
Software
Operating system installed Windows 10 IoT Enterprise
Operating system architecture 64-bit
Operating system language Danish, Finnish, Norwegian, Swedish
Processor special features
Processor ARK ID 97121
Intel TSX-NI version 1.00
Intel Virtualization Technology (VT-x) Yes
Intel Secure Key Technology version 1.00
Intel Stable Image Platform Program (SIPP) version 1.00
Intel Identity Protection Technology version 1.00
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Thermal solution specification PCG 2015A
Embedded options available Yes
Scalability 1S
Supported instruction sets AVX 2.0
Processor package size 37.5 x 37.5 mm
Thermal Monitoring Technologies Yes
Idle States Yes
Execute Disable Bit Yes
Intel 64 Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) Yes
Intel Software Guard Extensions (Intel SGX) Yes
Intel® OS Guard Yes
Intel Stable Image Platform Program (SIPP) Yes
Intel TSX-NI Yes
Intel® Secure Key Yes
Intel VT-x with Extended Page Tables (EPT) Yes
Intel Enhanced Halt State Yes
Intel Trusted Execution Technology Yes
Intel® AES New Instructions (Intel® AES-NI) Yes
Intel® InTru™ 3D Technology Yes
Intel Clear Video Technology Yes
Intel® Clear Video HD Technology (Intel® CVT HD) Yes
Intel® Quick Sync Video Technology Yes
Enhanced Intel SpeedStep Technology Yes
Intel® Identity Protection Technology (Intel® IPT) Yes
Intel® Hyper Threading Technology (Intel® HT Technology) No
Intel® Turbo Boost Technology 2.0
CPU configuration (max) 1
Power
AC adapter power 90 W
AC adapter frequency 50/60 Hz
AC adapter input voltage 100 - 240 V
Pen
Pen included No
General
Product family ThinkSmart
Weight & dimensions
Width (with stand) 278.9 mm
Depth (with stand) 193.2 mm
Height (with stand) 178.4 mm
Weight (with stand) 2.5 kg
Certificates
Compliance certificates RoHS
Certification GREENGUARD, WEEE, ErP Lot 26
Packaging content
Mouse included No
Drivers included Yes
Cables included AC
Manual Yes
Other features
3D No
Intel® vPro™ Platform Eligibility Yes
Detachable display No
Autonomy mode No
