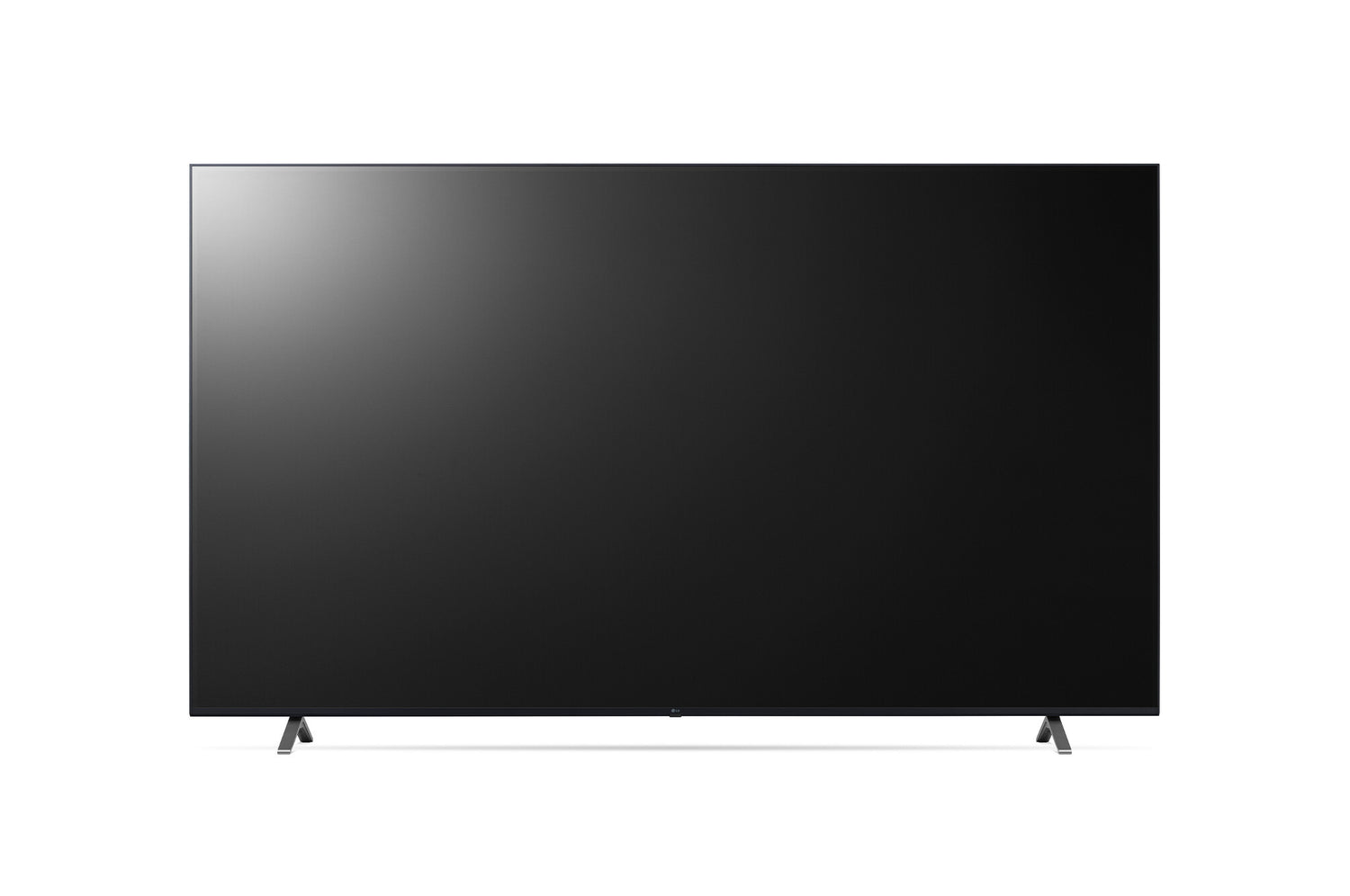

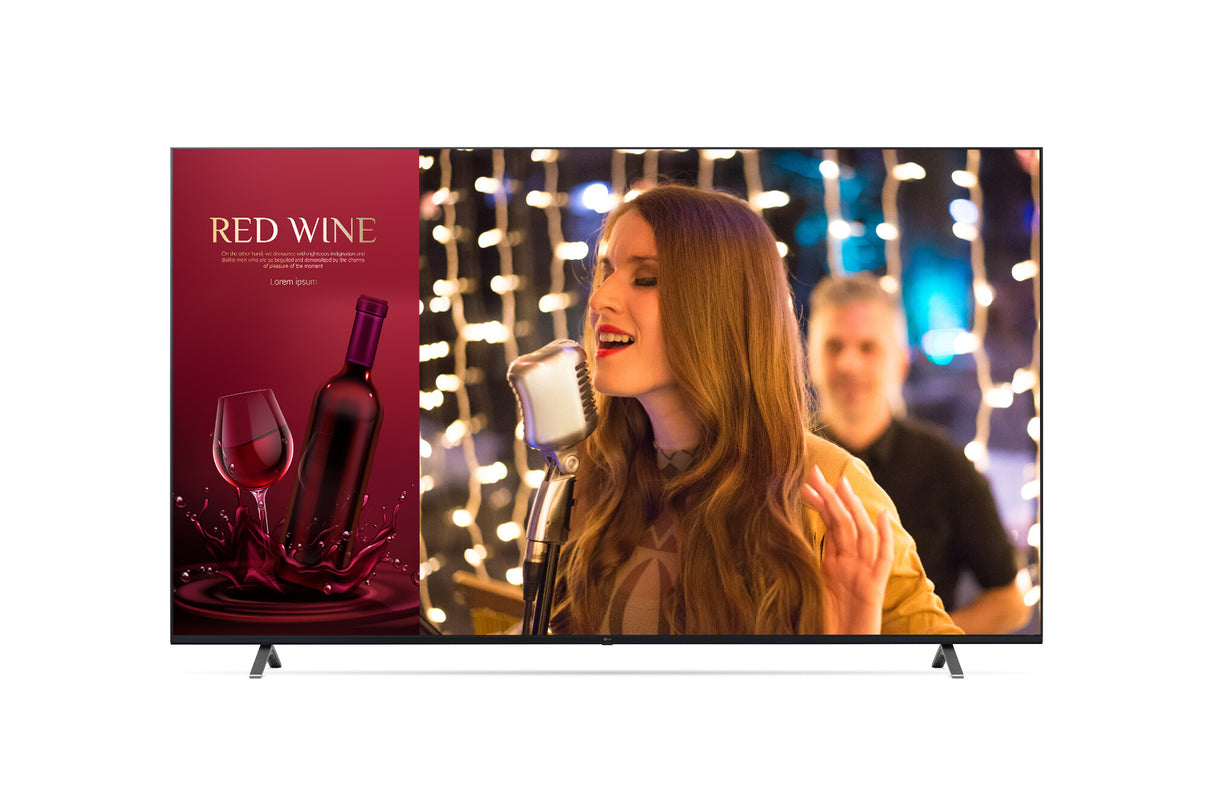

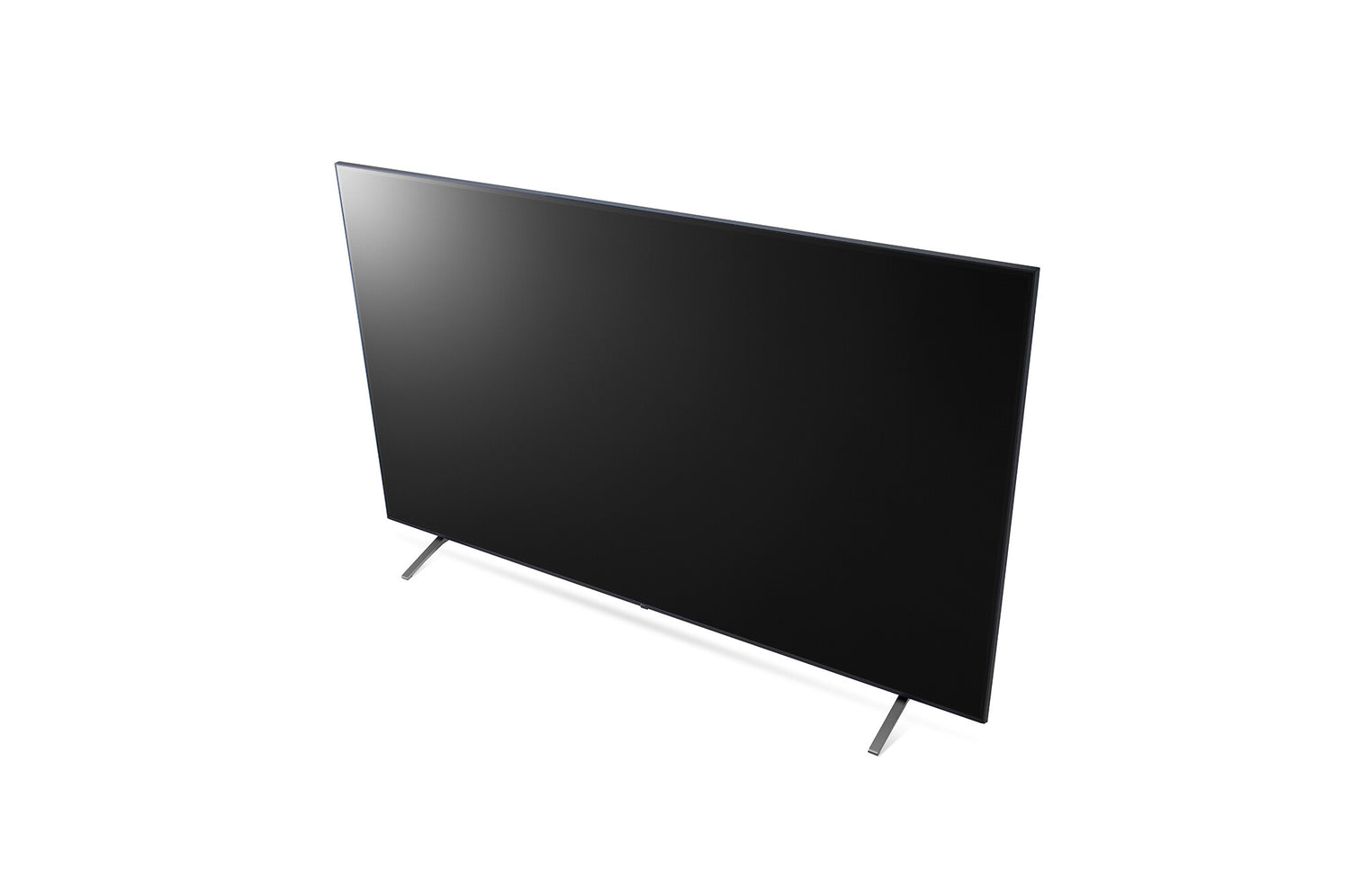

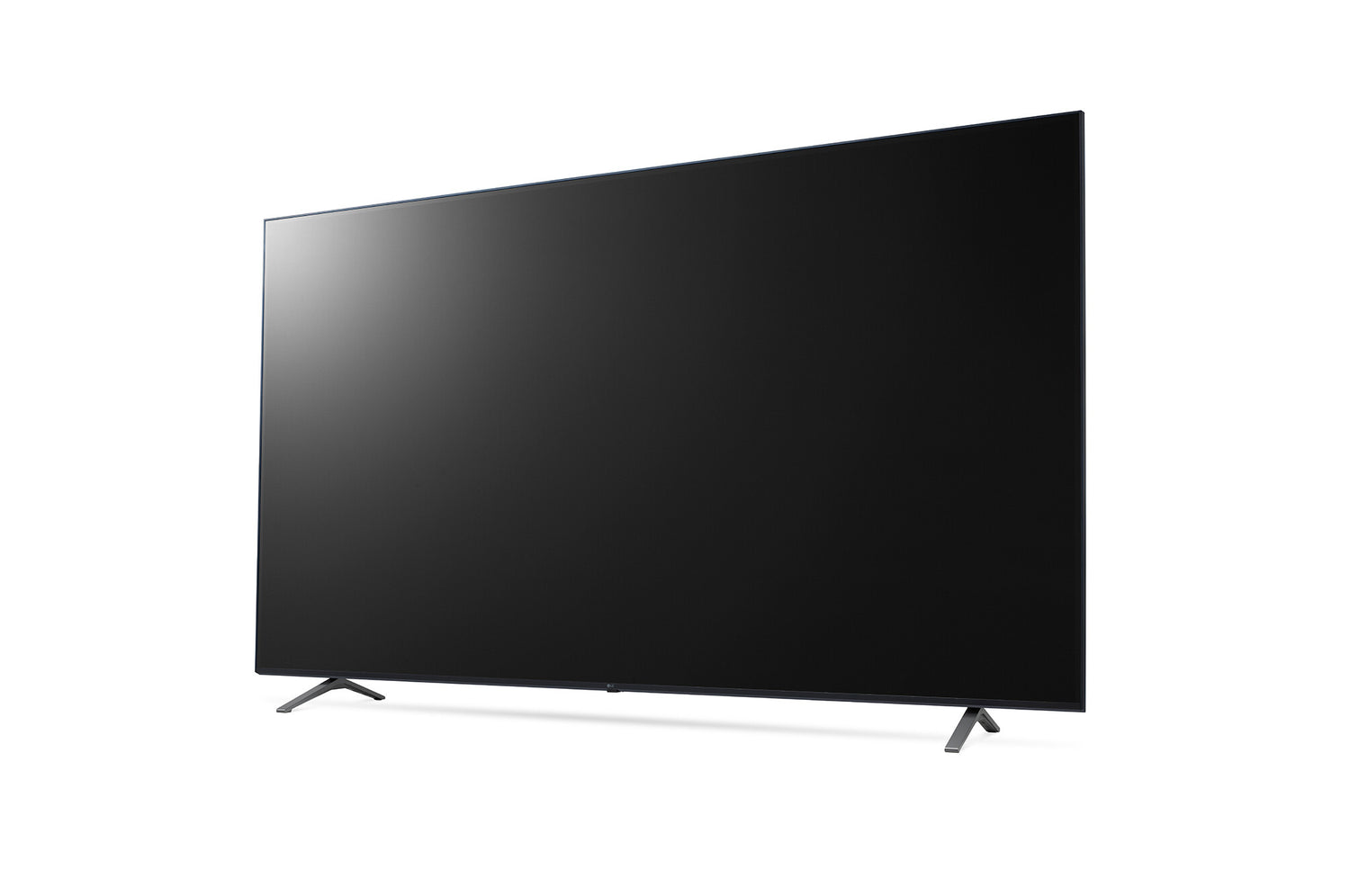

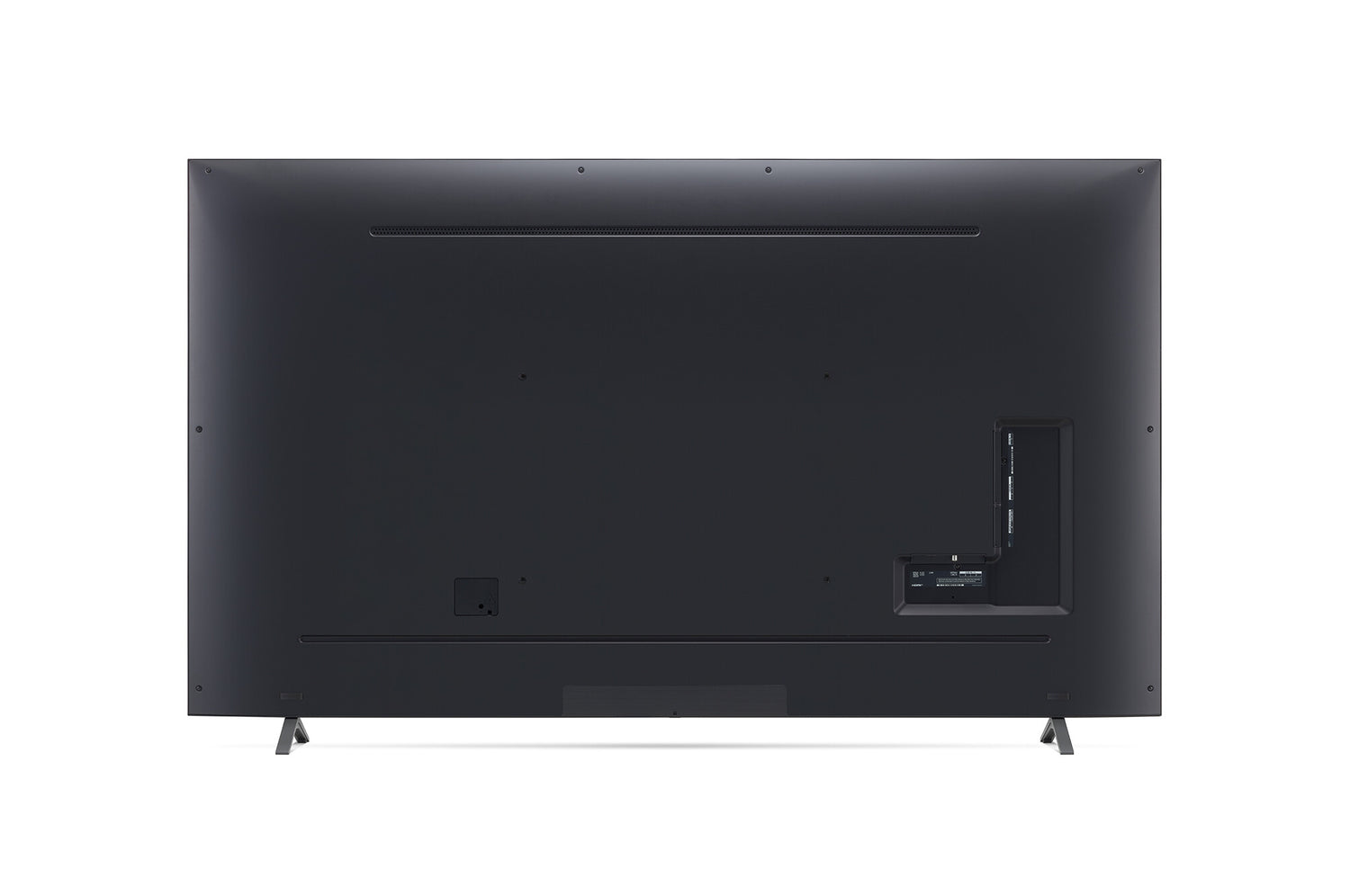

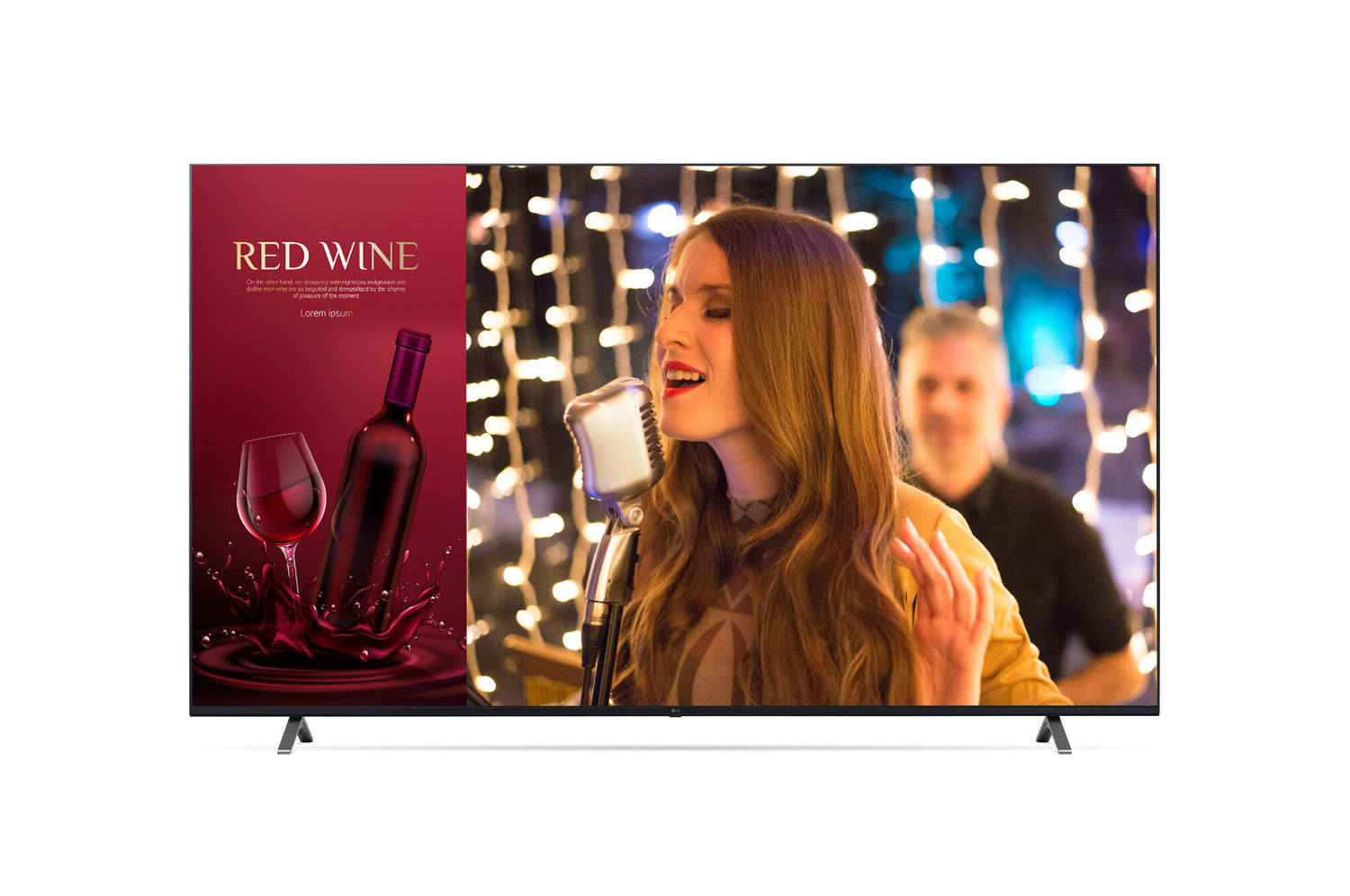

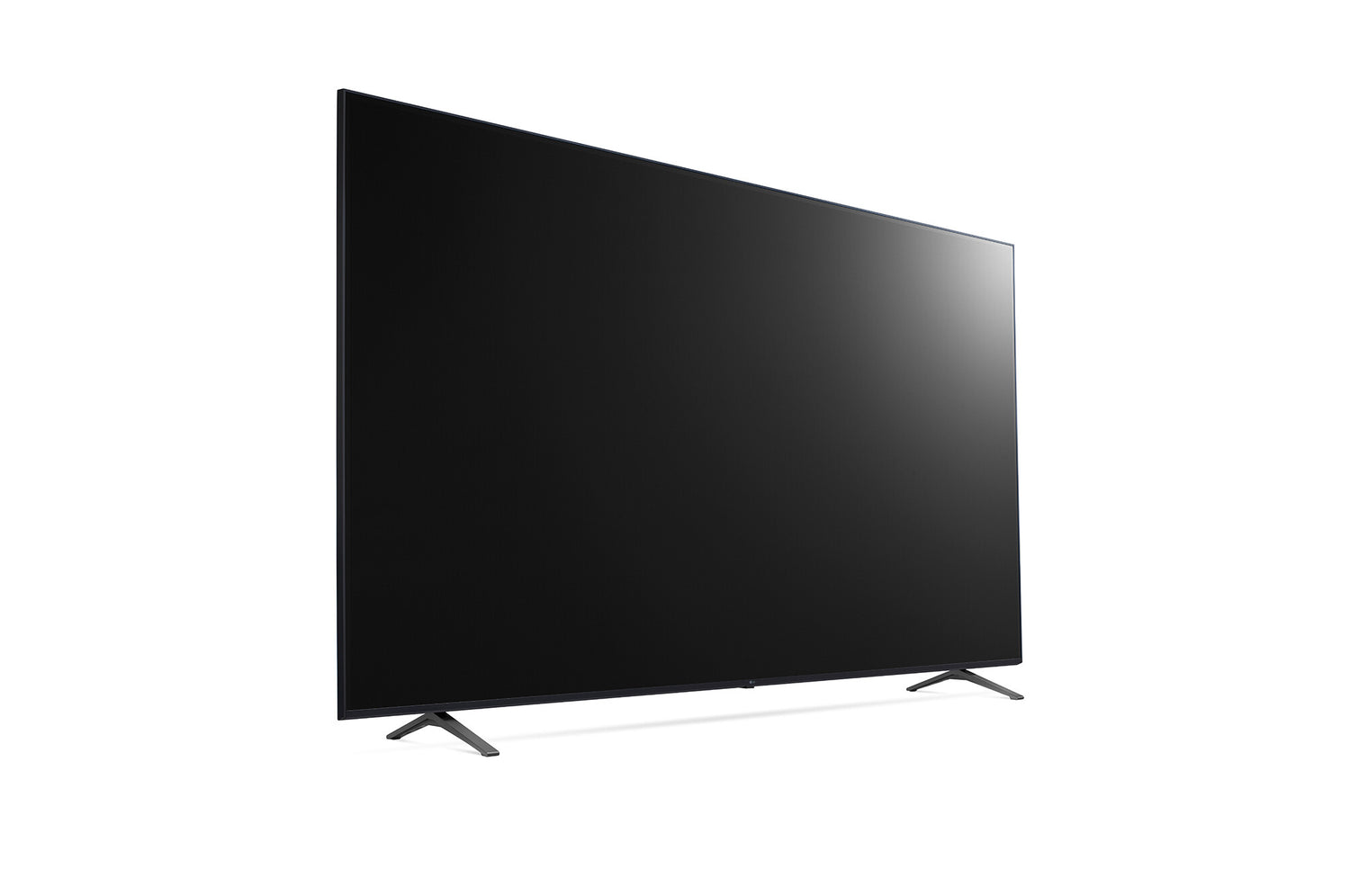

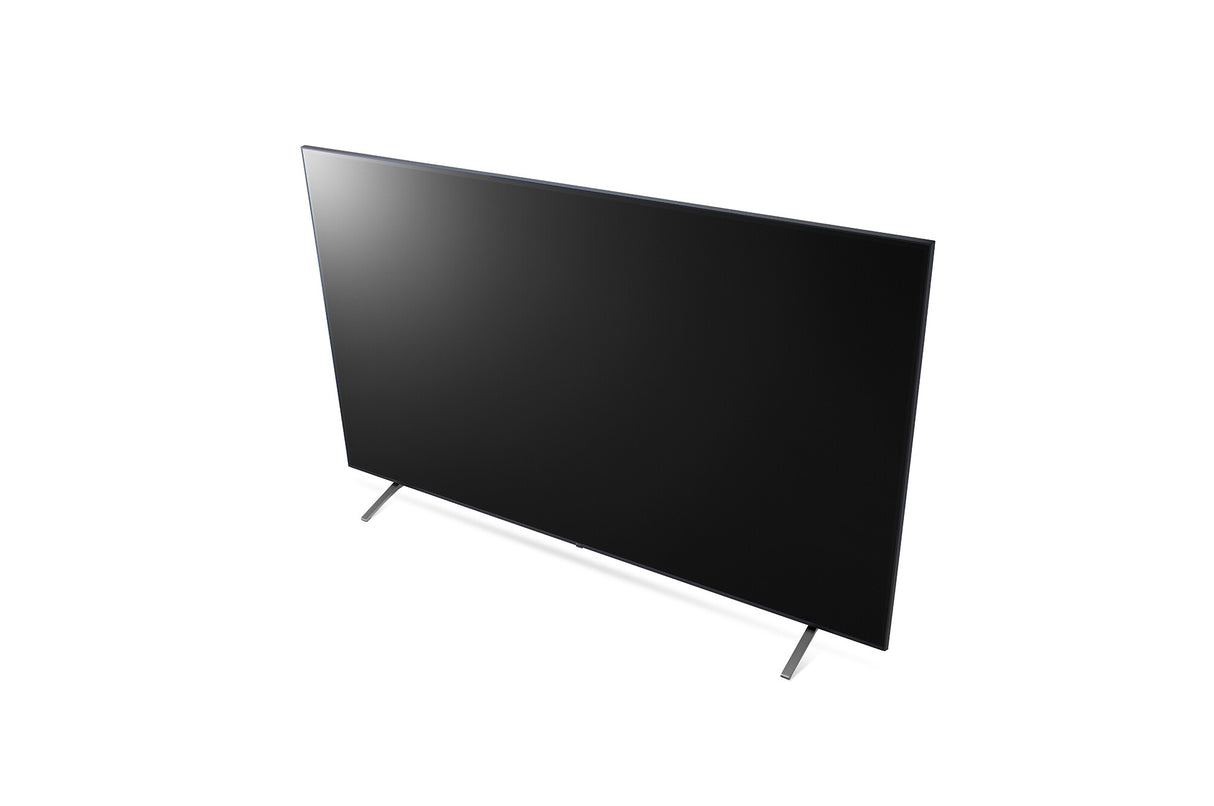

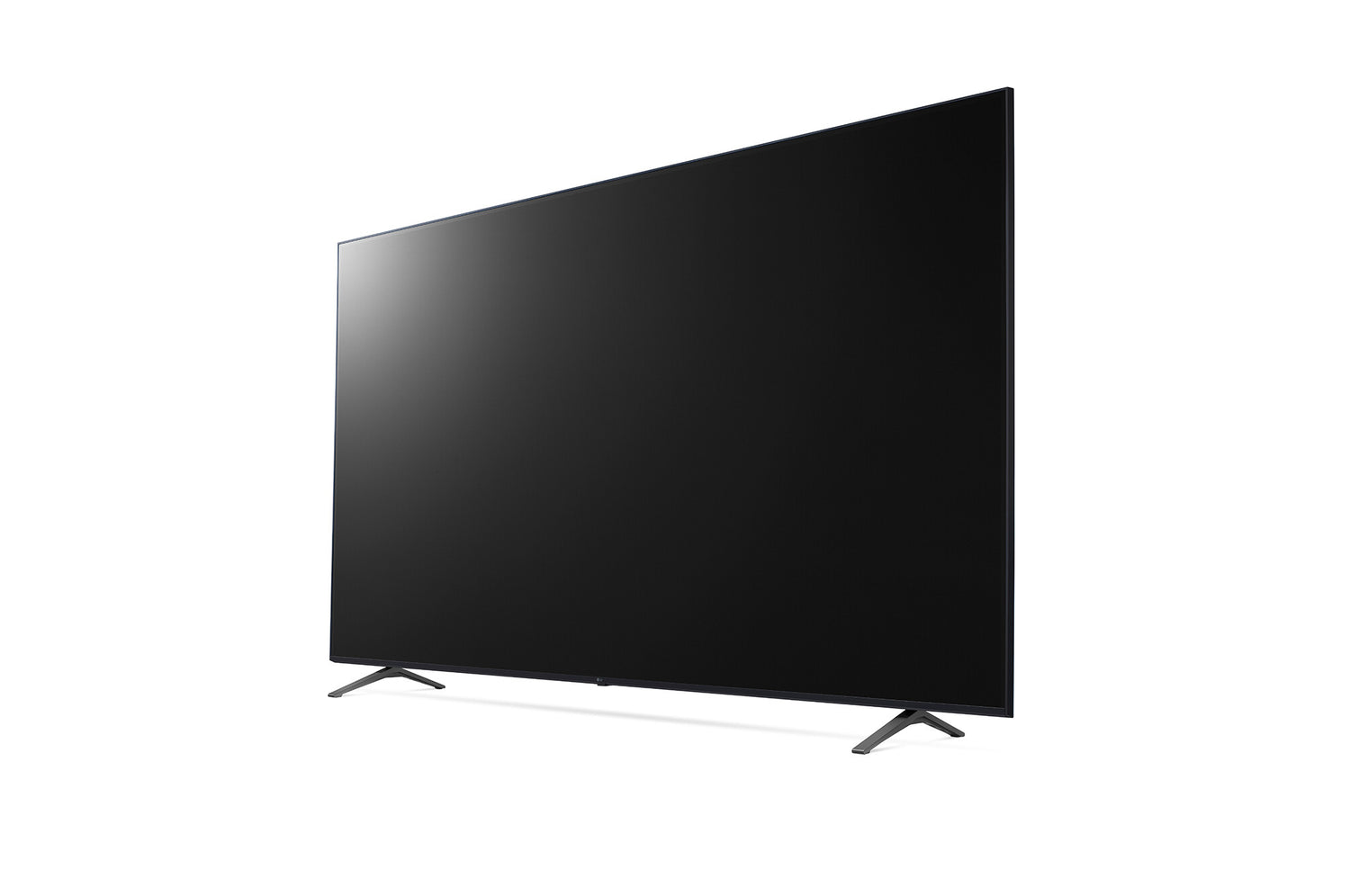

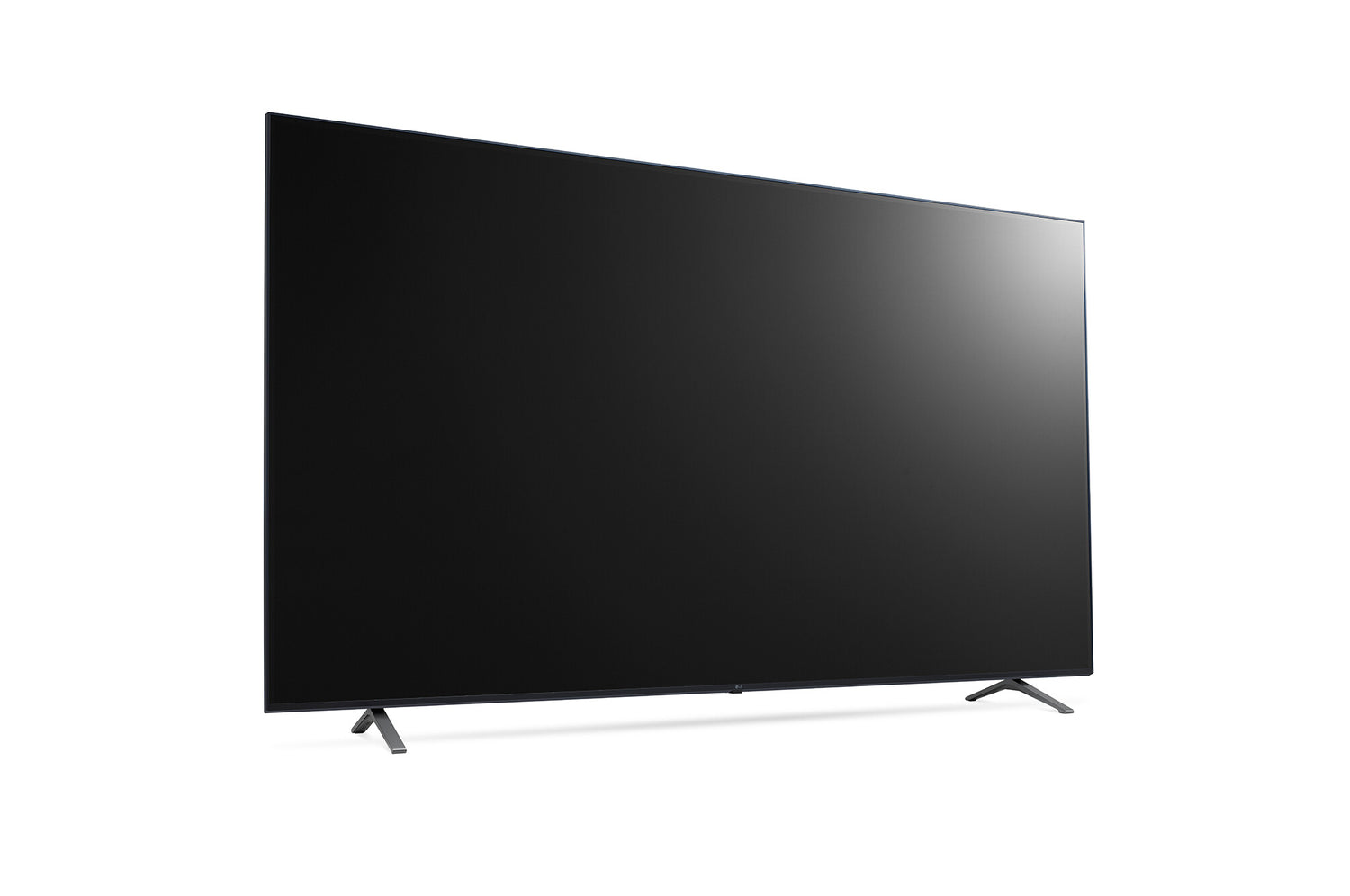

LG 86UR640S Digital signage flat panel 2.18 m (86") LED 330 cd/m² 4K Ultra HD Black Built-in processor WebOS

LG  |  Varenummer: 86UR640S0ZD
Stregkode: 8806091411792

Beskrivelse

86", 3840x2160, RMS 2x 10W, HDMI, USB, RJ-45, AC 120V 50/60Hz, 1927x1167x362 mm

Picture Quality with Ultra HD Resolution
With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents.

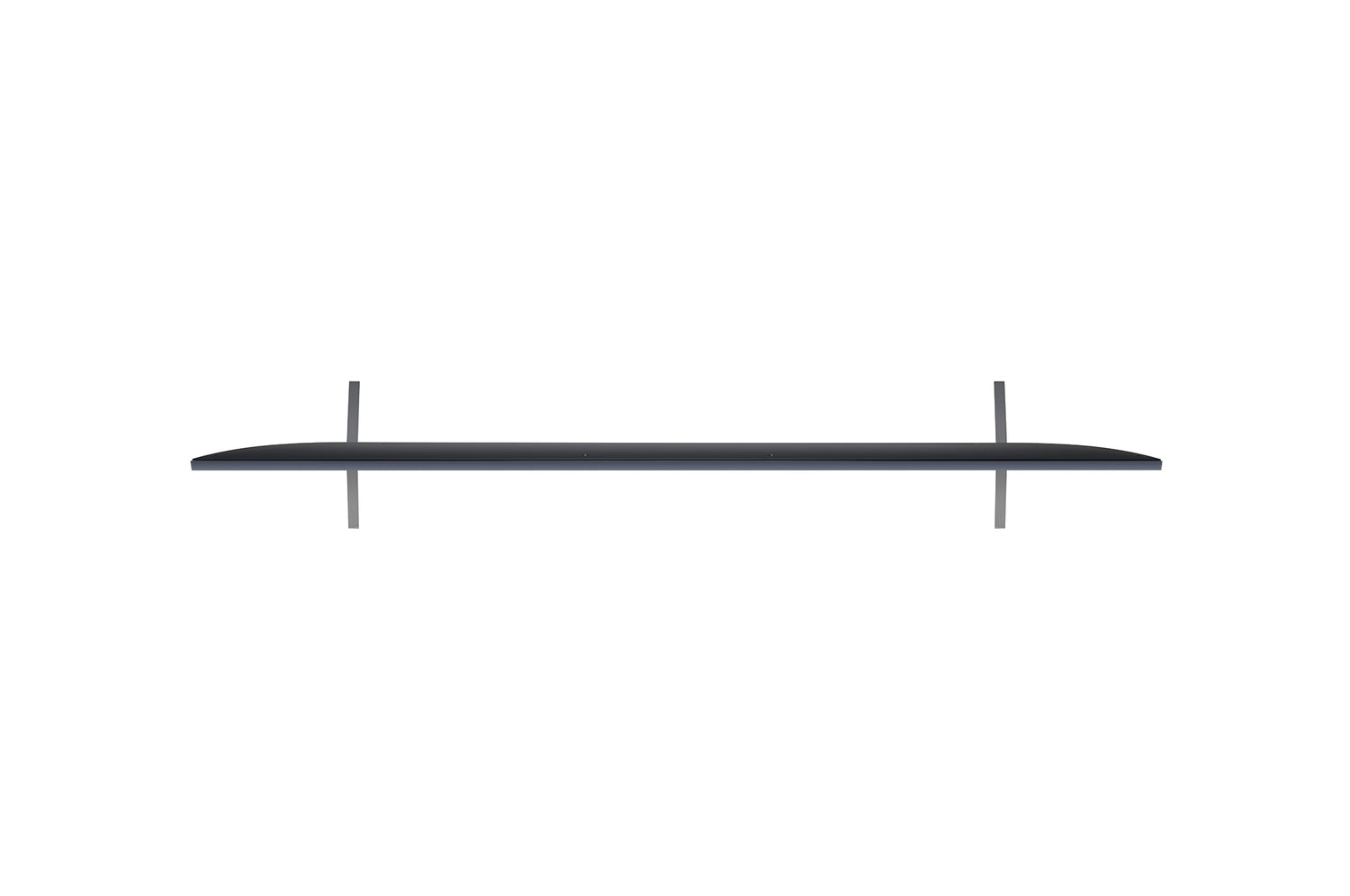

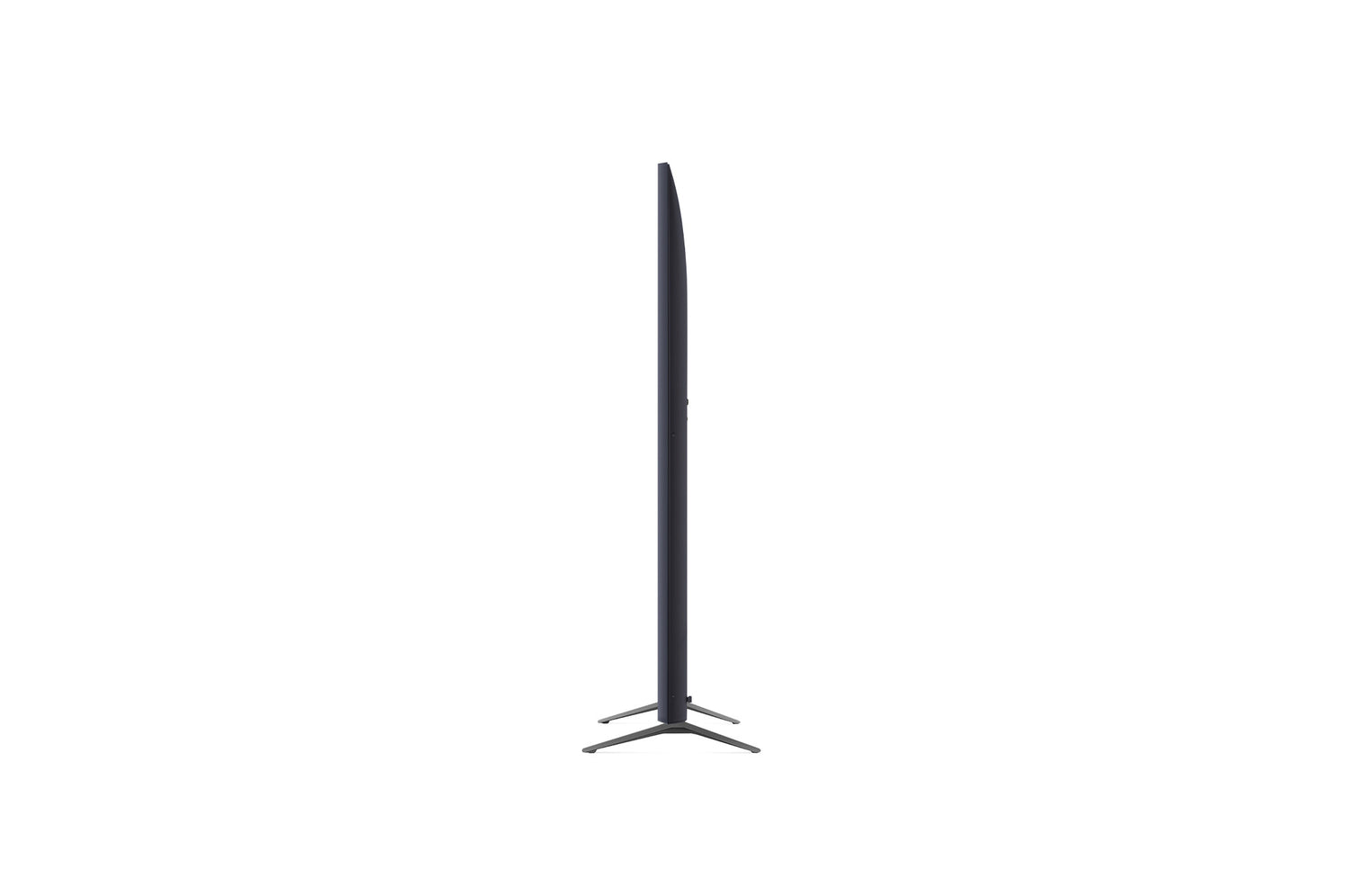

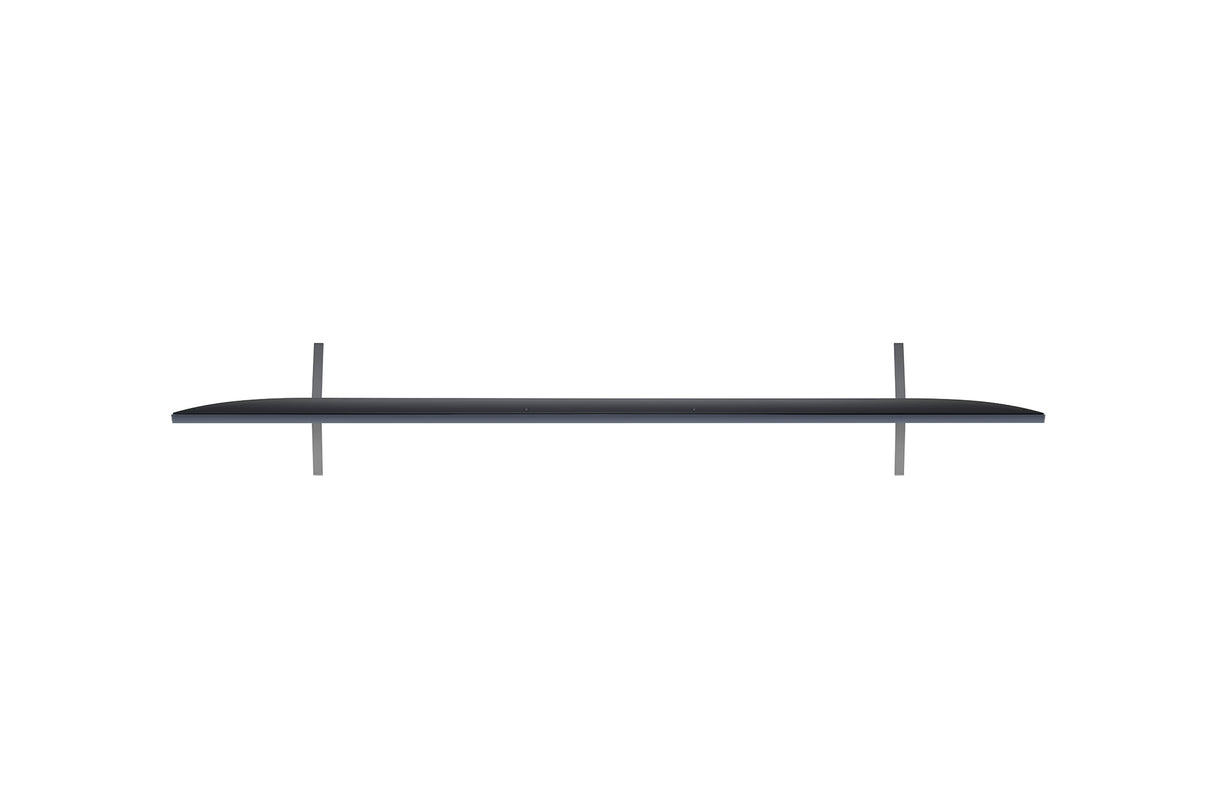

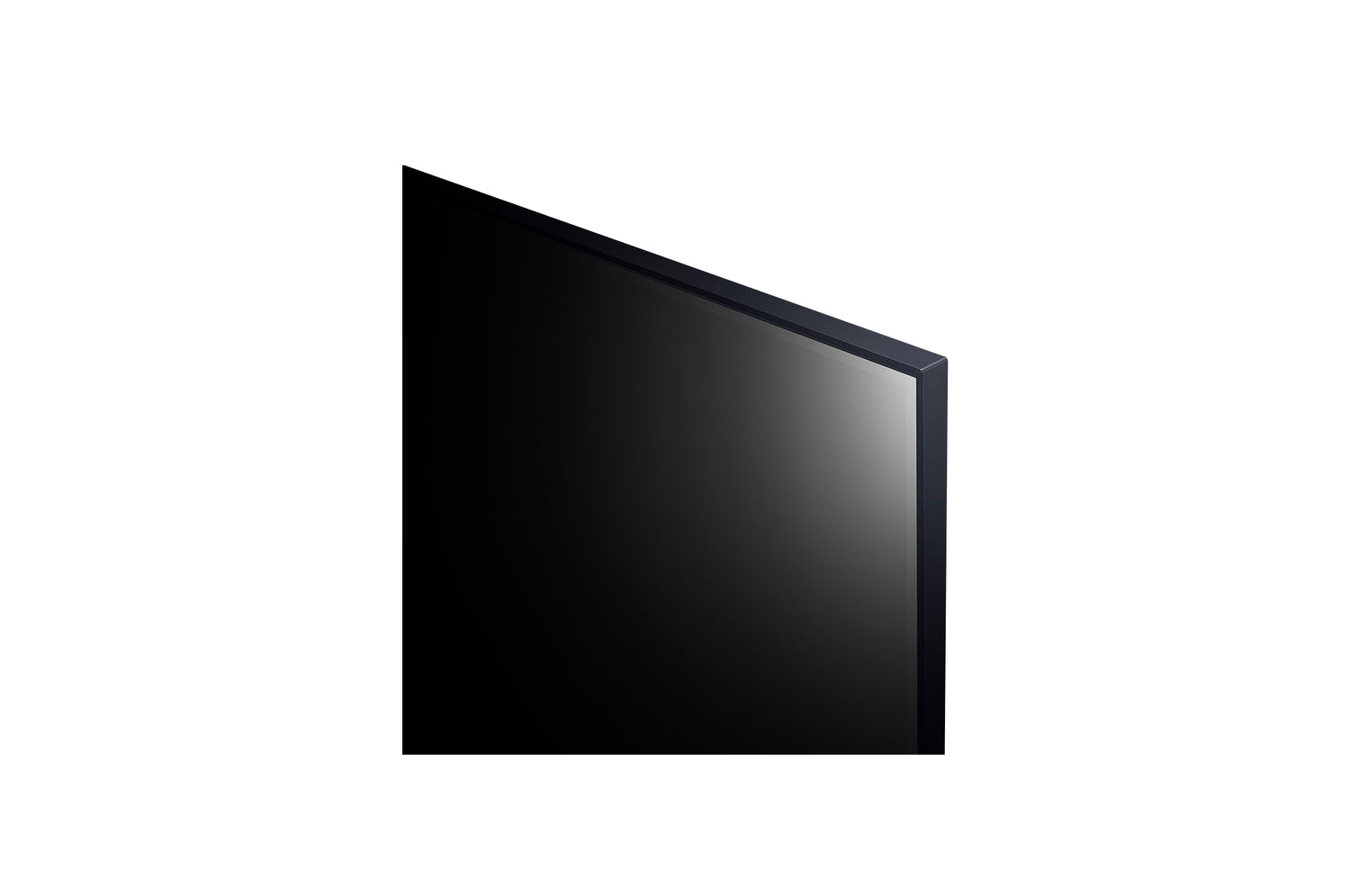

Improved Design with Slim Depth
This series is thinner than LG conventional* model to save space and enable easy installation. In addition, its sophisticated ahsed blue color improves the décor of the space where the product is installed.
* 'LG Conventional' refers to LG UT640S series.

High-Performance with LG webOS 6.0
LG webOS 6.0, upgraded in SoC* and web engine, is available on UR640S series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.**
* SoC : System On Chip
** GUI : Graphical User Interface

Embedded Content & Group Management
The embedded Content and Group Management System allows you to edit and play content, schedule playlists and groups, and control signage via remote control, mouse and mobile phone without the use of separate PC or software. This makes content management easy and user-friendly.

LG's Simple Advertisement Helper, Promota
Using LG's Promota* application, downloadable on a mobile device, you can easily create your own display contents. With Promota, you can add text and images to create an online profile for your business as well as deliver information such as event news, seasonal menus, promotions, and even more to your customers while recommending easy-to-use templates relevant to your industry.
* LG Promota can be downloaded from the App Store and Google Play store.

Versatile Content Management with LG SuperSign CMS
LG SuperSign CMS is integrated management program supporting creation and management of digital media and content deployment, optimized for LG signage. With its simple and intuitive menus and layout options, it enhances efficiency for content creation and editing, scheduling and distribution, improving user experience. In addition, it supports multiple displays and accounts, is able to be linked to external databases, and allows server access from mobile devices.
* LG SuperSign CMS is sold separately.

Quick & Easy Signage Control with LG SuperSign Control
SuperSign Control is the basic control software, and it can manage up to 100 displays through a single account and server. Power, volume, and scheduling can be remotely adjusted, and firmware updates supported.
* LG SuperSign Control needs to be purchased separately.

Display Power Management Support
Display Power Management (DPM) can be configured to be On only when there is a TV signal present to manage power more efficiently.

Wireless Access Point
UR640S series operates as a virtual router which can be an wireless access point for mobile devices.

Real-Time Promotion & Content Sharing
With Beacon and Bluetooth Low Energy (BLE), shop managers can provide coupons and information in real-time. And content mirroring among devices is available on a same Wi-Fi network.

Easy Menu Setup for Vertical Needs
UR640S series increases users' convenience by organizing frequently used menus* by industry.
* Pre-set Support Vertical : Corporate / Government / Retail, Meeting room

REAL-TIME LG ConnectedCare SERVICE
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.

Specifikationer

Display
Touchscreen No
HD type 4K Ultra HD
Display brightness 330 cd/m²
Display resolution 3840 x 2160 pixels
LED backlighting type Direct-LED
Display technology LED
Display diagonal 2.18 m (86")

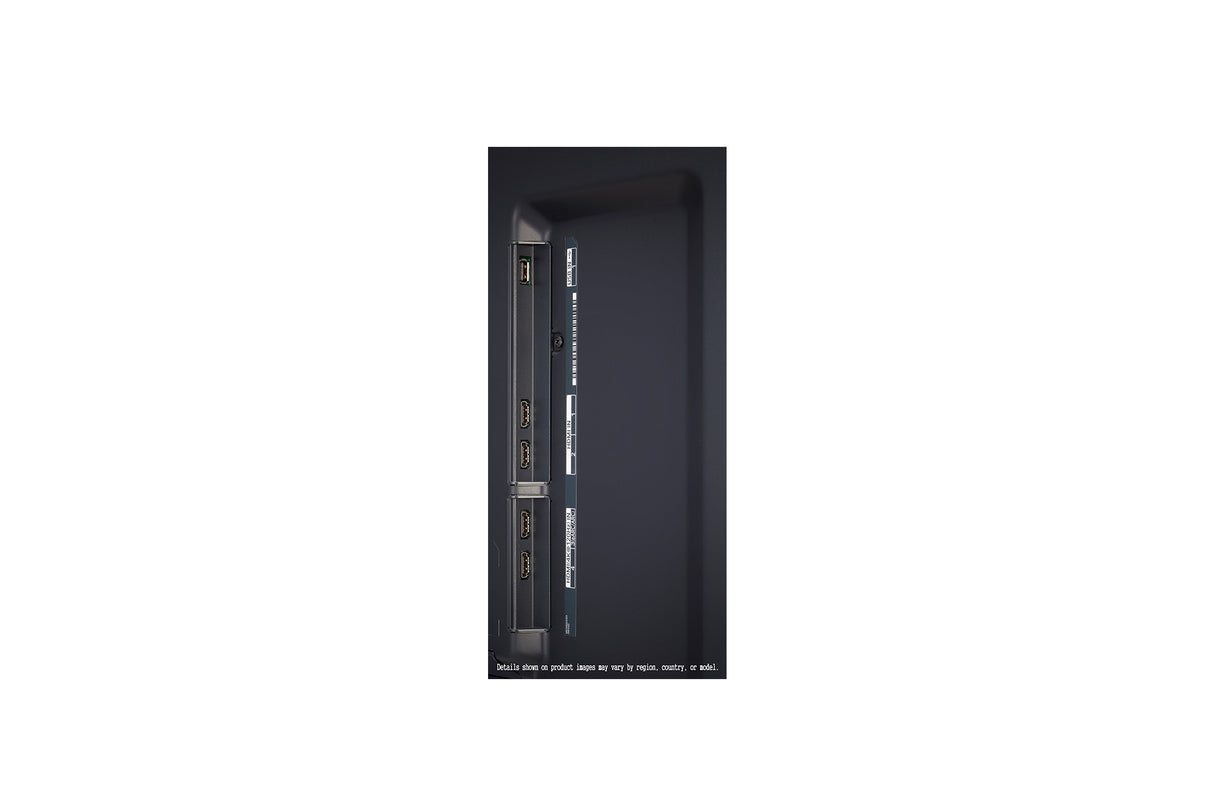

Ports & interfaces
RS-232C Yes
Ethernet LAN Yes
USB version 2.0
USB port Yes
DVI port No
HDMI version 2.0
HDMI ports quantity 3
Audio
RMS rated power 20 W
Number of built-in speakers 2
Built-in speaker(s) Yes
Design
Panel mounting interface 600 x 400 mm
VESA mounting Yes
Placement supported Indoor
Product colour Black
Product design Digital signage flat panel
Performance
Digital signal format system ATSC
Purpose Universal
Power
Energy efficiency scale A to G
AC input frequency 50 - 60 Hz
AC input voltage 120 V
Energy consumption (HDR) per 1000 hours 268 kWh
Energy consumption (SDR) per 1000 hours 204 kWh
Energy efficiency class (HDR) G
Energy efficiency class (SDR) G
Power consumption (standby) 0.5 W
Power consumption (typical) 313 W
Computer system
Operating system installed WebOS
Built-in processor Yes
Computer system Yes
Weight & dimensions
Weight (with stand) 45.9 kg
Height (with stand) 1167 mm
Depth (with stand) 362 mm
Width (with stand) 1927 mm
Display weight 45.2 kg
Display height 1104 mm
Display depth 59.9 mm
Display width 1927 mm
Packaging data
Package weight 58.4 kg
Package height 1215 mm
Package depth 228 mm
Package width 2115 mm
Logistics data
Harmonized System (HS) code 85285210
