Logitech RoomMate

MeetUp + RoomMate + Tap IP

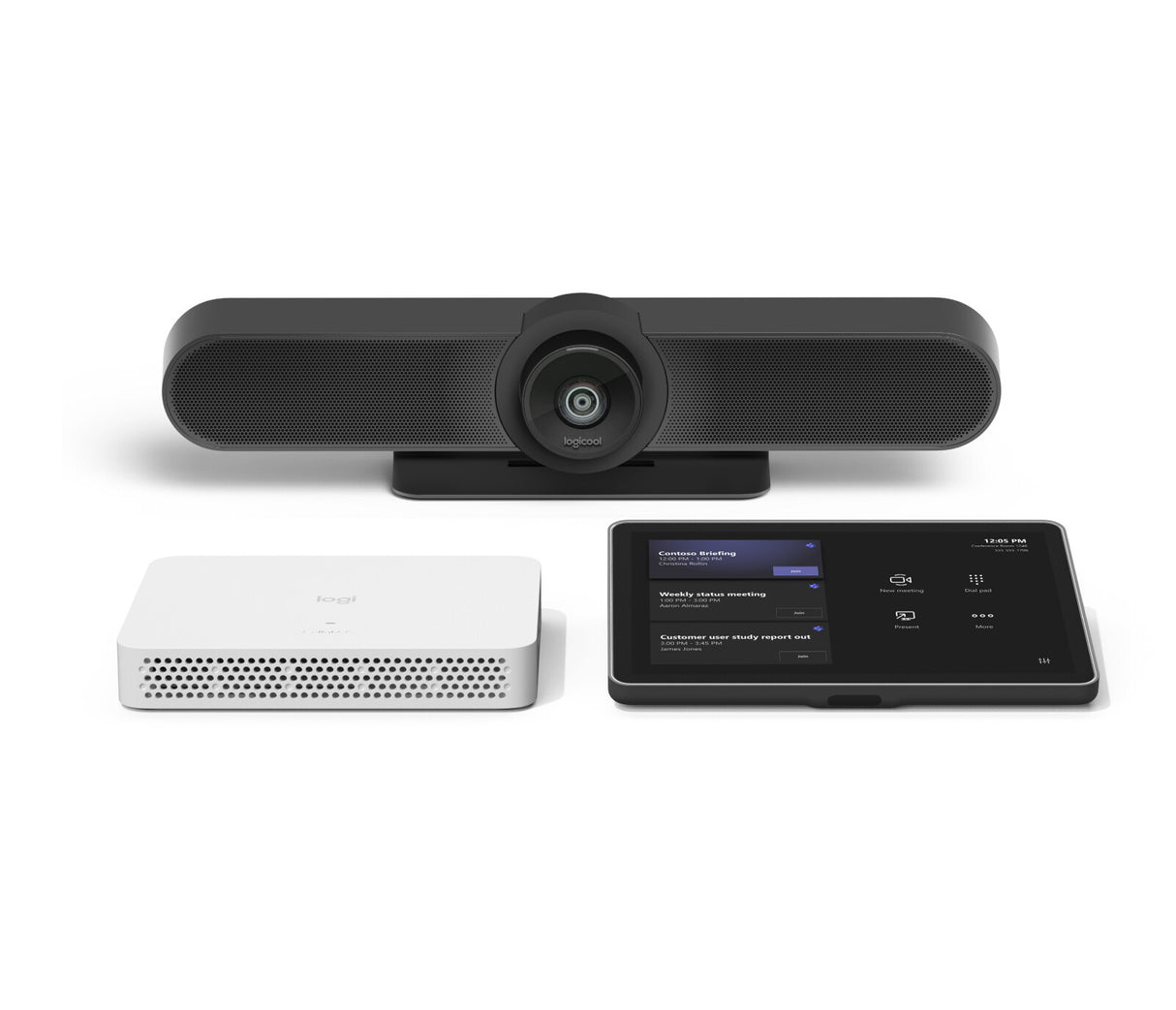

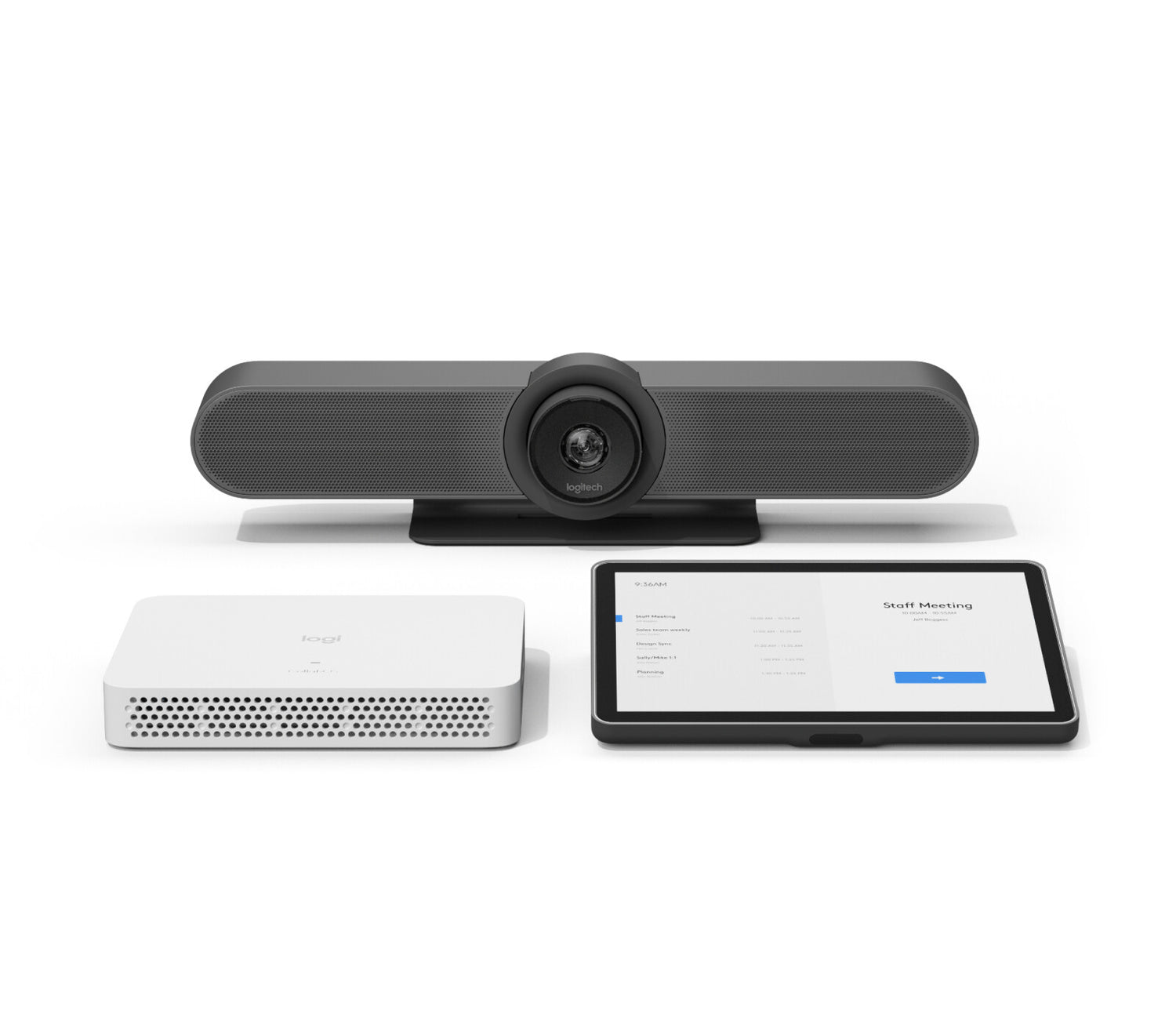

Logitech RoomMate + MeetUp + Tap IP - Videokonferencepakke (Logitech MeetUp, Logitech Tap IP)

Performance
PTZ control	Yes
Tilt angle range	-15 - 15°
Pan range	-25 - 25°
Wall mountable	Yes
Product colour	Graphite, White
Bluetooth version	5.0
Bluetooth	Yes
Product type	Group video conferencing system

Video
Supported video modes	720p, 1080p, 2160p
Maximum video resolution	3840 x 2160 pixels
HD type	4K Ultra HD

Audio
Microphone pick-up range	4 m
Sample rates	0 - 32 kHz
Audio beamforming	Yes
Output voltage Total Harmonic Distortion (THD)	3%
Output level	86.5/95 dB
Built-in speaker(s)	Yes

Ports & interfaces
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB connector type	USB Type-A
HDMI output ports quantity	2
HDMI input ports quantity	1
HDMI ports quantity	3

Interface module
Interface module RJ-45 ports quantity	1

Network
Security algorithms	128-bit AES
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN	Yes

Camera
Remote control interface	RF Wireless
Number of camera presets	3
Diagonal field of view	120°
Vertical field of view	80.7°
Horizontal field of view	113°
Digital zoom	8x
Zoom capability	Yes

Display
Oleophobic coating	Yes
Viewing angle, horizontal	85°
Viewing angle, vertical	85°
Display brightness	400 cd/m²
Touchscreen type	Capacitive
Touchscreen	Yes
Contrast ratio (typical)	1000:1
Display resolution	1280 x 800 pixels
Display diagonal	25.6 cm (10.1")
Display	IPS

Microphone
Microphone frequency	90 - 16000 Hz
Microphone sensitivity	-27 dB

Computer system
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1
Operating system installed	CollabOS
VESA mounting	Yes

Battery
Battery capacity	0.675 Wh

Features
Cable lock slot type	Kensington
Cable lock slot	Yes
Motion sensor	Yes

Logistics data
Master (outer) case gross weight	8.82 kg
Master (outer) case length	529 mm
Master (outer) case width	463 mm
Master (outer) case height	203 mm

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95%
Storage temperature (T-T)	-40 - 70 °C

Power
Power plug type	Type J
Battery technology	Lithium
Battery capacity	220 mAh
Number of batteries supported	2
DC input voltage	19 V
Current	4.74 A
AC input voltage	100 - 240 V
Power source type	AC

Weight & dimensions
Package weight	8.82 kg
Package height	189 mm
Package depth	522 mm
Package width	456 mm
Weight	1.04 kg
Height	34.5 mm
Depth	211 mm
Width	161 mm
Camera weight	1.04 kg
Camera dimensions (WxDxH)	400 x 85 x 104 mm
Remote control dimensions (W x H x D)	83 x 83 x 10 mm
Interface module weight	1 kg
Interface module dimensions (W x D x H)	246.2 x 171.3 x 56.1 mm

Packaging content
Packaging content	{loc-value}
Camera included	Yes

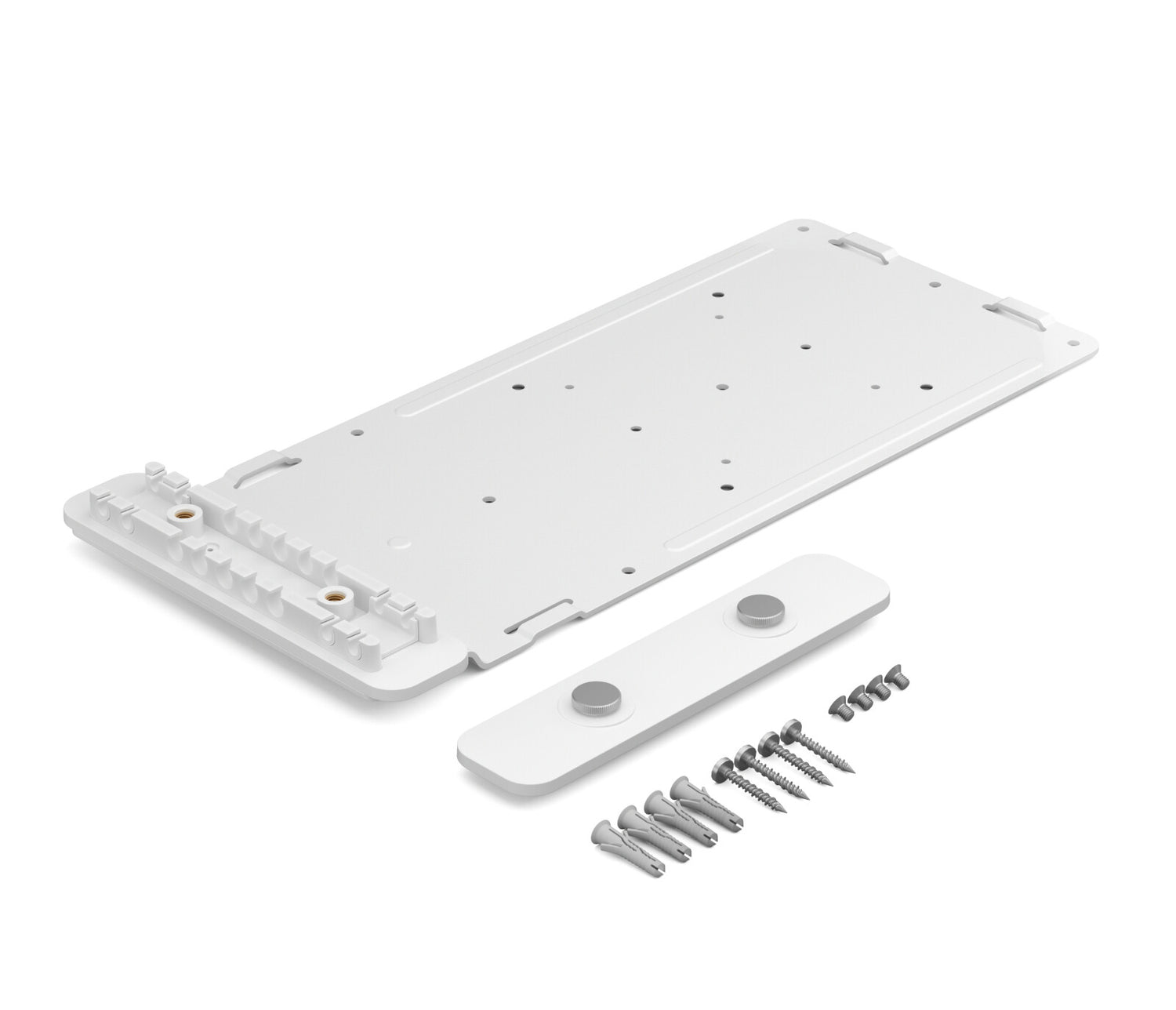

Mounting kit	Yes
AC adapter included	Yes
Power cable length	1.5 m
Cables included	AC, DC, USB
