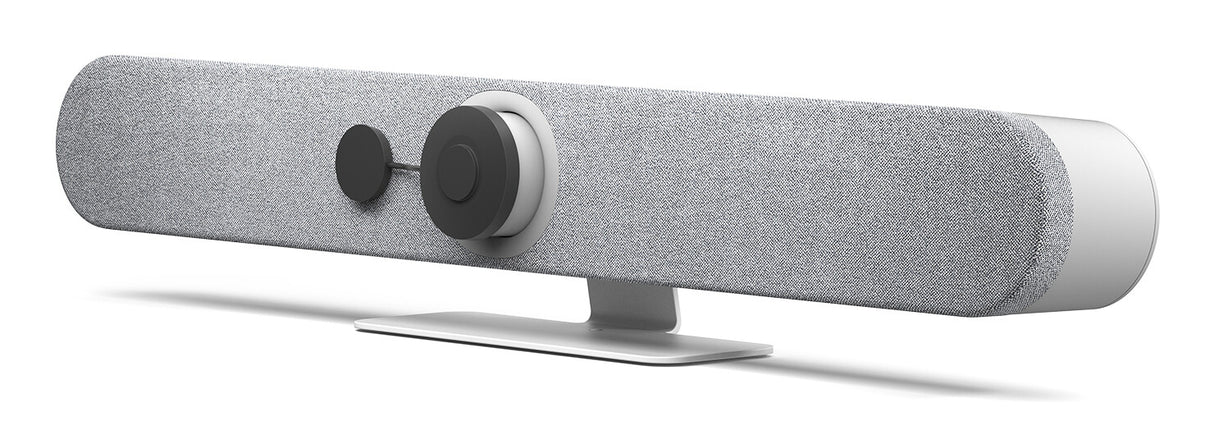

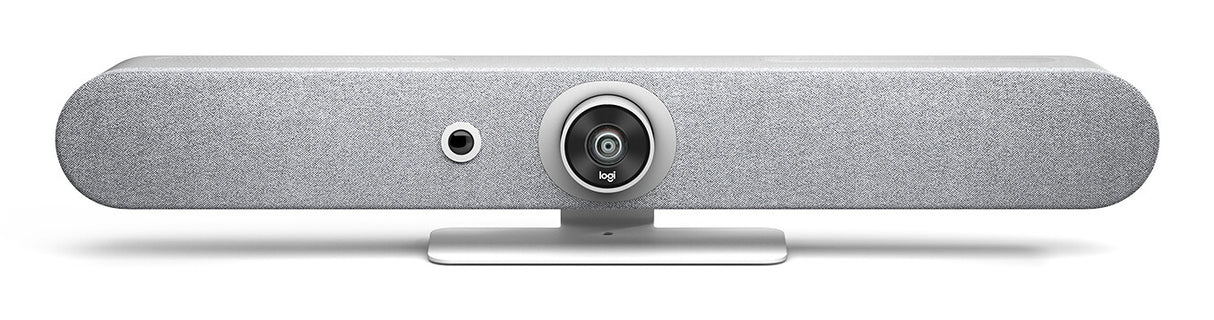

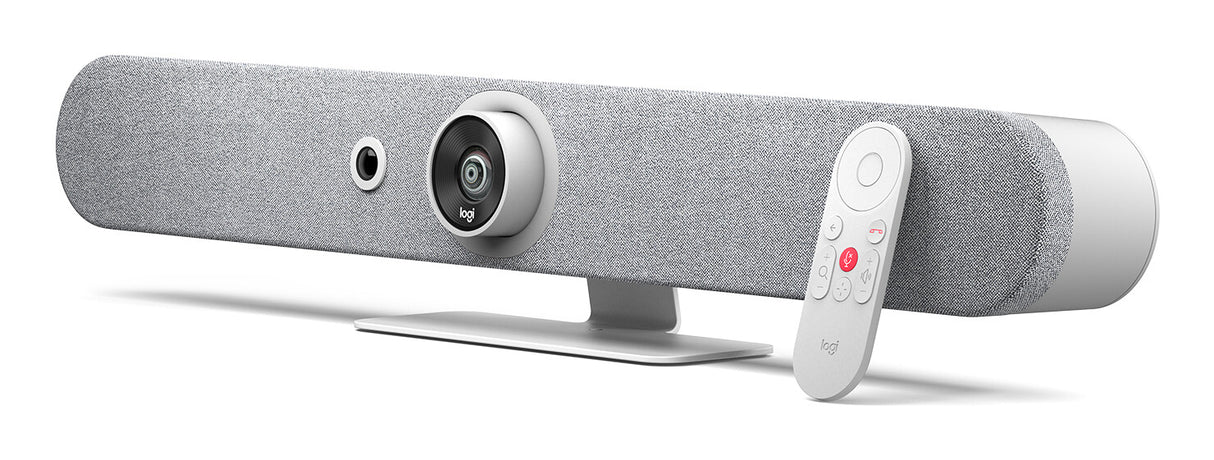

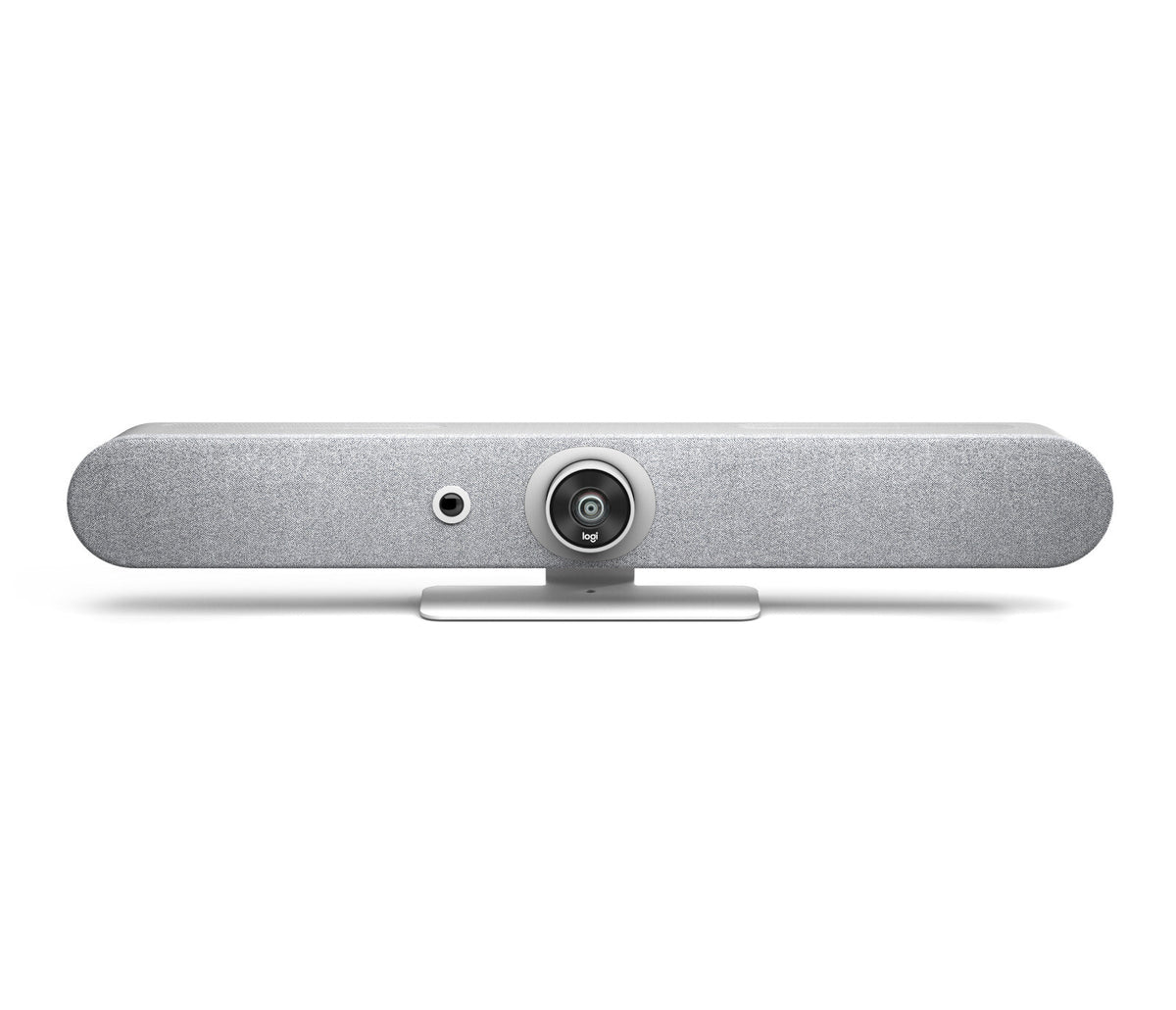

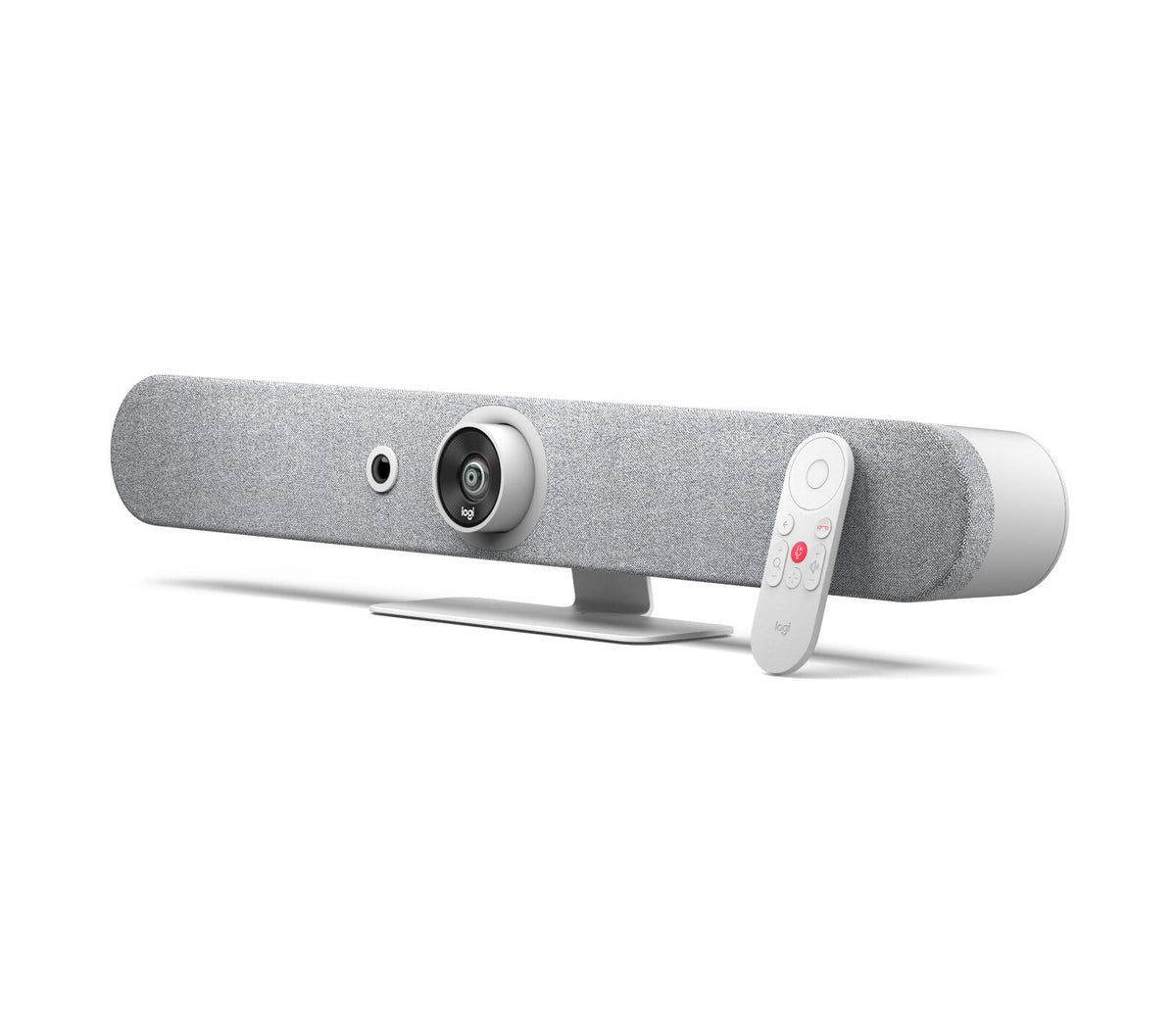

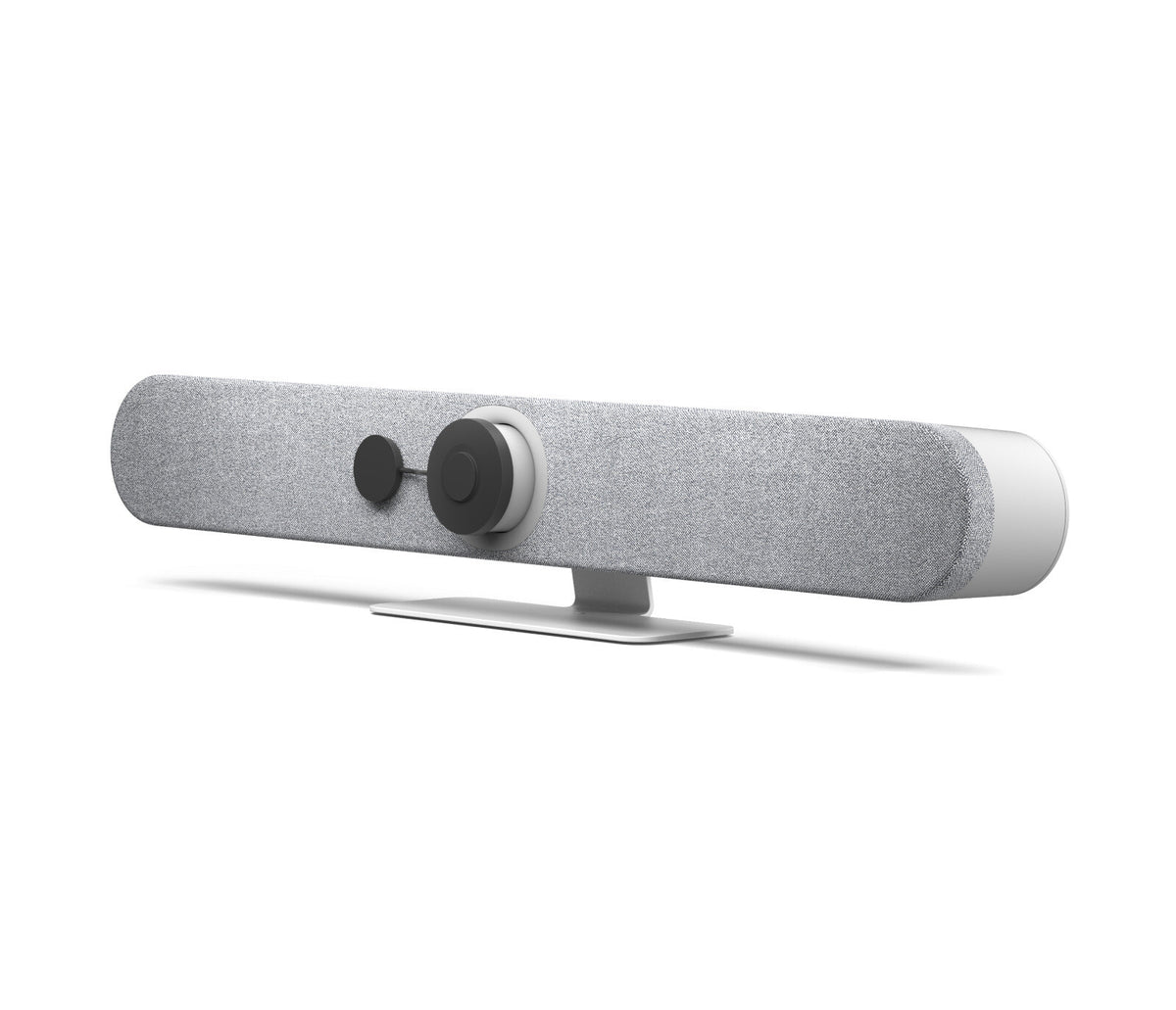

Logitech Rally Bar Mini

Rally Bar Mini

Logitech Rally Bar Mini - Videoconference-enhed - Zoom Certified, Certified for Microsoft Teams - hvid

Performance
Product type	Group video conferencing system
Product colour	White
Pan range	-25 - 25°
Tilt angle range	-15 - 15°
PTZ control	Yes

Video
HD type	4K Ultra HD
Supported video modes	576p, 720p, 900p, 1440p, 2160p
Maximum frame rate	30 fps

Audio
Built-in speaker(s)	Yes
Output level	92/99 dB
Output voltage Total Harmonic Distortion (THD)	2%
Audio beamforming	Yes
Sample rates	0 - 48 kHz
Microphone pick-up range	4.5 m
Echo cancellation	Yes
RMS rated power	8 W
Noise reduction	Yes

Ports & interfaces
HDMI ports quantity	3
HDMI input ports quantity	1
HDMI output ports quantity	2
USB connector type	USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Microphone in	Yes

Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Supported network protocols	IPv4, IPv6
Security algorithms	128-bit AES

Camera
Zoom capability	Yes
Digital zoom	4x
Horizontal field of view	113°
Vertical field of view	80.7°
Diagonal field of view	120°
Remote control interface	Bluetooth

Microphone
Microphone sensitivity	-36 dB
Microphone frequency	90 - 16000 Hz
Microphone direction type	Omnidirectional
Sound pressure level (max)	90 dB
Number of microphones	6

System requirements
Minimum system requirements	Internet Connection: Wired or wirelessUSB Mode: Windows 11, Windows 10, the two most recent versions of macOSAppliance Mode: Room solution software licence (not included)

Battery
Battery capacity	0.675 Wh

Computer system
Windows operating systems supported	Yes
Mac operating systems supported	MacOS

Features
Telepresence	No

Logistics data
Master (outer) case height	212 mm
Master (outer) case width	200 mm
Master (outer) case length	804 mm
Master (outer) case gross weight	6.29 kg
Harmonized System (HS) code	85176990

Operational conditions
Heat dissipation	64 BTU/h
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	0 - 40 °C

Power
Power source type	AC
AC input voltage	100 - 240 V
Current	4.754 A
DC input voltage	19 V
Number of batteries supported	1
Battery capacity	220 mAh
Battery technology	Lithium
Power plug type	Type C

Weight & dimensions
Width	719 mm
Depth	101 mm
Height	91.4 mm
Weight	4.03 kg
Package width	191 mm
Package depth	789 mm
Package height	199 mm
Package weight	5.8 kg

Packaging content
Cables included	AC, DC, HDMI, USB Type-A to USB Type-C
Power cable length	2.5 m
HDMI cable length	2 m
AC adapter included	Yes
Batteries included	Yes
Quick start guide	Yes
Remote control included	Yes
Packaging content	Rally Bar Mini Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main lens and AI Viewfinder User documentation
