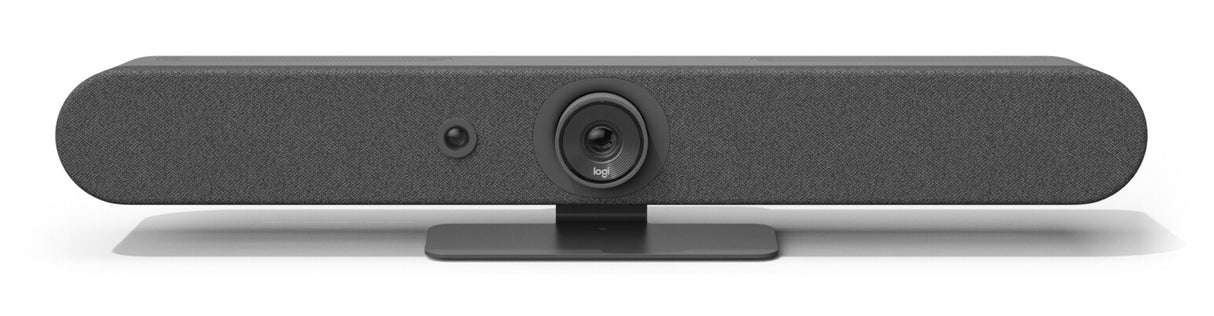

Logitech Rally Bar Mini

Rally Bar Mini

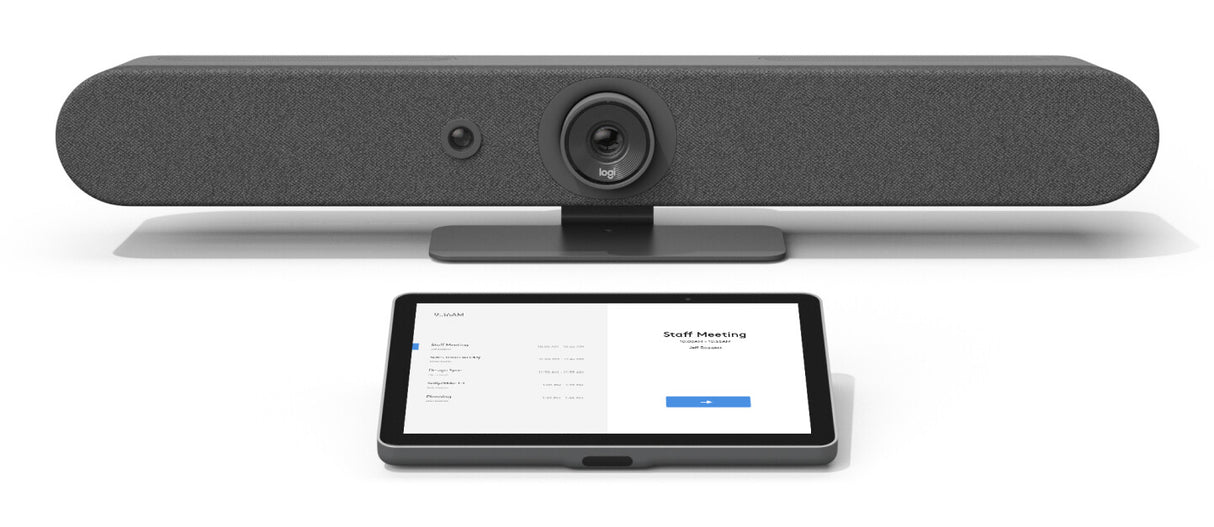

Logitech - Videokonferencepakke (Logitech Tap IP, Logitech Rally Bar Mini) - Zoom Certified, RingCentral Certified

Performance
Product colour	Graphite
Pan range	-25 - 25°
Tilt angle range	-15 - 15°
PTZ control	Yes

Video
HD type	4K Ultra HD
Maximum video resolution	3840 x 2160 pixels
Supported video modes	576p, 720p, 900p, 1440p, 2160p
Maximum frame rate	30 fps

Audio
Built-in speaker(s)	Yes
Output level	92/99 dB
Line-out impedance	4 Ω
Output voltage Total Harmonic Distortion (THD)	2%
Audio beamforming	Yes
Driver diameter	7 cm
Sample rates	0 - 48 kHz
Microphone pick-up range	4.5 m
Echo cancellation	Yes
RMS rated power	8 W
Noise reduction	Yes

Ports & interfaces
HDMI ports quantity	3
HDMI input ports quantity	1
HDMI output ports quantity	2
USB connector type	USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
DC-in jack	Yes
Microphone in	Yes

Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Supported network protocols	IPv4, IPv6
Security algorithms	128-bit AES

Camera
Zoom capability	Yes
Digital zoom	4x
Horizontal field of view	113°
Vertical field of view	80.7°
Diagonal field of view	120°
Remote control interface	Bluetooth

Display
Display	IPS
Display diagonal	25.6 cm (10.1")
Display resolution	1280 x 800 pixels
Contrast ratio (typical)	1000:1
Touchscreen	Yes
Touchscreen type	Capacitive
Display brightness	400 cd/m²
Viewing angle, vertical	85°
Viewing angle, horizontal	85°
Oleophobic coating	Yes

Microphone
Microphone sensitivity	-36 dB
Microphone frequency	90 - 16000 Hz
Microphone direction type	Omnidirectional
Sound pressure level (max)	90 dB
Number of microphones	6

System requirements
Minimum system requirements	Internet Connection: Wired or wireless USB Mode: Windows 11, Windows 10, the two most recent versions of macOS Appliance Mode: Room solution software licence (not included)

Battery
Battery capacity	0.675 Wh

Computer system
Windows operating systems supported	Yes
Mac operating systems supported	MacOS

Features
Telepresence	No
Motion sensor	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington

Logistics data
Master (outer) case height	302 mm
Master (outer) case width	258 mm
Master (outer) case length	808 mm
Master (outer) case gross weight	8.87 kg

Operational conditions
Heat dissipation	64 BTU/h
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	0 - 40 °C

Power
Power source type	AC
AC input voltage	100 - 240 V
Current	4.74 A
DC input voltage	19 V
Number of batteries supported	1
Battery capacity	220 mAh
Battery technology	Lithium
Power plug type	Type C

Weight & dimensions
Interface module dimensions (W x D x H)	246.2 x 171.3 x 56.1 mm
Interface module weight	1 kg
Width	719 mm
Depth	101 mm
Height	91.4 mm
Weight	4.03 kg
Package width	252 mm
Package depth	802 mm
Package height	289 mm
Package weight	8.87 kg

Packaging content
Cables included	AC, DC, HDMI, USB Type-A to USB Type-C
Power cable length	1.5 m
HDMI cable length	2 m
AC adapter included	Yes
Mounting kit	Yes
Batteries included	Yes
Quick start guide	Yes
Remote control included	Yes
Camera included	Yes
Packaging content	Logitech Rally Bar Mini video bar Rally Bar Mini Power supply Cables Lens caps Remote control User documentation Logitech Tap IP touch controller Tap IP VESA mounting screws (4) Microfiber Cloth Documentation
