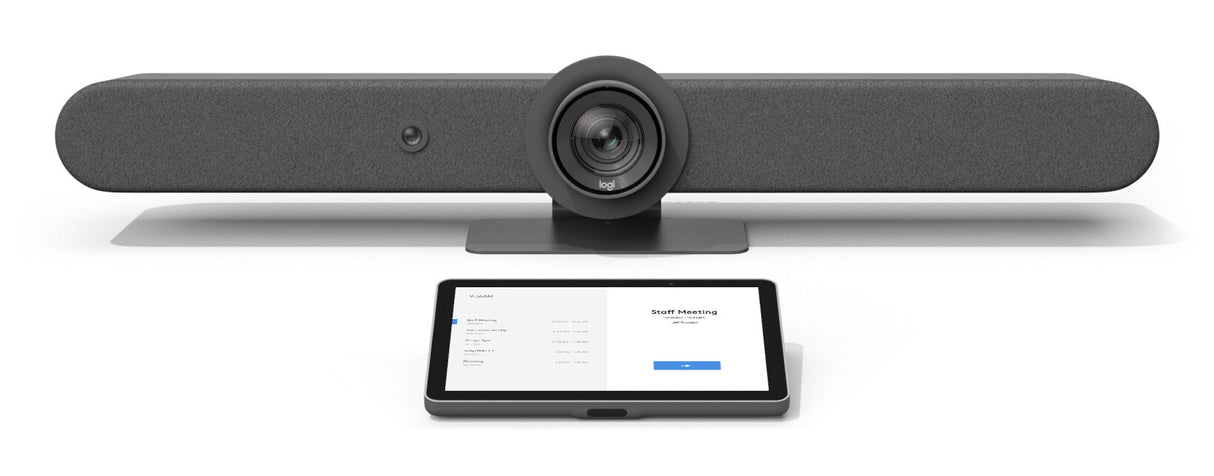

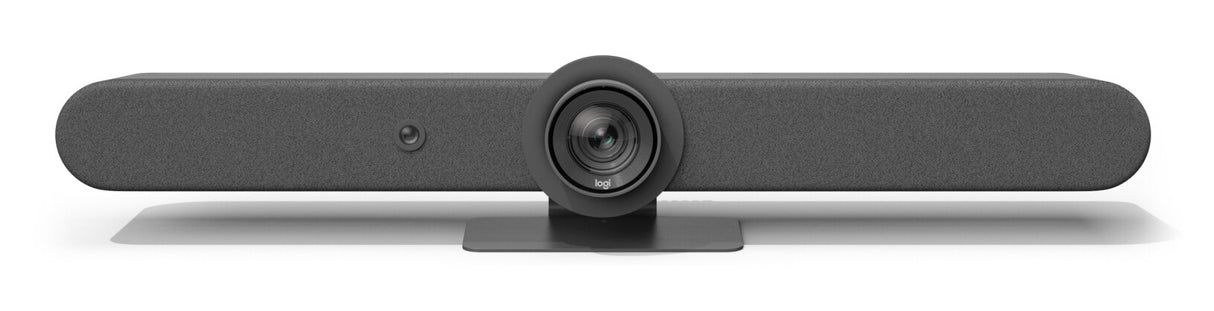

Logitech Rally Bar

Rally Bar

Logitech - Videokonferencepakke (Logitech Tap IP, Logitech Rally Bar) - Certified for Zoom Rooms, Certified for Microsoft Teams Rooms, RingCentral Certified, Tencent Meeting Certified - grafit

Performance
Product colour	Graphite
Pan range	-25 - 25°
Tilt angle range	-15 - 15°
PTZ control	Yes

Video
HD type	4K Ultra HD
Maximum video resolution	3840 x 2160 pixels
Supported video modes	576p, 720p, 900p, 1440p, 2160p
Maximum frame rate	30 fps

Audio
Built-in speaker(s)	Yes
Output level	92/99 dB
Line-out impedance	4 Ω
Output voltage Total Harmonic Distortion (THD)	2%
Audio beamforming	Yes
Driver diameter	7 cm
Sample rates	0 - 48 kHz
Microphone pick-up range	4.5 m
Echo cancellation	Yes
RMS rated power	8 W
Noise reduction	Yes

Ports & interfaces
HDMI ports quantity	3
HDMI input ports quantity	1
HDMI output ports quantity	2
USB connector type	USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes

Interface module
Interface module RJ-45 ports quantity	1

Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Supported network protocols	IPv4, IPv6
Security algorithms	128-bit AES

Camera
Zoom capability	Yes
Optical zoom	5x
Digital zoom	3x
Combined zoom	15x
Horizontal field of view	82.1°
Vertical field of view	52.2°
Diagonal field of view	90°
Remote control interface	Bluetooth

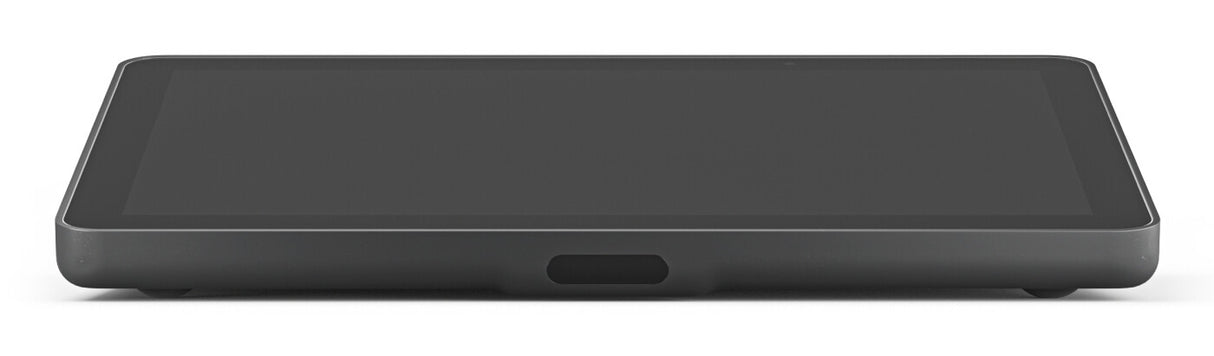

Display
Display	IPS
Display diagonal	25.6 cm (10.1")
Display resolution	1280 x 800 pixels
Contrast ratio (typical)	1000:1
Touchscreen	Yes
Touchscreen type	Capacitive
Display brightness	400 cd/m²
Viewing angle, vertical	85°
Viewing angle, horizontal	85°
Oleophobic coating	Yes

Microphone
Microphone sensitivity	-36 dB
Microphone frequency	90 - 16000 Hz
Microphone direction type	Omnidirectional
Sound pressure level (max)	90 dB
Number of microphones	6

System requirements
Minimum system requirements	Internet Connection: Wired or wireless (Rally Bar No-Radio does support WiFi connectivity). USB Mode: Windows 11, Windows 10, the two most recent versions of macOS Appliance Mode: Room solution software license (not included)

Computer system
Windows operating systems supported	Yes
Mac operating systems supported	MacOS

Features
Telepresence	No
Motion sensor	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington

Logistics data
Master (outer) case height	327 mm
Master (outer) case width	270 mm
Master (outer) case length	1013 mm
Master (outer) case gross weight	13 kg

Operational conditions
Heat dissipation	64 BTU/h
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	0 - 40 °C

Power
Power source type	AC
AC input voltage	100 - 240 V
Current	4.74 A
DC input voltage	19 V
Number of batteries supported	1
Battery capacity	220 mAh
Battery technology	Lithium
Power plug type	Type C

Weight & dimensions
Interface module dimensions (W x D x H)	246.2 x 171.3 x 56.1 mm
Interface module weight	1 kg
Width	910 mm
Depth	160 mm
Height	164 mm
Weight	7.08 kg
Package width	264 mm
Package depth	1007 mm
Package height	314 mm
Package weight	13 kg

Packaging content
Power cable length	1.5 m
HDMI cable length	2 m
AC adapter included	Yes
Mounting kit	Yes
Batteries included	Yes
Quick start guide	Yes
Remote control included	Yes
Camera included	Yes
Packaging content	Logitech Rally Bar video bar Rally Bar Power supply Cables Lens caps Remote control User documentation Logitech Tap IP touch controller Tap IP VESA mounting screws (4) Microfiber Cloth Documentation
