Logitech Rally
Logitech | Varenummer:
960-001224
Beskrivelse
Beskrivelse

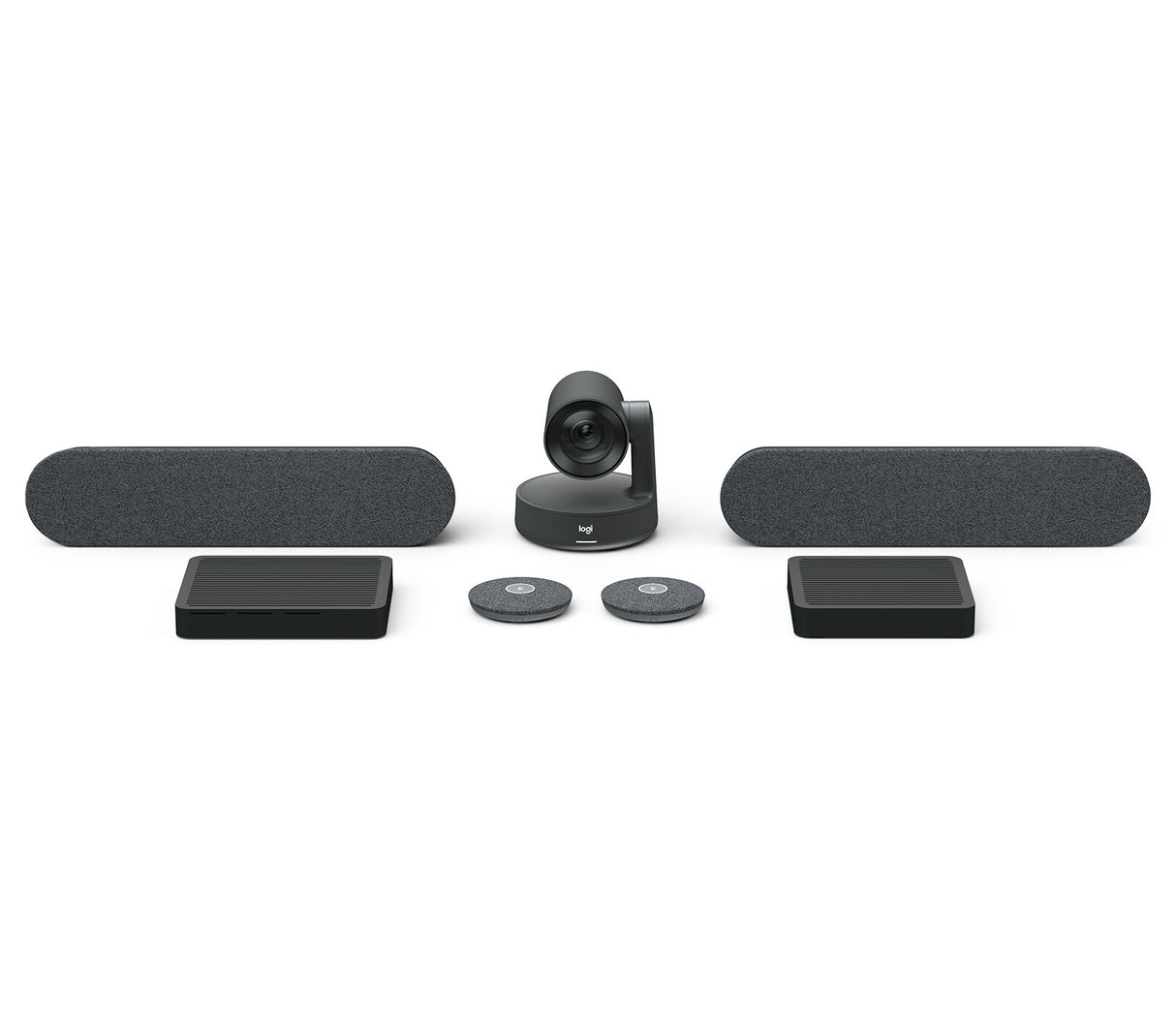

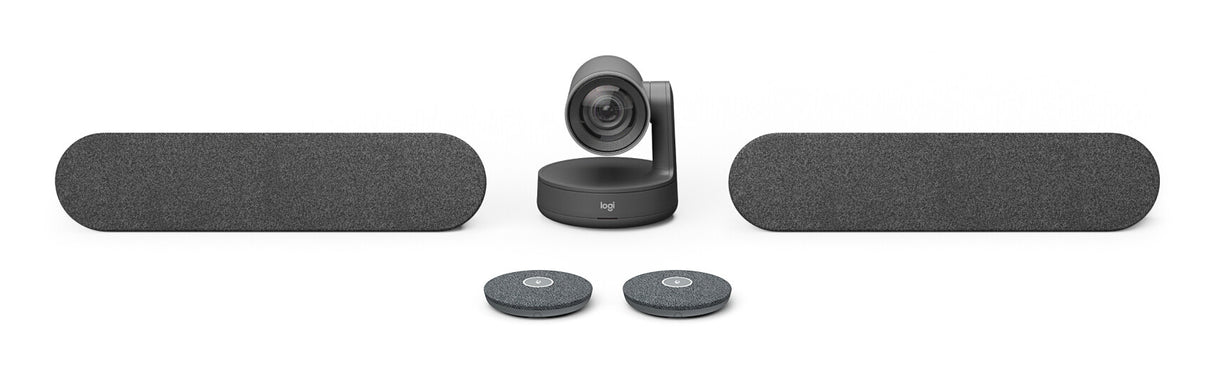

Rally Ultra-HD ConferenceCam
The purchase of a one-year Logitech extended warranty along with the purchase of Rally adds one additional year to the original Logitech manufacturer's two-year guarantee and is intended to ensure that your Logitech hardware is free from defects in material and workmanship.
This extended guarantee helps to protect your investment, maximise its value and ensure optimal performance of your Logitech conference room hardware for a total of three years. This is right in line with the typical depreciation and replacement cycle of most conference room equipment.
Specifikationer
Specifikationer
| Performance | |
|---|---|
| Tripod mounting supported | Yes |
| PTZ control | Yes |
| Tilt angle range | -90 - 50° |
| Tilt speed | 70 °/sec |
| Pan speed | 70 °/sec |
| Pan range | -90 - 90° |
| Product colour | Black |
| Bluetooth | Yes |
| Number of persons | 16 person(s) |
| Product type | Group video conferencing system |
| Video | |
|---|---|
| Maximum frame rate | 60 fps |
| Supported video modes | 576p, 720p, 900p, 1080p, 1440p, 2160p |
| HD type | 4K Ultra HD |
| Audio | |
|---|---|
| Microphone pick-up range | 4.5 m |
| Noise reduction | Yes |
| Sample rates | 0 - 48 kHz |
| Echo cancellation | Yes |
| Output level | 95/100 dB |
| Frequency range | 300 - 10000 Hz |
| Built-in speaker(s) | Yes |
| Ports & interfaces | |
|---|---|
| Line-in | Yes |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| HDMI ports quantity | 2 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Camera | |
|---|---|
| Number of camera presets | 3 |
| Focus adjustment | Auto |
| Field of view (FOV) angle | 90° |
| Digital zoom | 15x |
| Zoom capability | Yes |
| Microphone | |
|---|---|
| Number of microphone arrays | 2 |
| Number of microphones | 4 |
| Sound pressure level (max) | 95 dB |
| Microphone mute | Yes |
| Microphone direction type | Omnidirectional |
| Microphone frequency | 90 - 16000 Hz |
| Microphone sensitivity | -27 dB |
| Microphone colour | Black |
| Logistics data | |
|---|---|
| Master (outer) case gross weight | 12.3 kg |
| Master (outer) case length | 417 mm |
| Master (outer) case width | 227 mm |
| Master (outer) case height | 722 mm |
| Harmonized System (HS) code | 85176990 |
| Battery | |
|---|---|
| Battery capacity | 0.675 Wh |
| Features | |
|---|---|
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Telepresence | No |
| Computer system | |
|---|---|
| Other operating systems supported | ChromeOS |
| Mac operating systems supported | MacOS |
| Windows operating systems supported | Yes |
| Power | |
|---|---|
| Battery technology | Lithium |
| Battery capacity | 220 mAh |
| Number of batteries supported | 2 |
| Power source type | AC |
| Weight & dimensions | |
|---|---|
| Package weight | 11.2 kg |
| Package height | 690 mm |
| Package depth | 400 mm |
| Package width | 210 mm |
| Camera dimensions (WxDxH) | 152 x 152 x 182.5 mm |
| Speaker dimensions (WxDxH) | 449 x 80 x 103 mm |
| Microphone dimensions (WxHxD) | 102 x 102 x 21 mm |
| Packaging content | |
|---|---|
| Packaging content | Logitech Rally Rally Camera Rally Display Hub Rally Table Hub Rally Speaker (x1) Rally Mic Pod (x1) Remote control USB Type C to USB Type C USB Type A to USB Type B CAT6A Ethernet cable HDMI Type A (x2) A/C cables (x2) Power Supplies (x2) Documentation Logitech Rally Plus Rally Camera Rally Display Hub Rally Table Hub Rally Speaker (x2) Rally Mic Pod (x2) Remote control USB Type C to USB Type C USB Type A to USB Type B CAT6A Ethernet cable HDMI Type A (x2) A/C cables (x2) Power Supplies (x2) Documentation |
| Remote control included | Yes |
| Quick start guide | Yes |
| Camera included | Yes |
| Microphone included | Yes |
| Batteries included | Yes |
| Speaker included | Yes |
| AC adapter included | Yes |
| HDMI cable length | 2 m |
| Networking cable length | 5 m |
| Power cable length | 1.5 m |
| Cables included | AC, HDMI, LAN (RJ-45), USB Type-A to Micro USB-B, USB Type-C to USB Type-C |
| External interface module included | Yes |
