Logitech Tap Scheduler

Logitech  |  Varenummer: 952-000091

Beskrivelse

Tap Scheduler in Graphite

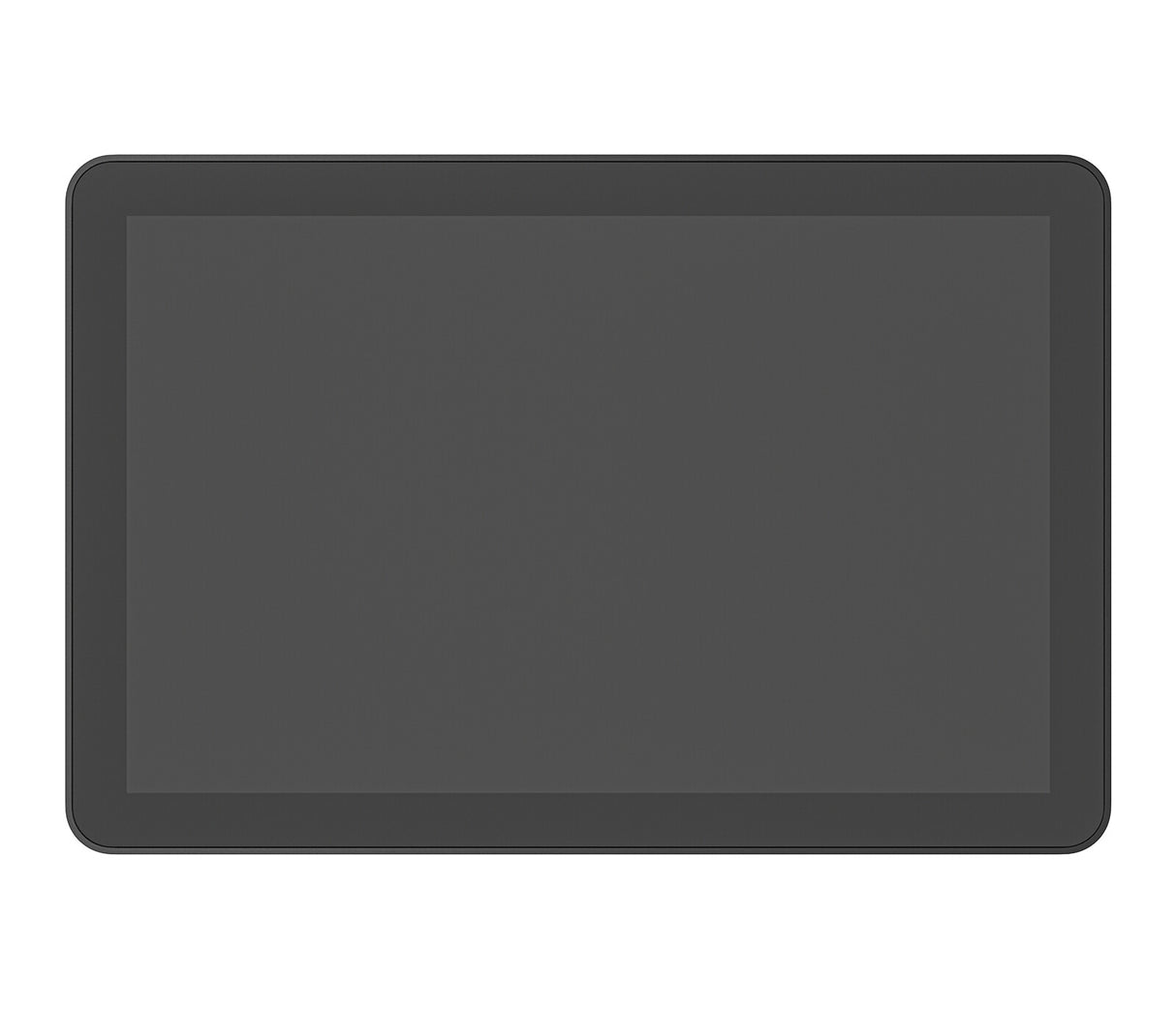

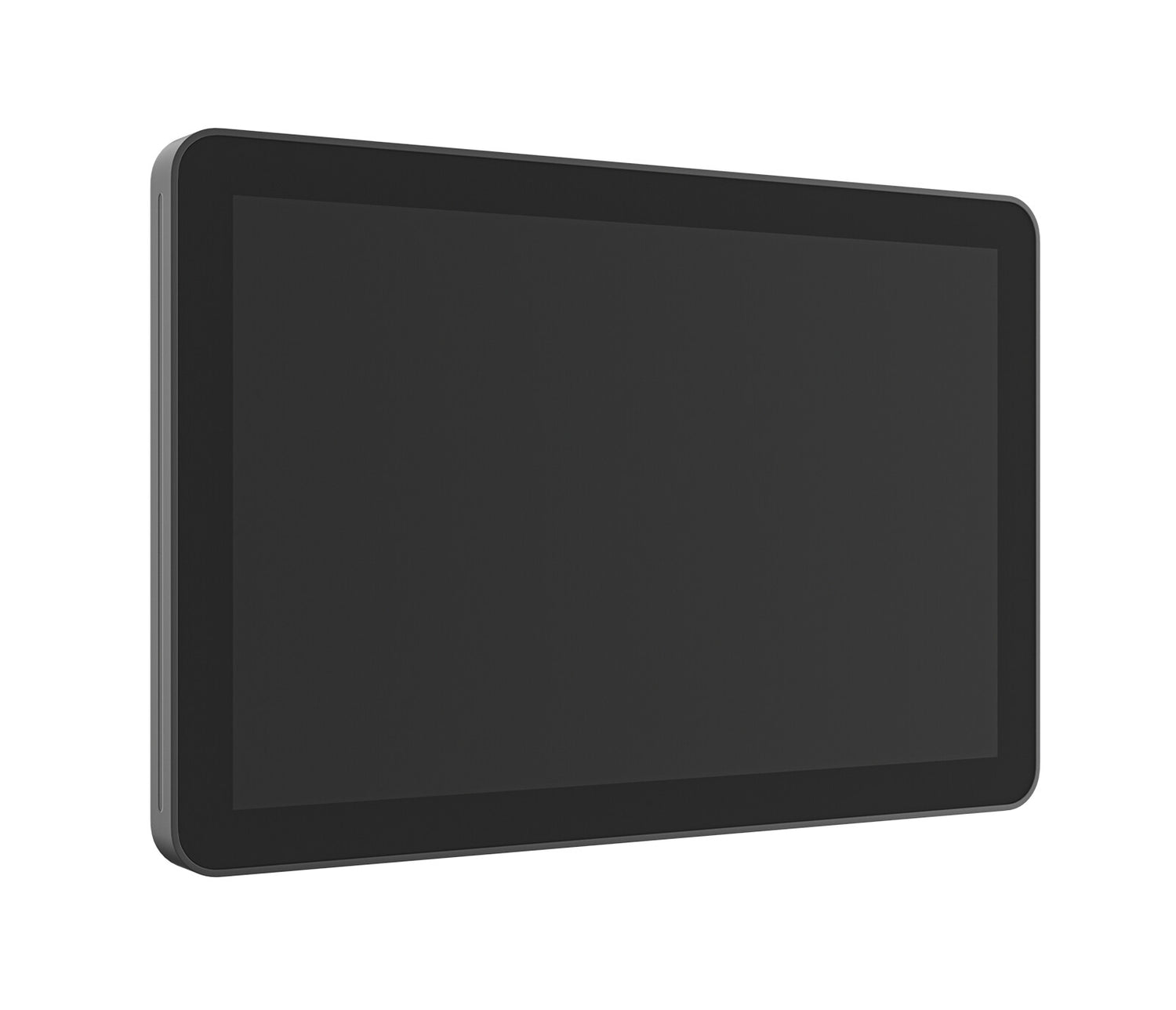

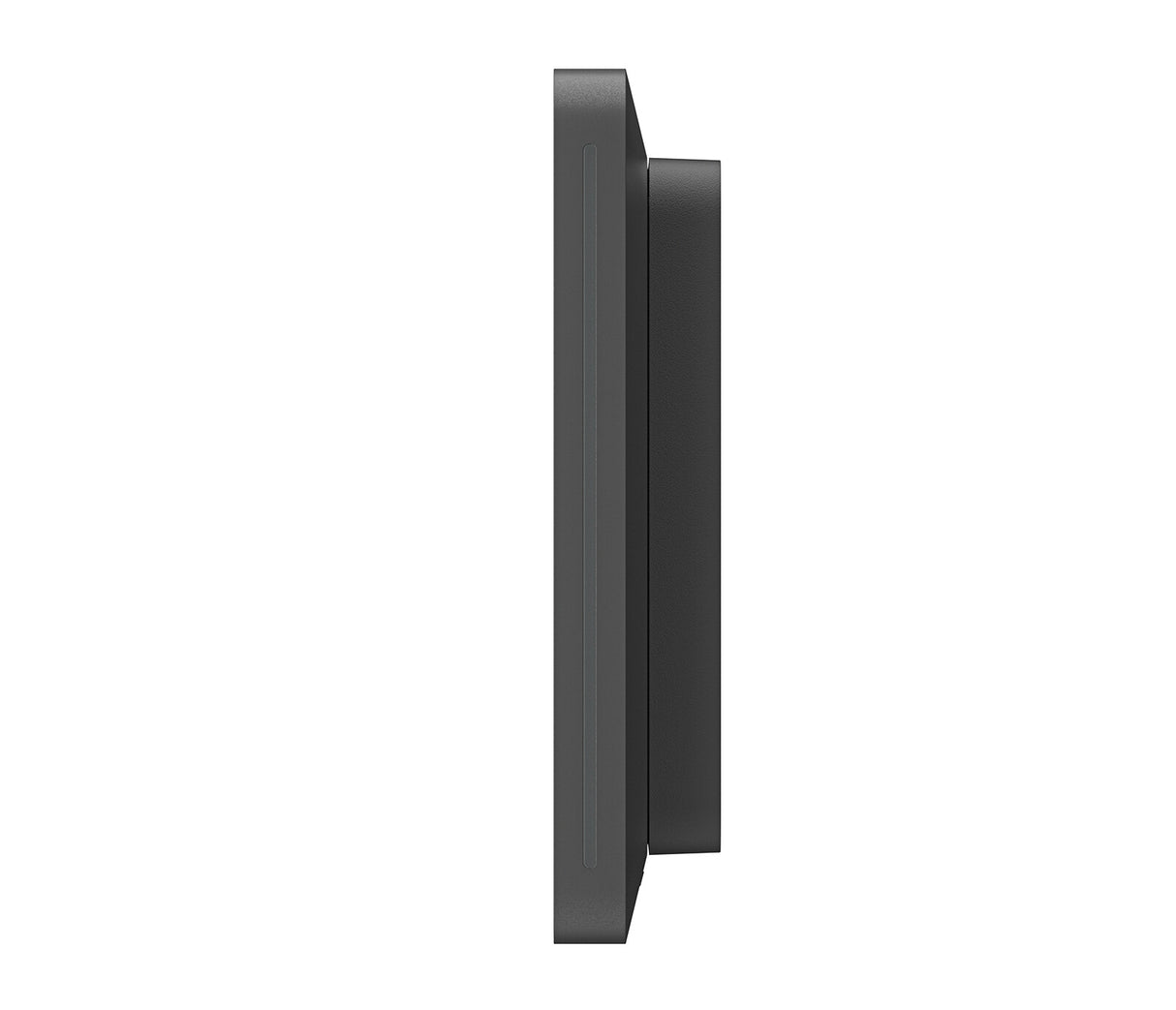

Logitech Tap Scheduler
Purpose-built scheduling panel for meeting rooms

RIGHT PLACE, RIGHT TIME
Tap Scheduler makes it easy to see meeting details and reserve a room for ad hoc or future meetings. Easily deploy as a purpose-built scheduling panel for leading room scheduling solutions to help workers find and claim the right space.

GREEN MEANS GO
Quickly find an open room through colored LED lights that show availability at a distance.

CLEAN AND EASY INSTALL
Included mounts and clean cabling help ensure a tidy and professional setup.

Glass Mounting
Secure Tap Scheduler while maintaining a clean look on both sides of the glass.

Mullion Mounting
Secure Tap Scheduler to a door or window frame for greater visibility using the included mount.

Wall Mounting
Place and secure Tap Scheduler anywhere on a wall.

Cable Management
Hide cables in the wall, mullion, or in other directions, with multiple routing options.

PURPOSE-BUILT AS A SCHEDULING PANEL
Tap Scheduler was designed for easy viewing and usability, with a spacious screen and a sleek, unobtrusive profile. Count on Tap Scheduler for reliable performance with durable components that are built to last.

MAKE THE MOST OF YOUR SPACE
Easily add Tap Scheduler to a variety of meeting rooms, from phone booths to video rooms to hangout nooks, helping employees quickly find the right meeting location. Simple installations and an intuitive user experience drive fast deployment and adoption.

PICK YOUR PLATFORM
Enable a seamless meeting experience through Tap Scheduler and Logitech’s suite of room solutions, which integrate with Microsoft Teams®, Zoom Rooms™, and other service providers to raise the bar on collaboration.

SIMPLE TO MANAGE WITH LOGITECH SYNC
With Logitech Sync, you can monitor and manage Tap Scheduler along with your other meeting room devices from one single platform.

UP TO THREE YEAR WARRANTY
Ensure peace of mind with an extended warranty for Tap Scheduler, adding one additional year to the standard two-year limited hardware warranty.

Specifikationer

Performance
Product colour Graphite
Bluetooth version 5.0
Bluetooth Yes
Audio
Built-in speaker(s) No
Network
Security algorithms 128-bit AES
Networking standards IEEE 802.3af
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi Yes
Ethernet LAN data rates 10,100 Mbit/s
Ethernet LAN Yes
Display
Oleophobic coating Yes
Display brightness 400 cd/m²
Touchscreen Yes
Contrast ratio (typical) 1000:1
Display resolution 1280 x 800 pixels
Display diagonal 25.6 cm (10.1")
Logistics data
Master (outer) case gross weight 4.66 kg
Master (outer) case length 358 mm
Master (outer) case width 260 mm
Master (outer) case height 199 mm
Computer system
VESA mounting Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 95%
Storage temperature (T-T) -40 - 70 °C
Power
Power source type PoE
Weight & dimensions
Package weight 2.17 kg
Package height 93 mm
Package depth 346 mm
Package width 247 mm
Weight 700 g
Height 165 mm
Depth 28.5 mm
Width 246.2 mm
Packaging content
Packaging content Logitech Tap Scheduler Multi-surface mount (glass/drywall) Corner mount accessory Mullion mount Mounting hardware Documentation
Quick start guide Yes
Batteries included No
Mounting kit Yes
