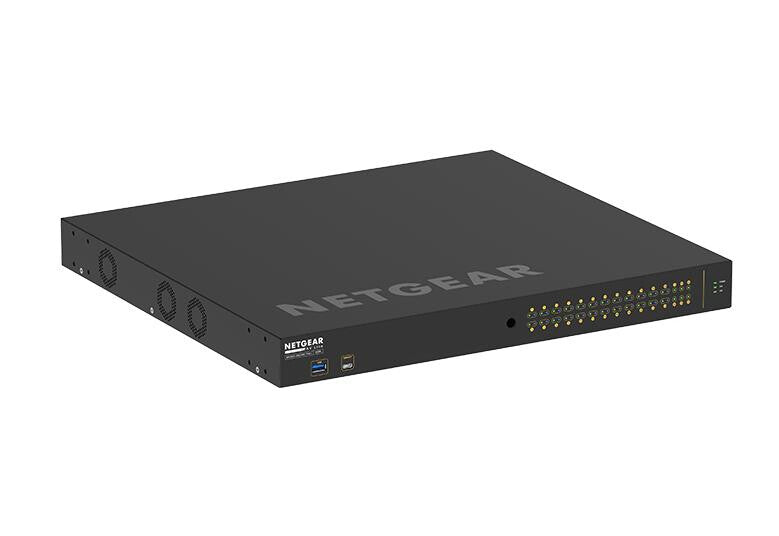

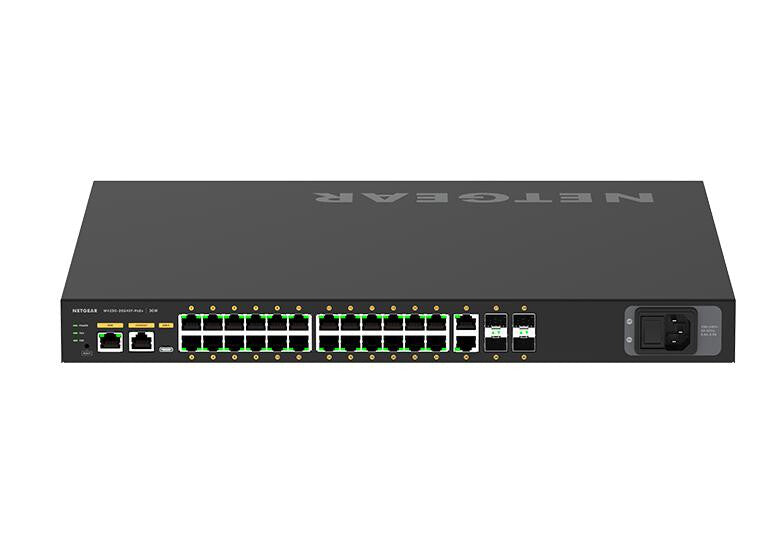

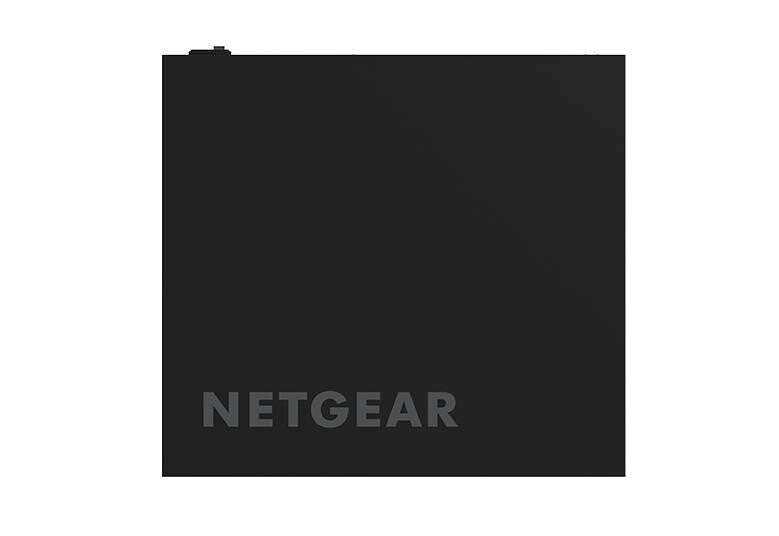

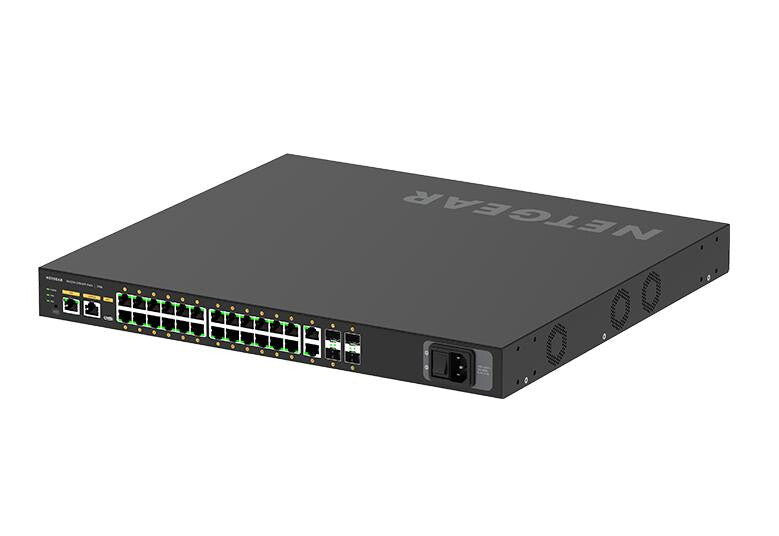

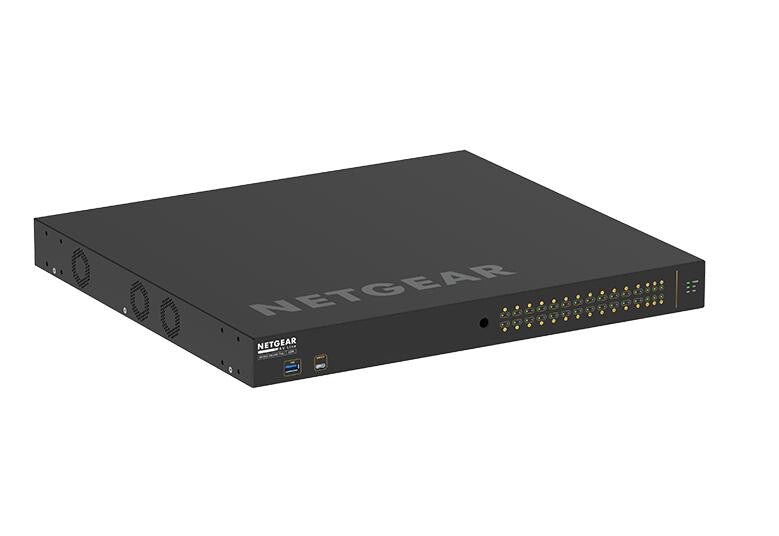

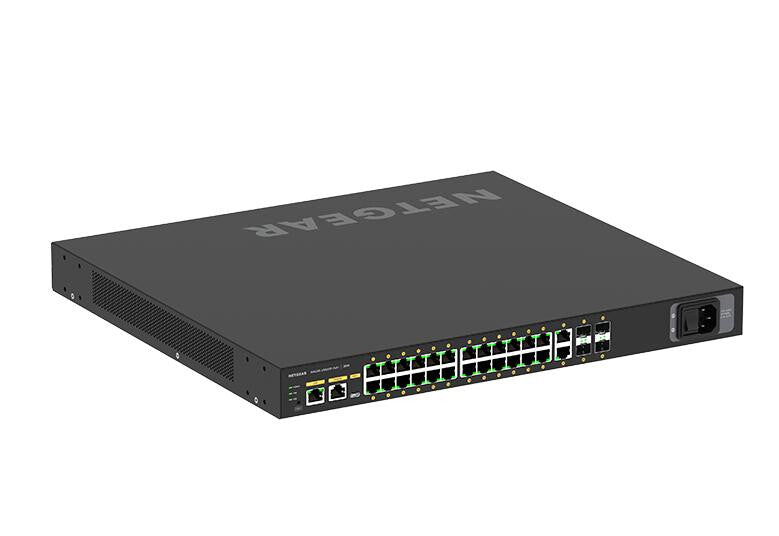

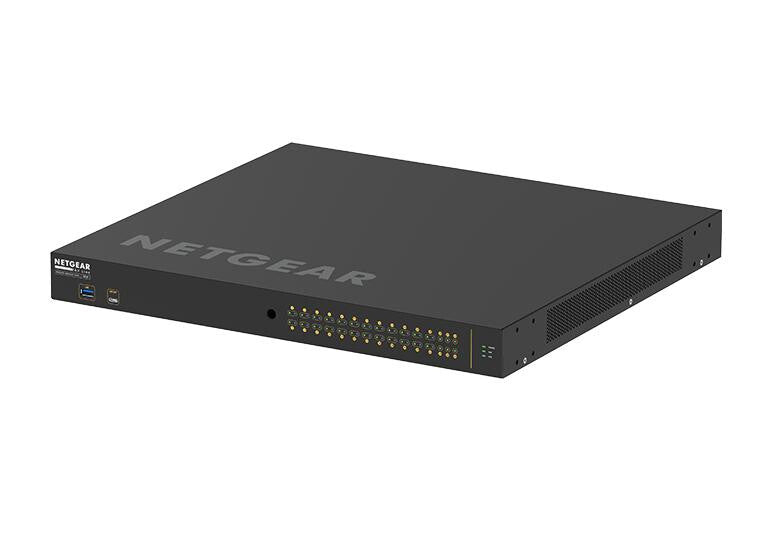

NETGEAR GSM4230PX Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Netgear | Varenummer:
M4250-GSM4230PX-26p
Beskrivelse
Beskrivelse
M4250-26G4XF-PoE+ (GSM4230PX) 24x1G PoE+ 480W 2x1G and 4xSFP+ Managed Switch
Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality!
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for under-table or wall mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.
Specifikationer
Specifikationer
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| USB 2.0 ports quantity | 1 |
| Network | |
|---|---|
| IPv6 routes | 128 |
| IPv4 routes | 512 |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
| Number of VLANs | 4000 |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 132 Gbit/s |
| Throughput | 98.21 Mpps |
| Latency (1 Gbps) | 2.29 µs |
| Latency (10 Gbps) | 0.83 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 16 MB |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Performance | |
|---|---|
| Built-in processor | Yes |
| Processor model | ARM Cortex-A57 |
| Noise level | 42 dB |
| Fanless | Yes |
| Power | |
|---|---|
| Power source | PoE |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 430 W |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 400 mm |
| Height | 43.2 mm |
| Weight | 5.45 kg |
| Packaging content | |
|---|---|
| Cables included | AC, LAN (RJ-45), USB Type-C |
| User guide | Yes |
| Rack mount kit | Yes |
