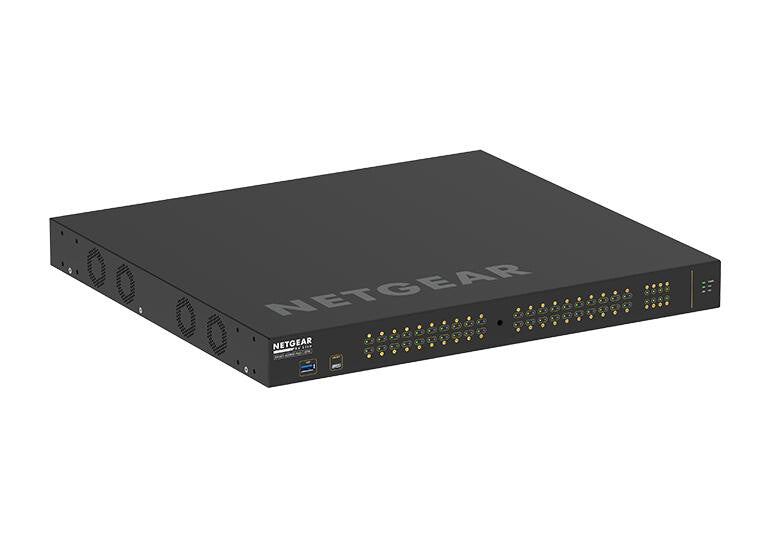

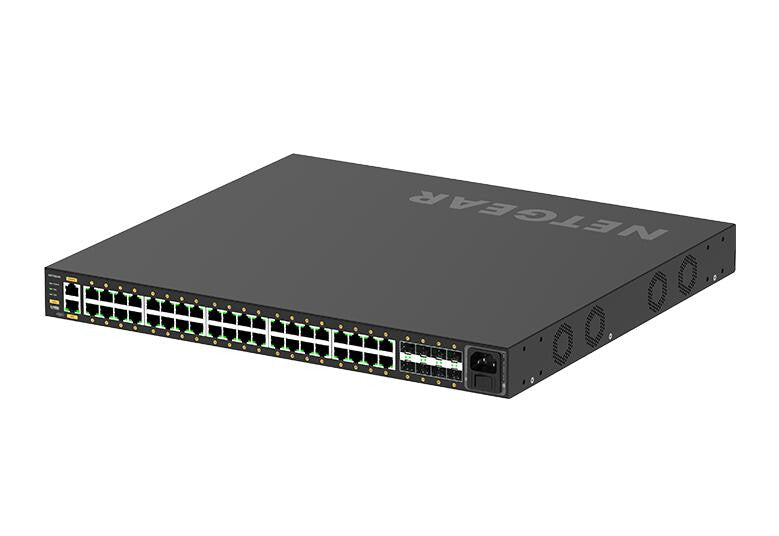

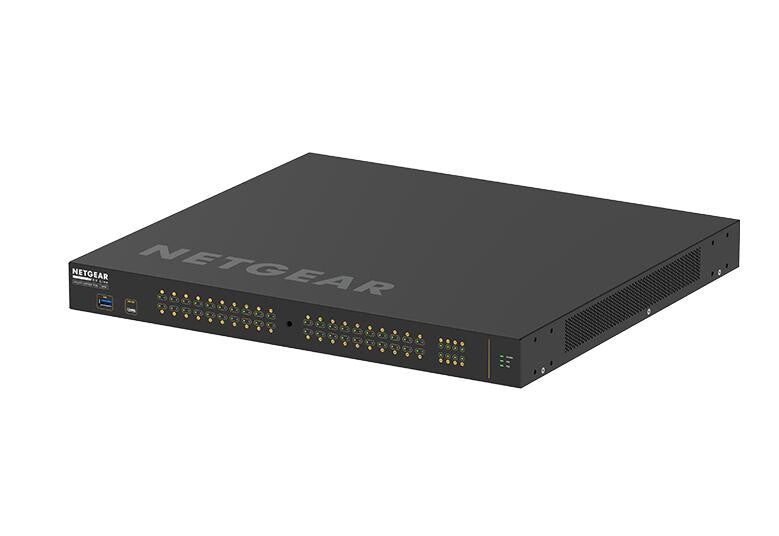

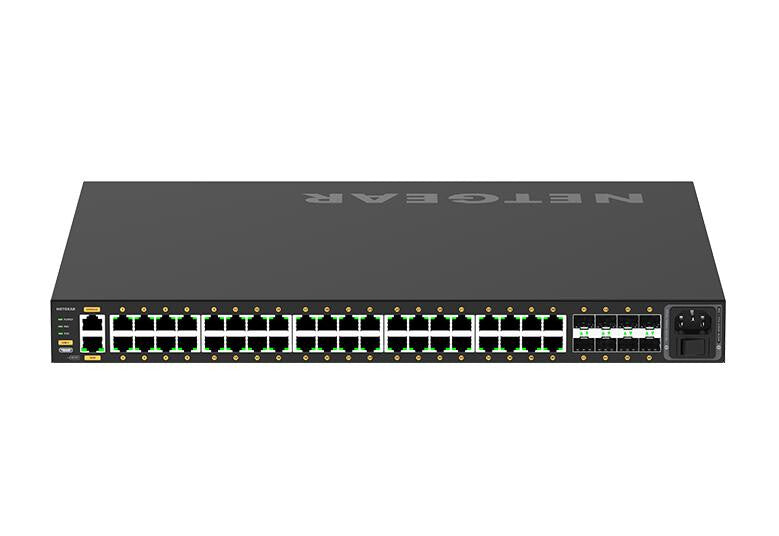

NETGEAR GSM4248PX Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Beskrivelse
Beskrivelse
Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality!
Pre-configured for out-of-the-box use
NETGEAR IGMP Plus enables instant multicast functionality for most AV over IP installations
Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles
Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license
Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed
Unique Automatic Configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.
Specifikationer
Specifikationer
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 40 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 8 |
| Console port | RJ-45/USB Type-C |
| Network | |
|---|---|
| Networking standards | IEEE 802.1Qav, IEEE 802.1ak, IEEE 802.1as, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt |
| 10G support | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
| Number of VLANs | 4000 |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 240 Gbit/s |
| Throughput | 178.56 Mpps |
| Latency (1 Gbps) | 2.78 µs |
| Latency (10 Gbps) | 0.73 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 32 MB |
| Security | |
|---|---|
| DHCP features | DHCP relay, DHCP server, DHCPv6 server |
| IGMP snooping | Yes |
| Security algorithms | SNMP |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Performance | |
|---|---|
| Noise level | 69 dB |
| Power | |
|---|---|
| Power source | PoE |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 40 |
| Total Power over Ethernet (PoE) budget | 960 W |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 440 mm |
| Height | 43.2 mm |
| Weight | 6.31 kg |
| Packaging content | |
|---|---|
| User guide | Yes |
| Rack mount kit | Yes |
