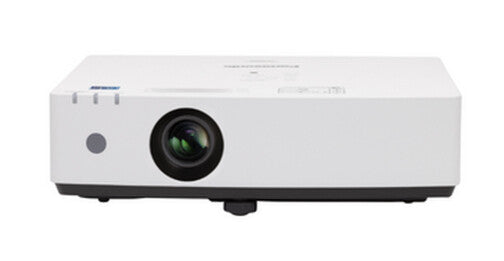

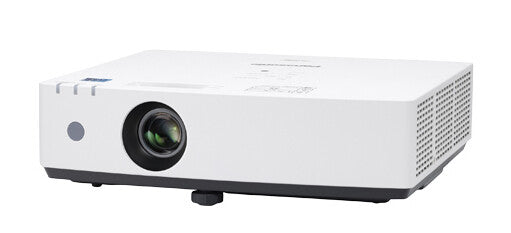

Panasonic PT-LMZ420 data projector Standard throw projector 4200 ANSI lumens LCD WUXGA (1920x1200) White
Beskrivelse
Beskrivelse
Take It Anywhere
LMZ460 Series has width and depth not much larger than a laptop computer and weighs just 4.2 kg (9.26 lbs). It’s light enough to carry wherever you need to go, and is easy to install on the ceiling. Setup is simple: just set on a desktop, connect your source, switch on, and start presenting.
Digital Zoom Extender Adds Digital Image Shift Function
Digital Zoom Extender evolves with a new Digital Image Shift function. Digital Image Shift provides a convenient workaround when it’s not possible to install the projector at the center of the screen due to light fittings or air-conditioning vents on the ceiling, or in cases where the ceiling is too high. You can use the remote control to digitally shift the image 10% up or down and 10% left or right so it fits on your screen.
Digital Zoom Extender function allows you to keep the same mount position as your old projector even if it’s too far from the screen, saving construction work. It extends throw-distance past the range of optical zoom so the image is projected at the desired size on your screen. Furthermore, LMZ460 Series uses the same mount and attachment bracket as the conventional lamp-based PT-LB426 Series, so if you’re updating, you can bolt the new projector straight in.
Designed for Stress-free Life
Excellent picture quality is just one benefit of laser projection. Both the light source and ECO Filter don’t need to be replaced until about 20,000 hours*. Comparable lamp projectors would need between one and four lamp changes plus filter maintenance if operated for the same amount of time. You also don’t need to worry about disposing of expired lamps, and the ECO Filter can be washed and reused, saving waste. It’s easy to see how laser projection reduces cost and maintenance hassle. And thanks to the light-source’s controlled brightness ramp and consistently uniform color reproduction, images stay clear and vivid for much longer.
Dynamic Contrast Adds Depth and Realism
Dynamic Contrast analyzes the video signal frame-by-frame and digitally adjusts light output according to the contrast requirements of each scene. It features scene-linking technology for greater realism when dark and light scenes frequently interchange. As well as accurate reproduction of images that contain a mix of dark and bright shades, Dynamic Contrast is more energy-efficient than other technologies. The high 3,000,000:1* contrast ratio delivers impressive detail definition in shadows and improves text legibility for more comfortable viewing.
Specifikationer
Specifikationer
Projector | |
---|---|
Keystone correction, horizontal | -35 - 35° |
Keystone correction, vertical | -25 - 25° |
Matrix size | 1.63 cm (0.64") |
Uniformity | 85% |
Screen size compatibility | 762 - 7620 mm (30 - 300") |
Native aspect ratio | 16:10 |
Contrast ratio (typical) | 3000000:1 |
Projector native resolution | WUXGA (1920x1200) |
Projection technology | LCD |
Projector brightness | 4200 ANSI lumens |
Light source | |
---|---|
Service life of light source (economic mode) | 24000 h |
Service life of light source | 20000 h |
Light source type | Laser |
Lens system | |
---|---|
Throw ratio | 1.36–1.64:1 |
Zoom ratio | 1.2:1 |
Zoom type | Manual |
Zoom capability | Yes |
Aperture range (F-F) | 1.61 - 1.76 |
Focal length range | 19.1 - 23 mm |
Focus | Manual |
Ports & interfaces | |
---|---|
Consumer Electronics Control (CEC) support | Yes |
PC in (D-Sub) | Yes |
AUX in | Yes |
PC Audio out | Yes |
PC Audio in | Yes |
Serial interface type | RS-232C |
USB 2.0 ports quantity | 1 |
Composite video in | 1 |
DVI port | No |
HDMI ports quantity | 2 |
VGA (D-Sub) ports quantity | 2 |
Network | |
---|---|
Ethernet LAN (RJ-45) ports | 1 |
Ethernet LAN data rates | 10,100 Mbit/s |
Ethernet LAN | Yes |
Features | |
---|---|
Air filter | Yes |
HDCP | Yes |
Noise level (economic mode) | 23 dB |
Noise level | 33 dB |
Multimedia | |
---|---|
RMS rated power | 10 W |
Number of built-in speakers | 1 |
Built-in speaker(s) | Yes |
Design | |
---|---|
LED indicators | Yes |
Placement | Desktop |
Product colour | White |
Market positioning | Portable |
Product type | Standard throw projector |
Display | |
---|---|
Built-in display | No |
Power | |
---|---|
AC input frequency | 50/60 Hz |
AC input voltage | 100-240 V |
Power consumption (economy mode) | 160 W |
Power consumption (max) | 240 W |
Power consumption (standby) | 0.5 W |
Power consumption (typical) | 215 W |
Power source | AC |
Operational conditions | |
---|---|
Operating relative humidity (H-H) | 20 - 80% |
Operating temperature (T-T) | 0 - 45 °C |
Weight & dimensions | |
---|---|
Height | 105 mm |
Depth | 309 mm |
Width | 349 mm |
Weight | 4.2 kg |
Packaging content | |
---|---|
Bundled software | Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software,Presenter Light Software for Windows®14, Wireless Projector App for iOS/Android™15 |
Remote control included | Yes |
