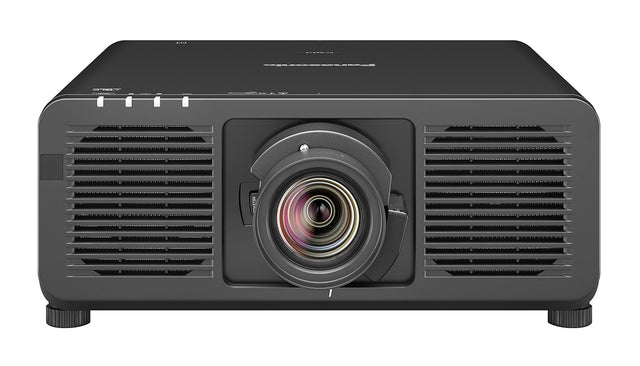

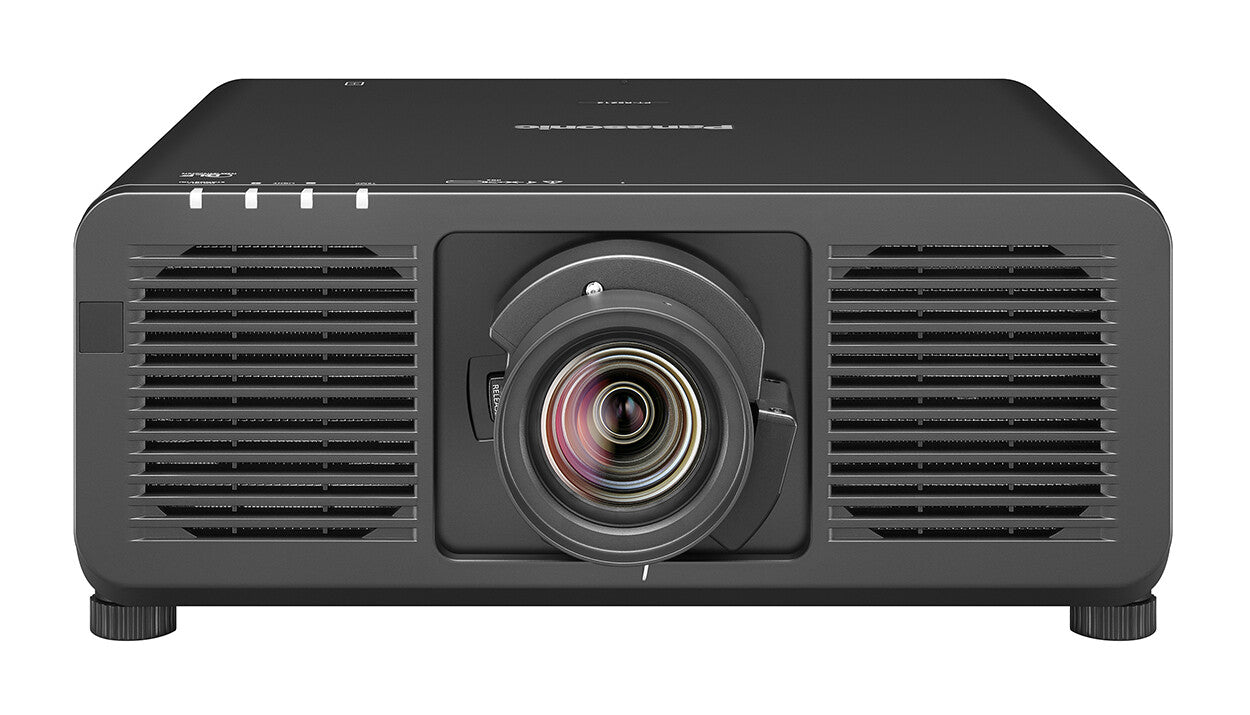

Panasonic PT-REZ12 Standard throw projector 12000 ANSI lumens DLP WUXGA (1920x1200) Black
Panasonic | Varenummer:
PT-REZ12BEJ
Beskrivelse
Beskrivelse
Intel SDM ready slot
Specifikationer
Specifikationer
| Projector | |
|---|---|
| Keystone correction, horizontal | 40° |
| Keystone correction, vertical | 40° |
| Screen size compatibility | 1778 - 25400 mm (70 - 1000") |
| Smart projector | Yes |
| Supported aspect ratios | 16:10 |
| Native aspect ratio | 16:10 |
| Contrast ratio (typical) | 15000:1 |
| Projector native resolution | WUXGA (1920x1200) |
| Projection technology | DLP |
| Projector brightness | 12000 ANSI lumens |
| Light source | |
|---|---|
| Service life of light source | 24000 h |
| Light source type | Laser |
| Lens system | |
|---|---|
| Vertical lens shift range | 78 - 88% |
| Horizontal lens shift range | 9 - 29% |
| Throw ratio | 1.36–2.10:1 |
| Focus | No |
| Video | |
|---|---|
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Video colour modes | sRGB |
| Ports & interfaces | |
|---|---|
| BNC output ports | 1 |
| BNC input ports | 1 |
| PC in (D-Sub) | Yes |
| Serial interface type | RS-232C |
| Audio (L/R) out | 1 |
| Audio (L/R) in | 1 |
| USB 2.0 Type-A ports quantity | 1 |
| HDBaseT port | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 2 |
| VGA (D-Sub) ports quantity | 2 |
| Network | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Projection modes | Ceiling, Front, Rear |
| HDCP | Yes |
| Noise level (economic mode) | 38 dB |
| Noise level | 42 dB |
| Design | |
|---|---|
| Placement | Ceiling, Floor |
| Product colour | Black |
| Housing material | Plastic |
| Product type | Standard throw projector |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| AC adapter output voltage | 5 V |
| AC input frequency | 50-60 Hz |
| AC input voltage | 100-240 V |
| Power consumption (economy mode) | 730 W |
| Power consumption (max) | 1090 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 945 W |
| Power source | AC |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 80% |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Height | 212 mm |
| Depth | 538 mm |
| Width | 498 mm |
| Weight | 27 kg |
| Packaging content | |
|---|---|
| Remote control included | Yes |
