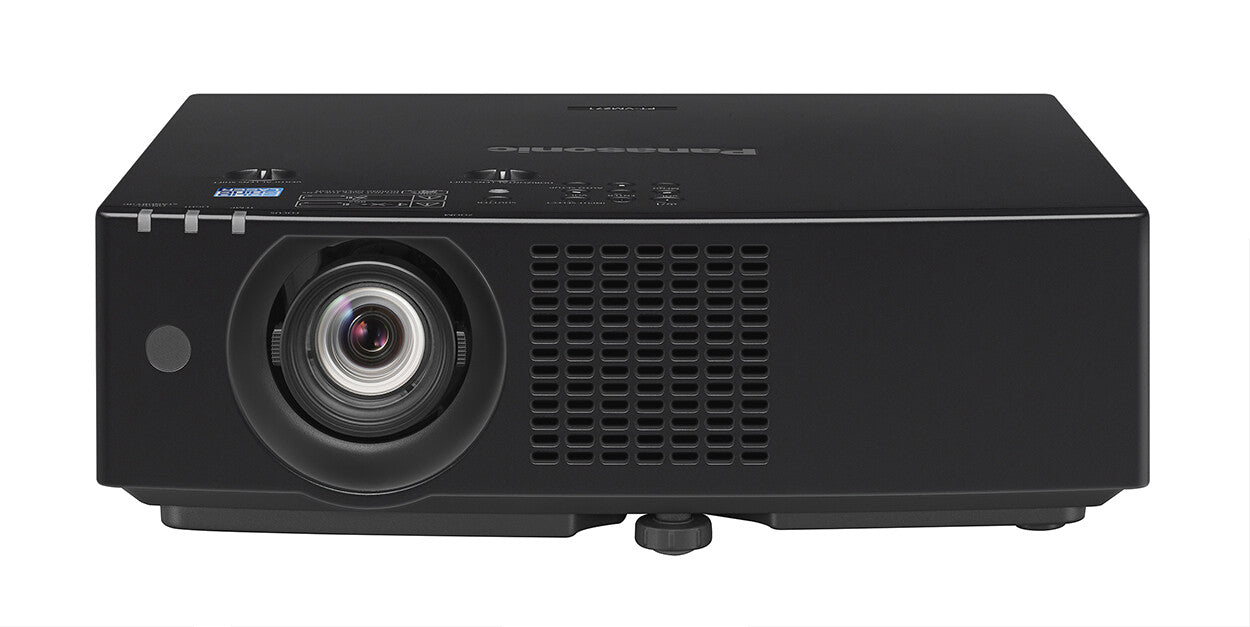

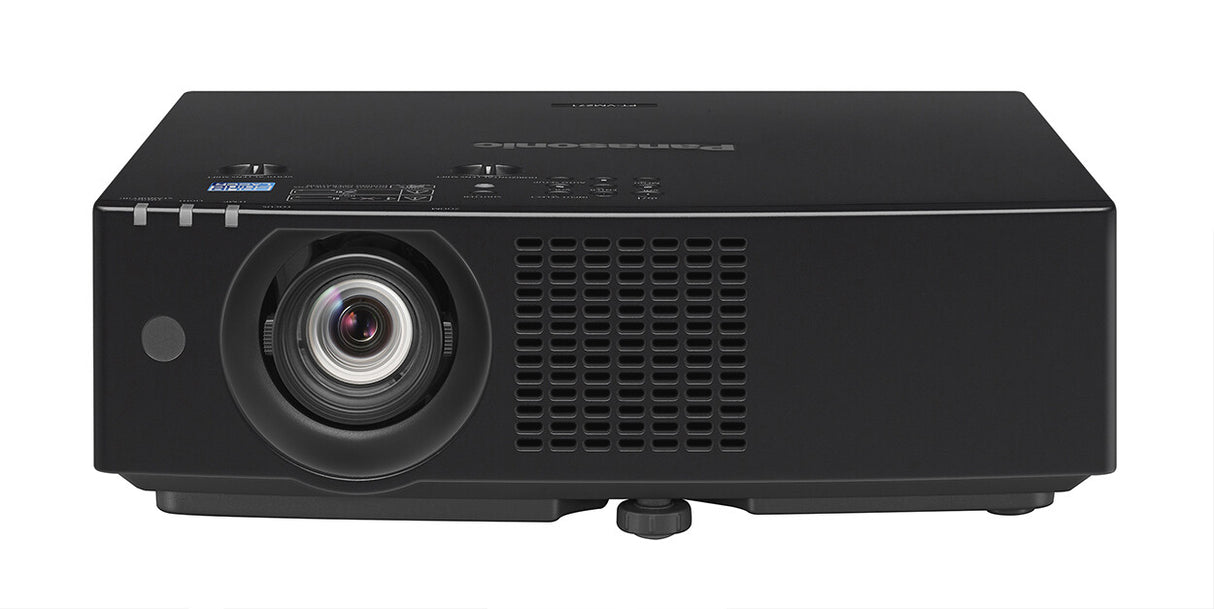

Panasonic PT-VMZ71 Standard throw projector 7000 ANSI lumens LCD WUXGA (1920x1200) Black
Panasonic | Varenummer:
PT-VMZ71BEJ
Beskrivelse
Beskrivelse
LCD, 7000 lm, 1920 x 1200 WUXGA, Laser diode
Panasonic’s latest PT-VMZ71 is one of the world’s smallest and lightest LCD projectors in its class at 15.43 lbs. Its portable body, 7,000lm and WUXGA resolution can project vivid, detailed images, best for situations with ambient light, such as classrooms or conference rooms. Equipped with a flexible,1.6x zoom lens, and a six-point screen correction feature, the image can be perfectly aligned to the corners of the room.
Specifikationer
Specifikationer
| Projector | |
|---|---|
| Keystone correction, horizontal | 35° |
| Keystone correction, vertical | 25° |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Smart projector | Yes |
| Supported aspect ratios | 16:10 |
| Native aspect ratio | 16:10 |
| Contrast ratio (typical) | 3000000:1 |
| Projector native resolution | WUXGA (1920x1200) |
| Projection technology | LCD |
| Projector brightness | 7000 ANSI lumens |
| Light source | |
|---|---|
| Service life of light source | 20000 h |
| Light source type | Laser |
| Lens system | |
|---|---|
| Vertical lens shift range | 0 - 44% |
| Horizontal lens shift range | 0 - 20% |
| Throw ratio | 1.09–1.77:1 |
| Zoom type | Manual |
| Zoom capability | Yes |
| Focal length range | 15.30–24.64 |
| Focus | Manual |
| Video | |
|---|---|
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Ports & interfaces | |
|---|---|
| Consumer Electronics Control (CEC) support | Yes |
| DC-in jack | Yes |
| PC Audio out | Yes |
| PC Audio in | Yes |
| Serial interface type | RS-232C |
| Audio (L/R) out | 1 |
| Audio (L/R) in | 2 |
| USB 2.0 Type-A ports quantity | 1 |
| HDBaseT port | Yes |
| DVI port | No |
| HDMI ports quantity | 2 |
| VGA (D-Sub) ports quantity | 2 |
| Network | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Projection modes | Ceiling, Front, Rear |
| HDCP | Yes |
| Noise level (economic mode) | 28 dB |
| Noise level | 38 dB |
| Multimedia | |
|---|---|
| RMS rated power | 10 W |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Product colour | Black |
| Housing material | Plastic |
| Product type | Standard throw projector |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| AC adapter output voltage | 5 V |
| AC input frequency | 50-60 Hz |
| AC input voltage | 100-240 V |
| Power consumption (economy mode) | 275 W |
| Power consumption (typical) | 420 W |
| Power source | AC |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Height | 133 mm |
| Depth | 348 mm |
| Width | 399 mm |
| Weight | 7 kg |
