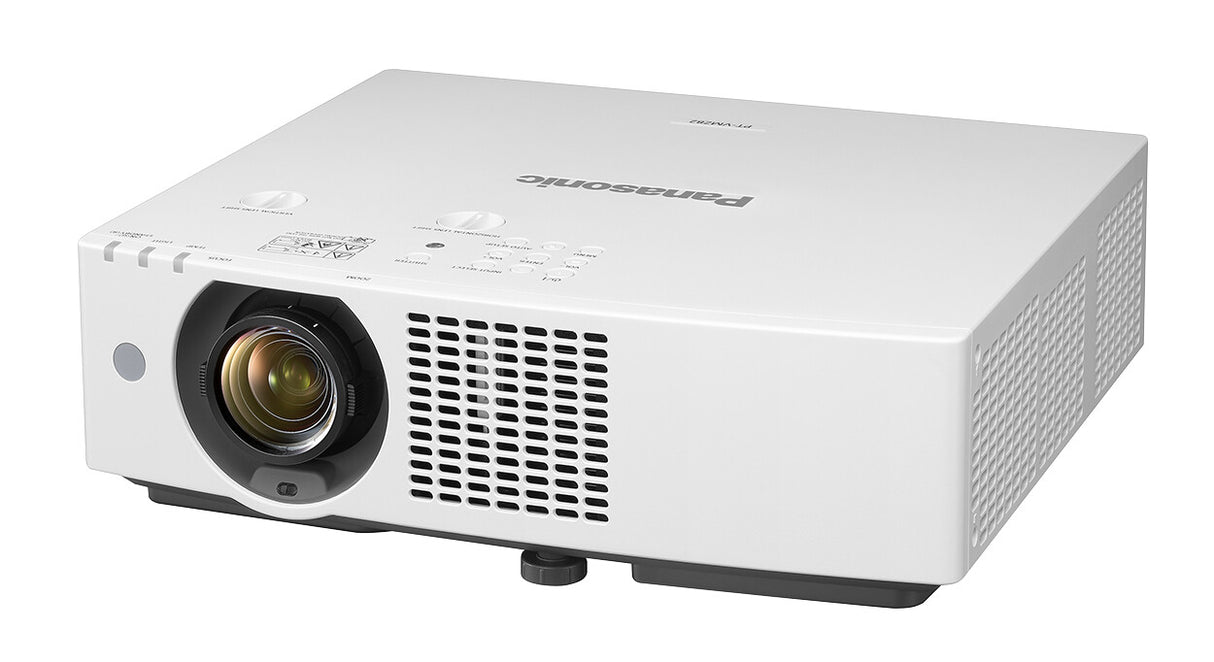

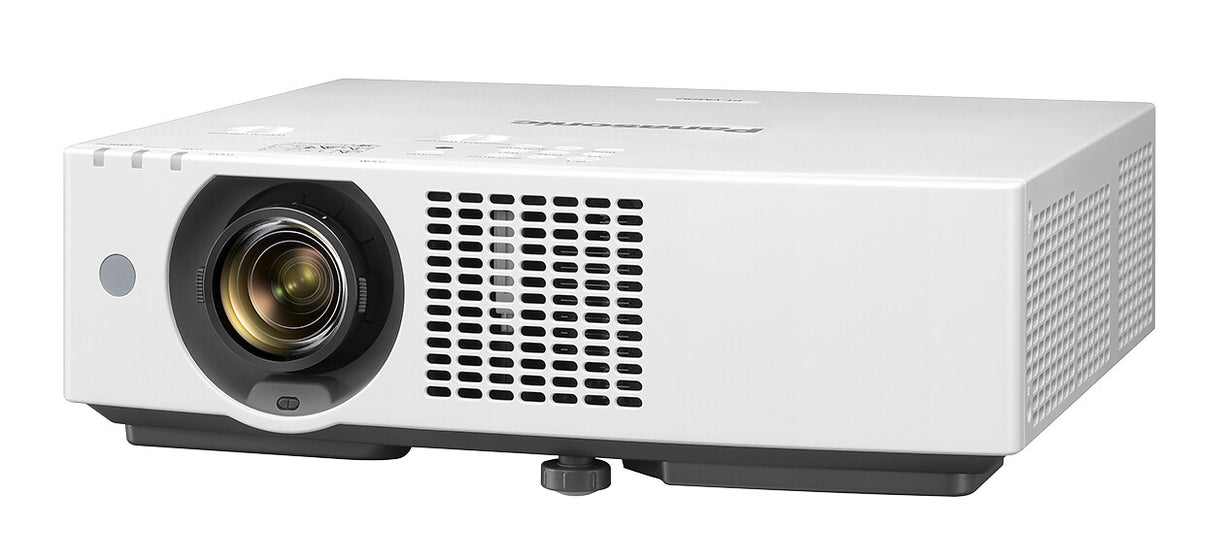

Panasonic PT-VMZ72EJ data projector Large venue projector 8000 ANSI lumens LCD WUXGA (1920x1200)
Panasonic | Varenummer:
PT-VMZ72EJ
Beskrivelse
Beskrivelse
PT-VMZ72EJ WUXGA 3LCD 7300 Lumens
Specifikationer
Specifikationer
| Projector | |
|---|---|
| Keystone correction, horizontal | -35 - 35° |
| Keystone correction, vertical | -25 -25° |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Native aspect ratio | 16:10 |
| Contrast ratio (typical) | 5000000:1 |
| Projector native resolution | WUXGA (1920x1200) |
| Projection technology | LCD |
| Projector brightness | 8000 ANSI lumens |
| Light source | |
|---|---|
| Service life of light source (economic mode) | 24000 h |
| Service life of light source | 20000 h |
| Light source type | LED |
| Lens system | |
|---|---|
| Vertical lens shift range | -44 - 44% |
| Horizontal lens shift range | -20 - 20% |
| Throw ratio | 1.09 - 2.21:1 |
| Zoom type | Manual |
| Zoom capability | Yes |
| Aperture range (F-F) | 1.58 - 1.91 |
| Focal length range | 15.3 - 24.6 mm |
| Focus | Manual |
| Video | |
|---|---|
| Full HD | Yes |

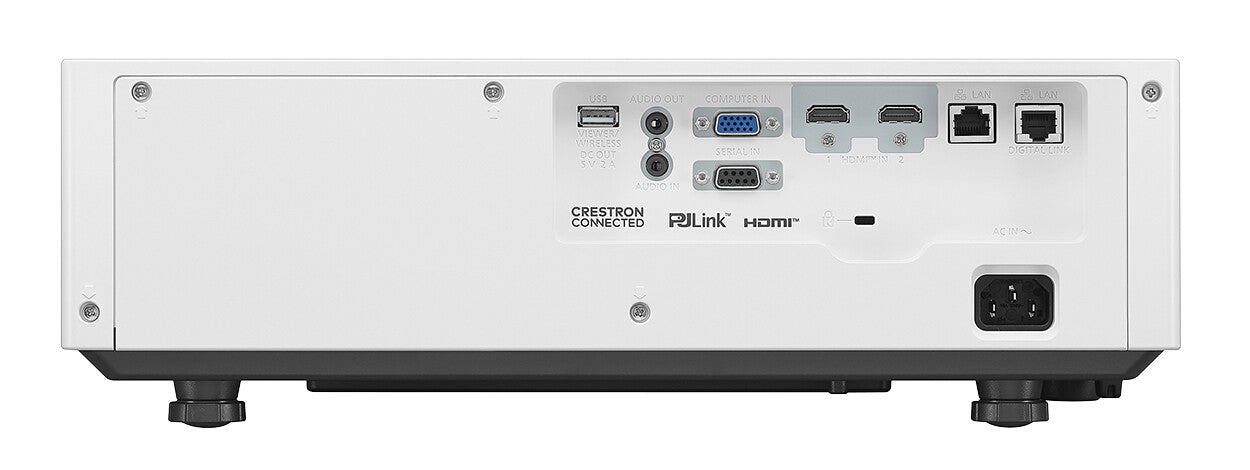

| Ports & interfaces | |
|---|---|
| Serial interface type | RS-232C |
| Audio (L/R) out | 1 |
| Audio (L/R) in | 1 |
| USB 2.0 Type-A ports quantity | 1 |
| Composite video in | 1 |
| Component video (YPbPr/YCbCr) in | 1 |
| HDMI ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| HDCP | Yes |
| Noise level (economic mode) | 27 dB |
| Noise level | 37 dB |
| Multimedia | |
|---|---|
| RMS rated power | 10 W |
| Number of built-in speakers | 1 |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Housing material | Plastic |
| Market positioning | Business |
| Product type | Large venue projector |
| Power | |
|---|---|
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (economy mode) | 235 W |
| Power consumption (typical) | 310 W |
| Power source | DC |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Height | 115 mm |
| Depth | 348 mm |
| Width | 399 mm |
| Weight | 7.4 kg |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
