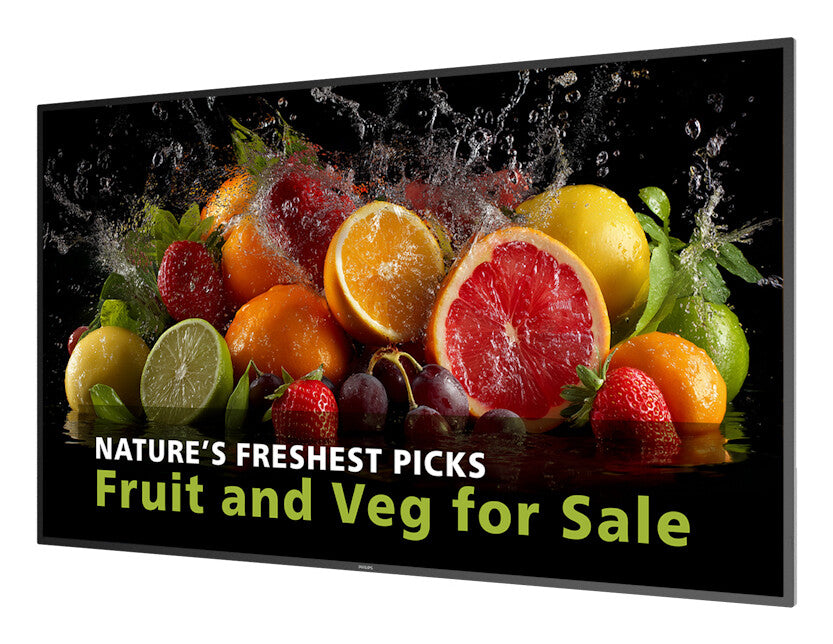

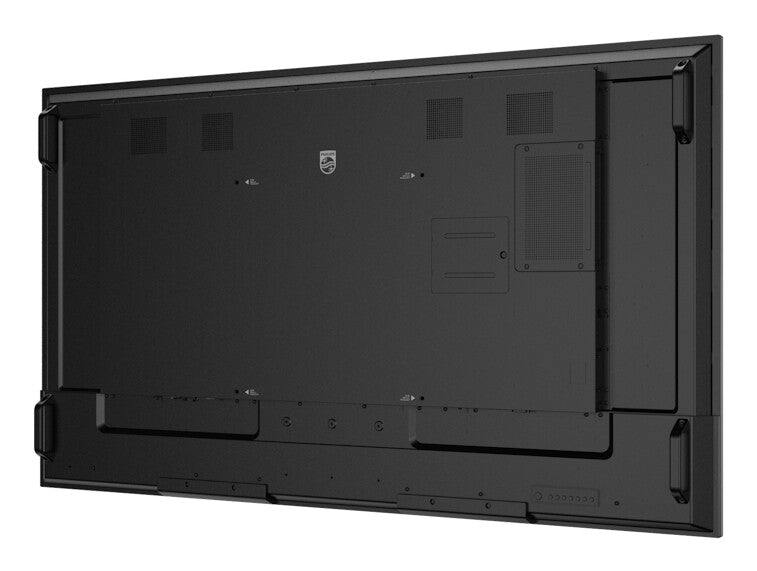

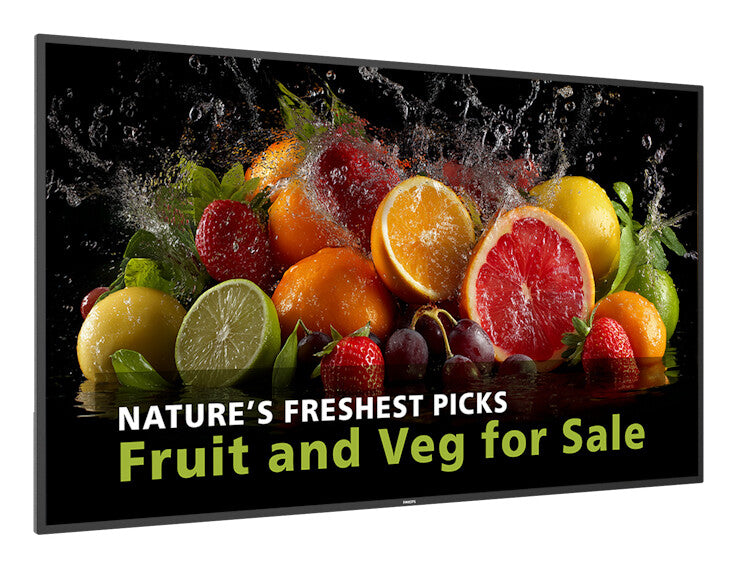

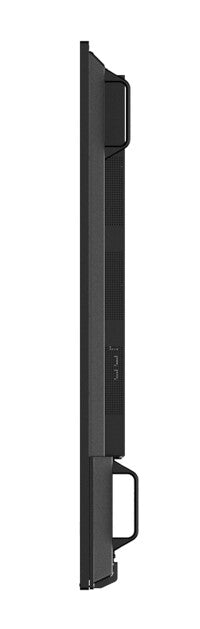

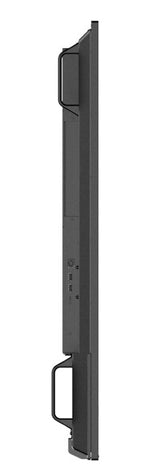

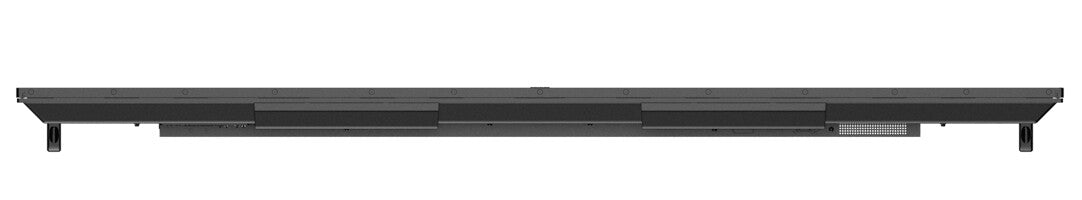

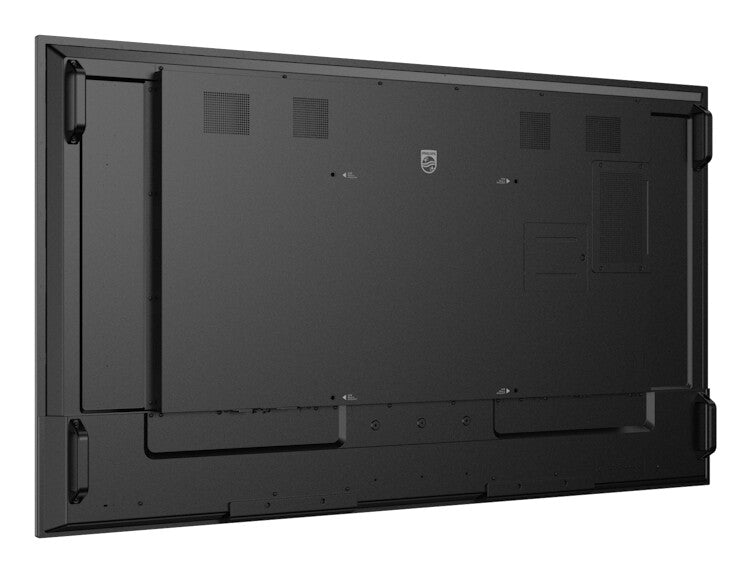

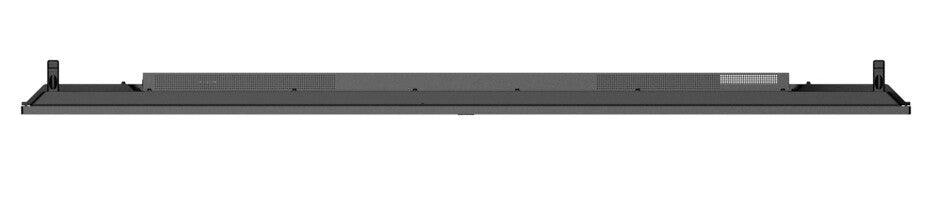

Philips 5000 series 98BDL5050D/00 Signage Display 2.49 m (98") LCD Wi-Fi 600 cd/m² Full HD Black Built-in processor Android
Beskrivelse
Beskrivelse
Philips Signage 5000 Series
Go beyond the ordinary. Captivate audiences and elevate their experience with the Philips Signage 5000. Powered by Android 14 for smooth integrations, this versatile 24/7 display steps up to deliver exceptional performance in any setting.
24/7 – working for your content around the clock.
With 500 cd/m2 brightness for better visibility under bright lights or even in sunlight, the Philips Signage 5000 Series is designed to be used 24/7, making it a great selection for travel and transportation hubs, retail centres, food and beverage locations, and more.
Install in portrait or landscape orientations.
Extend your display into the future with our modular approach. Bringing opportunities for longer product lifetime with easily detached and replaced components, plus a firm focus on sustainability, with reduced WEEE disposal.
Android 14 professional System on Chip.
Powered by Android 14, your Philips Signage 5050 display is designed on a professional platform with trusted connectivity and security built in. Optimised for native Android apps, it enables you to install web apps and software directly onto the display, eliminating the need for an external media player.
Integrated HTML5 Chromium-based browser.
Connect and control your content via the cloud with our integrated HTML5, Chromium-based browser. Design your content online and connect a single display, or your entire network, either landscape or portrait. Simply connect to the Internet via an RJ45 cable.
Philips Wave ready for remote device management.
Unlock the power, versatility and intelligence inside your Philips Signage 5000 displays remotely with Wave. This evolutionary cloud platform puts you fully in control, with simplified installation and setup, monitoring and controlling displays, upgrading firmware, managing playlists and setting power schedules, saving you time, energy and environmental impact.
Specifikationer
Specifikationer
| Display | |
|---|---|
| Display diagonal | 2.49 m (98") |
| Display technology | LCD |
| Panel type | VA |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 600 cd/m² |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 500000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.2854 x 0.2854 mm |
| Display diagonal (metric) | 125.7 cm |
| Haze rate | 25% |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| USB port | Yes |
| USB ports quantity | 1 |
| USB version | 2.0/3.2 Gen 2 (3.1 Gen 2) |
| USB connector type | Micro-USB B, USB Type-C |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Number of antenna connectors | 1 |
| RS-232 interface | Yes |
| RS-232C | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Design | |
|---|---|
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100,200 x 200 mm |
| Bezel width (bottom) | 1.49 cm |
| Bezel width (side) | 1.49 cm |
| Bezel width (top) | 1.49 cm |
| Performance | |
|---|---|
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish |
| Number of OSD languages | 18 |
| On Screen Display (OSD) | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
|---|---|
| Energy efficiency class (SDR) | F |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Computer system | |
|---|---|
| Computer system | Yes |
| Computer system type | System on Chip (SoC) |
| Built-in processor | Yes |
| Processor manufacturer | ARM |
| Processor model | A53 |
| Processor cores | 8 |
| Internal memory | 4 GB |
| On-board graphics card model | Mali-G52 MC3 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android |
| Operating system version | 14 |
| Video formats supported | AVI, H.263, H.264, H.265, MP4, MPEG, MPEG4, VP8, WEBM |
| Audio formats supported | AAC, HEAAC / MPEG |
| Image formats supported | BMP, JPEG, PNG |
| Weight & dimensions | |
|---|---|
| Display width | 2193.4 mm |
| Display height | 1255.3 mm |
| Display weight | 65.6 kg |
| Packaging content | |
|---|---|
| Cables included | AC, IR sensor, RS-232 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| General | |
|---|---|
| Product family | 5000 series |
| Technical details | |
|---|---|
| Compliance certificates | CB, CE, RoHS |
