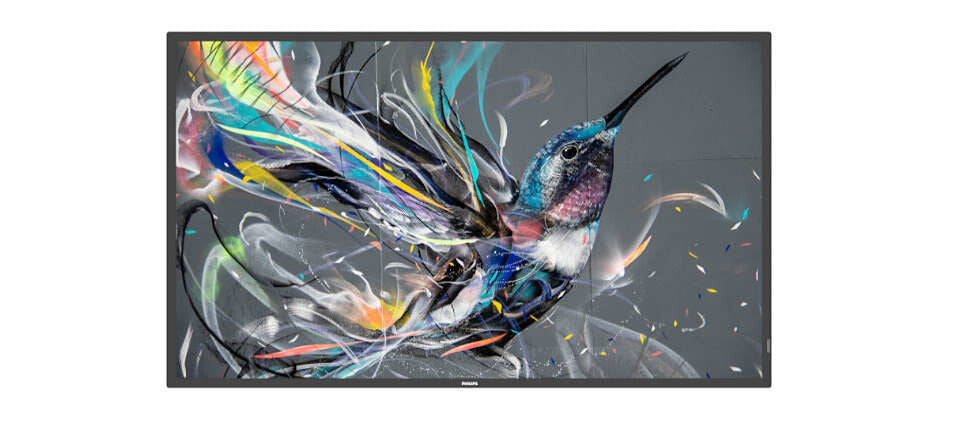

Philips 86BDL3511Q/00 Public Display Digital signage flat panel 2.18 m (86") IPS 400 cd/m² 4K Ultra HD Black

Philips  |  Varenummer: 86BDL3511Q/00
Stregkode: 8712581778620,0685417580484,685417580484

Beskrivelse

86BDL3511Q - 86", Ultra HD, Direct LED Backlight

Operate, monitor and maintain with CMND and Control
Run your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

FailOver ensures that content is always playing
From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.

OPS slot allows for PC embedding without cabling
Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.

Schedule what you want, when you want with SmartPlayer
Turn your USB into a true cost-effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display. Create your playlist and schedule your content via the on-screen menu, and enjoy your own playlists anytime, anywhere.

Integrated media player. Easily schedule USB content
Easily schedule content to play from USB. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback has finished.

Specifikationer

Display
Display diagonal 2.18 m (86")
Display technology IPS
Display resolution 3840 x 2160 pixels
Display brightness 400 cd/m²
HD type 4K Ultra HD
Touchscreen No
Native aspect ratio 16:9
Response time 8 ms
Contrast ratio (typical) 1200:1
Contrast ratio (dynamic) 500000:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Display number of colours 1.07 billion colours
Pixel pitch 0.4935 x 0.4935 mm
Display diagonal (metric) 217.4 cm
Ports & interfaces
HDMI ports quantity 3
HDMI version 2.0
DVI port Yes
DVI-I ports quantity 1
USB port Yes
USB ports quantity 2
USB version 2.0
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
RS-232C Yes
Infrared data port Yes
OPS module slot Yes
Audio
Built-in speaker(s) Yes
Number of built-in speakers 2
RMS rated power 10 W
Design
Product design Digital signage flat panel
Product colour Black
Placement supported Indoor
VESA mounting Yes
Panel mounting interface 600 x 400 mm
Bezel width (top) 1.55 cm
Performance
Purpose Universal
On Screen Display (OSD) languages Arabic, Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Turkish
Number of OSD languages 12
On Screen Display (OSD) Yes
Power
Power consumption (typical) 360 W
Power consumption (standby) 0.5 W
Energy efficiency class (SDR) G
Energy consumption (SDR) per 1000 hours 355 kWh
AC input voltage 100–240
AC input frequency 50 - 60 Hz
Energy efficiency scale A to G
Computer system
Video formats supported H.264, M-JPEG, WMV3
Audio formats supported AAC, HE-AAC, WMA
Image formats supported BMP, JPEG, PNG
Weight & dimensions
Display width 1929 mm
Display depth 69.5 mm
Display height 1100 mm
Display weight 49.5 kg
Packaging content
Cables included AC, RS-232
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 20 - 80%
Storage temperature (T-T) -20 - 60 °C
Storage relative humidity (H-H) 5 - 95%
Certificates
Certification CEosdFCC, Class ACBBSMIVCCICUETLEMFPSB
Logistics data
Harmonized System (HS) code 85285210
