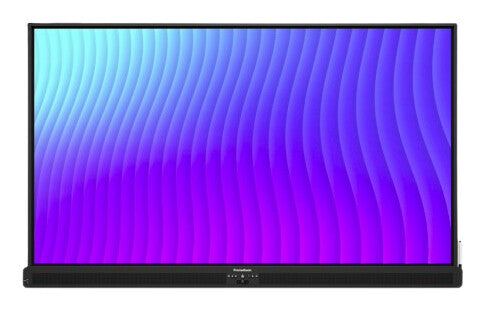

Promethean ActivPanel 10 Interactive flat panel 2.18 m (86") LCD 565 cd/m² 4K Ultra HD Black Touchscreen
Beskrivelse
Beskrivelse
Don’t conform. ActivPanel 10 fits your world.
A customized solution meets you exactly where you are.
Goodbye, cookie-cutter tech. Hello, custom fit.
ActivPanel 10 is all about intelligent options. Choose your ideal panel configuration—model, size, operating system, and accessories—with no compromises.
User-friendly, made friendlier
The ActivPanel 10 experience supports the most creative, productive you.
Promethean ActivSuite
With our new software, your favorite ActivPanel engagement apps are accessible on your device to use at and away from the panel. Hello, enhanced freedom and flexibility!
An industry-leading display1
Get the full picture with reduced reflection, every-angle views, highly accurate color, and true-black contrast thanks to optical bonding, QLED, and FALD2. All that, and it saves energy3.
High tech, low footprint
ActivPanel 10 is Energy Star Certified, durably designed, consumes less power3, and comes with less packaging.
Picture-in-picture
No more source switching, with touch-enabled Picture-in-picture! View and interact with two connected sources at the same time, change the layout, and choose what to bring into focus.
Meet your new experience
Book an ActivPanel 10 and Promethean ActivSuite demo to learn more!
Specifikationer
Specifikationer
| Display | |
|---|---|
| Display diagonal | 2.18 m (86") |
| Display technology | LCD |
| LED backlight | Yes |
| Panel type | TFT |
| LED backlighting type | Direct-LED |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 565 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 40 |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 5000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Active display area (W x H) | 1898 x 1069 mm |
| Touch response time | 3 ms |
| Glass thickness | 3.2 mm |
| Native refresh rate | 60 Hz |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| USB port | Yes |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| USB 2.0 Type-B ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| RS-232 interface | Yes |
| Digital audio optical out | 1 |
| PC Audio out | Yes |
| OPS module slot | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Design | |
|---|---|
| Product design | Interactive flat panel |
| Product colour | Black |
| Placement supported | Indoor |
| VESA mounting | Yes |
| Panel mounting interface | 800 x 600 mm |
| Positioning accuracy | 1 mm |
| Anti-glare screen | Yes |
| Performance | |
|---|---|
| Purpose | Universal |
| Picture-in-Picture | Yes |
| Ambient light sensor | Yes |
| Pen type | Passive pen |
| Power | |
|---|---|
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| Computer system | |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
|---|---|
| Display width | 1950 mm |
| Display depth | 107 mm |
| Display height | 1194 mm |
| Display weight | 62.9 kg |
| Packaging data | |
|---|---|
| Package width | 2095 mm |
| Package depth | 185 mm |
| Package height | 1290 mm |
| Package weight | 75.3 kg |
| Packaging content | |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Number of stylus pens | 2 |
| Stylus pen | Yes |
| Cables included | AC, HDMI, USB Type-A to USB Type-B, USB Type-C |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -15 - 55 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Certificates | |
|---|---|
| Certification | CE, FCC, IC, UL, CUL, CB, RCM |
| Features | |
|---|---|
| Wall mountable | Yes |
| Technical details | |
|---|---|
| OPS slot | 1 |
| Compliance certificates | Trade Agreements Act (TAA) |
| Sustainability certificates | ENERGY STAR |
| Other features | |
|---|---|
| Mobile operating systems supported | Android |
| Screws included | Yes |
| Quick start guide | Yes |
