PureLink VL-VB300 video conferencing system 8 MP Ethernet LAN Group video conferencing system
Beskrivelse
Beskrivelse

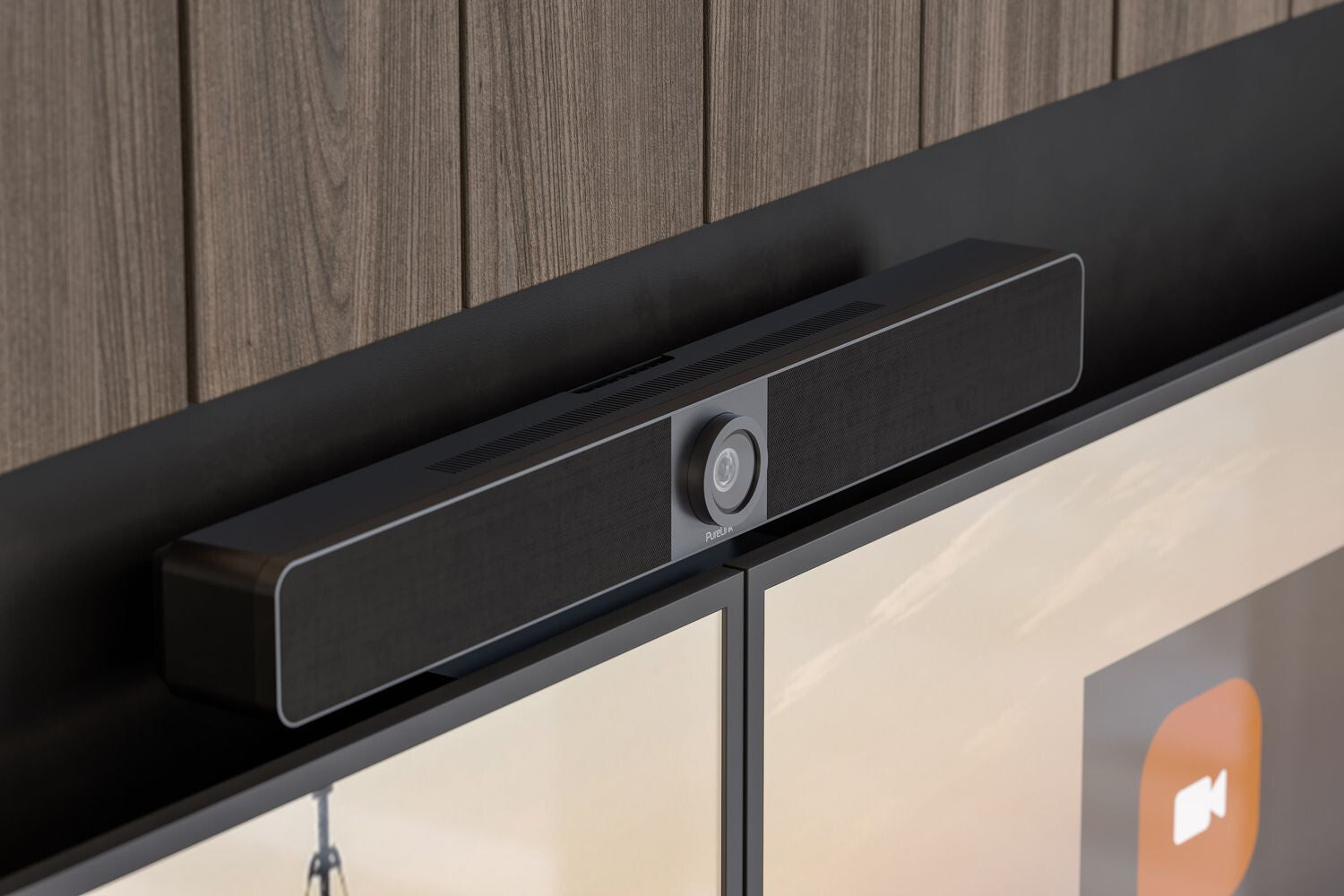

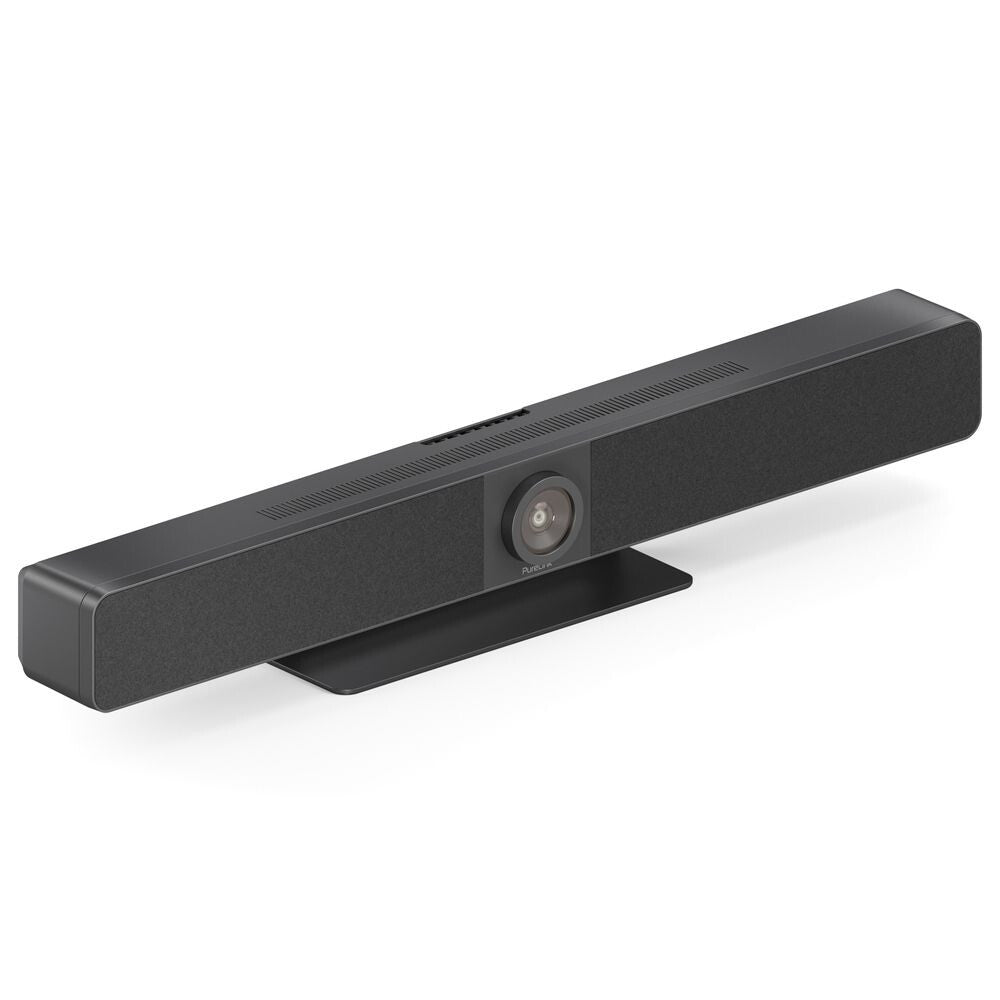

The VB300 is the flagship model in the Vuelogic series. An effortlessly stylish and usable conference room essential. A single device to fulfil and manage every aspect of the meeting room environment. A premium video bar boasting a smart 4K camera, a 4 MEMS mic array, powerful stereo speakers combined with an integrated ProAV media switcher with both wired and cross platform wireless connection capabilities.
Wireless Presentation Dongle
For meeting participants that are unfamiliar with the meeting room or for larger conference rooms, the USB-C dongle is the ideal way to share your content. For simultaneous collaboration, two dongles can be used. Simply plug in and press to connect.
Share Content Your Way

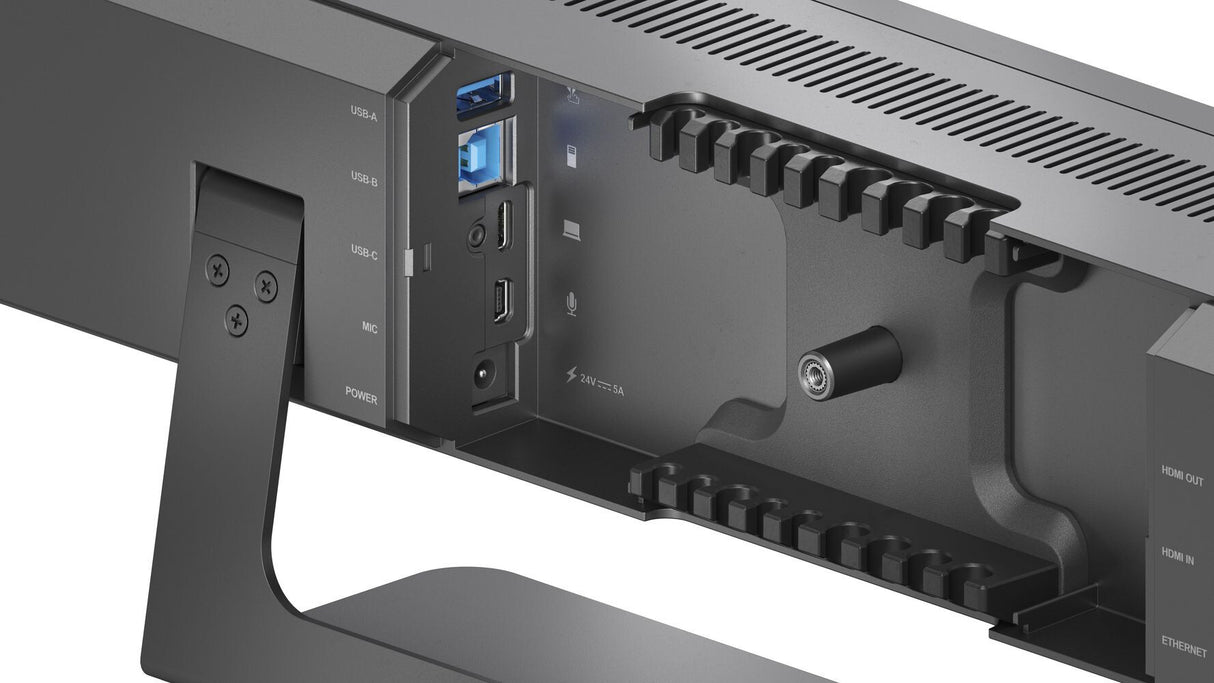

Equipped with both wired and wireless sharing modes and split screen view mode. HDMI and USB-C (incl. power delivery) ports for direct connections and wireless casting from Windows, Android and Apple devices is easy.
Powerful UI
The inbuilt web UI is ideal for admin users to setup and control the specific end user experience. Setup video and tracking functions, upload a custom home screen, configure WAP settings for seamless user interaction as well as remote reboot and FW upload for support.
Superior Audio Quality
Quad array of beam forming MEMS microphones, echo cancellation, auto gain control and noise suppression and a pair of 5W speakers with passive bass radiator. Audio performance that so good, it feels like a real face-to-face meeting.
Smart Wide Angle Camera
The integrated 4K ePTZ camera with a 120° wide angled lens captures the entire meeting space. With its suite of intelligent algorithms, including auto framing, speaker and presenter tracking, your team is automatically center-stage and always perfectly framed.
Specifikationer
Specifikationer
| Performance | |
|---|---|
| Product type | Group video conferencing system |
| Number of cameras | 1 |
| Product colour | Grey |
| Video | |
|---|---|
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 60 fps |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Microphone pick-up range | 8 m |
| Echo cancellation | Yes |
| RMS rated power | 10 W |
| Noise reduction | Yes |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| USB connector type | Mini-USB B |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| RJ-45 ports quantity (speaker) | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Camera | |
|---|---|
| Megapixel (approx.) | 8 MP |
| Digital zoom | 5x |
| Sensor type | CMOS |
| Field of view (FOV) angle | 120° |
| White balance | Auto |
| Microphone | |
|---|---|
| Number of microphones | 4 |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Power | |
|---|---|
| DC output voltage | 24 V |
| DC output current | 5 A |
| Power consumption (max) | 100 W |
| Weight & dimensions | |
|---|---|
| Width | 700 mm |
| Depth | 126.8 mm |
| Height | 90 mm |
| Weight | 2.42 kg |
| Packaging content | |
|---|---|
| Wall mounting kit | Yes |
| AC adapter included | Yes |
| Screws included | Yes |
| Remote control included | Yes |
