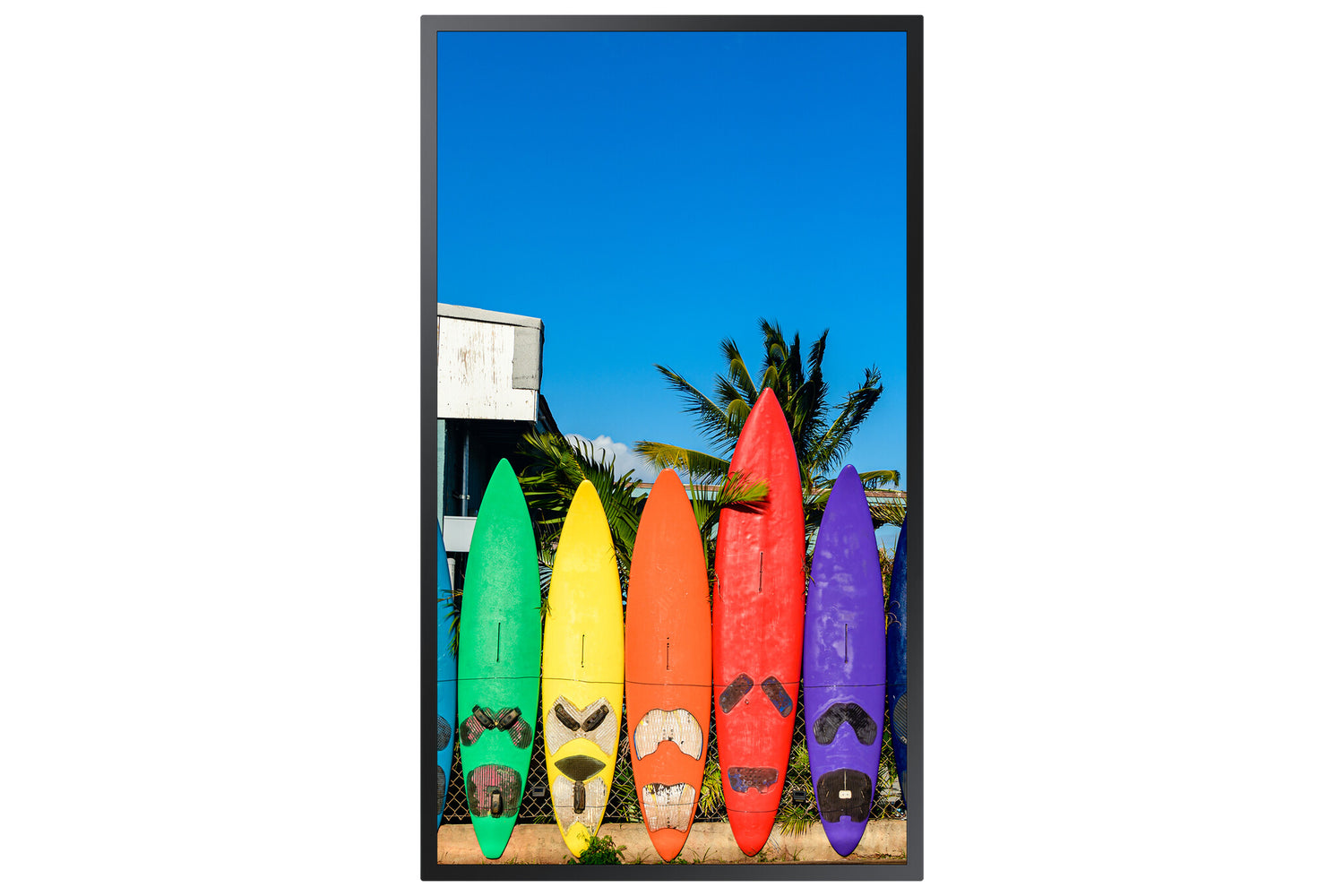

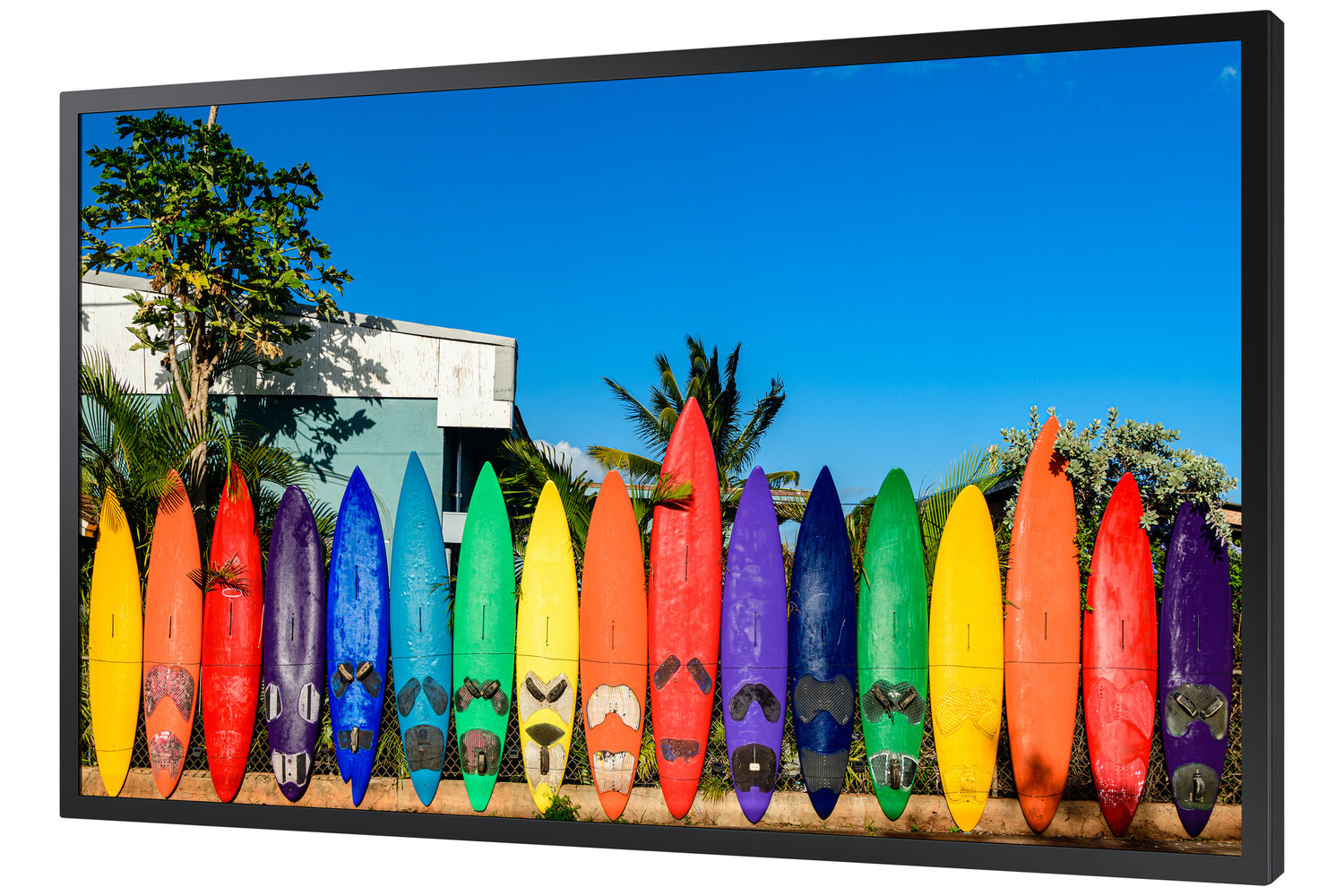

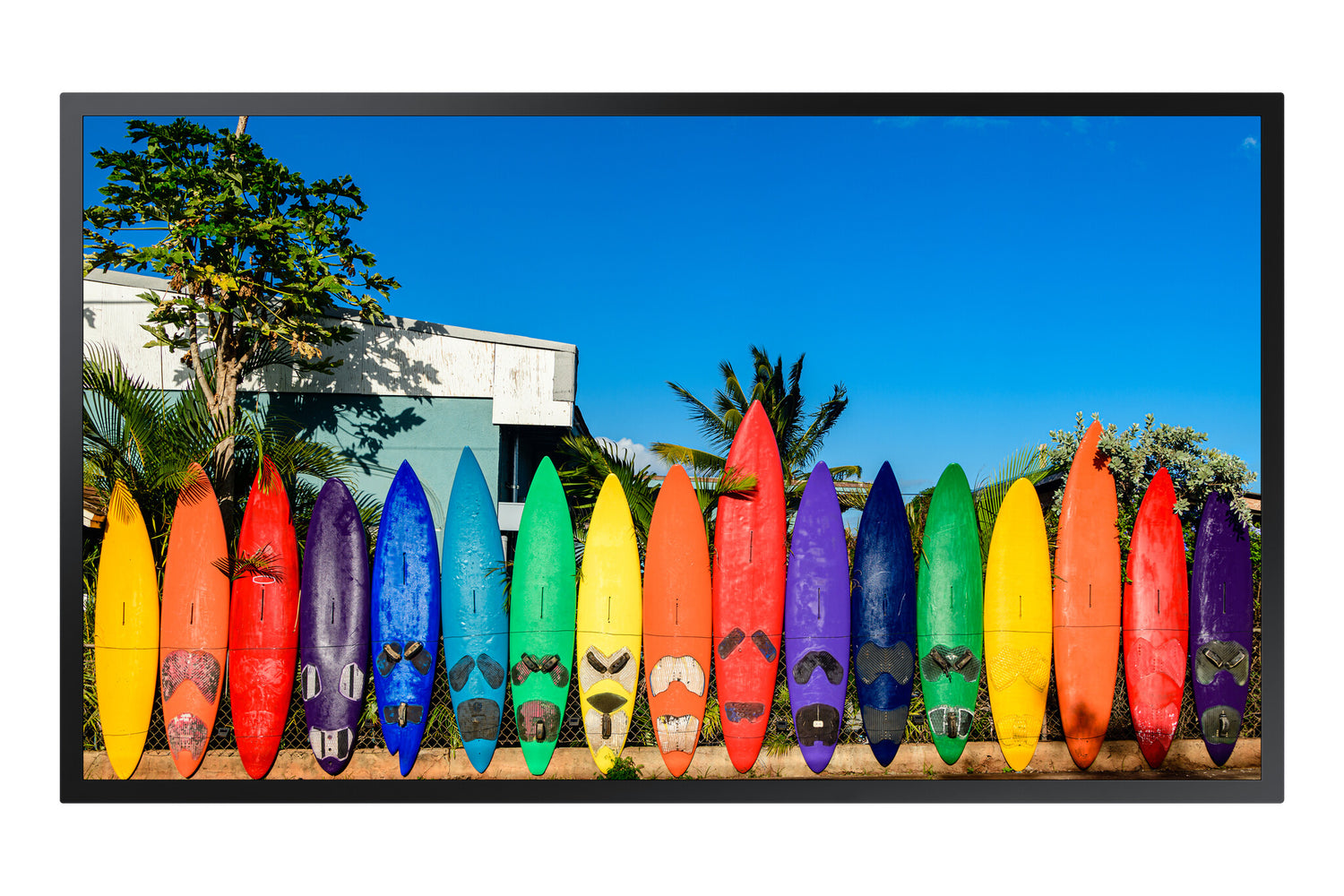

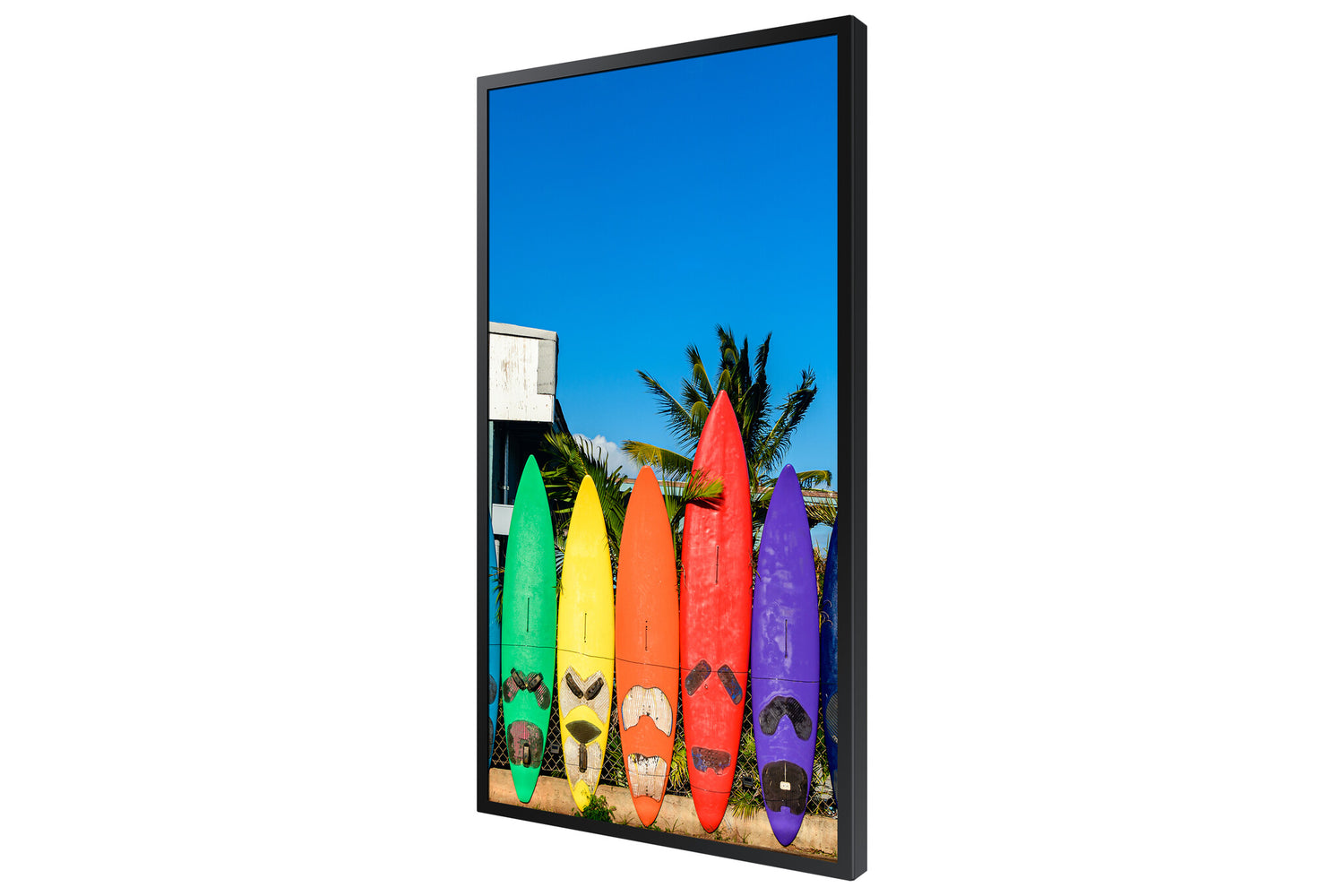

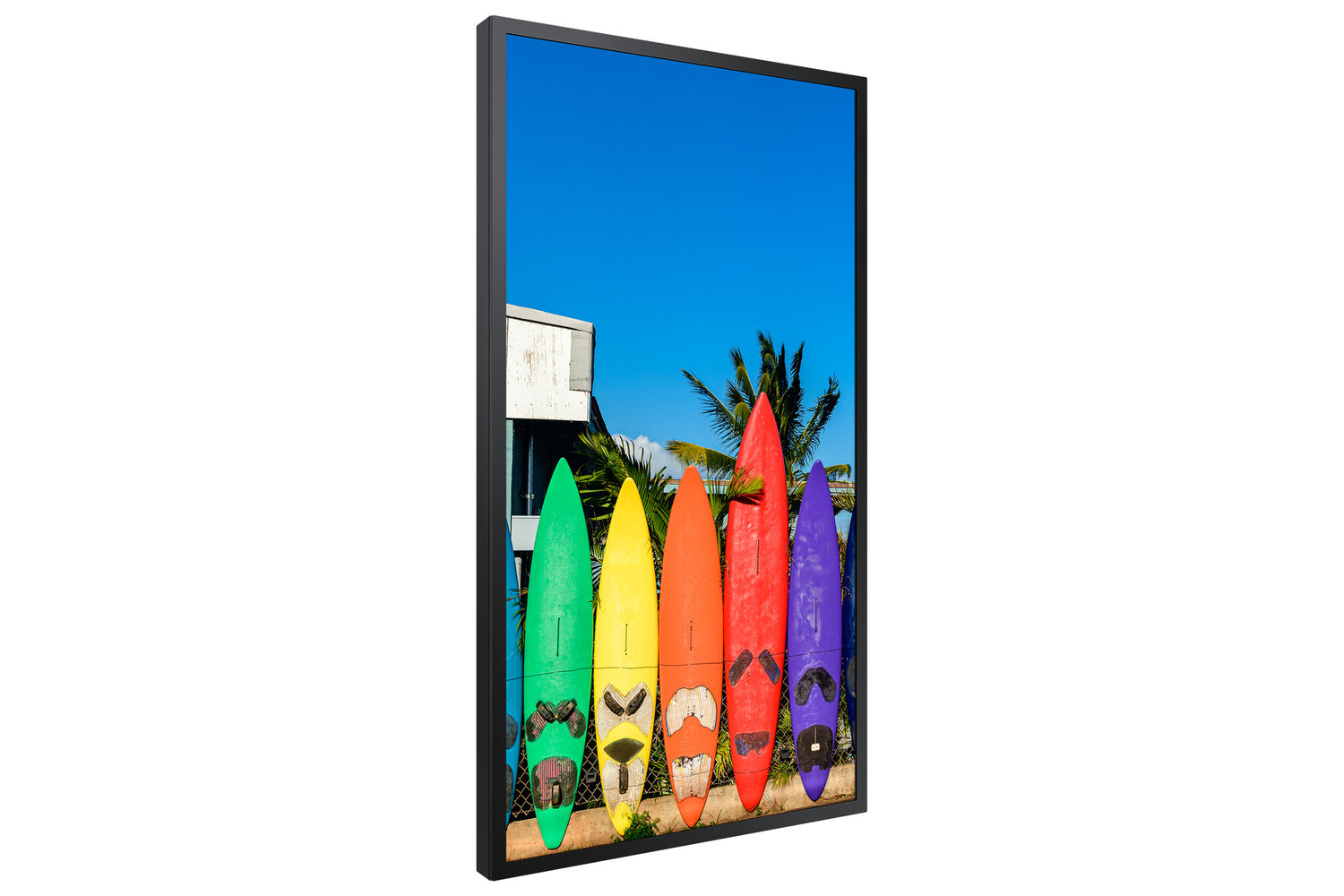

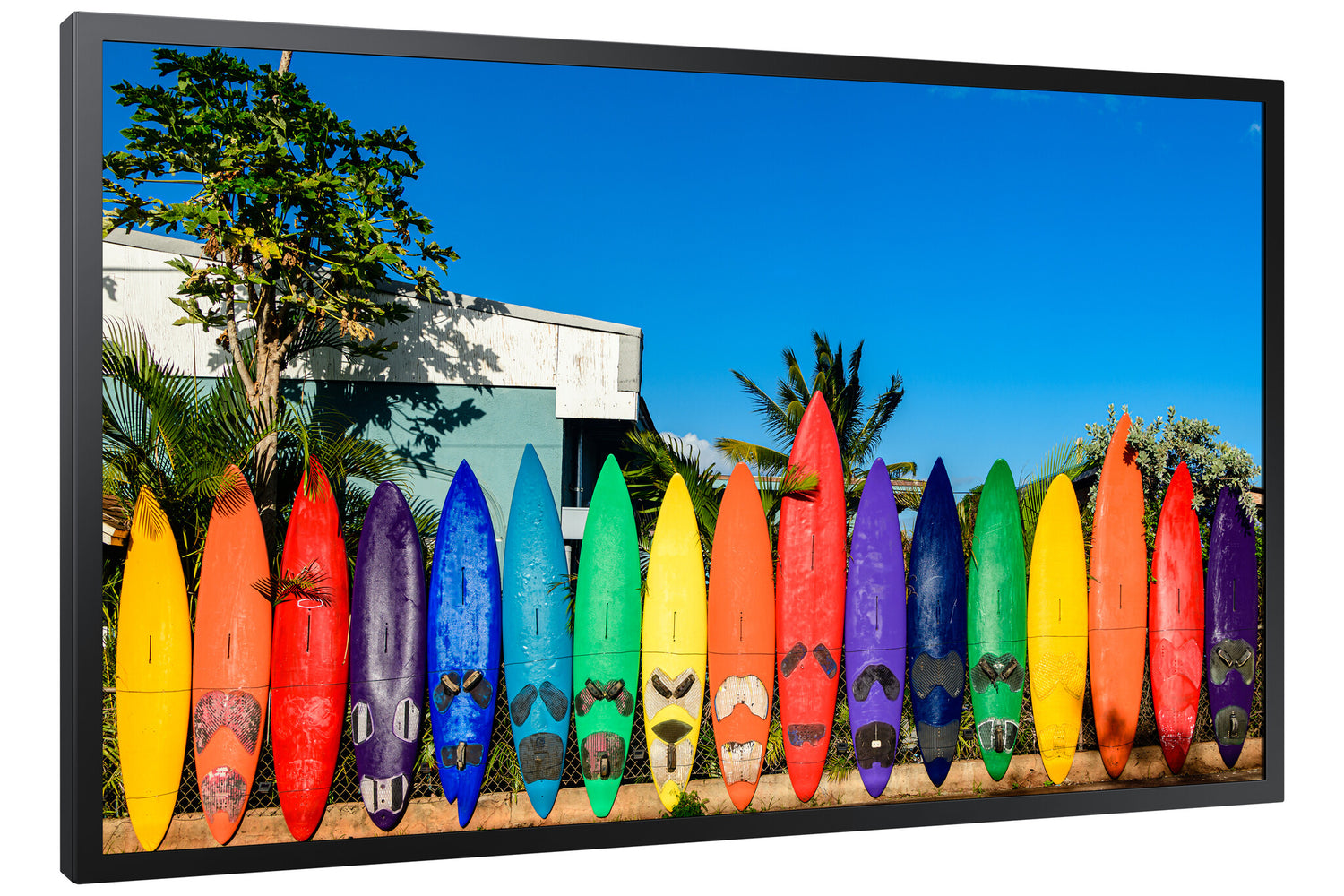

Samsung OM55B Digital signage flat panel 139.7 cm (55") LCD Wi-Fi 3000 cd/m² 4K Ultra HD Black Built-in processor Tizen 5.0 24/7

Samsung  |  Varenummer: LH55OMBEBGBXEN

Beskrivelse

55", ADS, 4K UHD (3840 x 2160), 3000 nit, 1200:1, 178/178, 8 ms, WiFi, RJ-45, HDCP, HDMI, DP, RS232, AC 100-240V, 50/60Hz, 1253.4 x 724.2 x 54.5 mm, 23.1 kg

Promote content in any storefront window
Samsung’s OM46B was designed with a storefront window display in mind. It projects clear, bright images that attract and engage audiences, increasing the probability of an in-store visit.

Foster brilliant presentation for all
Even in direct sunlight, the OM46B delivers exceptional picture quality with optimal brightness and high contrast ratio for an uncompromised customer

Marvel at the lifelike colour expression
Dynamic Crystal Display
Immerse your customers in every picture with a wider range of colour. Dynamic Crystal Display creates lifelike images allowing the viewer to see even the subtlest details.

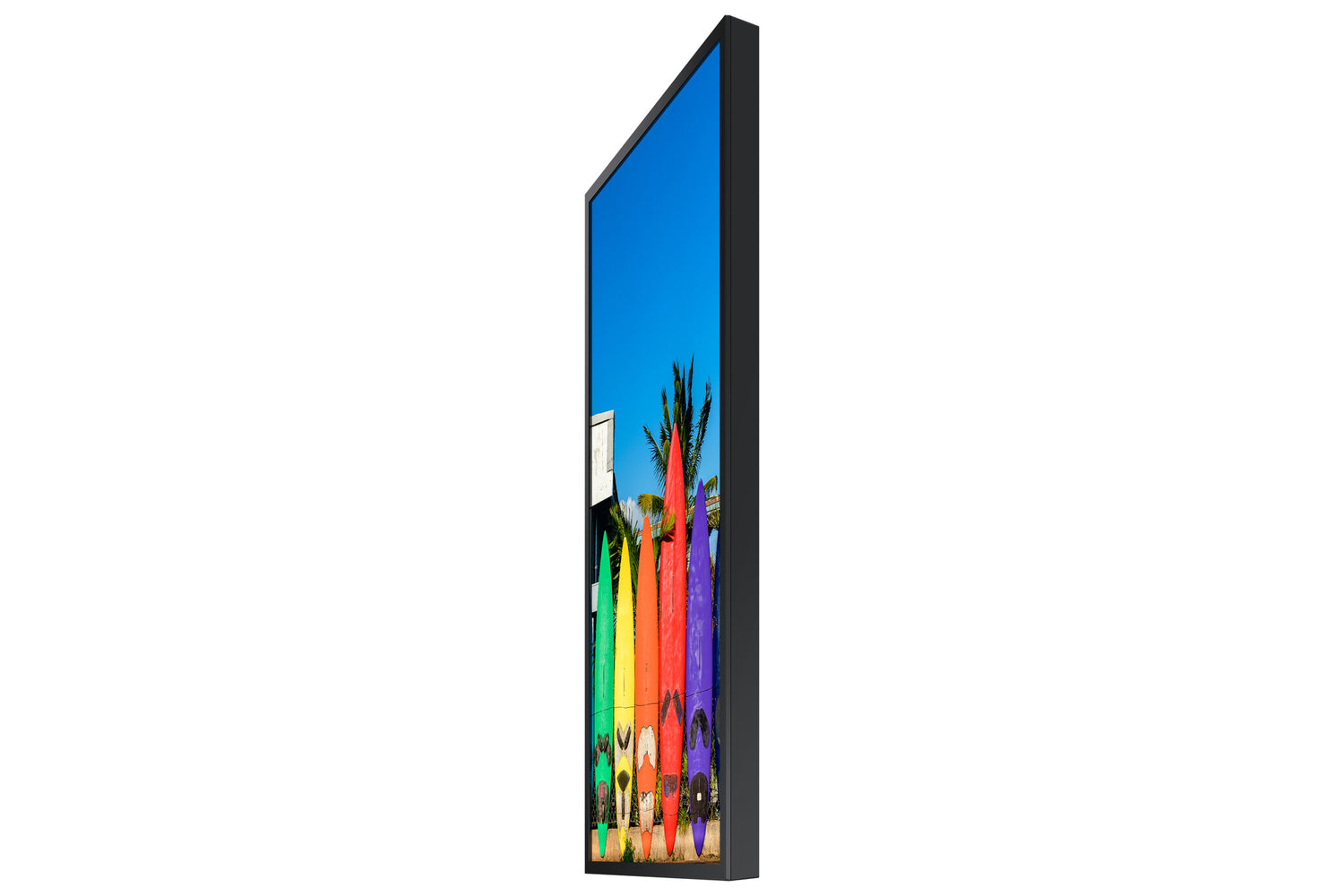

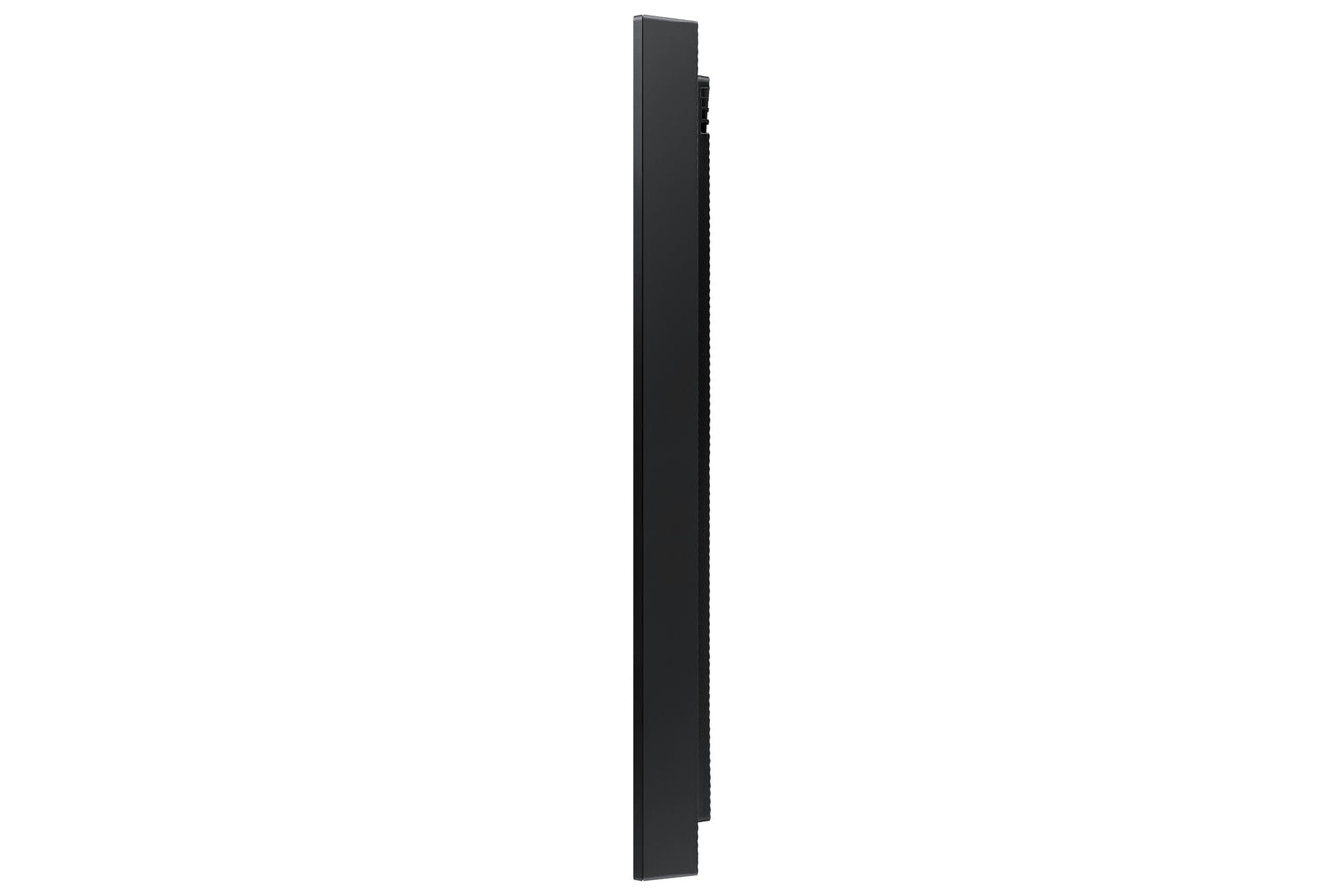

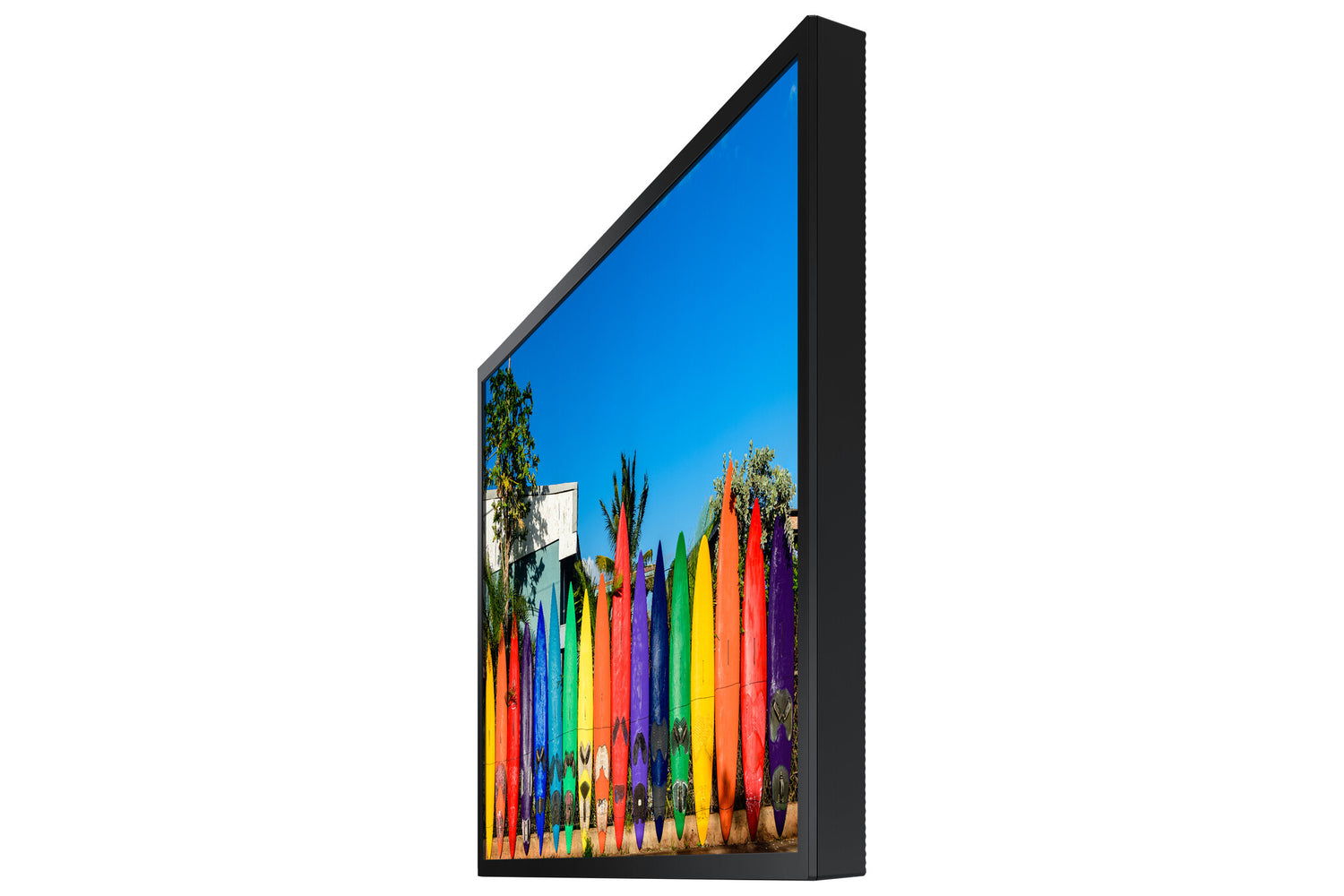

Modernise space with slim design
Supporting the best-in-class picture quality is a slim design that complements the surroundings of any retail environment, while freeing up valuable space for all those latest products.

Streamline content management
Samsung’s embedded MagicINFO Player boosts performance, simplifies content management and offers seamless content playback.

Durable Performance
With IP5X-validated dust protection and embedded, proprietary functionality that mitigates overheating, the OMB series continuously provides robust durability.

Clutter-Free Configuration
Cable guide and embedded Wi-Fi provide clean, organised look and allow for content and firmware updates without the need for additional messy cables.

Specifikationer

Display
Display diagonal 139.7 cm (55")
Display technology LCD
Panel type ADS
Display resolution 3840 x 2160 pixels
Display brightness 3000 cd/m²
HD type 4K Ultra HD
Touchscreen No
Response time 8 ms
Contrast ratio (typical) 1200:1
Dynamic contrast ratio marketing name Mega Contrast
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Pixel pitch 0.315 x 0.315 mm
Pixel frequency (max) 594 MHz
Haze rate 1%
Vertical scan range 24 - 75 Hz
Horizontal scan range 15 - 135 kHz
RGB colour space NTSC
Colour gamut 72%

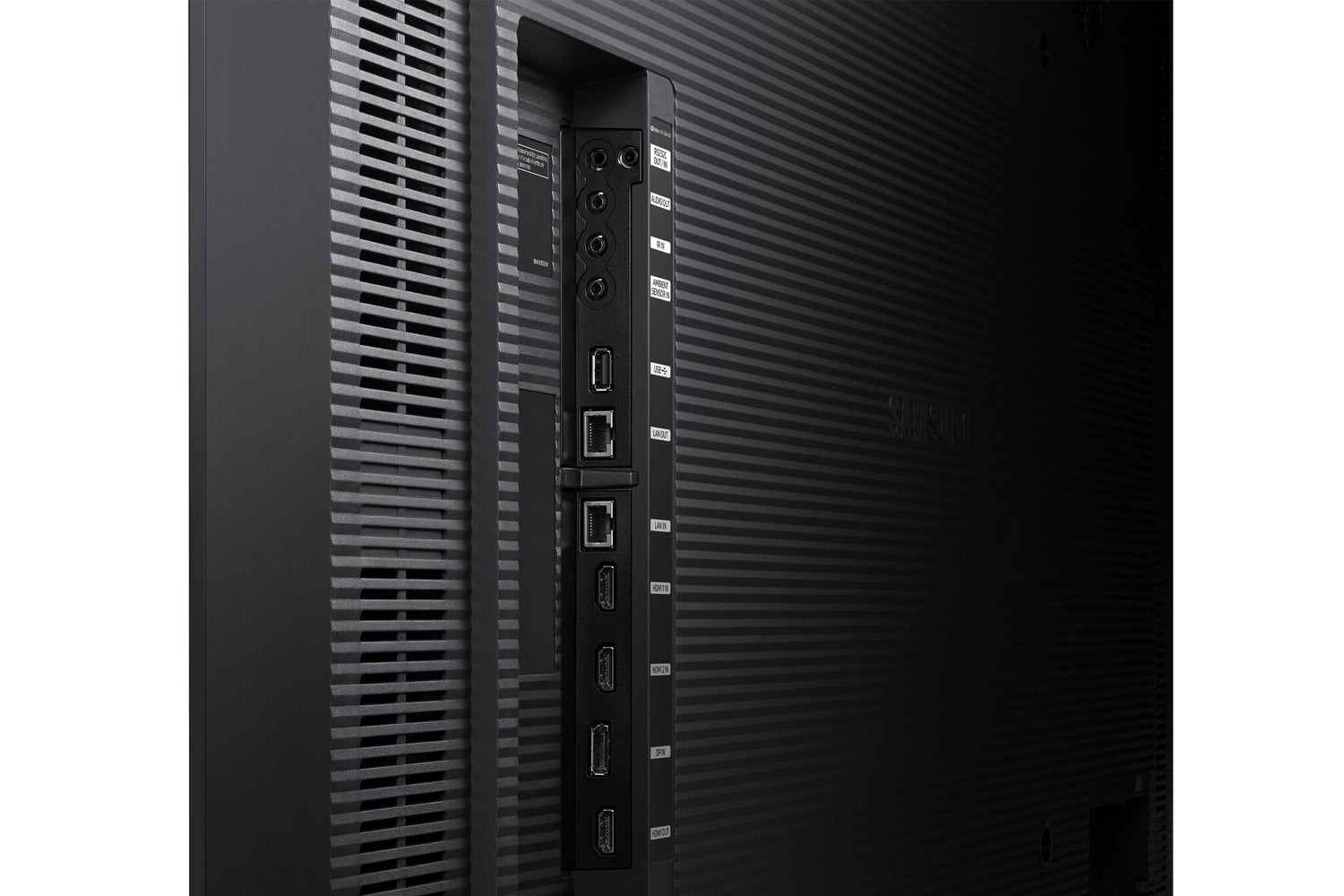

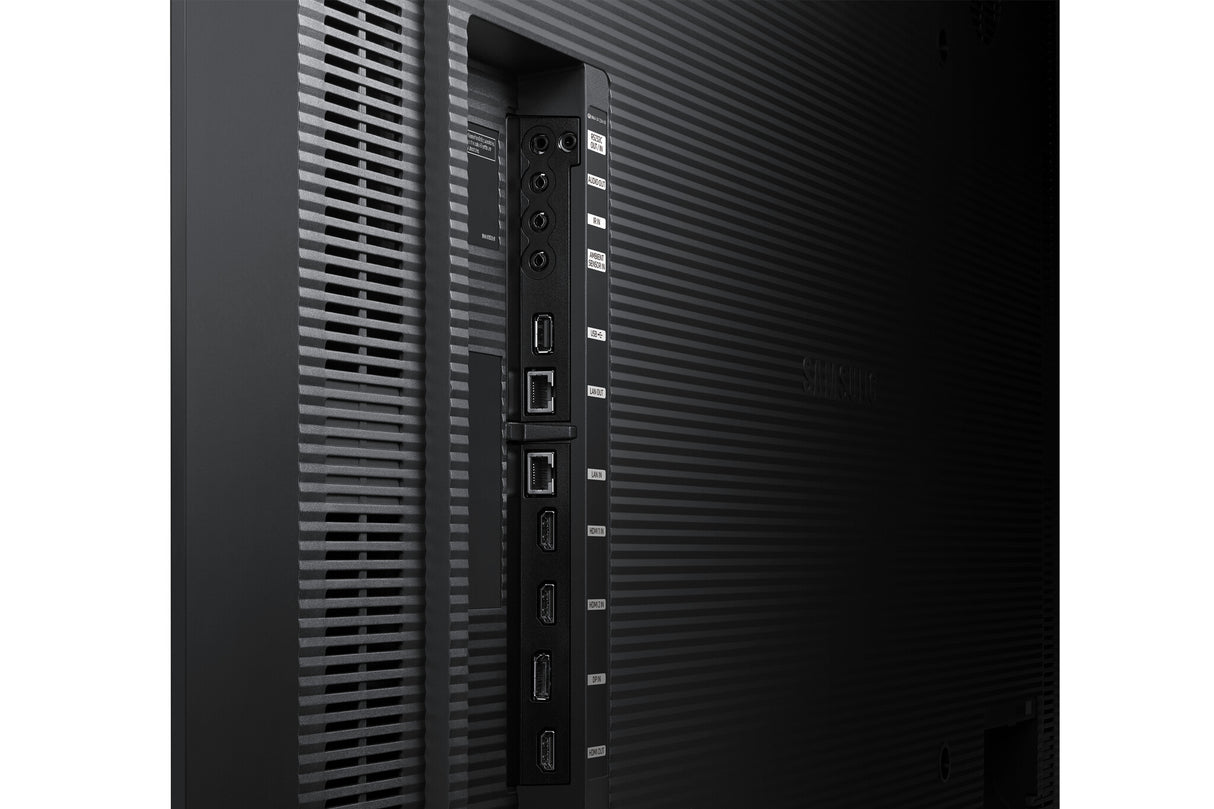

Ports & interfaces
HDMI ports quantity 2
HDMI version 2.0
HDMI input ports quantity 2
DVI port No
DisplayPorts quantity 1
DisplayPorts in 1
DisplayPort version 1.2
USB port Yes
USB ports quantity 1
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 2
Wi-Fi Yes
RS-232 interface Yes
Infrared data port Yes
Remote (IR) input 1
Design
Product design Digital signage flat panel
Product colour Black
Screen shape Flat

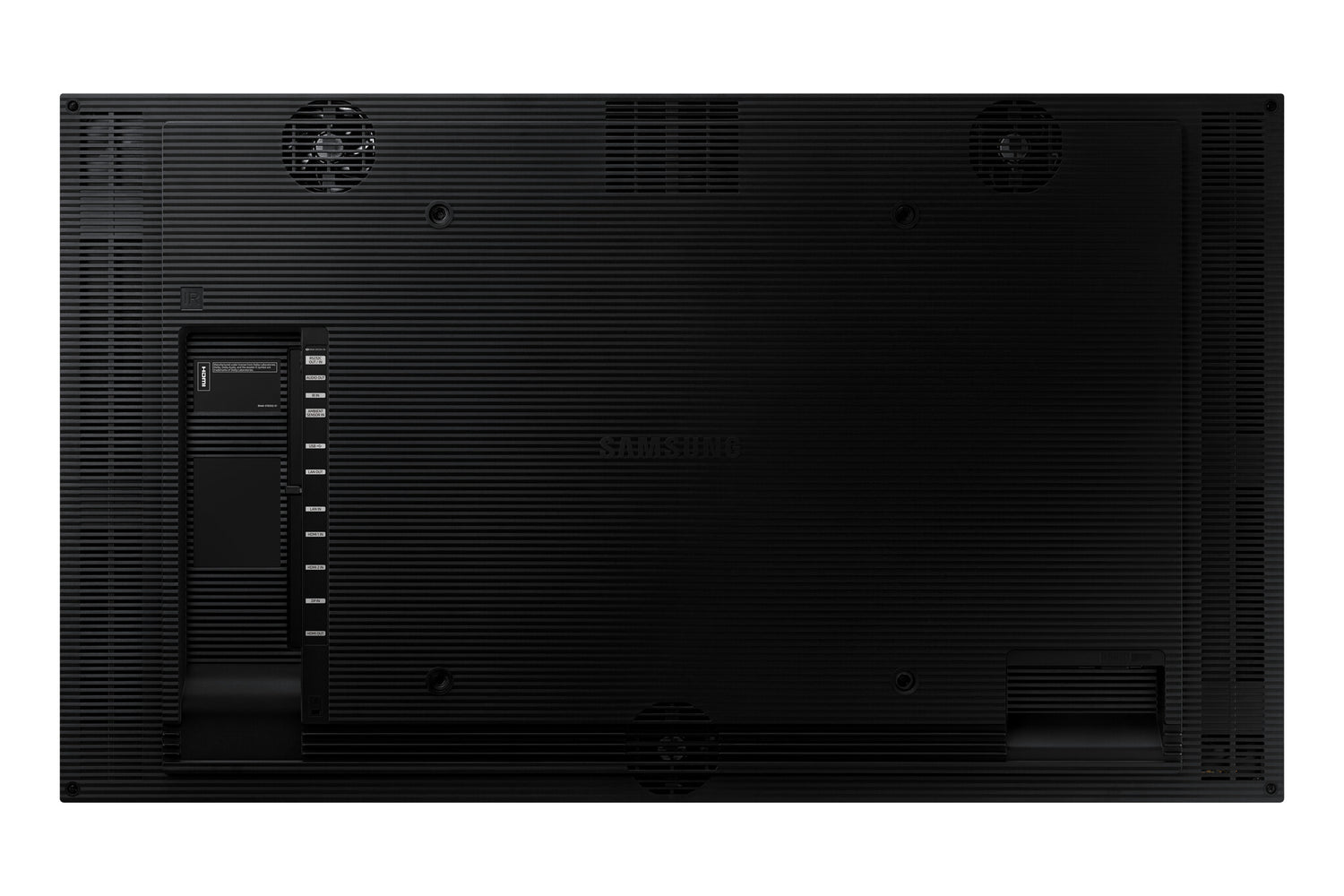

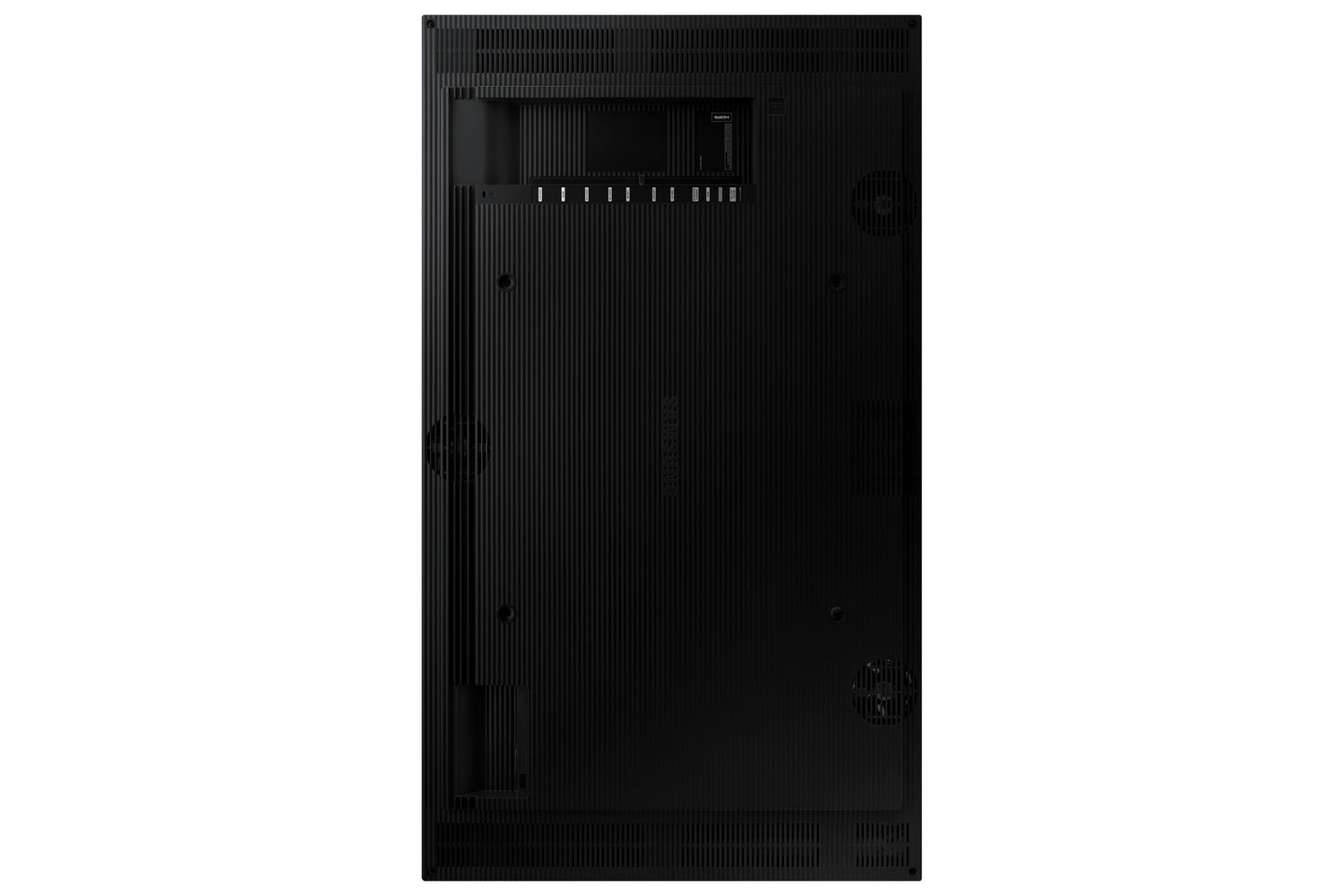

VESA mounting Yes
Panel mounting interface 400 x 400 mm
Bezel width (bottom) 1.91 cm
Bezel width (side) 1.91 cm
Bezel width (top) 1.91 cm
Bezel colour Dark Blue Gray
Performance
Purpose Universal
Operating hours (hours/days) 24/7
HDCP version 2.2
HDCP Yes
Power
Power consumption (typical) 450 W
Power consumption (sleep) 0.5 W
AC input voltage 100 - 240 V
AC input frequency 50 / 60 Hz
Computer system
Computer system Yes
Computer system type System on Chip (SoC)
Built-in processor Yes
Operating system installed Tizen 5.0
Weight & dimensions
Display width 1253.4 mm
Display depth 54.5 mm
Display height 724.2 mm
Display weight 23.1 kg
Packaging data
Package width 1420 mm
Package depth 178 mm
Package height 879 mm
Package weight 29.1 kg
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 80%
Certificates
Certification EMC Class A, Safety 60950-1
General
Product family OMB
Features
Wall mountable Yes
Technical details
Audio in (mini jack) No
Audio out (mini jack) Yes
Other features
RJ-45 output ports 1
RJ-45 input ports 1
RS-232 input ports 1
RS-232 output ports 1
Video out Yes
Flash memory 8000 MB
