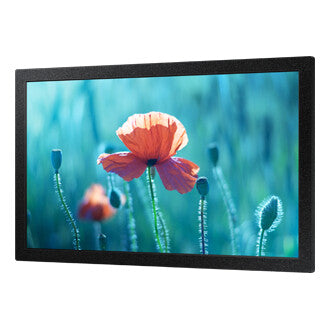

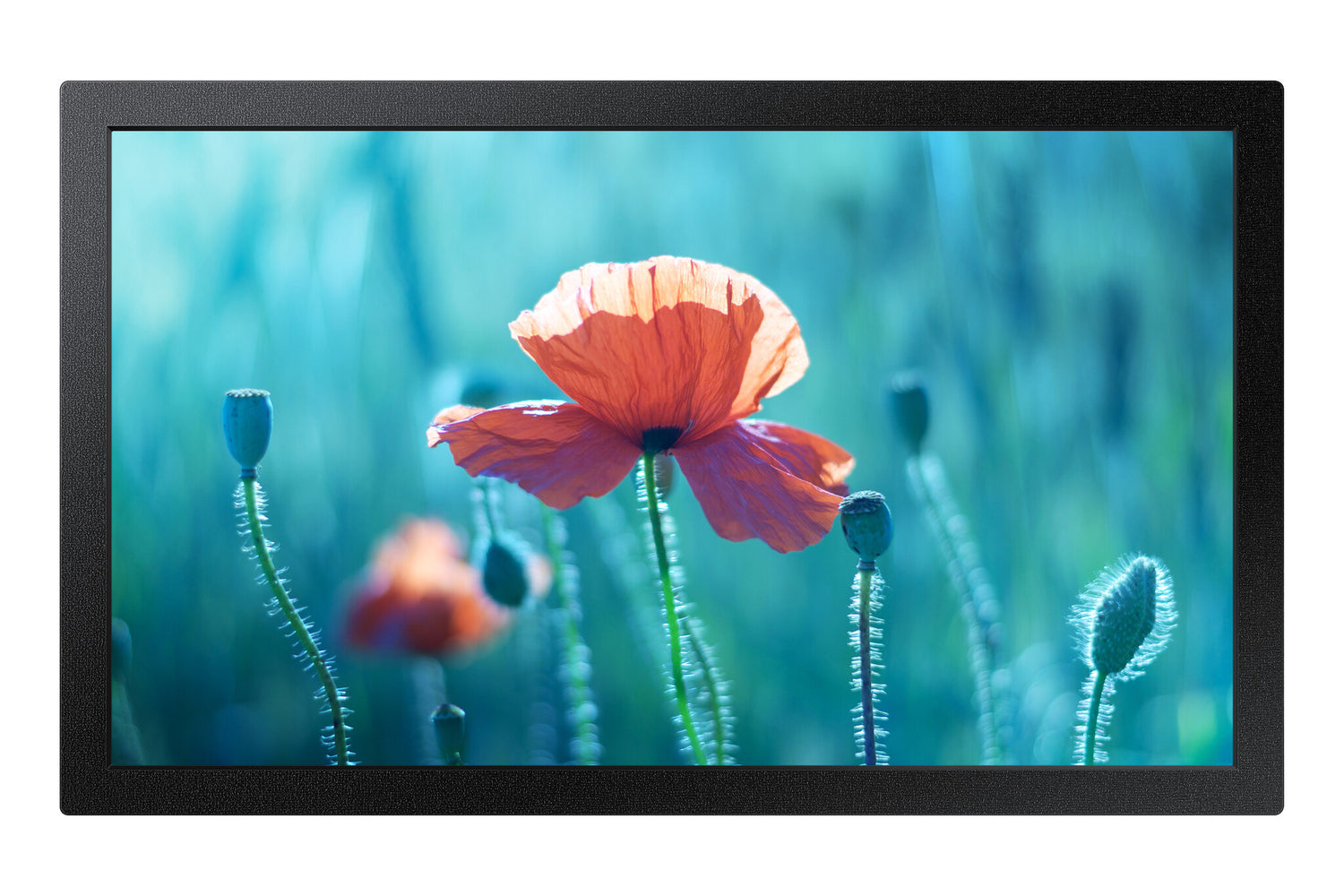

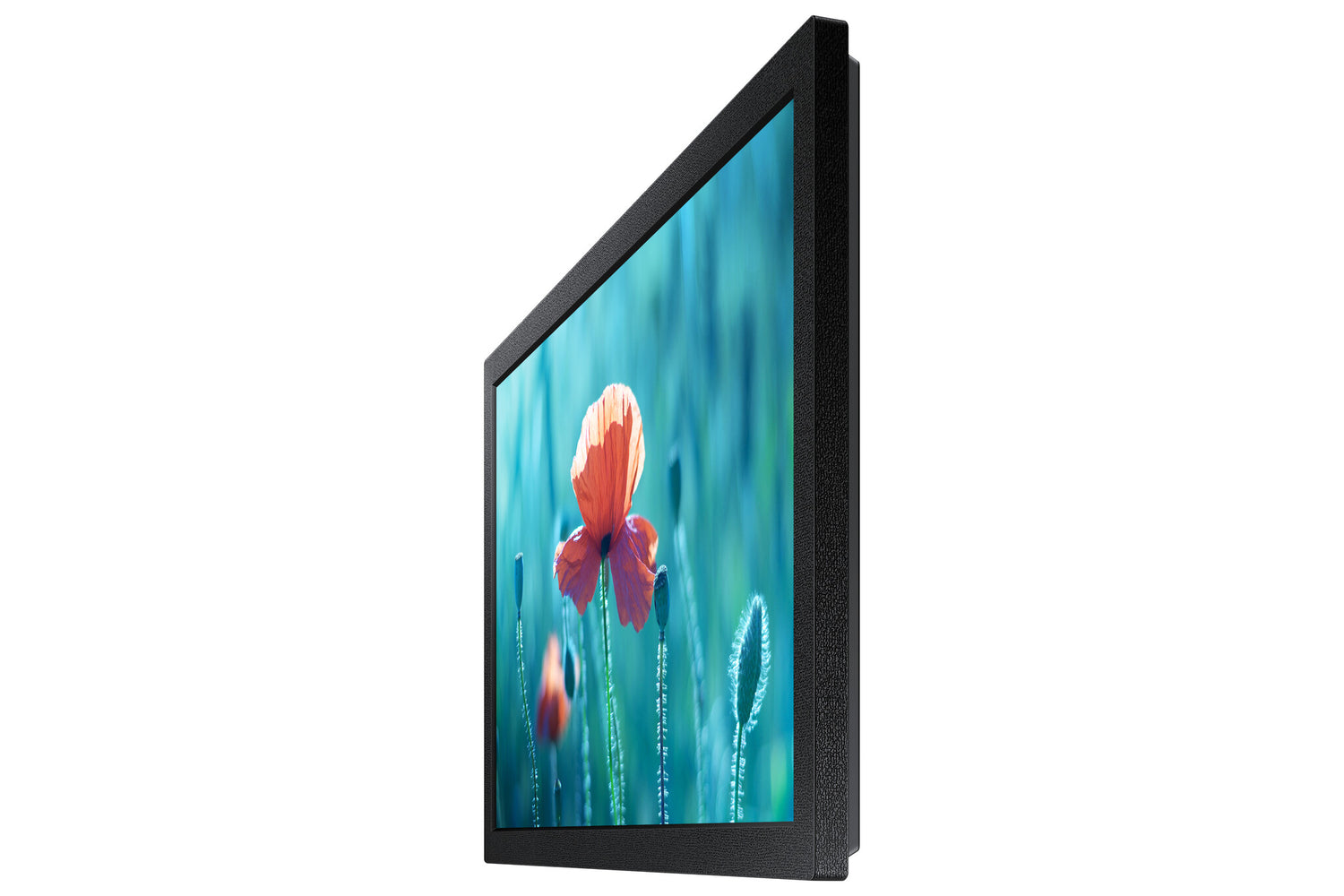

Samsung QB13R-M Digital signage flat panel 33 cm (13") LCD Wi-Fi 500 cd/m² Full HD Black Built-in processor Tizen 4.0 16/7
Samsung | Varenummer:
LH13QBRMBGCXEN
Beskrivelse
Beskrivelse
Samsung QB13R-M - 13 Diagonal klasse QBR Series LED display unit - digital skiltning - 1080p 1920 x 1080 - sort
Samsung QB13R-M - 13 Diagonal klasse QBR Series LED display unit - digital skiltning - 1080p 1920 x 1080 - sort
Specifikationer
Specifikationer
| Display | |
|---|---|
| Display diagonal | 33 cm (13") |
| Display technology | LCD |
| Panel type | ADS |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 500 cd/m² |
| HD type | Full HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 30 ms |
| Contrast ratio (typical) | 800:1 |
| Contrast ratio (dynamic) | 10000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.153 x 0.153 mm |
| Pixel frequency (max) | 594 MHz |
| Haze rate | 25% |
| Vertical scan range | 48 - 75 Hz |
| Horizontal scan range | 30 - 81 kHz |
| Colour gamut | 45% |

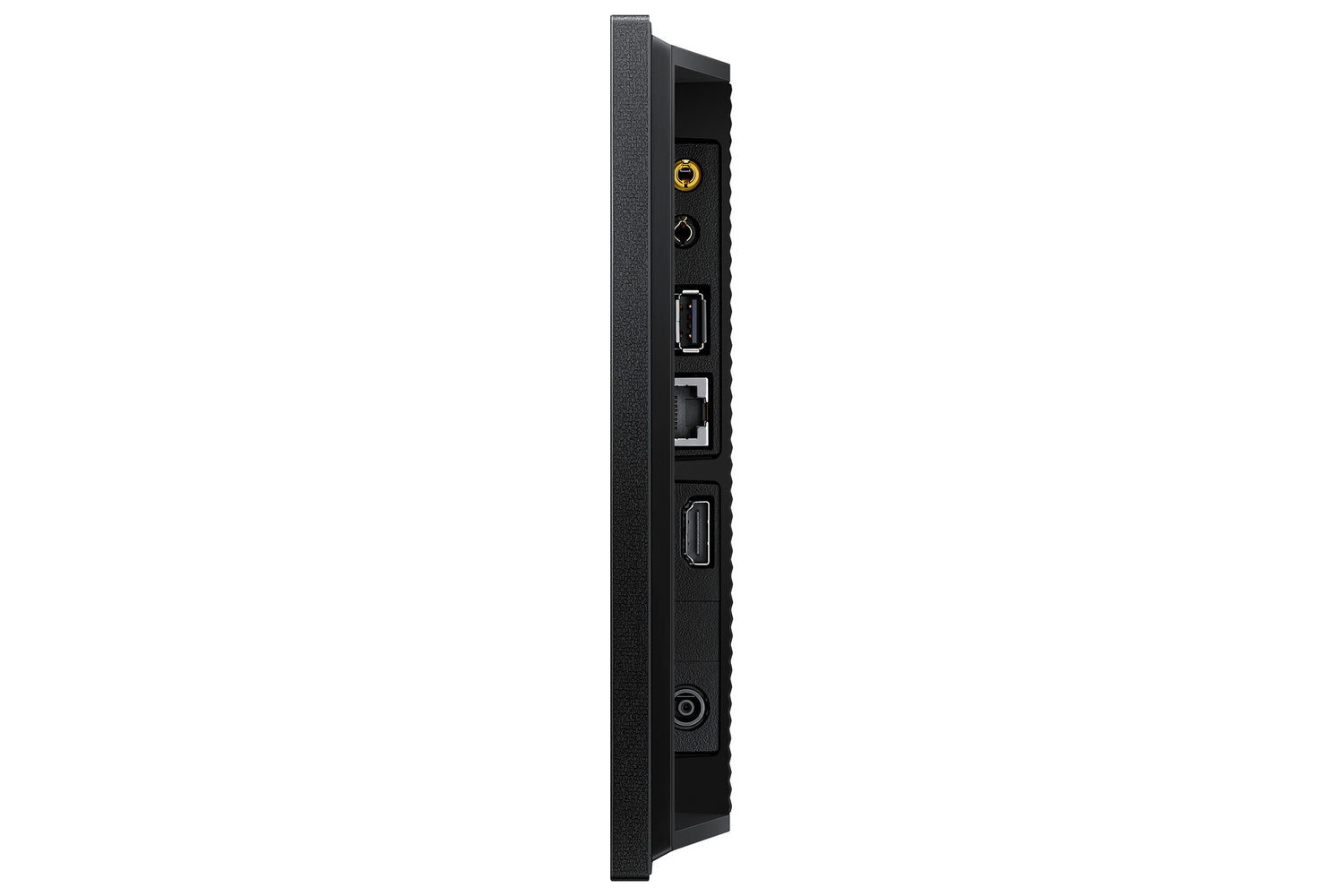

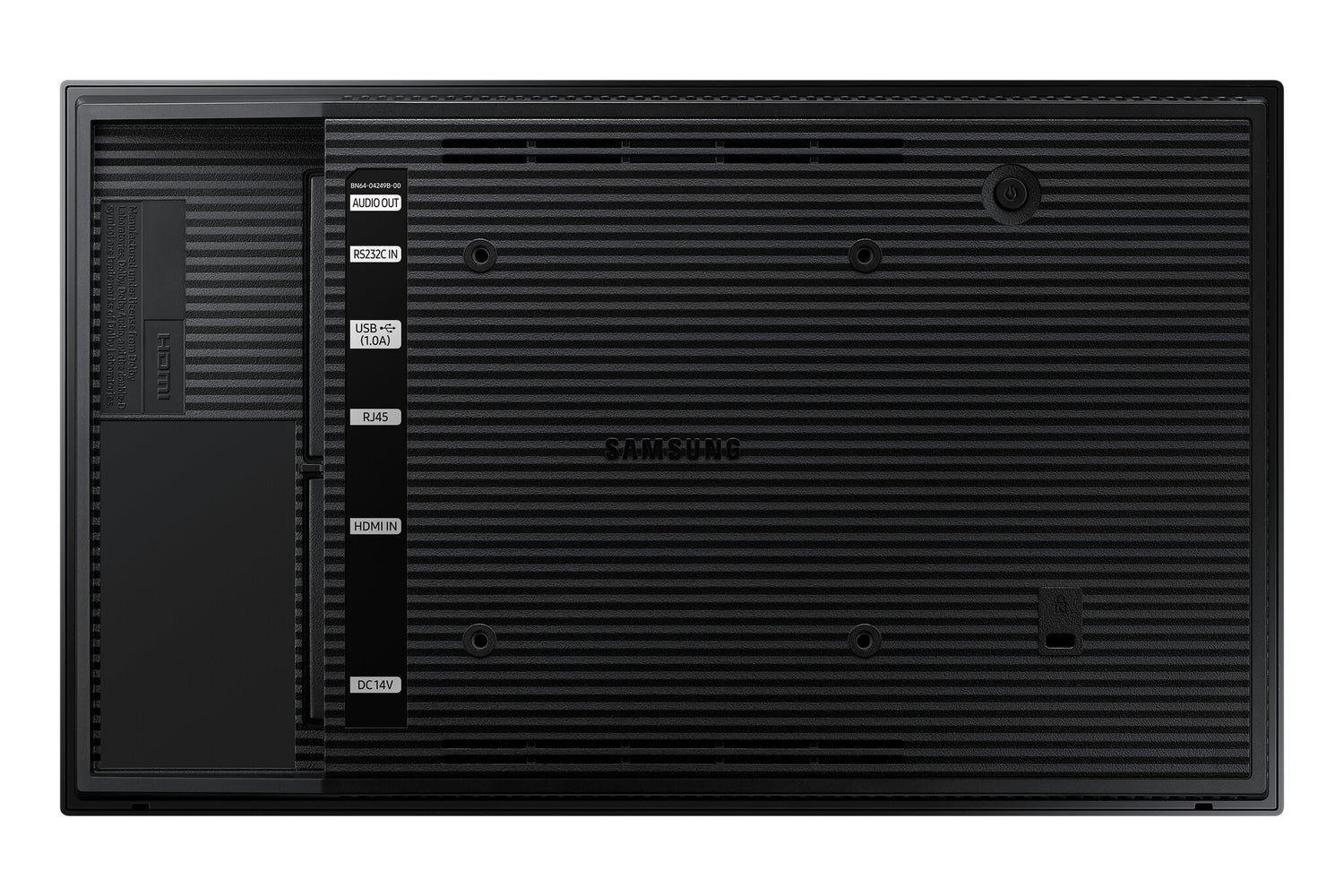

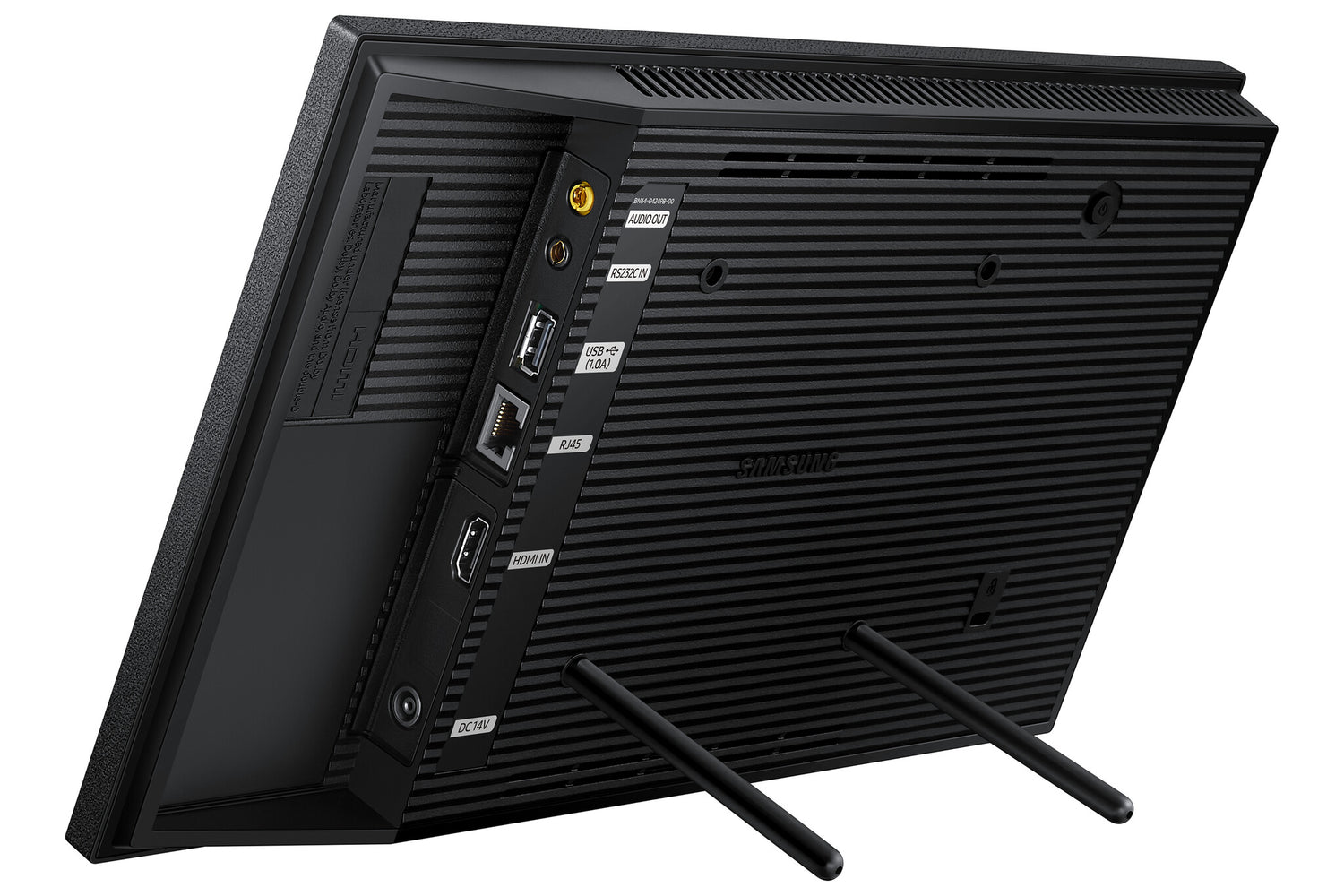

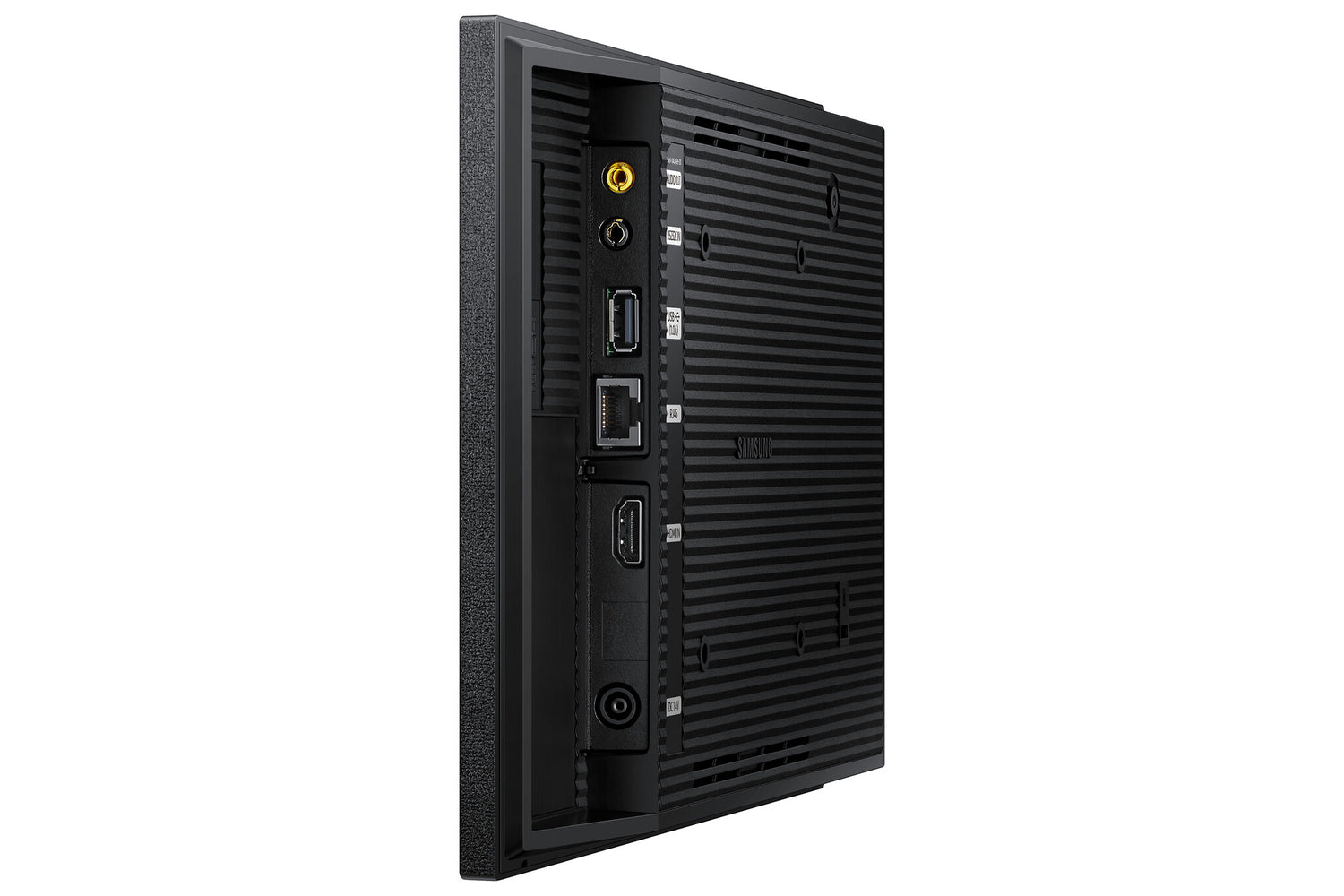

| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| HDMI input ports quantity | 1 |
| DVI port | No |
| USB port | Yes |
| USB ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| RS-232 interface | Yes |
| DC-in jack | Yes |
| Design | |
|---|---|
| Product design | Digital signage flat panel |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Bezel width (bottom) | 1.22 cm |
| Bezel width (side) | 1.22 cm |
| Bezel width (top) | 1.22 cm |
| Bezel colour | Charcoal Black |
| Mounting type | Wall |
| Performance | |
|---|---|
| Purpose | Universal |
| Operating hours (hours/days) | 16/7 |
| HDCP version | 2.2 |
| HDCP | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 27.5 W |
| Power consumption (sleep) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Computer system | |
|---|---|
| Computer system | Yes |
| Computer system type | System on Chip (SoC) |
| Built-in processor | Yes |
| Operating system installed | Tizen 4.0 |
| Weight & dimensions | |
|---|---|
| Display width | 322 mm |
| Display depth | 28.2 mm |
| Display height | 193.5 mm |
| Display weight | 900 g |
| Packaging data | |
|---|---|
| Package width | 376 mm |
| Package depth | 248 mm |
| Package height | 132 mm |
| Package weight | 1.7 kg |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Certificates | |
|---|---|
| Certification | Class B60950-1, 62368-1 |
| General | |
|---|---|
| Product family | QBR-M |
| Technical details | |
|---|---|
| Audio out (mini jack) | 1 |
| Other features | |
|---|---|
| RJ-45 input ports | 1 |
| RS-232 input ports | 1 |
| Flash memory | 8000 MB |
