Samsung QB24C-T Digital signage flat panel 61 cm (24") LED Wi-Fi 250 cd/m² Full HD Black Touchscreen Built-in processor Tizen 7.0 16/7

Samsung  |  Varenummer: LH24QBCTBGCXEN

Beskrivelse

23.8", ADS, FHD (1920 x 1080), Touch, 250 nit, 1000:1, 178/178, 14 ms, WiFi, Bluetooth, RJ-45, HDCP, HDMI, RS232, AC 100-240V, 50/60Hz, 547.9 x 334.4 x 34.6 mm, 4 kg

Expand commercial space with compact display
Get the most out of every space with Samsung QB24C-T small digital signage. The compact display provides sharp messaging with its Full HD resolution. Its enhanced internal solutions and intuitive home screen UX make it easy to use, also ensuring reliable performance for any business use.

Fast, effective touch capabilities

10 point multi-touch
The QB24C-T provides 10-point multi-touch, while fast response time powers an intuitive interface that allows customer-driven search and action, creating new customer interactions that drive purchases.

Connect with convenience

Home UI
QB24C-T boasts greater usability with an upgraded home screen UI. Popular categories like Features, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.

Convenient, clean display control

Center IR
With center IR, each display receives IR signals directly to the panel, allowing easy and convenient remote control. When mounted, the display doesn't require an IR receiver cable extension. Built-in Wi-Fi allows wireless remote management for both content and display.

Safe operation, reliable performance

IP5X / EMC Class B
QB24C-T is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, the display's IP5x rating underscores its robust durability even in dusty environments.

Change the way to manage your display

Samsung VXT
Samsung VXT is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues from afar, while effortlessly creating and deploying content without the need for training.

Specifikationer

Display
Display diagonal 61 cm (24")
Display technology LED
Panel type ADS
Display resolution 1920 x 1080 pixels
Display brightness 250 cd/m²
HD type Full HD
Touchscreen Yes
Touchscreen technology Capacitive
Multi-touch Yes
Response time 14 ms
Contrast ratio (typical) 1000:1
Dynamic contrast ratio marketing name Mega Contrast
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Pixel pitch 0.2745 x 0.2745 mm
Haze rate 25%
Vertical scan range 48 - 75 Hz
Horizontal scan range 56 - 84.5 kHz
RGB colour space NTSC
Colour gamut 72%

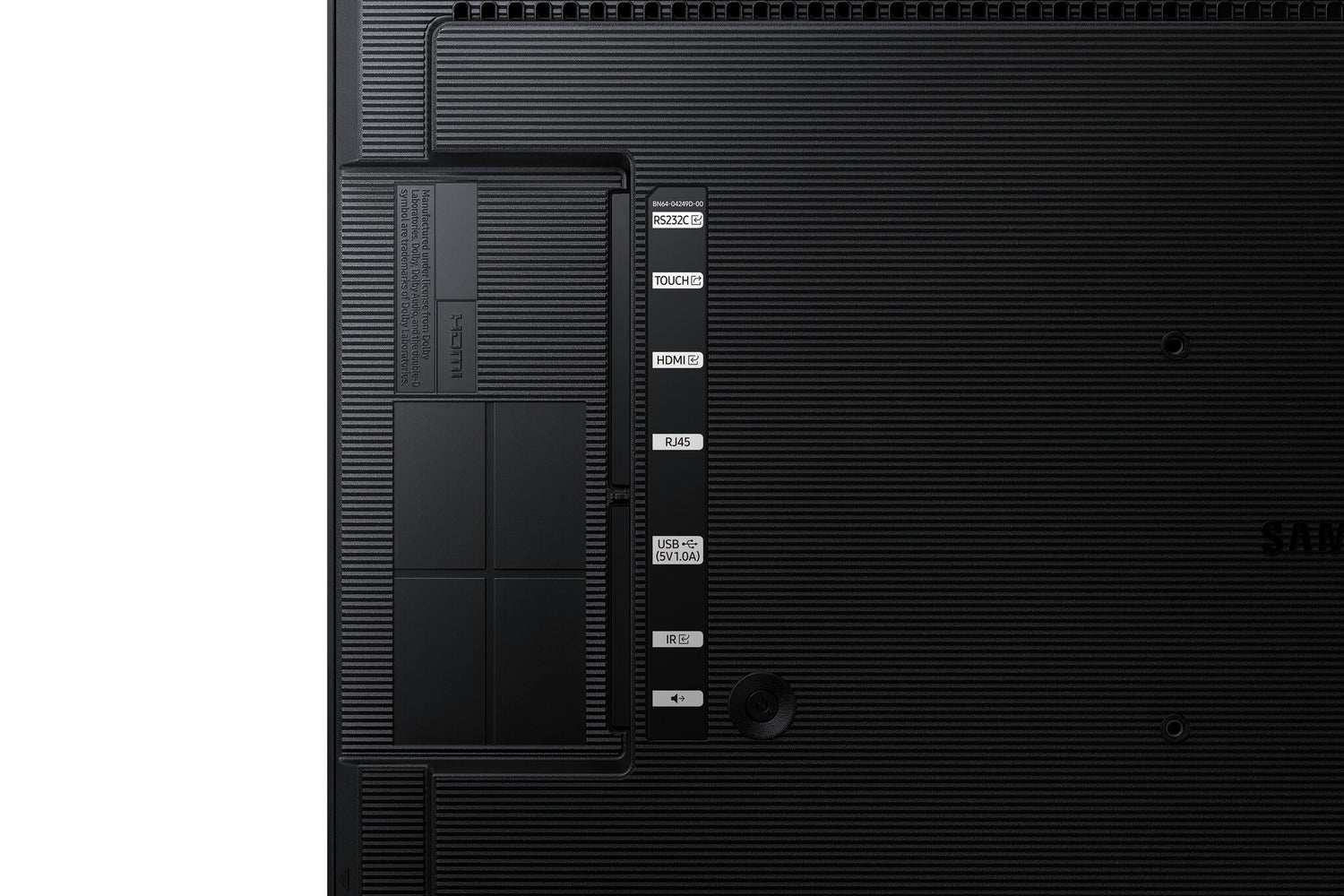

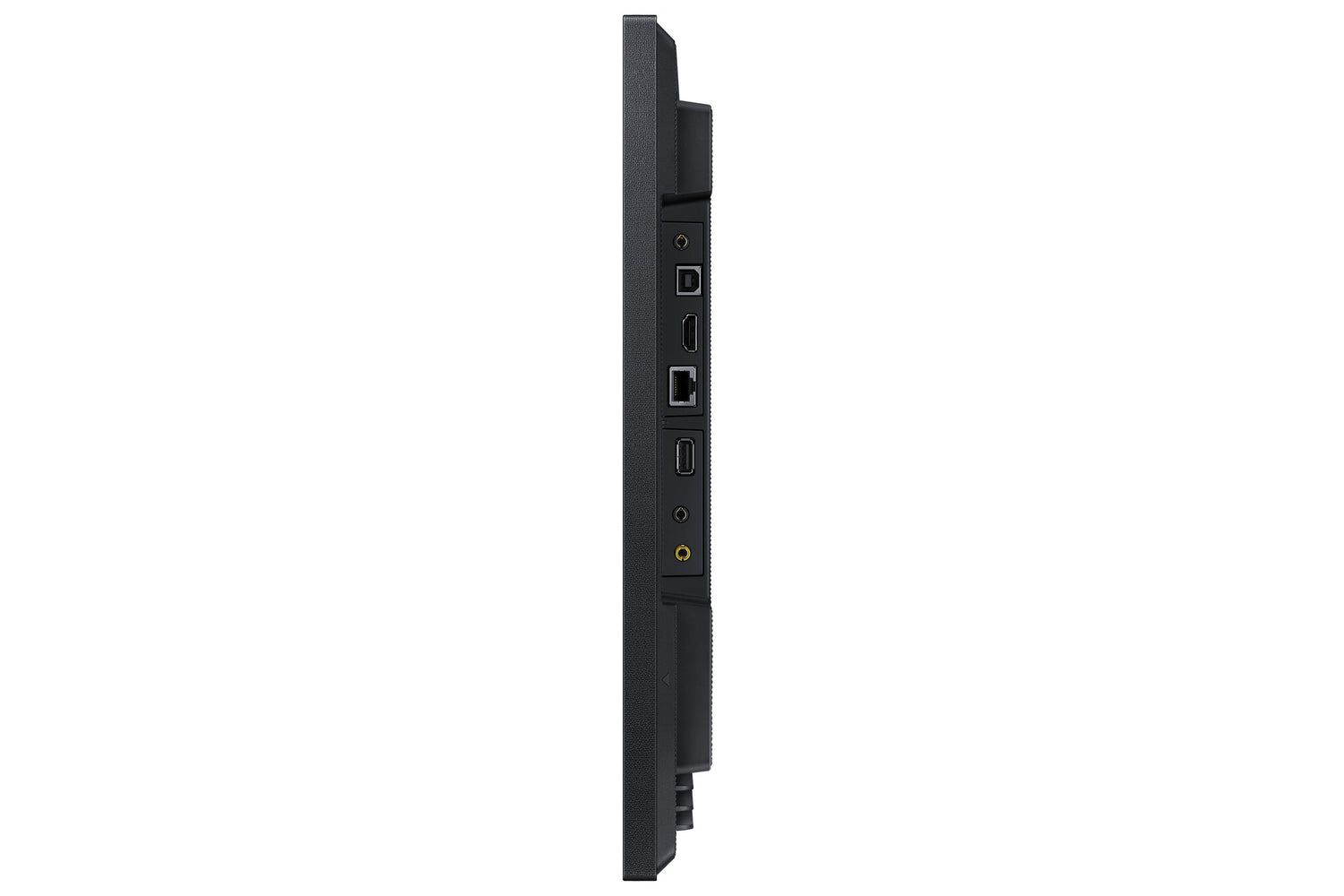

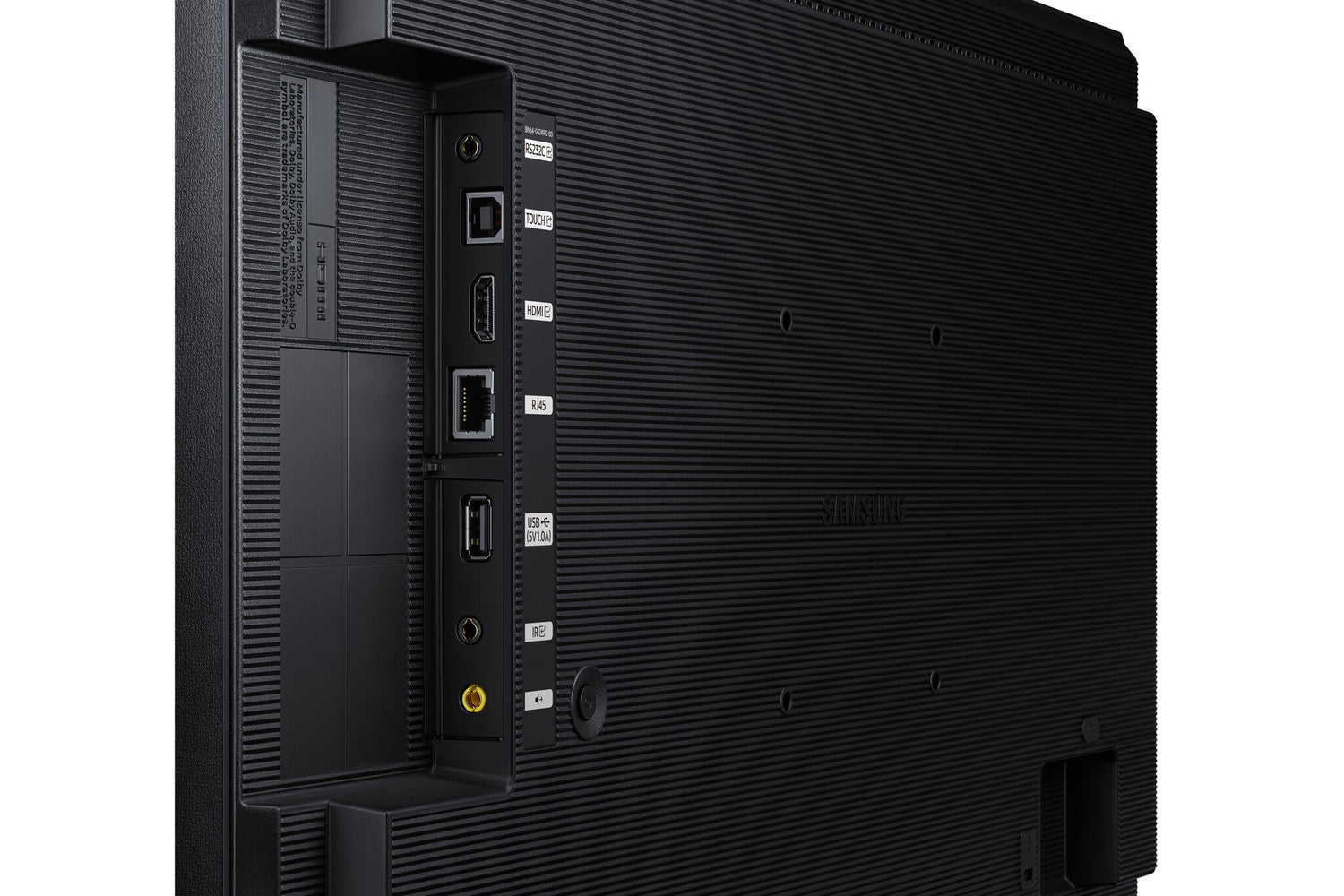

Ports & interfaces
HDMI ports quantity 1
HDMI version 1.4
HDMI input ports quantity 1
DVI port No
USB port Yes
USB ports quantity 1
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Wi-Fi Yes
RS-232 interface Yes
Infrared data port Yes
Remote (IR) input 1
Design
Product design Digital signage flat panel
Product colour Black
Placement supported Indoor
Screen shape Flat
VESA mounting Yes
Panel mounting interface 100 x 100 mm
Performance
Purpose Universal
Operating hours (hours/days) 16/7
HDCP version 2.2
HDCP Yes
Power
Power consumption (typical) 38.5 W
Power consumption (sleep) 0.5 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Computer system
Computer system Yes
Computer system type System on Chip (SoC)
Built-in processor Yes
Operating system installed Tizen 7.0
Weight & dimensions
Display width 547.9 mm
Display depth 34.6 mm
Display height 334.4 mm
Display weight 4 kg
Packaging data
Package width 620 mm
Package depth 122 mm
Package height 419 mm
Package volume 5200 cm³
Packaging content
Cables included Power
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 80%
General
Product family QBC-T
Technical details
Compliance certificates CE, China Compulsory Certification (CCC), Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), KCC, RoHS, VCCI
Sustainability certificates EPEAT Bronze
Audio out (mini jack) 1
Sustainability compliance Yes
Other features
RJ-45 input ports 1
RS-232 input ports 1
Bluetooth Yes
Flash memory 8000 MB
