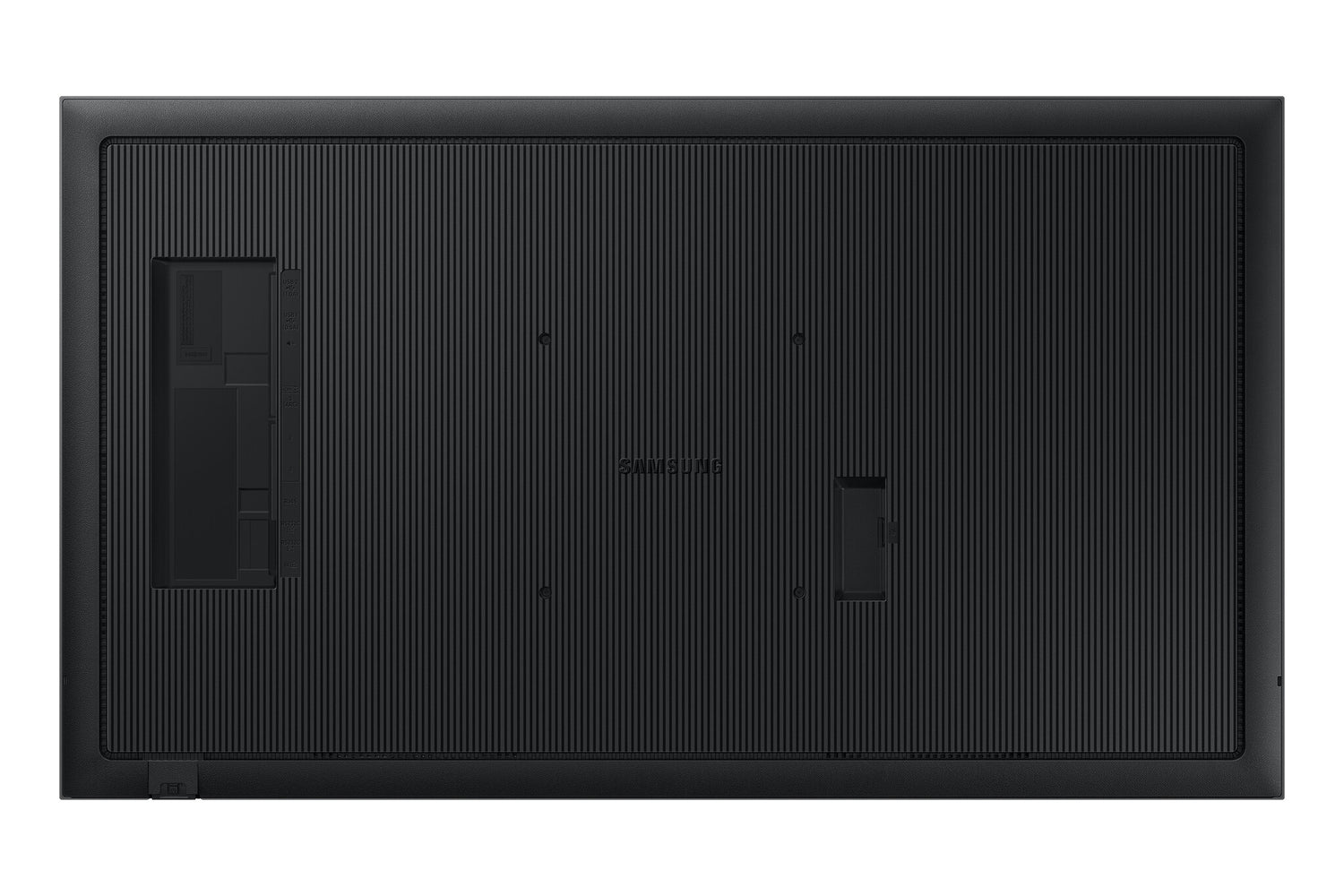

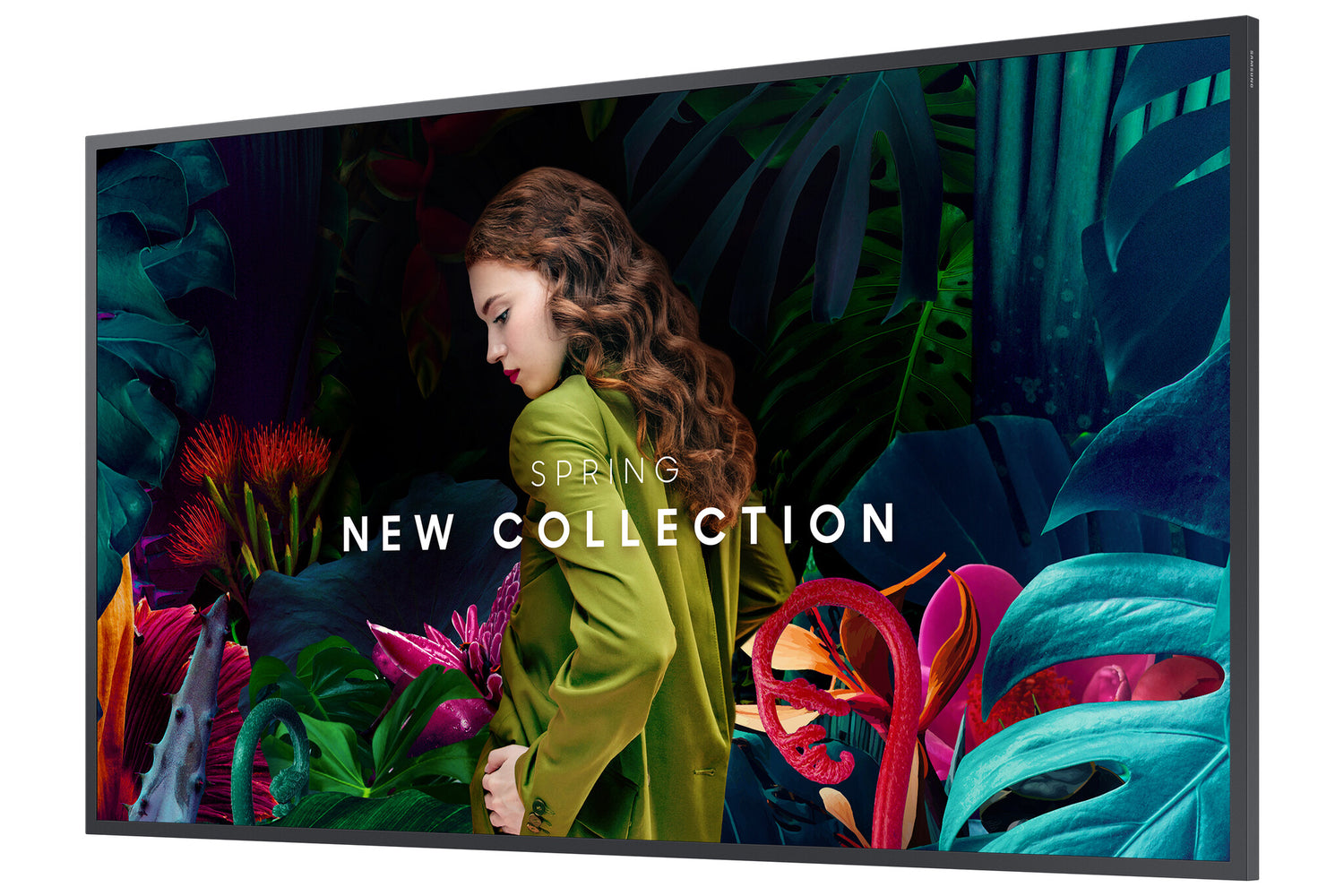

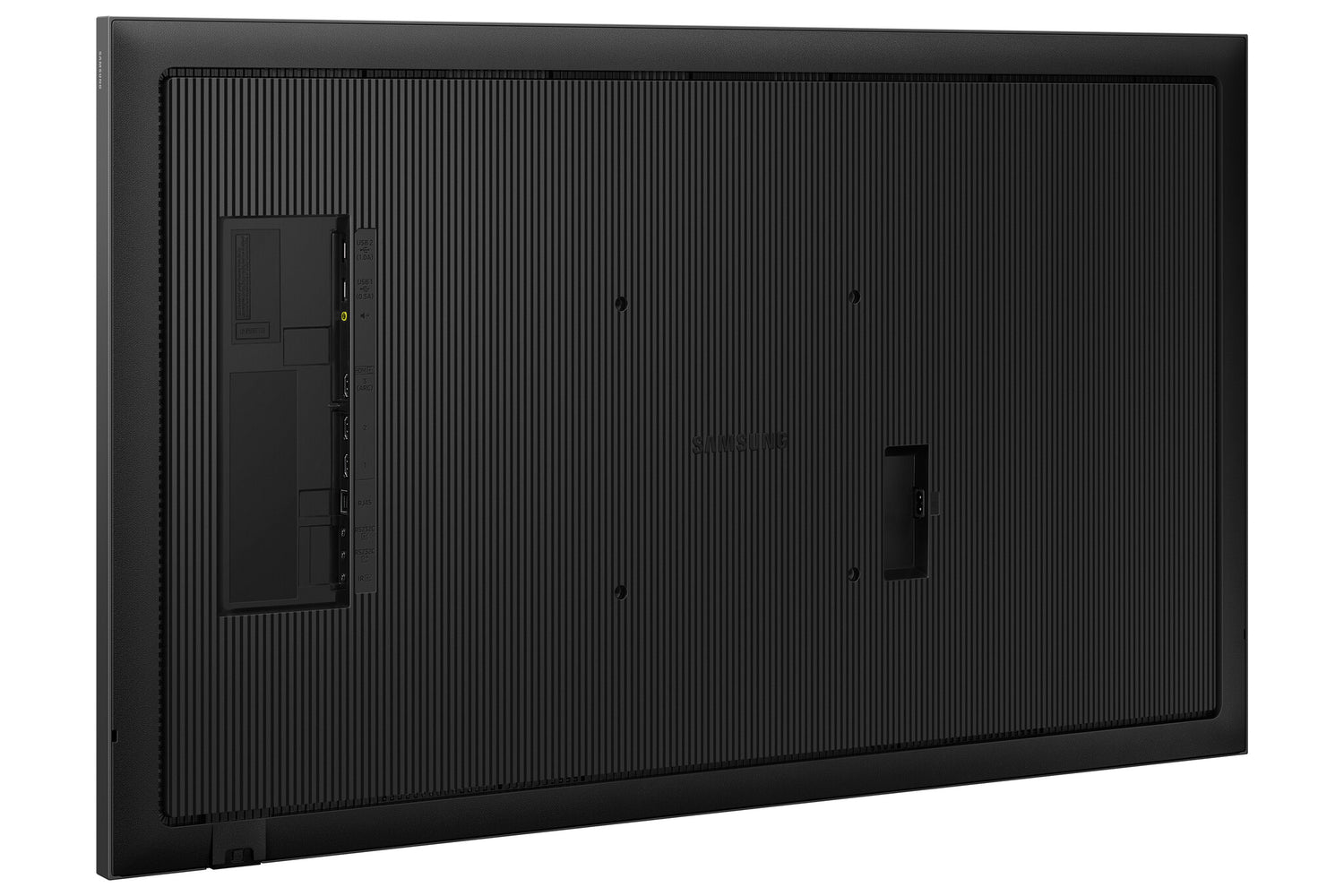

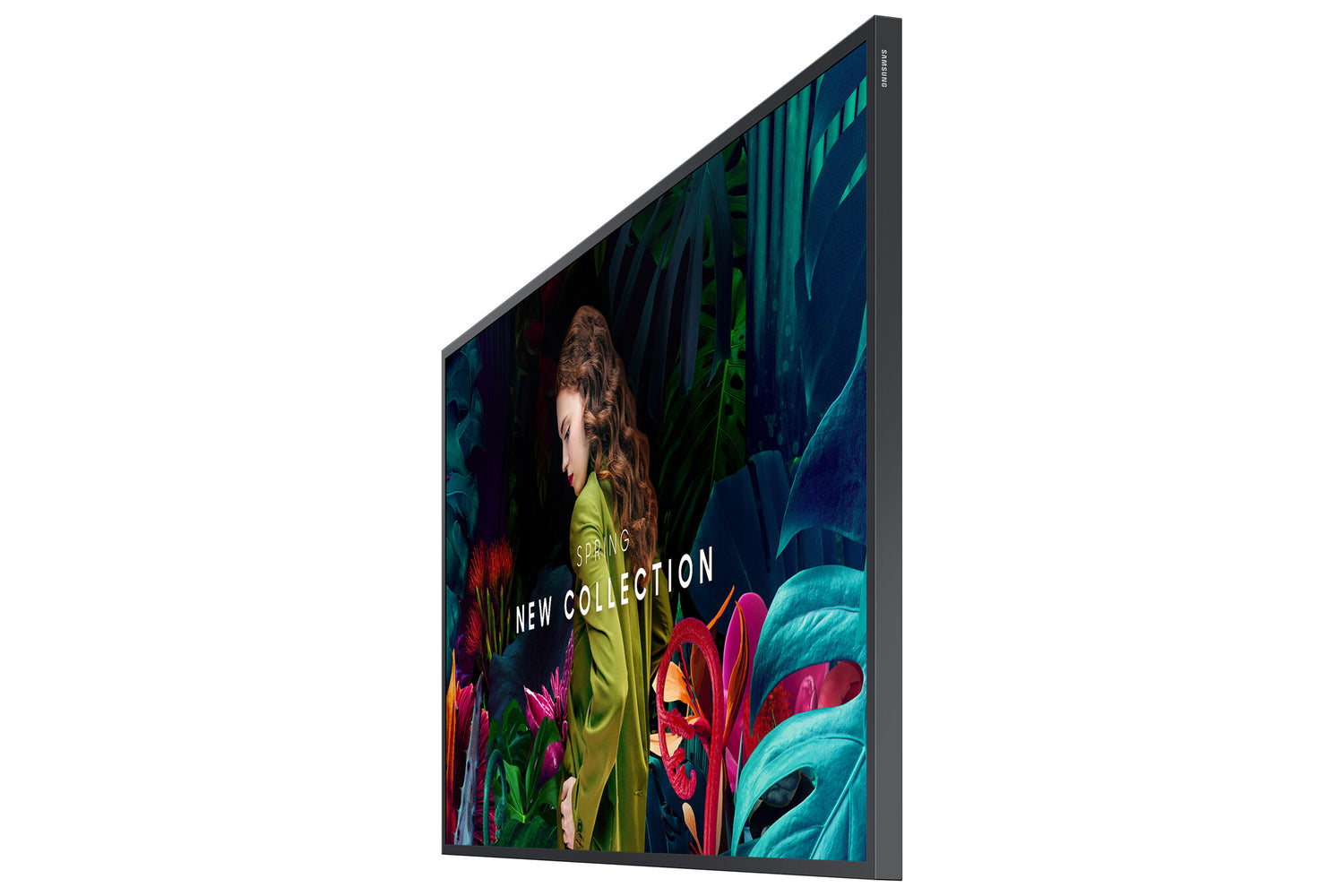

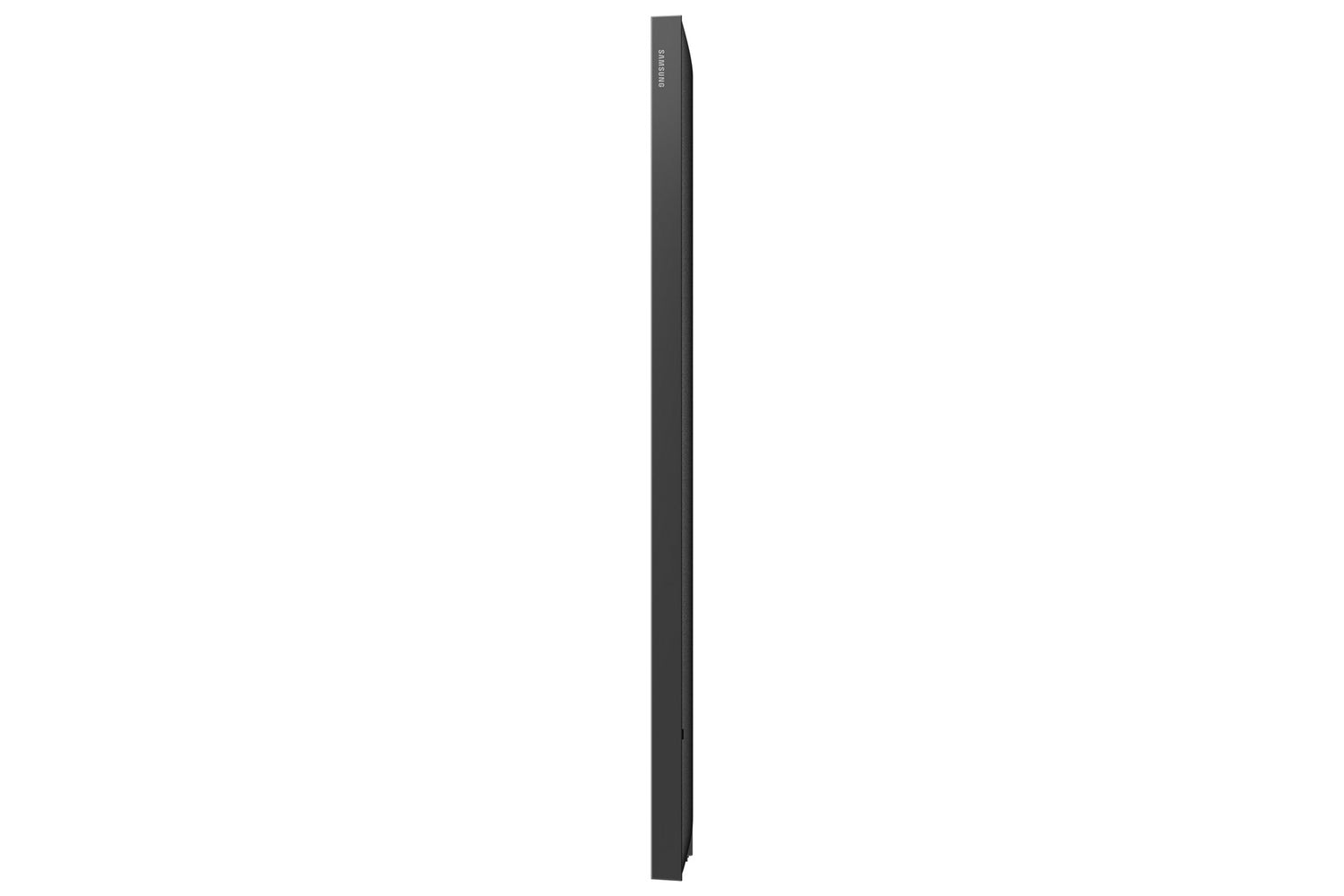

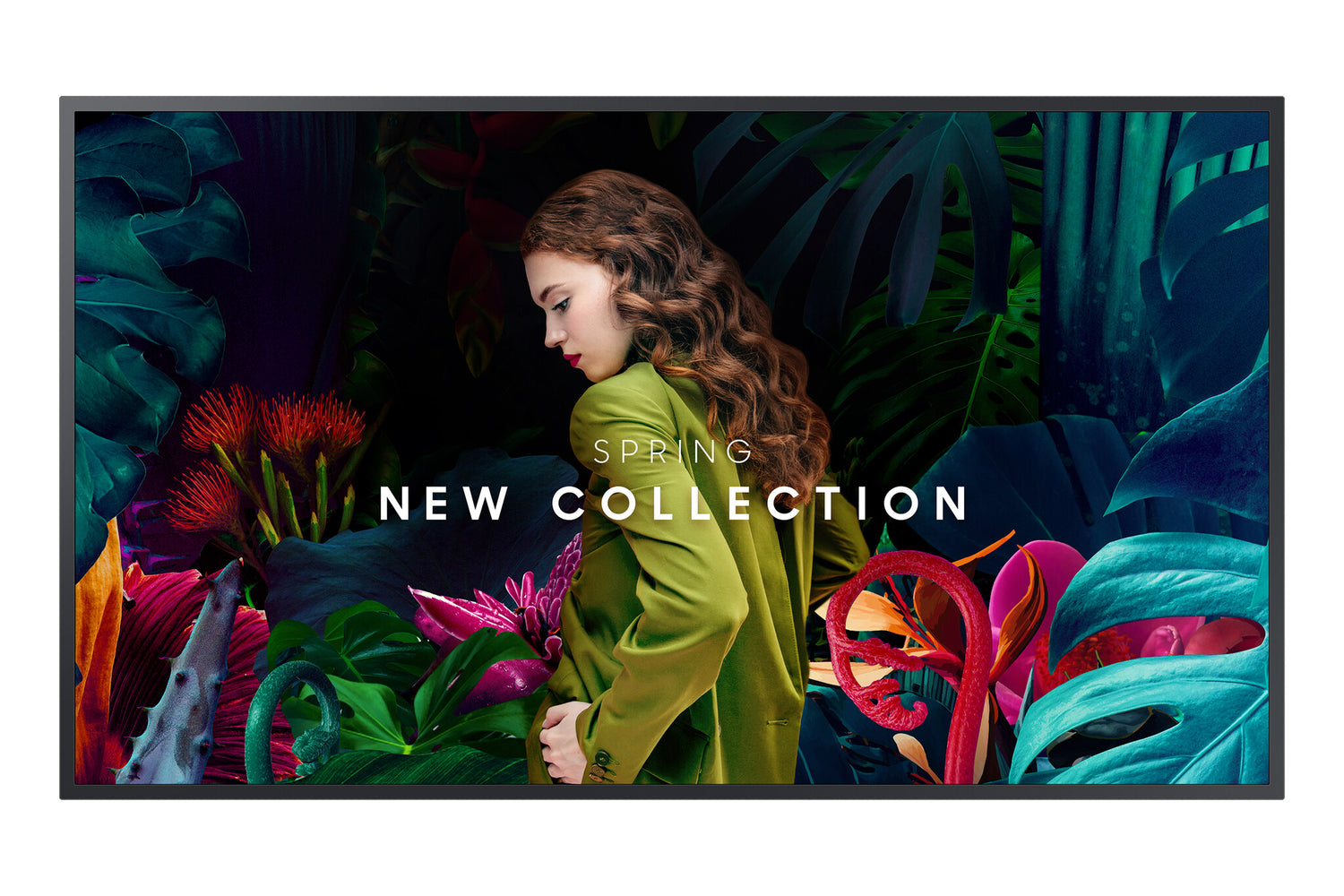

Samsung QB43C-N Digital signage flat panel 109.2 cm (43") LED 350 cd/m² 4K Ultra HD Black Built-in processor Tizen 7.0 16/7
Samsung | Varenummer:
LH43QBCNBGCXEN
Beskrivelse
Beskrivelse
Samsung 43'' QB43C-N
Specifikationer
Specifikationer
| Display | |
|---|---|
| Display diagonal | 109.2 cm (43") |
| Display technology | LED |
| Panel type | VA |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 350 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Response time | 8 ms |
| Contrast ratio (typical) | 4000:1 |
| Dynamic contrast ratio marketing name | Mega Contrast |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.245 x 0.245 mm |
| Display diagonal (metric) | 108 cm |
| Colour saturation | 72% |
| Native refresh rate | 60 Hz |
| Haze rate | 2% |
| Vertical scan range | 48 - 75 Hz |
| Horizontal scan range | 30 - 81 kHz |
| RGB colour space | NTSC |

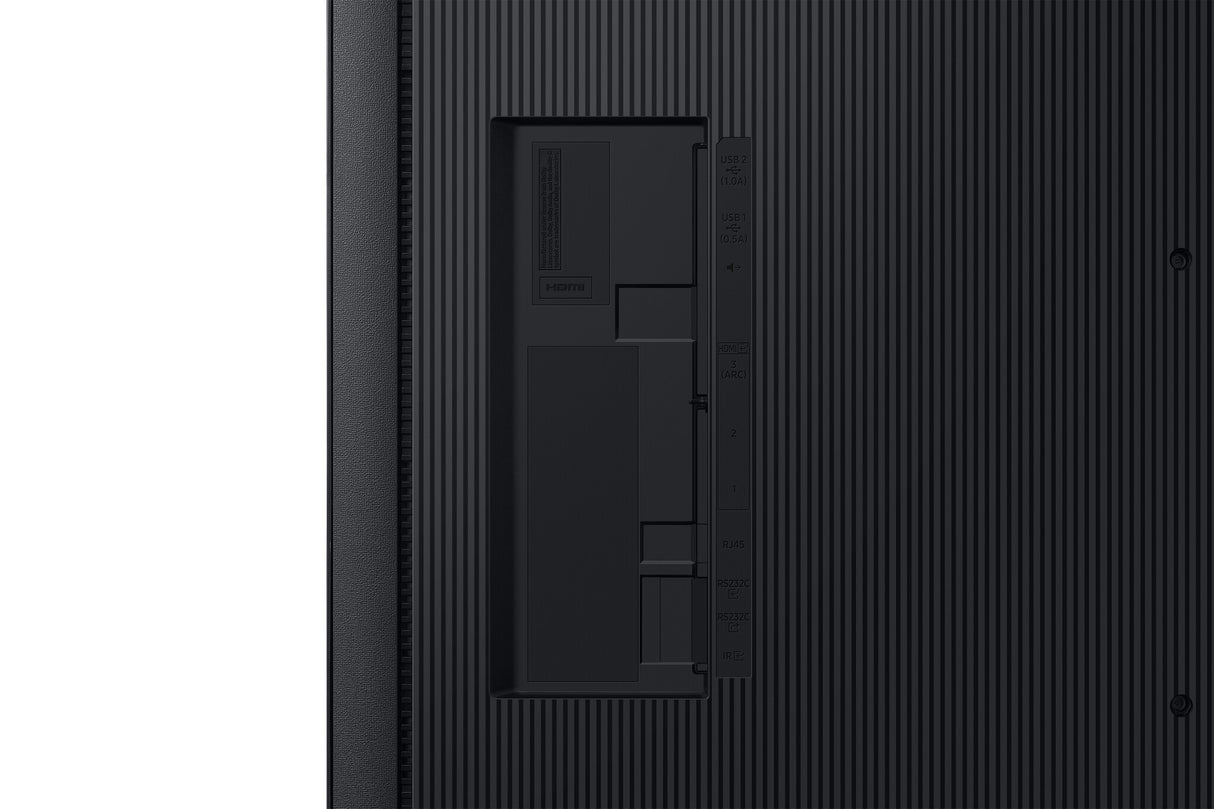

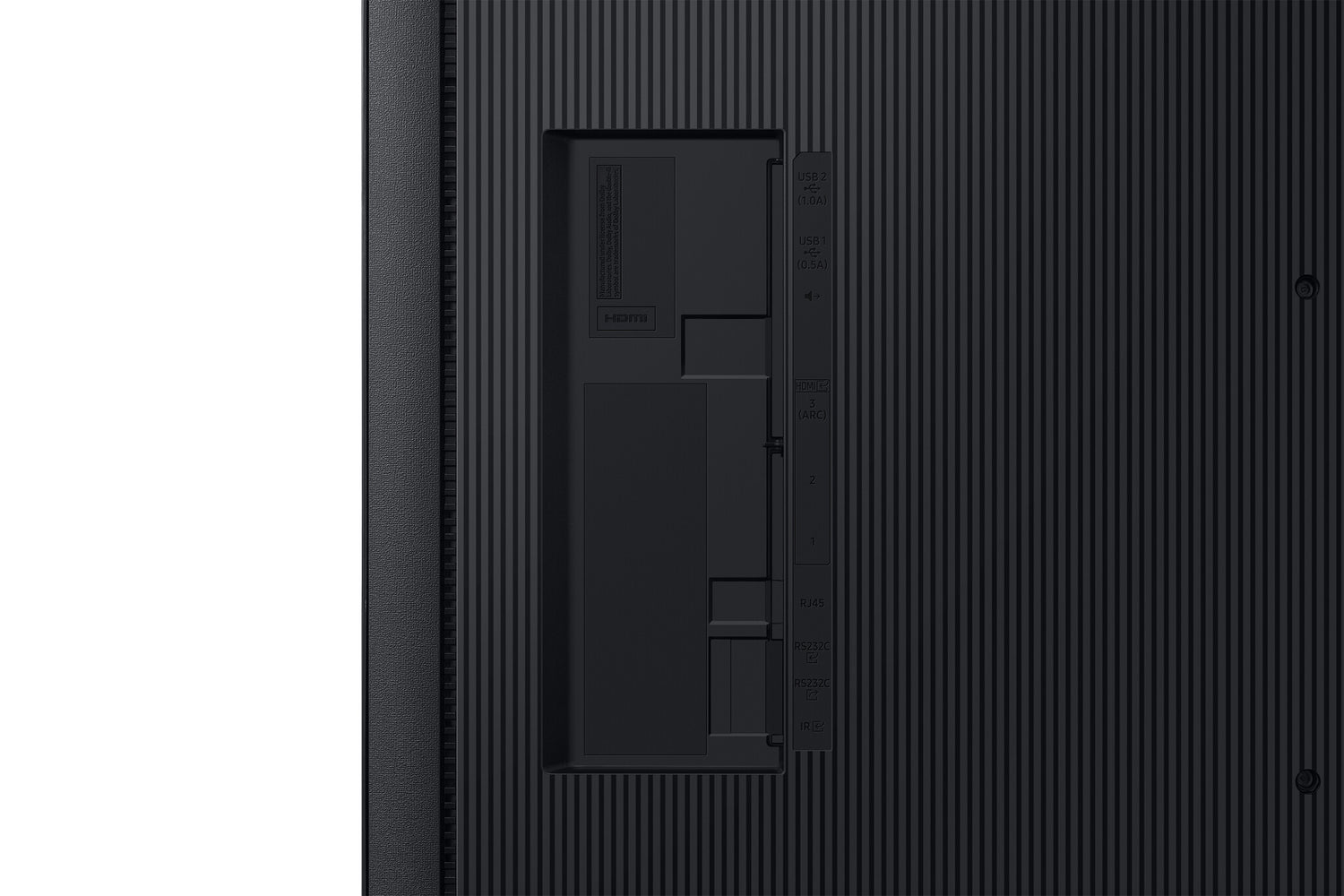

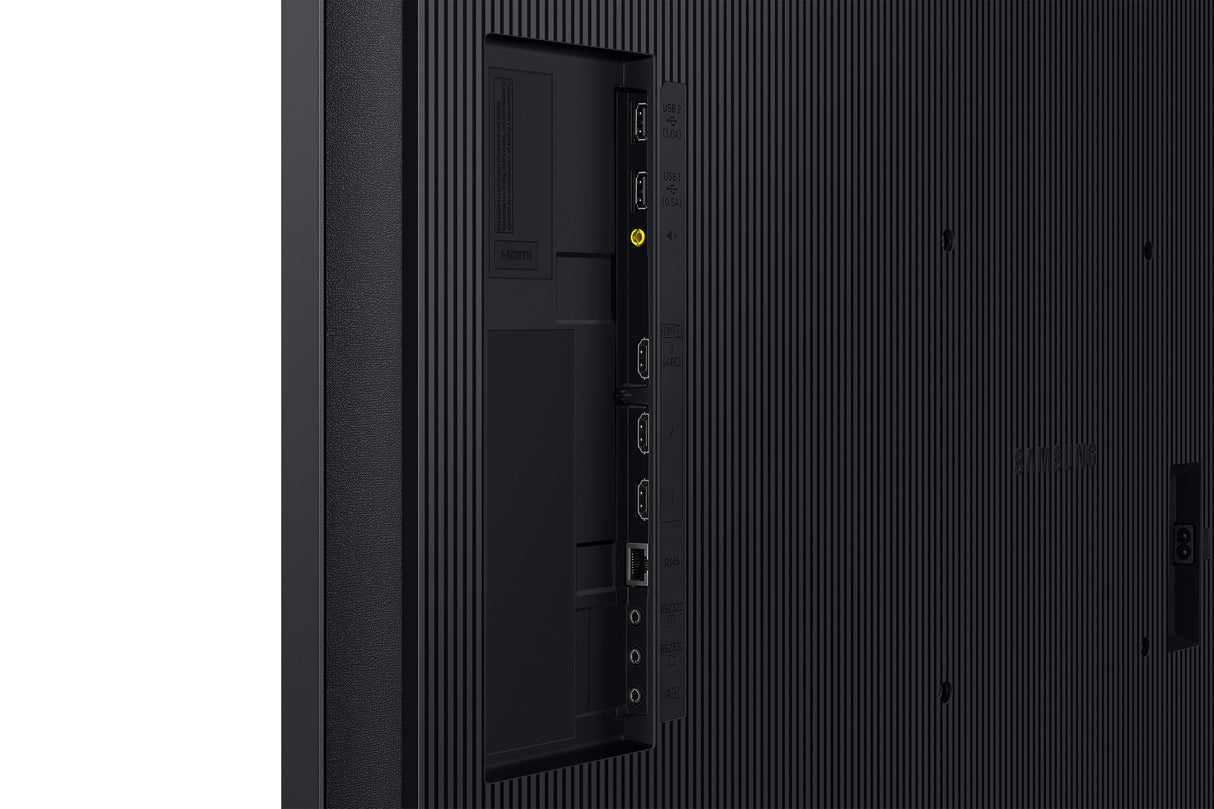

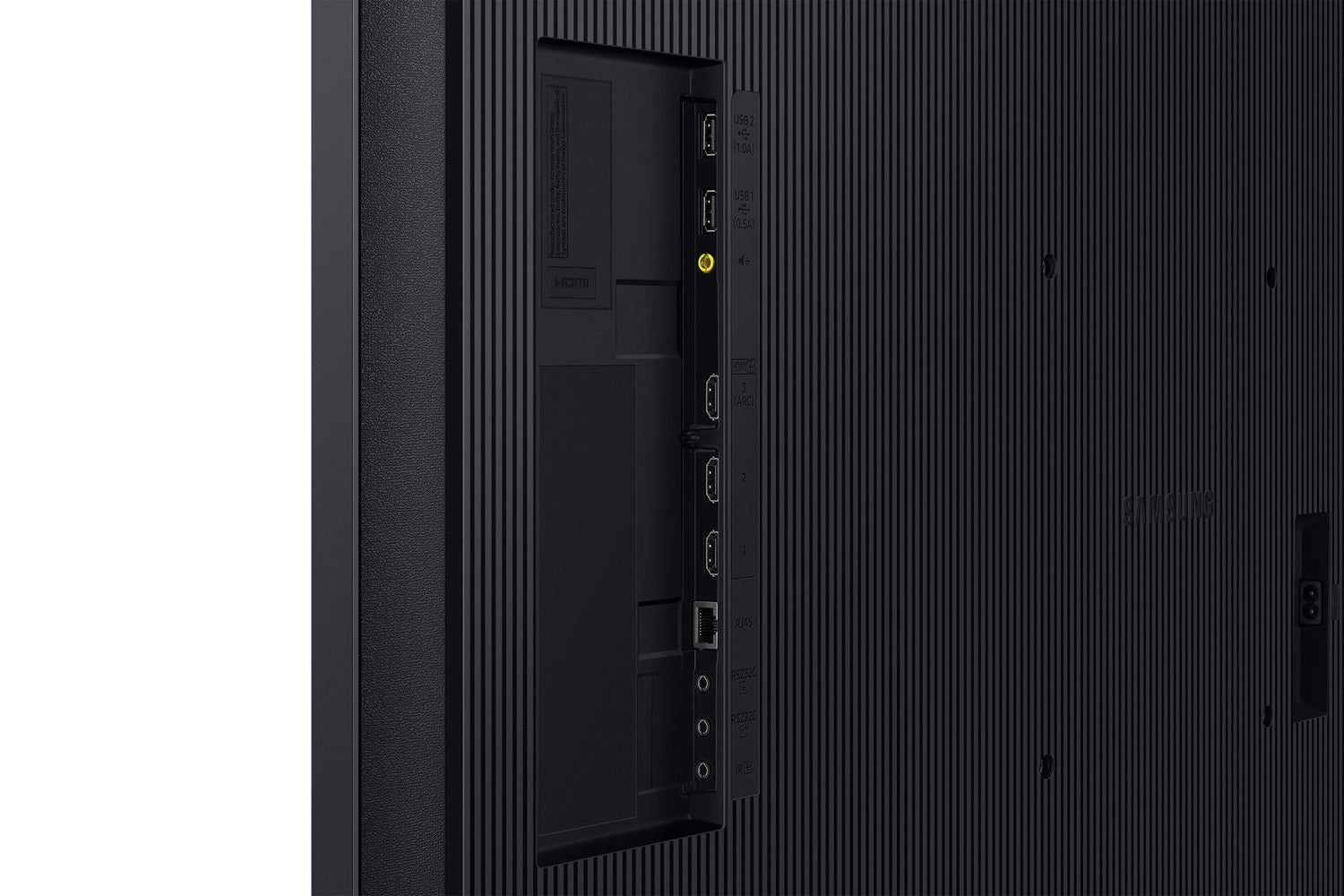

| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 3 |
| DVI port | No |
| USB port | Yes |
| USB ports quantity | 2 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| RS-232 interface | Yes |
| Remote (IR) input | 1 |
| PC Audio out | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Product design | Digital signage flat panel |
| Product colour | Black |
| Placement supported | Indoor |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 200 x 200 mm |
| Bezel width (bottom) | 1.15 cm |
| Bezel width (side) | 1.15 cm |
| Bezel width (top) | 1.15 cm |
| Mounting type | Wall |
| Performance | |
|---|---|
| Purpose | Commercial |
| Operating hours (hours/days) | 16/7 |
| HDCP version | 2.2 |
| HDCP | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 121 W |
| Power consumption (standby) | 0.5 W |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 74 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Computer system | |
|---|---|
| Built-in processor | Yes |
| Internal memory | 8 GB |
| Operating system installed | Tizen 7.0 |
| Video formats supported | HEVC/H.265 |
| Weight & dimensions | |
|---|---|
| Display width | 969.5 mm |
| Display depth | 28.5 mm |
| Display height | 557.8 mm |
| Display weight | 8.8 kg |
| Packaging data | |
|---|---|
| Package width | 1093 mm |
| Package depth | 126 mm |
| Package height | 667 mm |
| Package weight | 11.3 kg |
| Packaging content | |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Mounting kit | Yes |
| Cables included | AC, RS-232, USB |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | -20 - 45 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| General | |
|---|---|
| Product family | QBC-N |
| Technical details | |
|---|---|
| Compliance certificates | TÜV mark |
| Sustainability certificates | ENERGY STAR, EPEAT |
| Processor | Quantum Lite 4K Processor |
| Sustainability compliance | Yes |
| Other features | |
|---|---|
| Sound modes | Dolby Audio |
| On/off switch | Yes |
