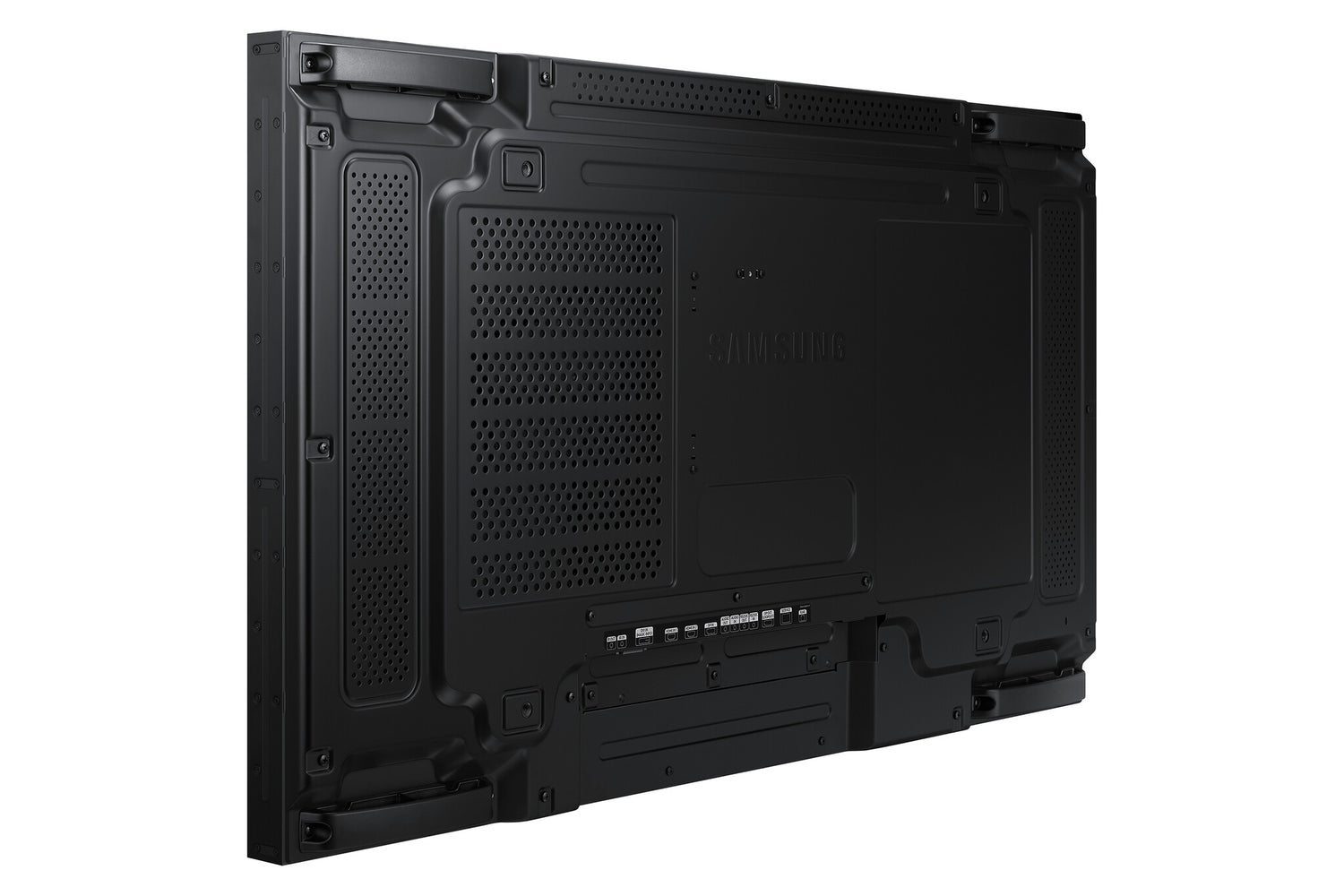

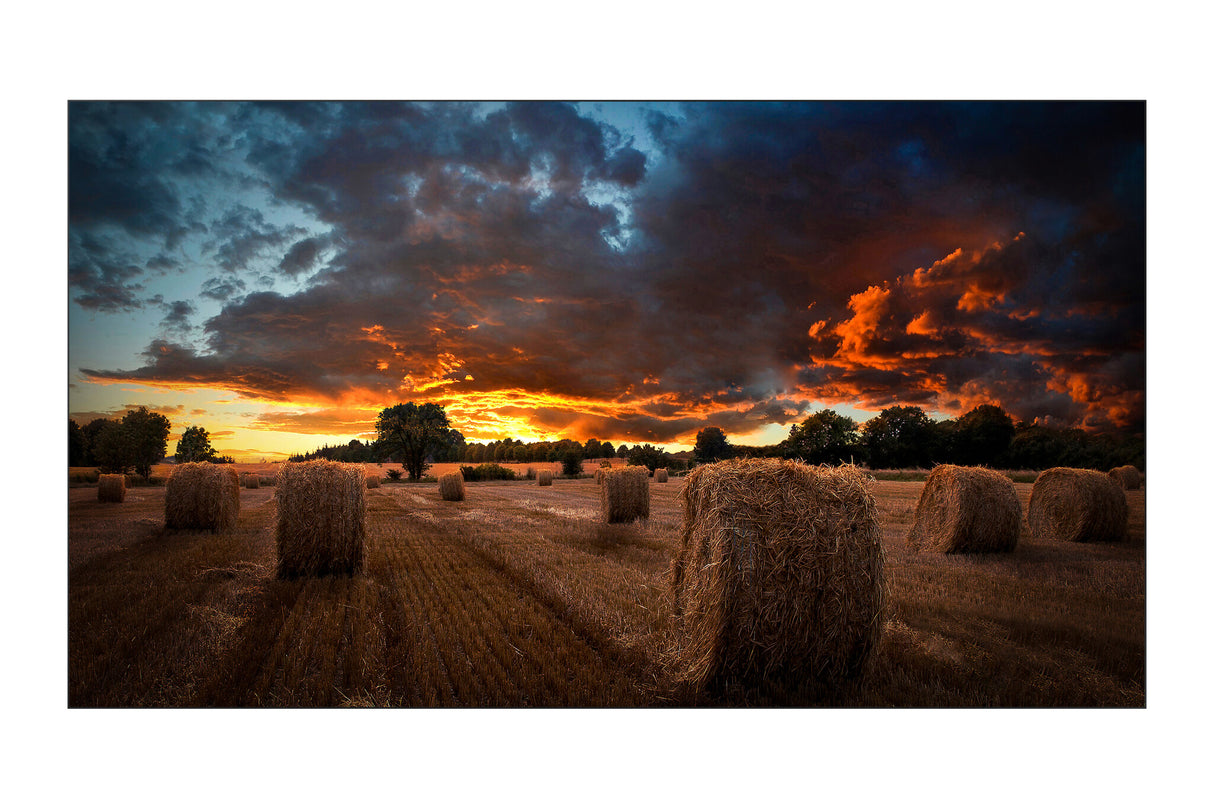

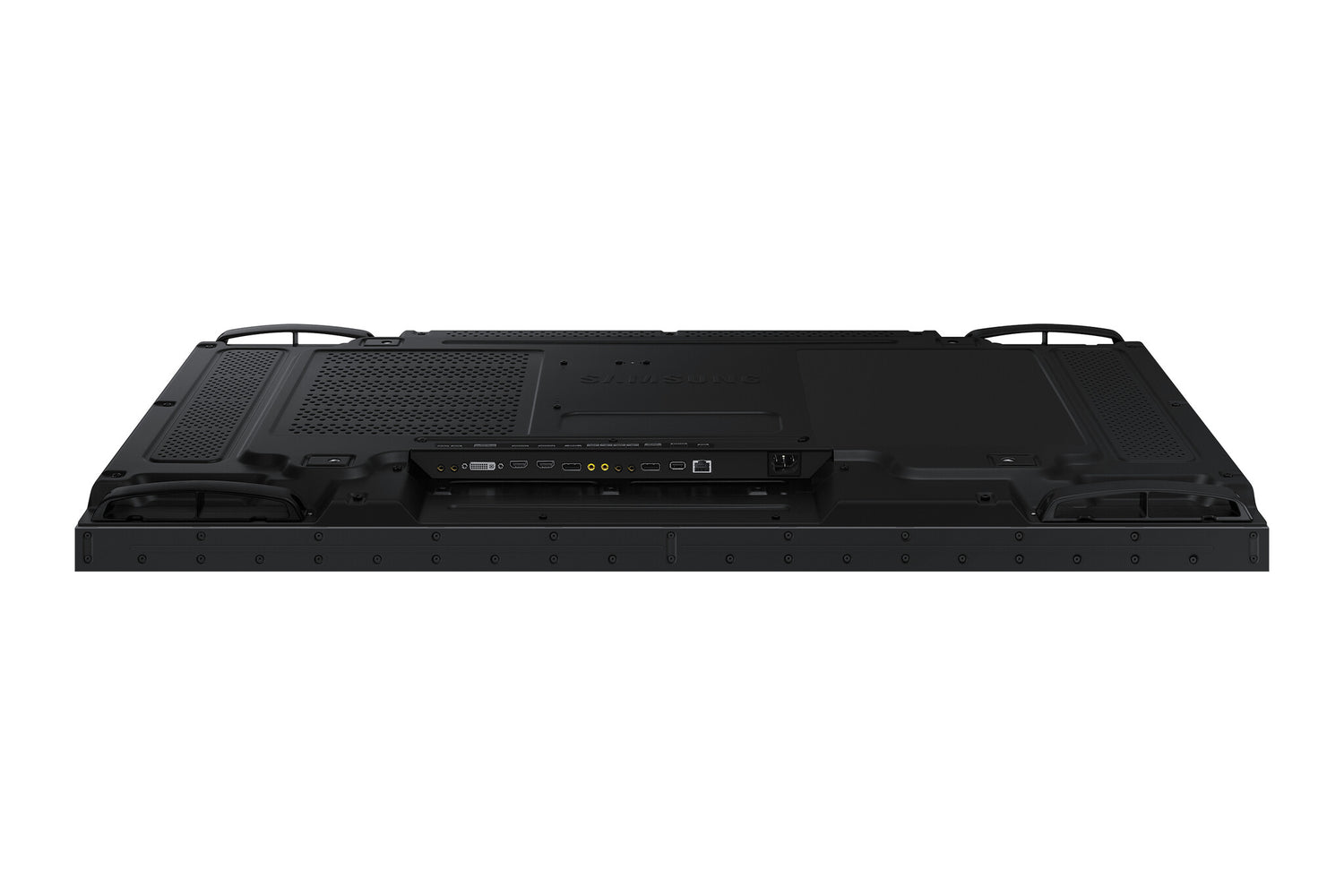

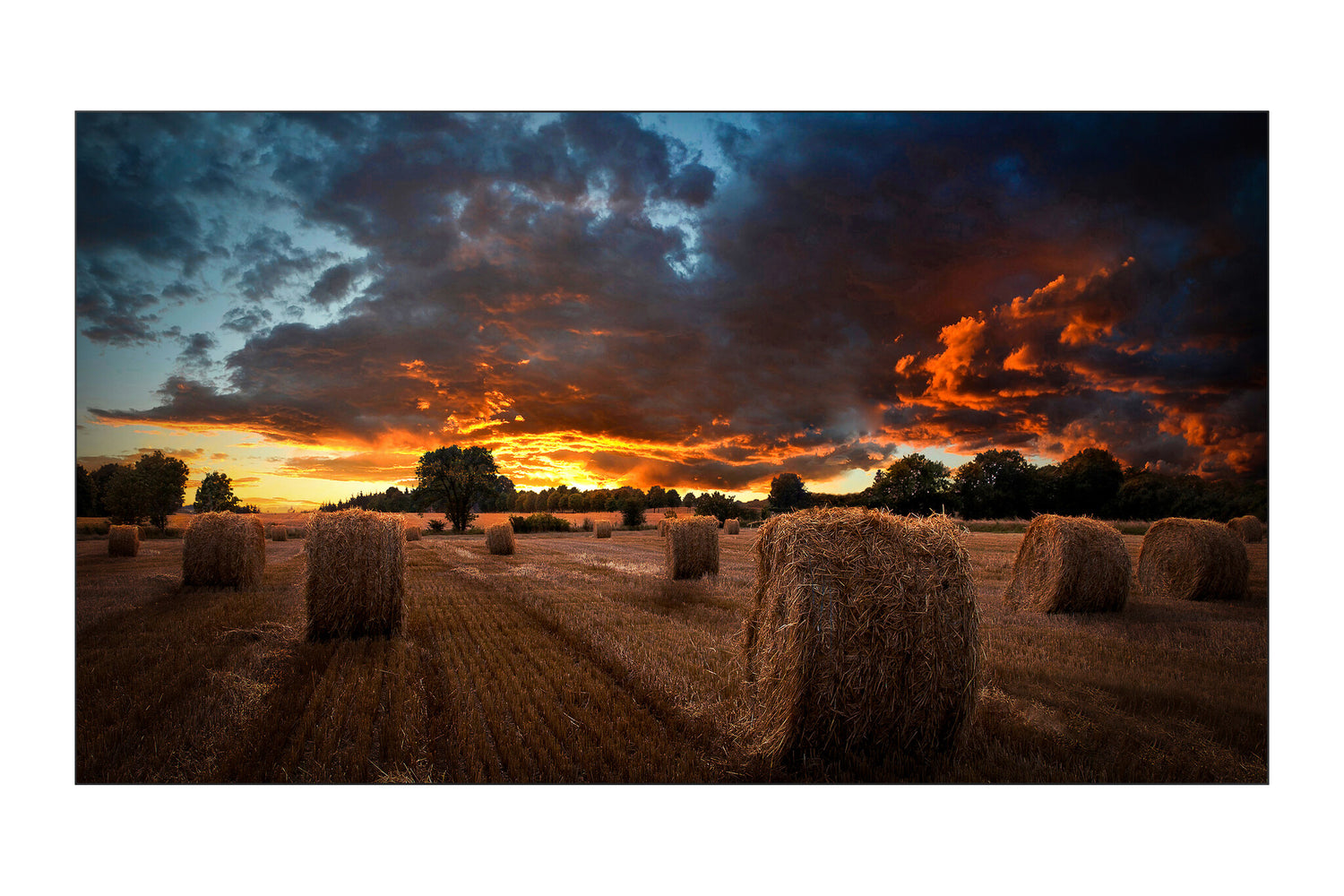

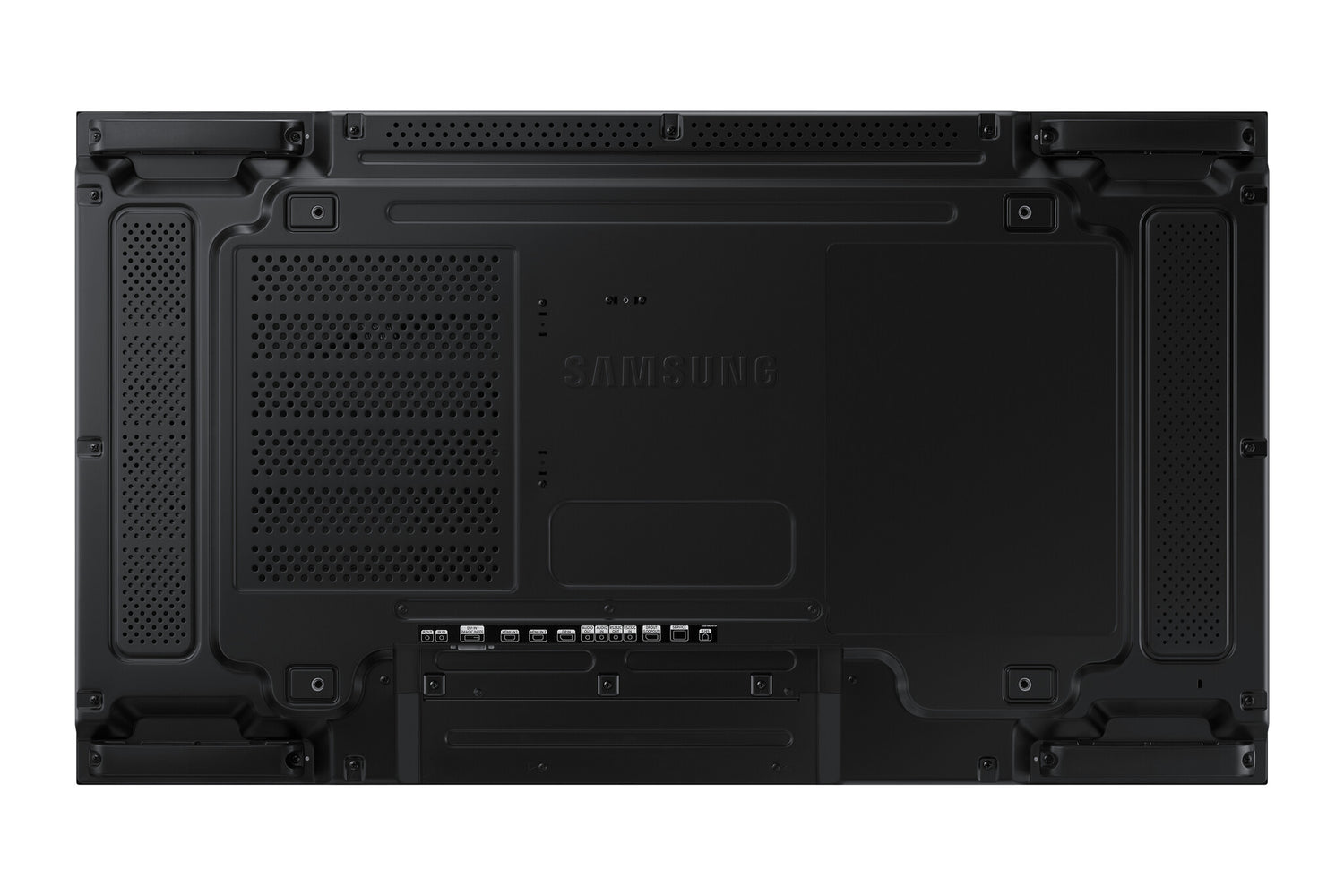

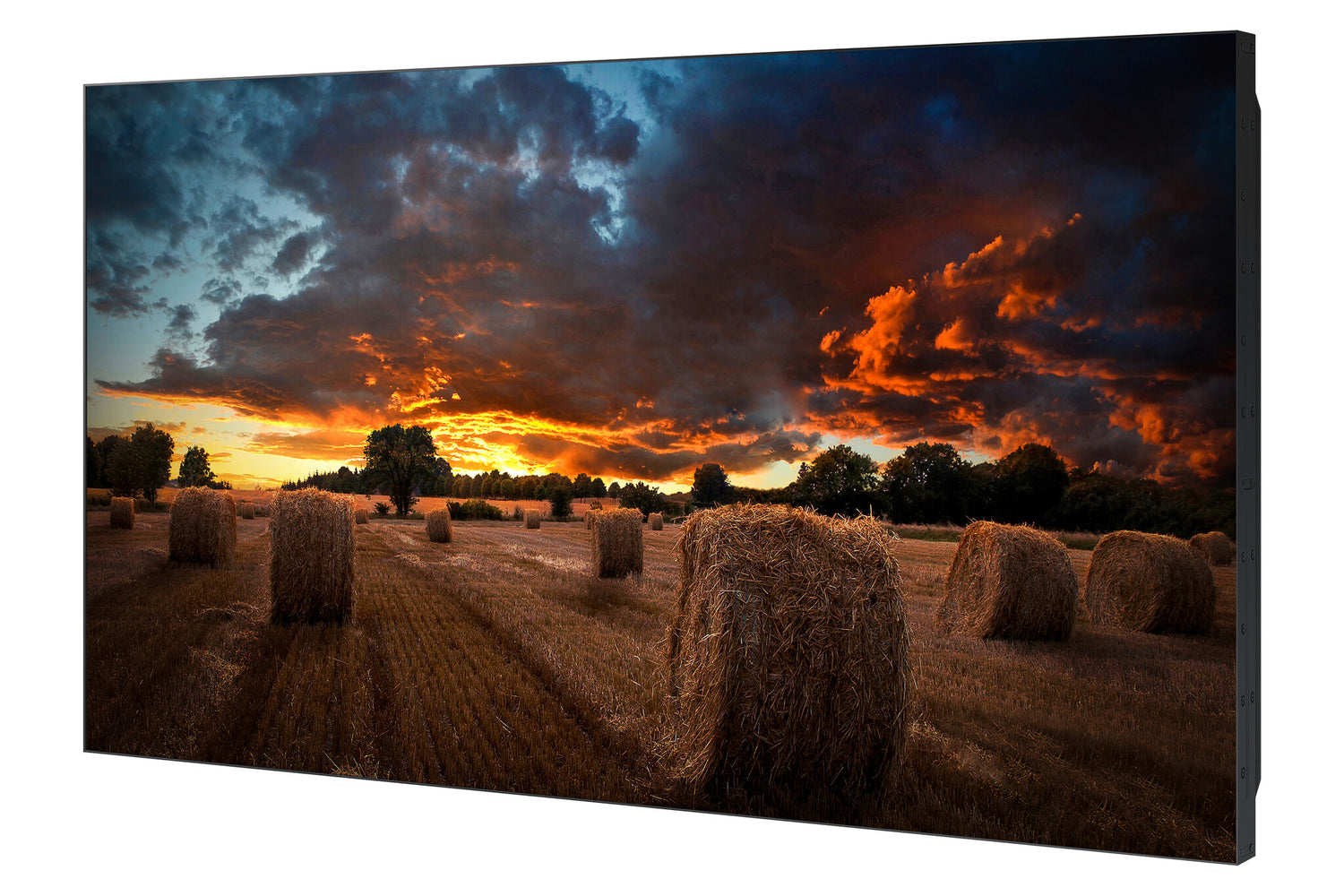

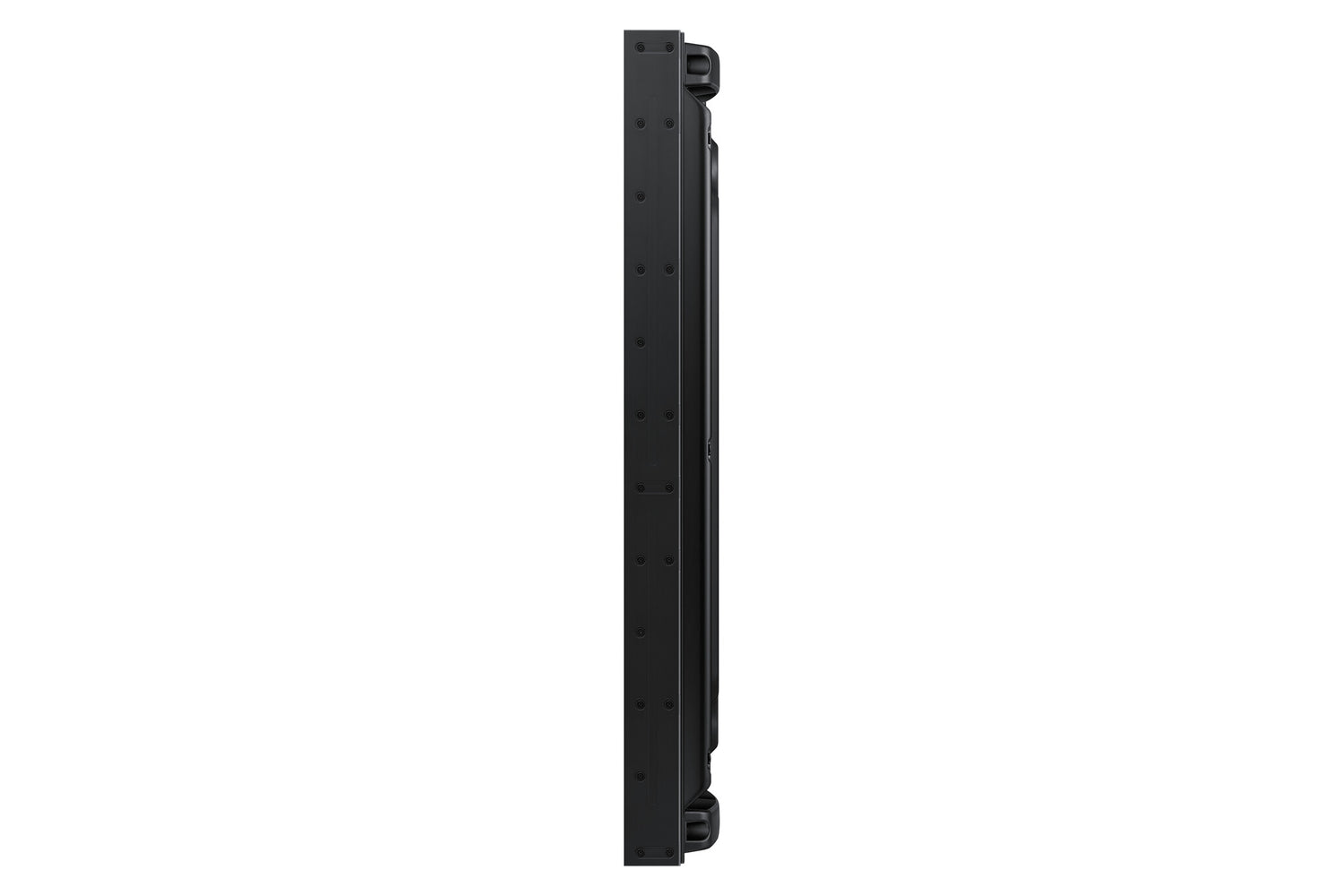

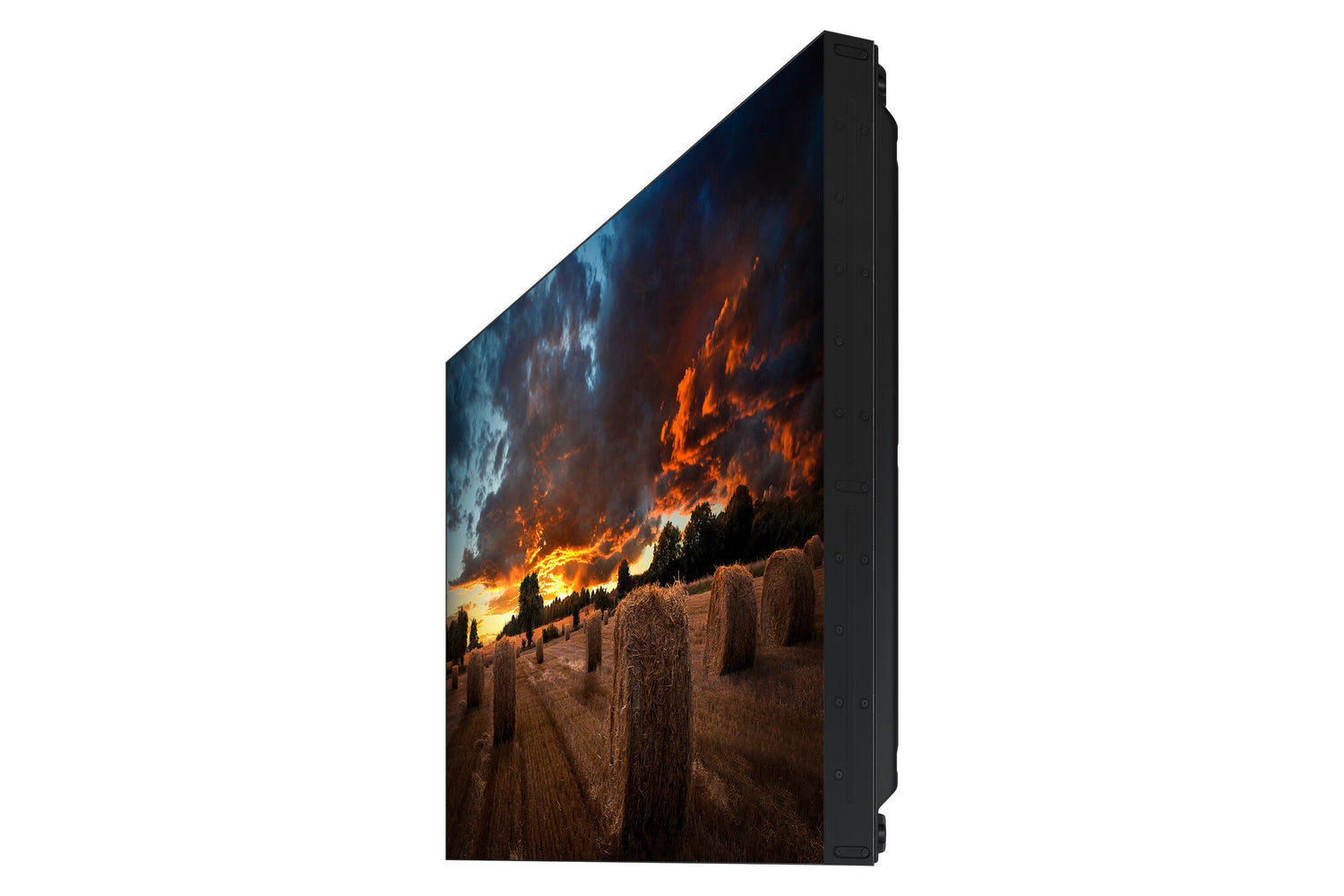

Samsung VM55B-U LED Indoor
Samsung | Varenummer:
LH55VMBUBGBXEN
Beskrivelse
Beskrivelse
Samsung VM55B-U - 55 Diagonal klasse VMB-U Series LED-bagbelyst LCD paneldisplay - digital skiltning - 1080p 1920 x 1080
Samsung VM55B-U - 55 Diagonal klasse VMB-U Series LED-bagbelyst LCD paneldisplay - digital skiltning - 1080p 1920 x 1080
Specifikationer
Specifikationer
| Display | |
|---|---|
| Operating hours (hours/days) | 24/7 |
| Colour gamut | 72% |
| Haze rate | 25% |
| Vertical scan range | 57 - 63 Hz |
| Horizontal scan range | 62.7 - 72.3 kHz |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Response time | 0.008 s |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 45000:1 |
| Display brightness | 500 cd/m² |
| Pixel pitch | 0.63 x 0.63 mm |
| Panel type | IPS |
| HD type | Full HD |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 139.7 cm (55") |
| Display technology | LED |
| Design | |
|---|---|
| Product colour | Black |
| Panel mounting interface | 600 x 400 mm |
| VESA mounting | Yes |
| Wall mountable | Yes |
| Bezel width (top) | 2.25 mm |
| Bezel width (bottom) | 1.25 mm |

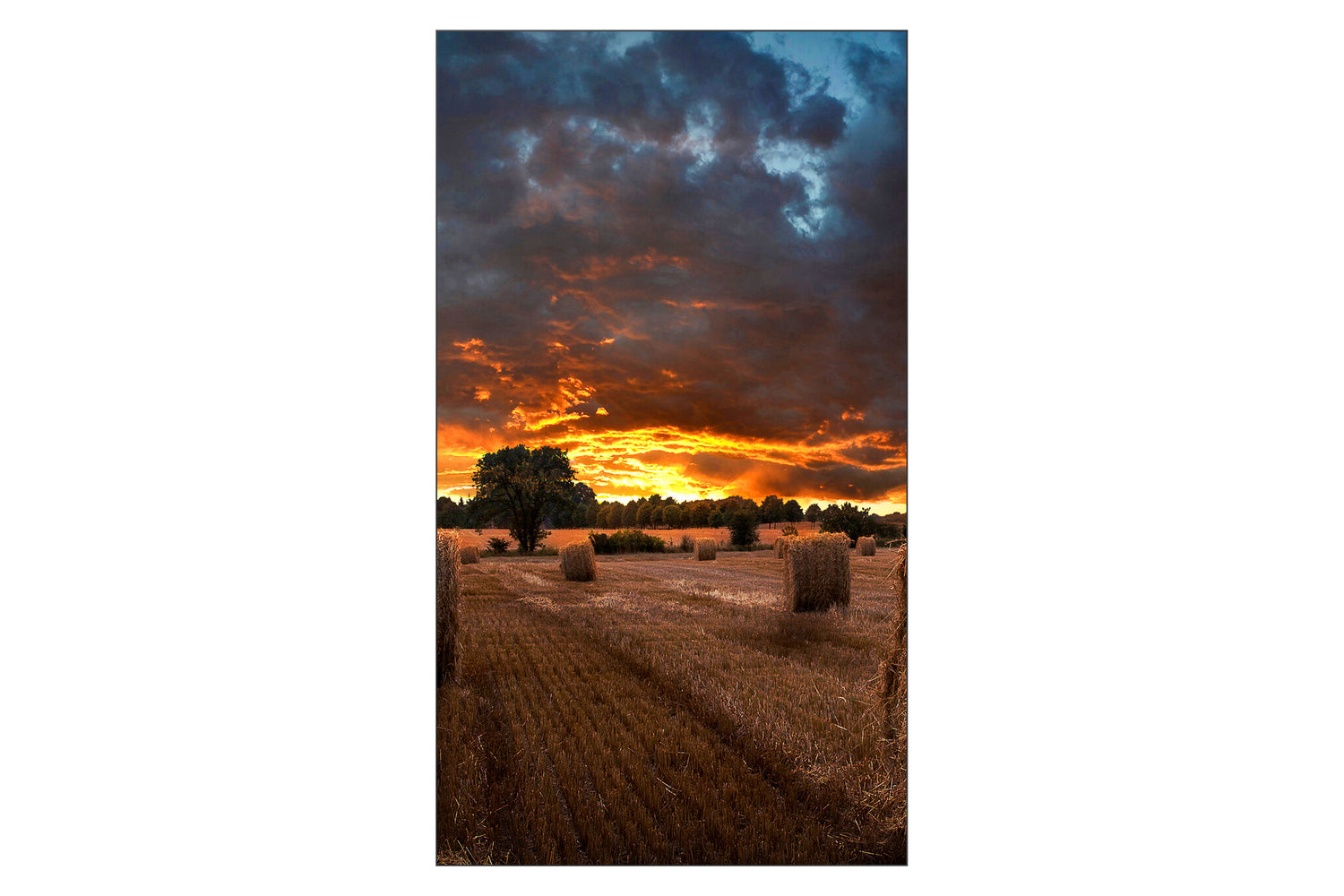

| Orientation | Horizontal/Vertical |
| Placement supported | Indoor |

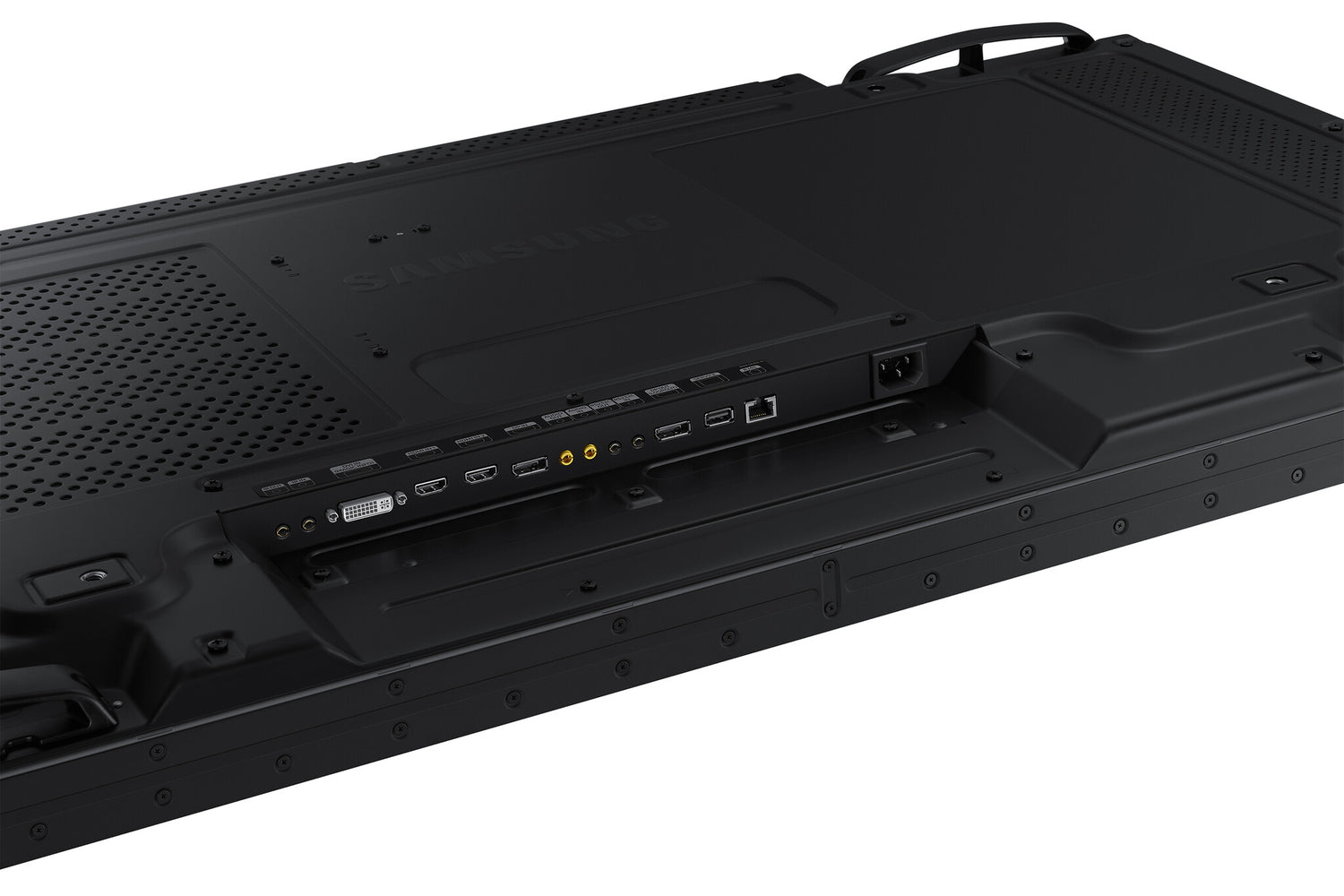

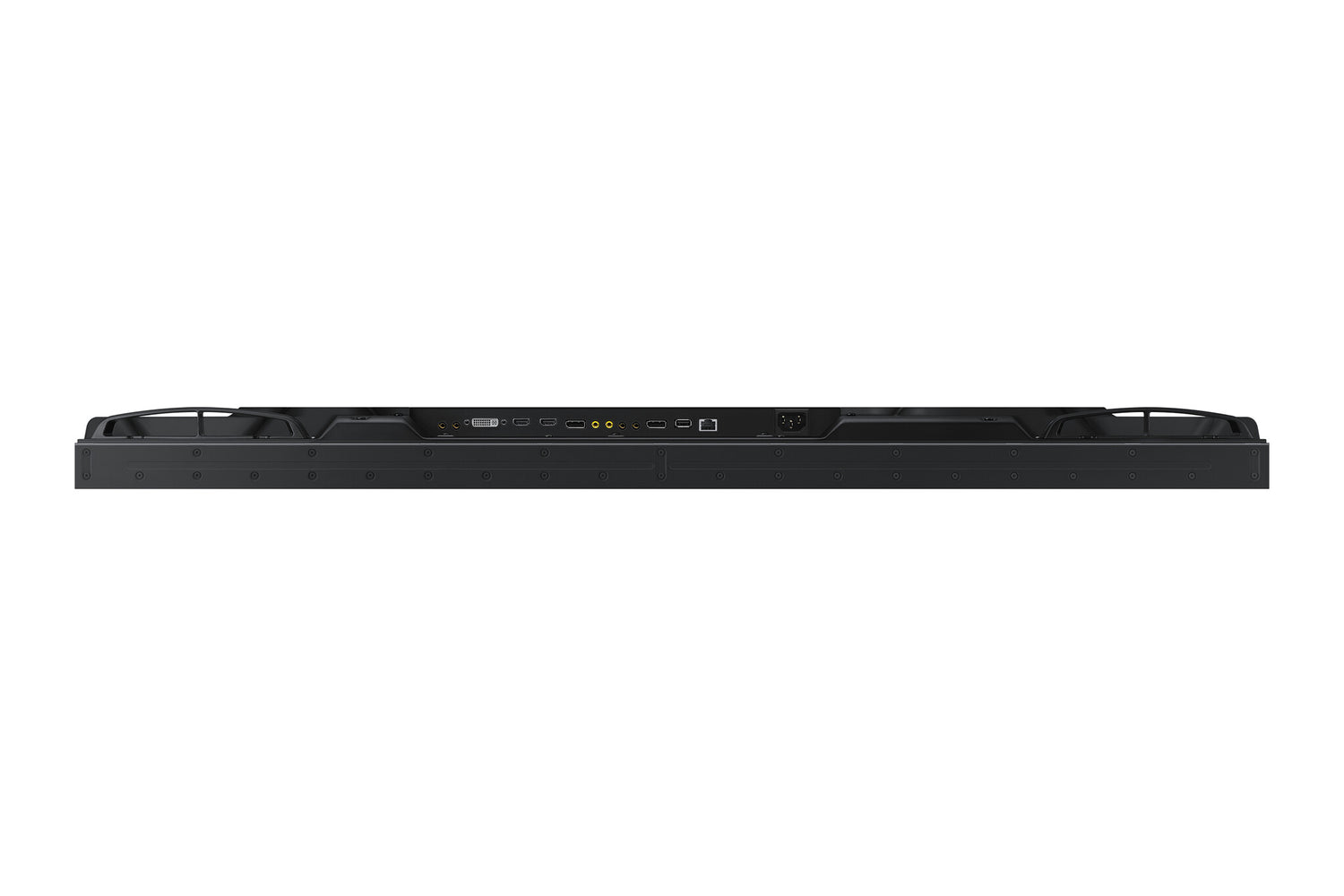

| Ports & interfaces | |
|---|---|
| HDCP | Yes |
| HDCP version | 2.2 |
| IR input ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
| USB ports quantity | 1 |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| Ethernet LAN | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts in | 1 |
| DisplayPorts quantity | 1 |
| DVI-D ports quantity | 1 |
| DVI port | Yes |
| HDMI version | 2.0 |
| HDMI input ports quantity | 2 |
| HDMI ports quantity | 2 |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Energy consumption (SDR) per 1000 hours | 165 kWh |
| Energy efficiency class (SDR) | G |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 220 W |
| General | |
|---|---|
| Product family | VMB-U |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | 10 - 90 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Sustainability | |
|---|---|
| Certification | FCC (USA) Part 15, Subpart B Class ACE (Europe) : EN55032 : 2012 or 2015 ? EN55024:2010 or EN 55035:2017VCCI (Japan) : VCCI CISPR32:2016 Class BKCC/EK (Korea) : Tuner : KN13 / KN20Tunerless : KN22 / KN24BSMI (Taiwan) : CNS13438 ( ITE EMI ) Class A / CNS14 |
| Weight & dimensions | |
|---|---|
| Weight | 21.2 kg |
| Height | 684.3 mm |
| Depth | 73.1 mm |
| Width | 1213.5 mm |
| Packaging data | |
|---|---|
| Package weight | 28.8 kg |
| Package height | 844 mm |
| Package depth | 257 mm |
| Package width | 1398 mm |
| Mounting kit | Yes |
