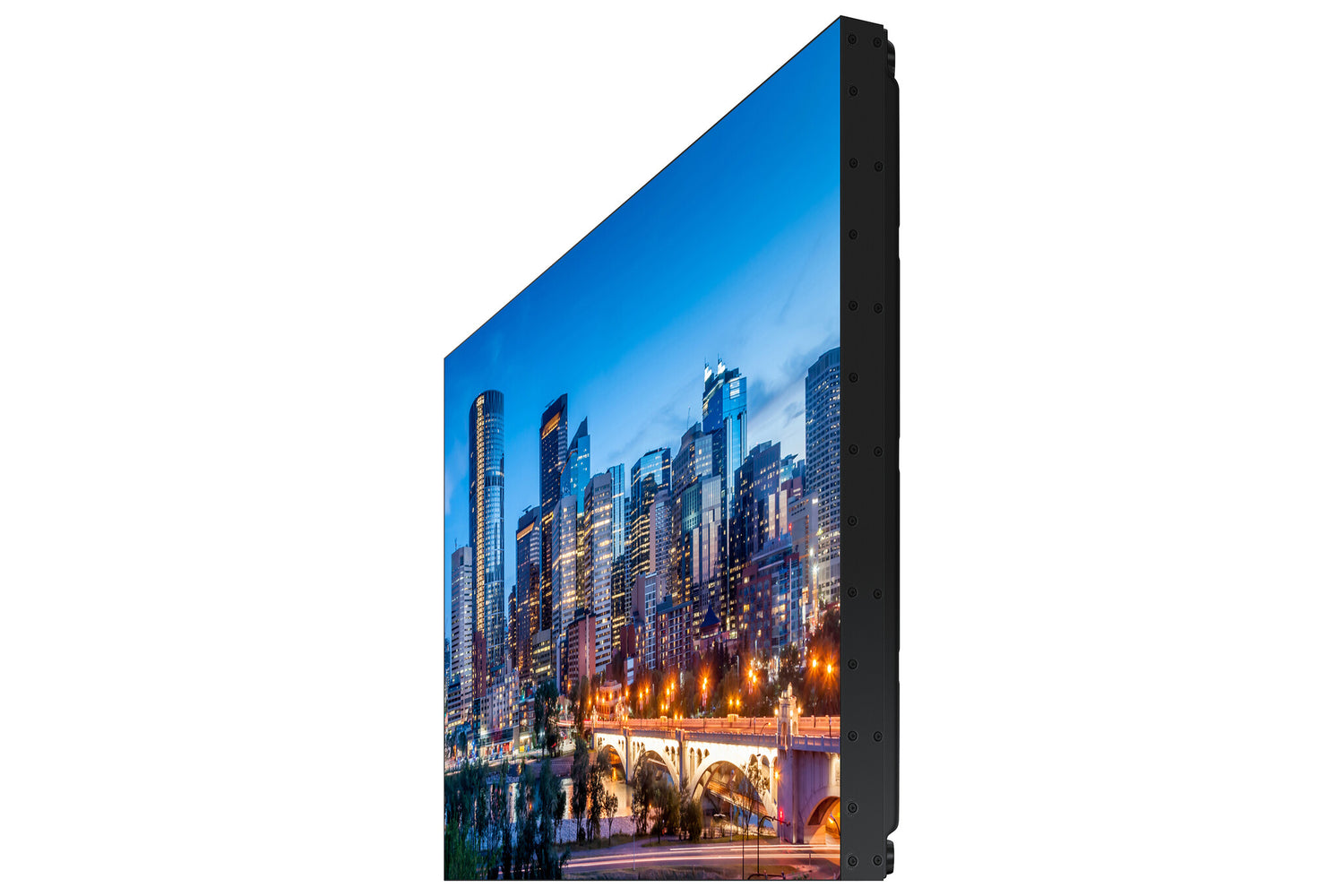

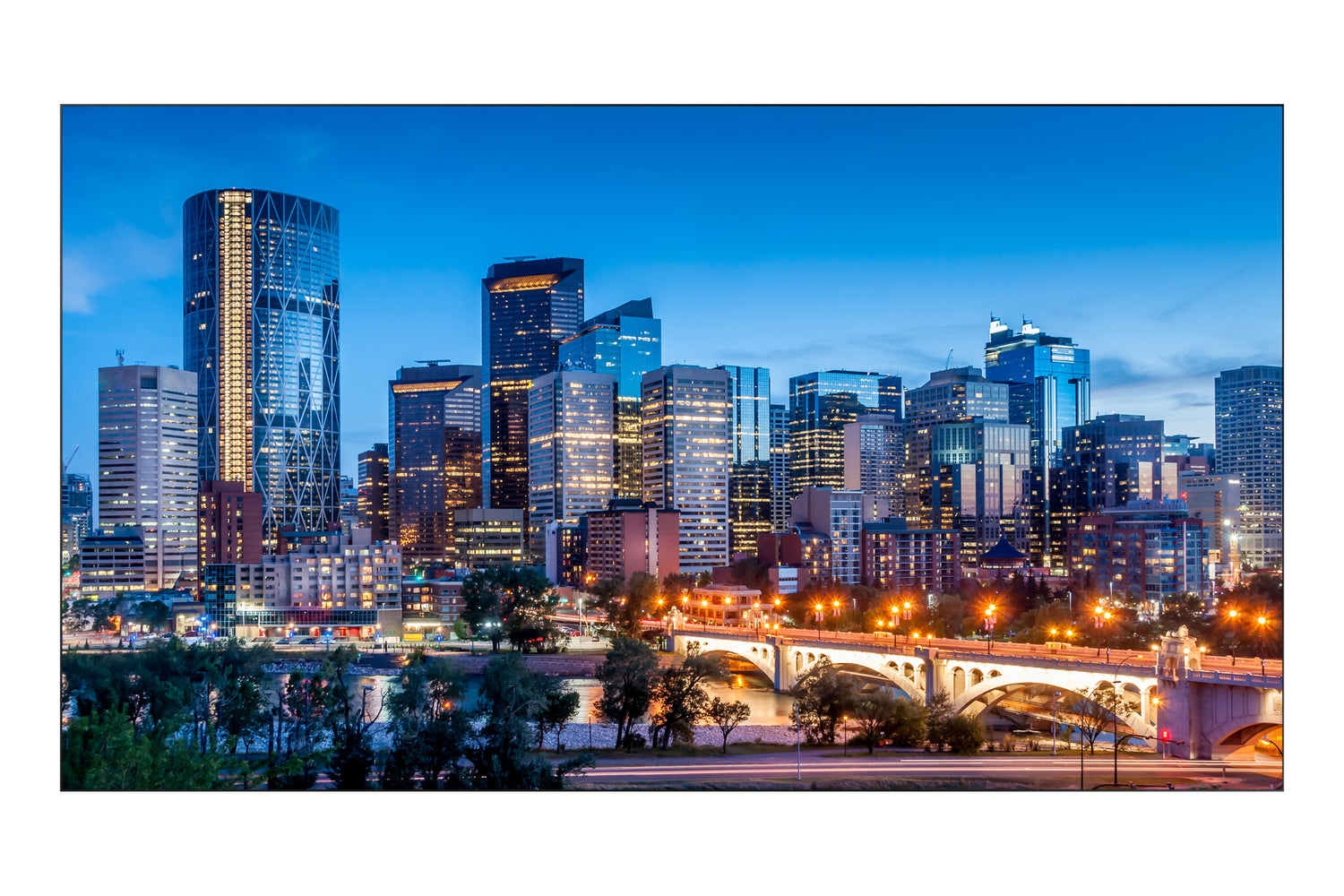

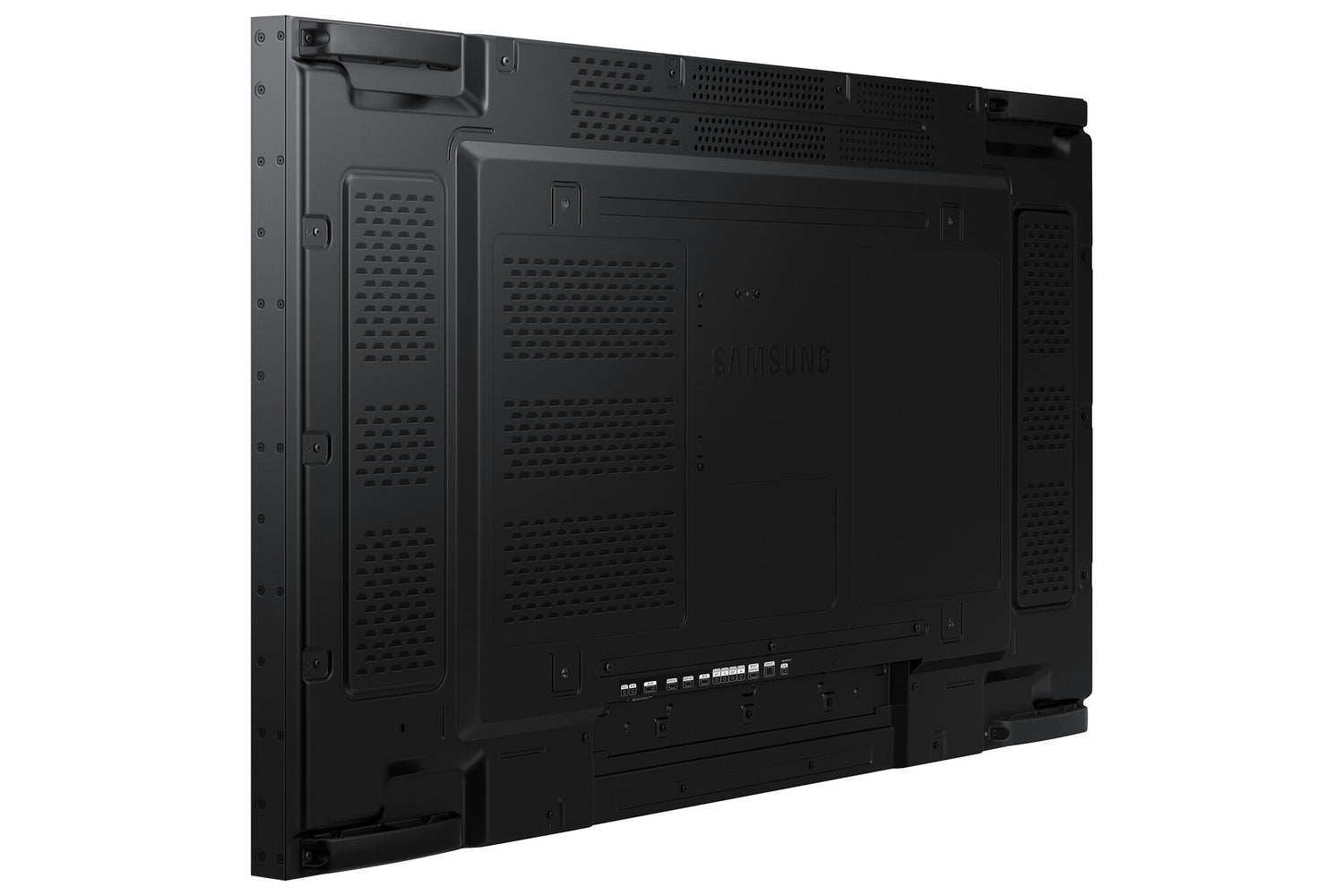

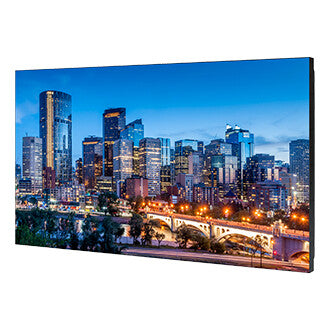

Samsung VM55C-E LCD Indoor
Samsung | Varenummer:
LH55VMCEBGBXEN
Beskrivelse
Beskrivelse
Samsung 55 16:9 FullHD VM55C-E direct-LED IPS 500nits DVI-D, DP 1.2, HDMI 2.0x2, DP-out, UHD Daisy chain, 1.74mm bezel to bezel VESA 600x400
Samsung 55 16:9 FullHD VM55C-E direct-LED IPS 500nits DVI-D, DP 1.2, HDMI 2.0x2, DP-out, UHD Daisy chain, 1.74mm bezel to bezel VESA 600x400
Specifikationer
Specifikationer
Display | |
---|---|
Display diagonal (metric) | 138 cm |
Operating hours (hours/days) | 24/7 |
Colour gamut | 72% |
Haze rate | 28% |
Vertical scan range | 47 - 63 Hz |
Horizontal scan range | 57.3 - 70 kHz |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Response time | 0.008 s |
Contrast ratio (typical) | 1000:1 |
Contrast ratio (dynamic) | 100000:1 |
Display brightness | 500 cd/m² |
Pixel frequency | 78 MHz |
Pixel pitch | 0.63 x 0.63 mm |
Aspect ratio | 16:9 |
Panel type | IPS |
HD type | Full HD |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 139.7 cm (55") |
Display technology | LCD |
Design | |
---|---|
Product colour | Black |

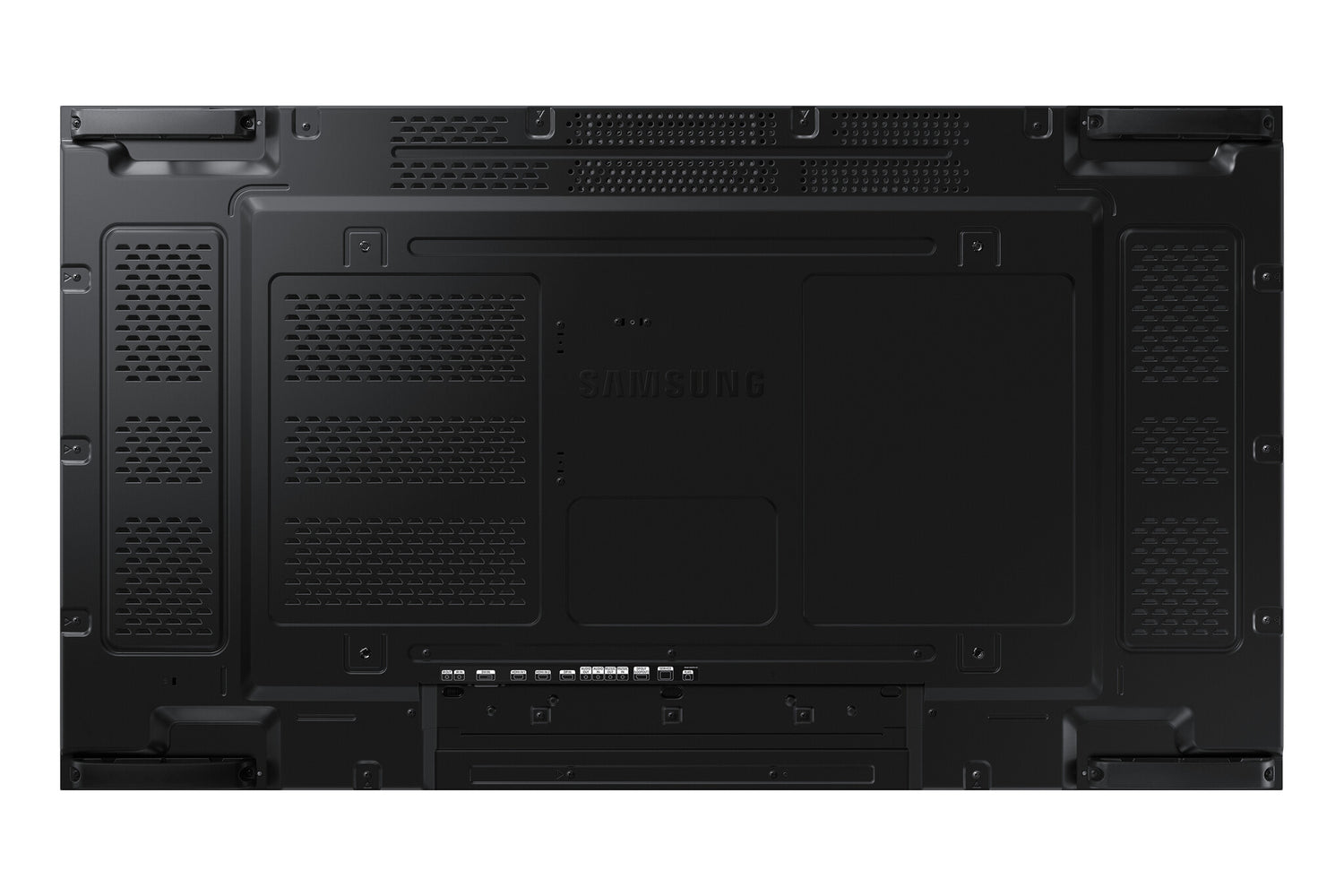

Panel mounting interface | 600 x 400 mm |
VESA mounting | Yes |
Wall mountable | Yes |
Bezel colour | Black |

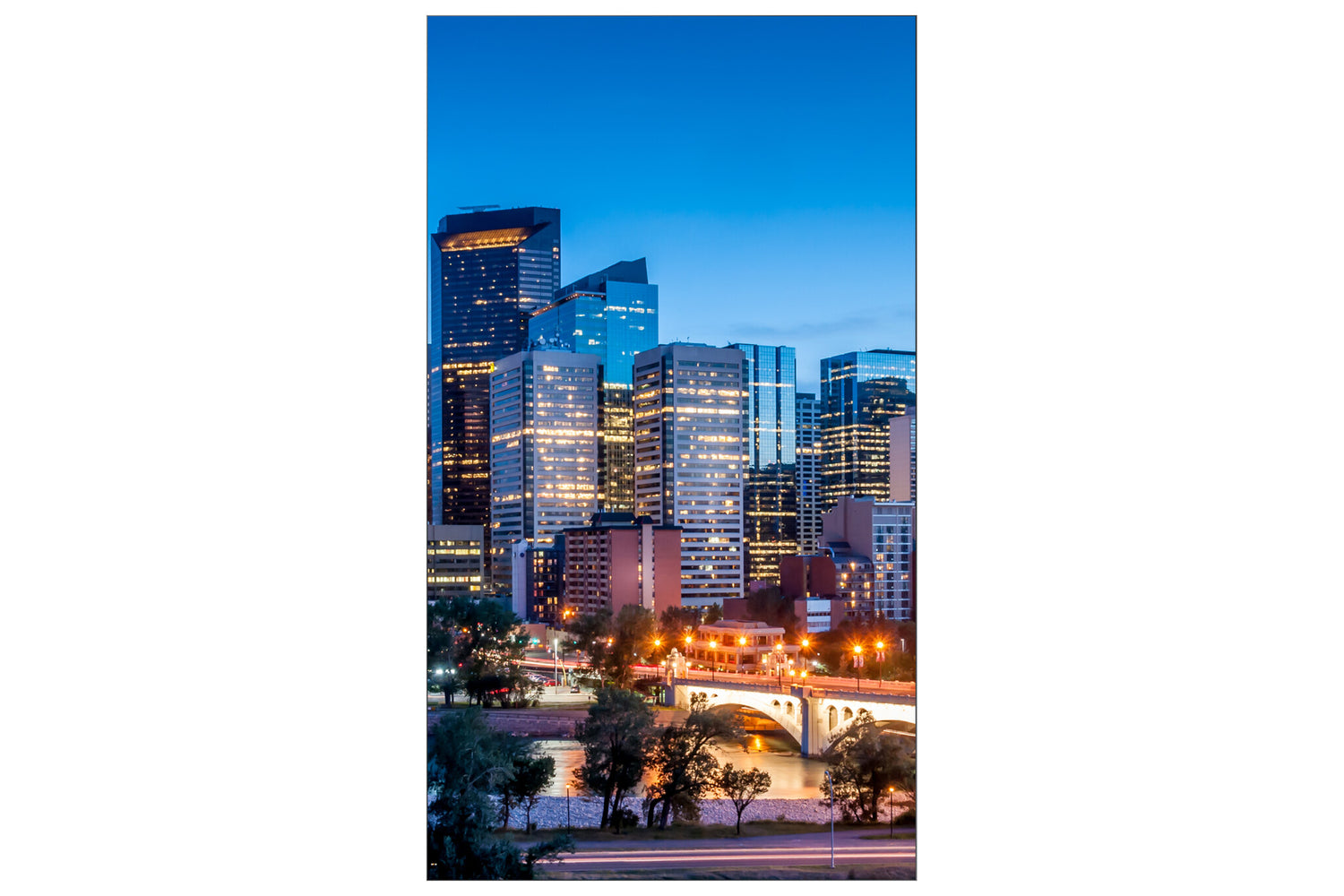

Orientation | Horizontal/Vertical |
Placement supported | Indoor |

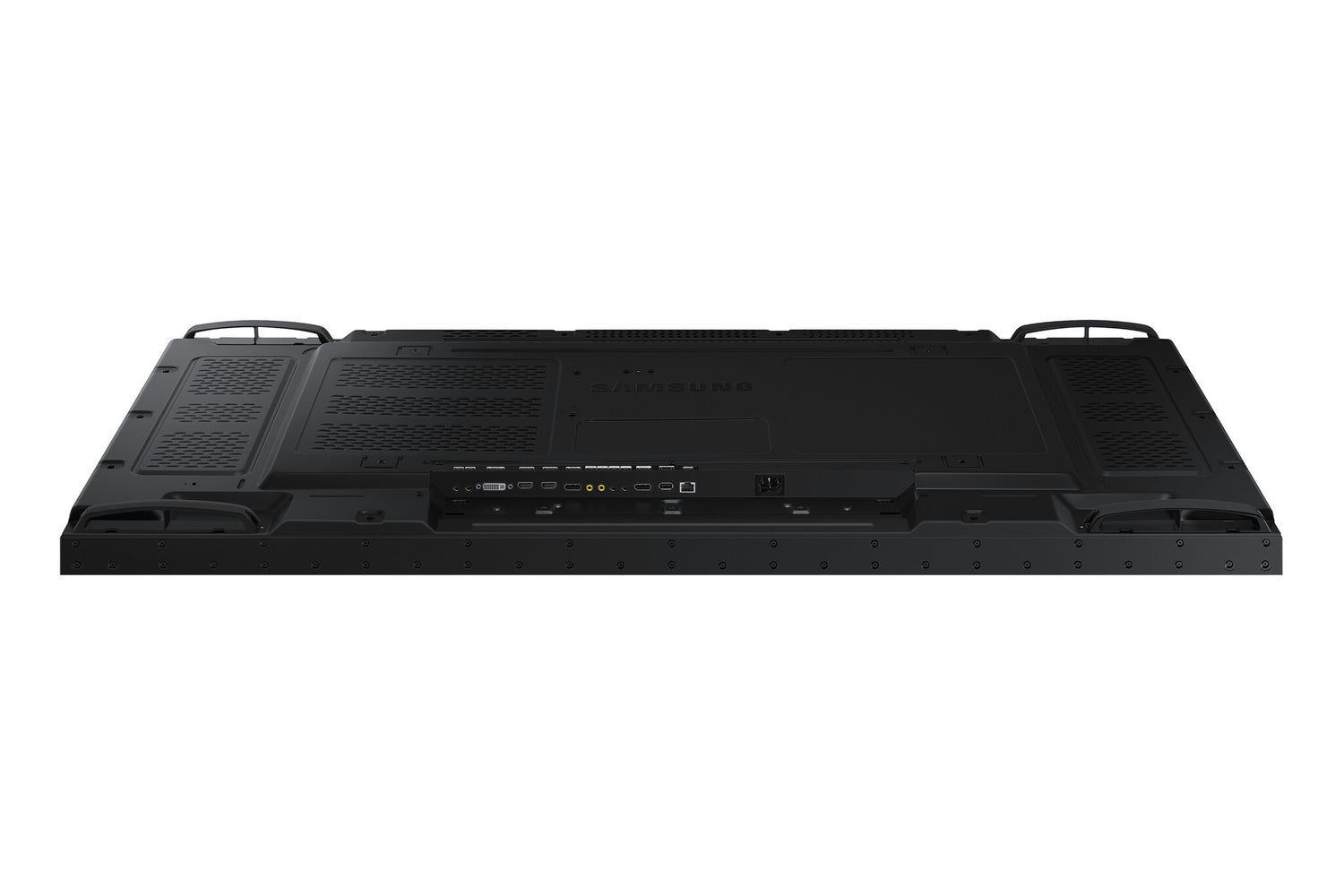

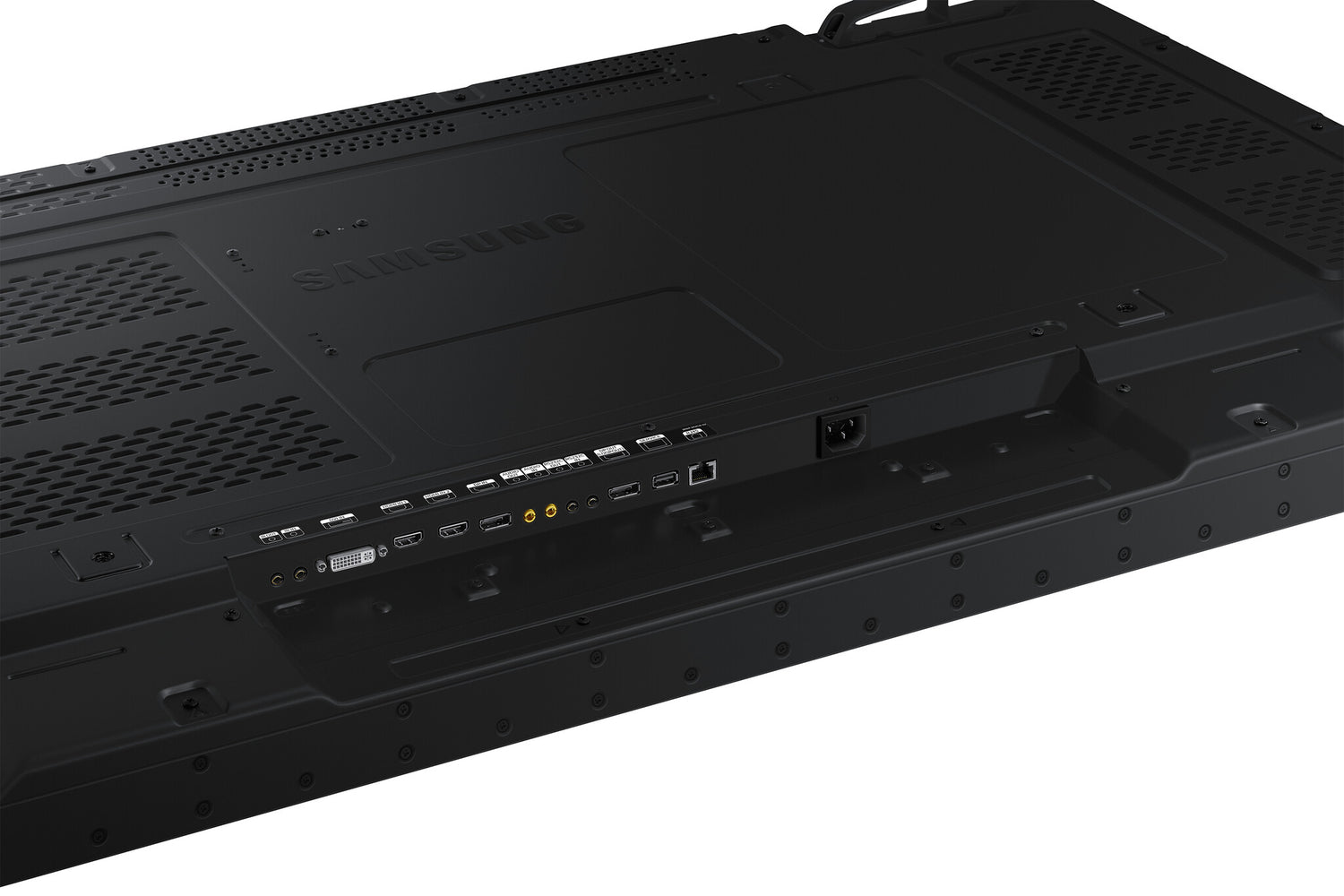

Ports & interfaces | |
---|---|
HDCP | Yes |
HDCP version | 2.2 |
IR input ports quantity | 1 |
Audio input | Yes |
Audio output | Yes |
Video out | Yes |
USB ports quantity | 1 |
USB port | Yes |
Ethernet LAN (RJ-45) ports | 1 |
RS-232 input ports | 1 |
RS-232 output ports | 1 |
Ethernet LAN | Yes |
DisplayPort version | 1.2 |
DisplayPorts in | 1 |
DisplayPorts quantity | 1 |
DVI-D ports quantity | 1 |
DVI port | Yes |
HDMI version | 2.0 |
HDMI input ports quantity | 1 |
HDMI ports quantity | 2 |
Power | |
---|---|
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Energy consumption (SDR) per 1000 hours | 113 kWh |
Energy efficiency class (SDR) | G |
Energy efficiency scale | A to G |
Power consumption (sleep) | 0.5 W |
Power consumption (typical) | 220 W |
General | |
---|---|
Product family | VMC-E |
Operational conditions | |
---|---|
Operating relative humidity (H-H) | 10 - 90% |
Operating temperature (T-T) | 0 - 40 °C |
Technical details | |
---|---|
Compliance certificates | CB, Federal Communications Commission (FCC) |
Sustainability | |
---|---|
Sustainability compliance | Yes |
Certification | FCC (USA) Part 15, Subpart B Class B CE (Europe) : EN 55032:2015+A11:2020 / EN 55035:2017+A11:2020 / EN IEC 61000-3-2:2019 / EN 61000-3-3:2013+A1:2019 VCCI (Japan) : VCCI-CISPR32 : 2015 KC (Korea) : KS C 9832 / KS C 9835 RCM (Australia/ Newzealand) : AS/NCB (Europe) : IEC62368-1/EN62368-1 CCC (China) : GB 4943.1-2011 (Singapore ) : PSB+IEC62368-1NOM (Mexico ) : Tunerless : NOM-019-SCFI-1998IRAM (Argentina ) : IRAM+IEC62368-1 SIRC (Saudi Arabia ) : SASO+IEC62368-1 BIS (India) : IEC60950-1 / IS13252KC (Kore |
Weight & dimensions | |
---|---|
Weight | 19.5 kg |
Height | 683 mm |

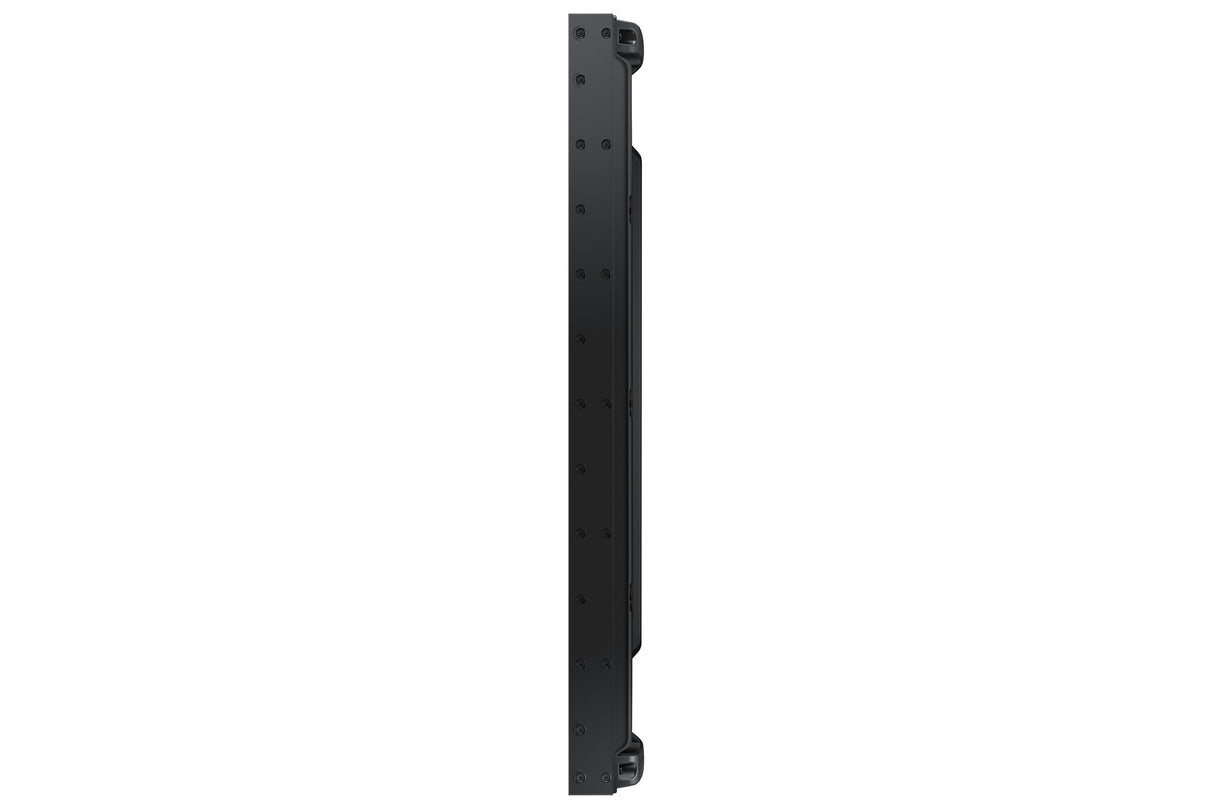

Depth | 70.4 mm |
Width | 1212.2 mm |
Packaging data | |
---|---|
Package weight | 27.1 kg |
Package height | 844 mm |
Package depth | 257 mm |
Package width | 1398 mm |
