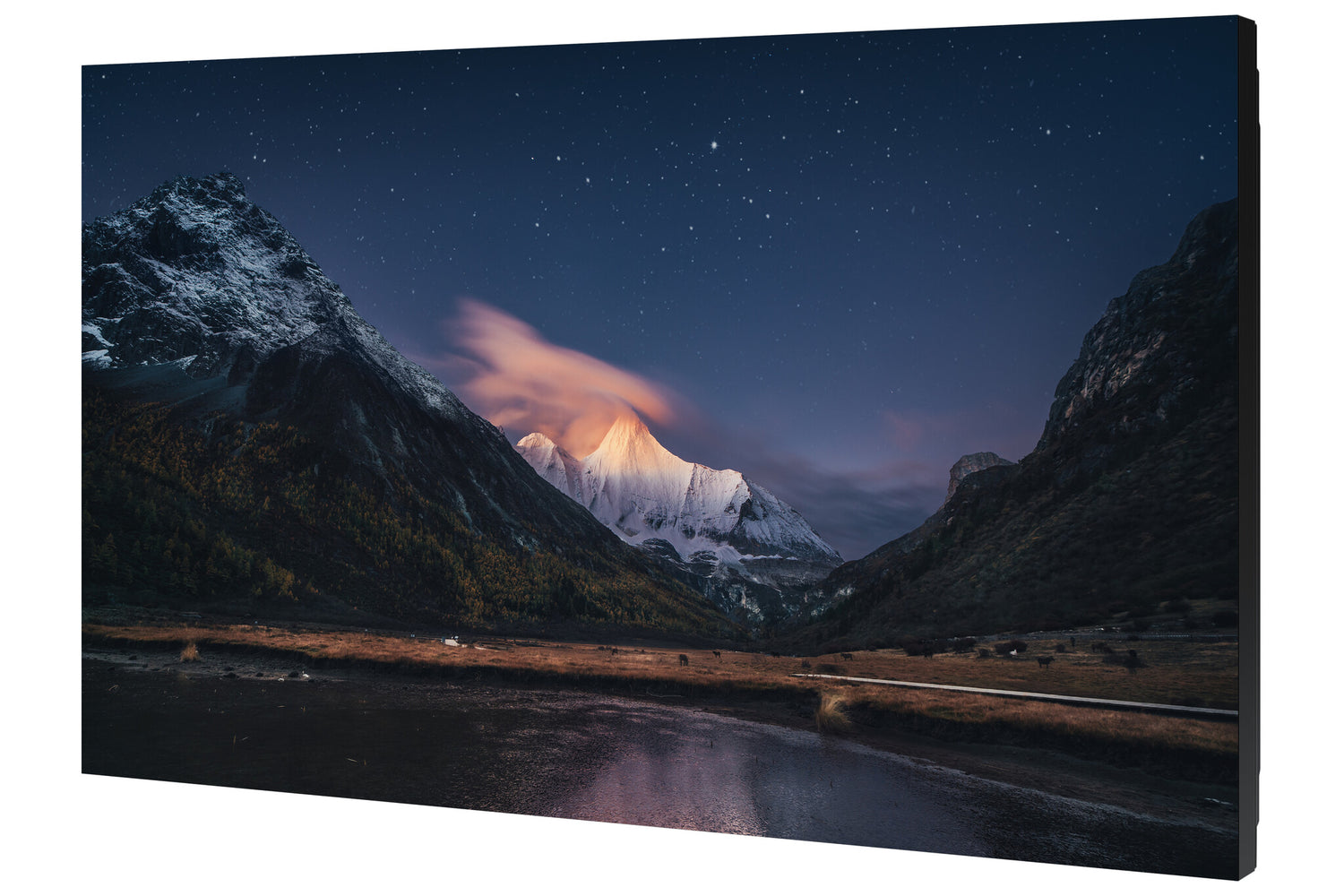

Samsung VM55C-R LCD Indoor

Samsung 55 16:9 FullHD VM55C-R direct-LED IPS 500nits DVI-D, DP 1.2, HDMI 2.0x2, DP-out, UHD Daisy chain, 0.88mm bezel to bezel VESA 600x400

Samsung 55 16:9 FullHD VM55C-R direct-LED IPS 500nits DVI-D, DP 1.2, HDMI 2.0x2, DP-out, UHD Daisy chain, 0.88mm bezel to bezel VESA 600x400

Display
Display technology	LCD
Display diagonal	139.7 cm (55")
Display resolution	1920 x 1080 pixels
HD type	Full HD
Panel type	IPS
Aspect ratio	16:9
Pixel pitch	0.63 x 0.63 mm
Pixel frequency	78 MHz
Display brightness	500 cd/m²
Contrast ratio (dynamic)	100000:1
Contrast ratio (typical)	1100:1
Response time	8 s
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Horizontal scan range	57.3 - 70 kHz
Vertical scan range	47 - 63 Hz
Haze rate	28%
Colour gamut	72%
Operating hours (hours/days)	24/7
Display diagonal (metric)	138 cm

Design
Placement supported	Indoor

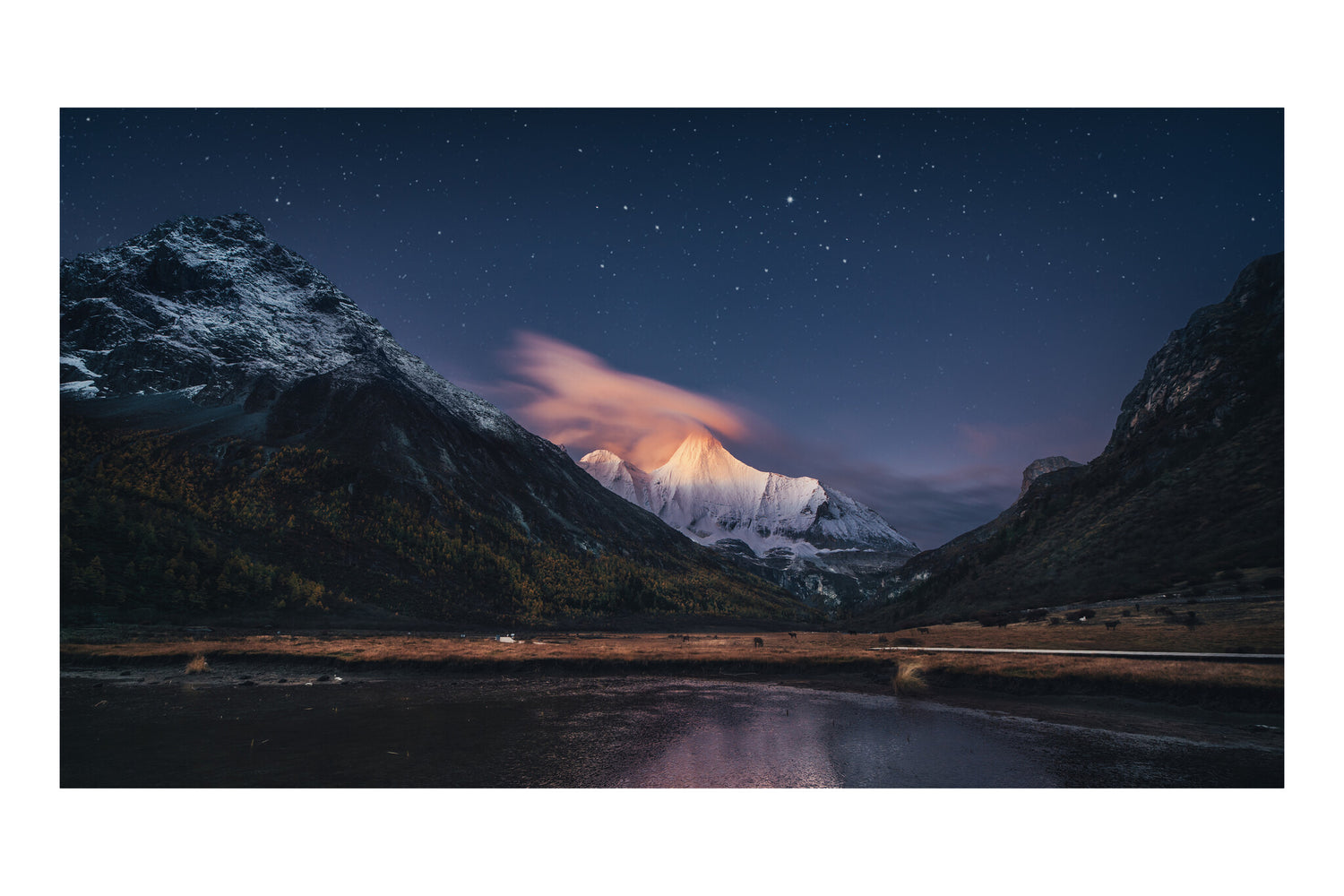

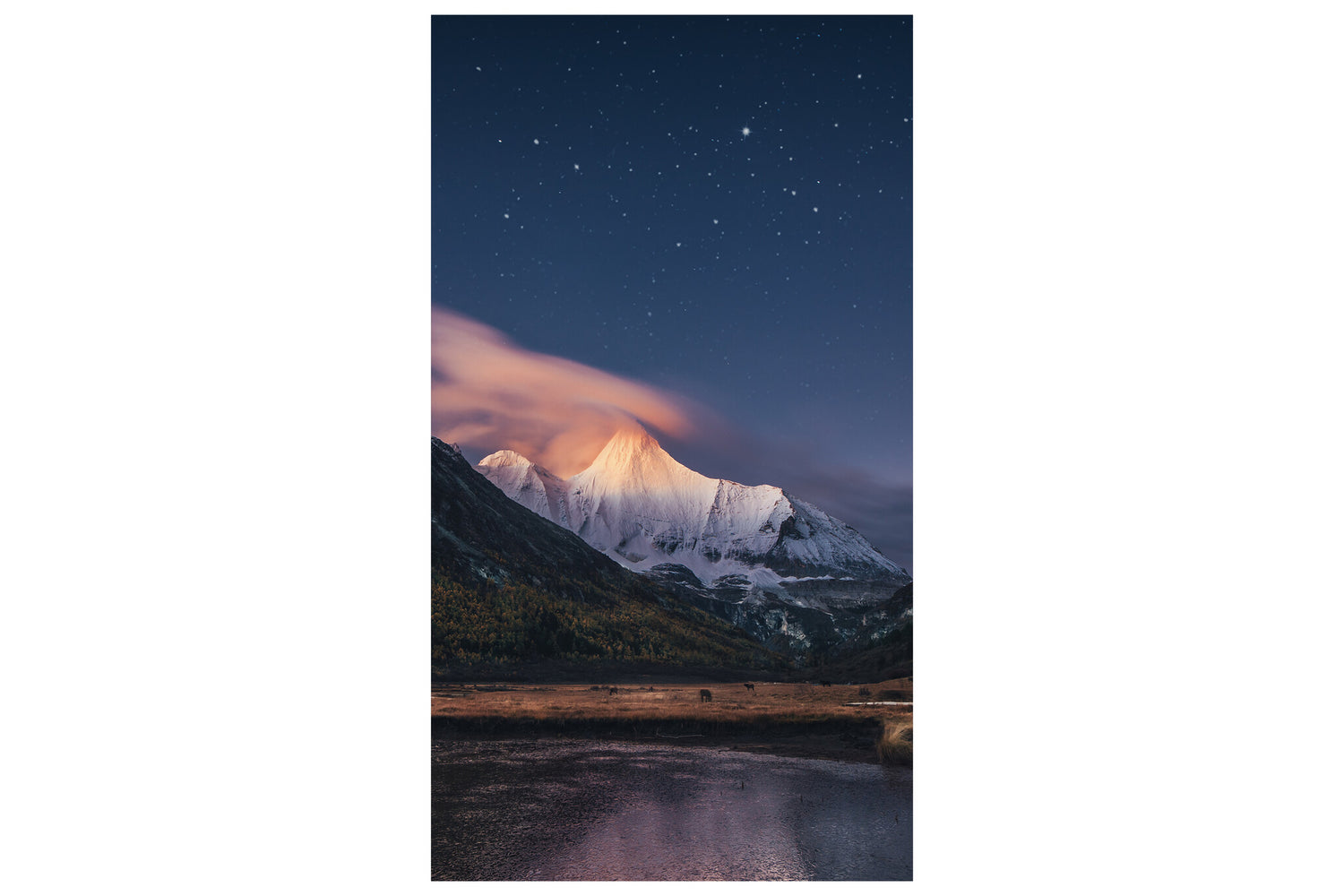

Orientation	Horizontal/Vertical
Bezel colour	Black
Bezel width (bottom)	0.44 mm
Bezel width (top)	0.44 mm
Bezel width (side)	0.44 mm
Tiled bezel width	0.44 mm
Frame material	Glossy
Wall mountable	Yes
VESA mounting	Yes
Panel mounting interface	600 x 400 mm
Product colour	Black

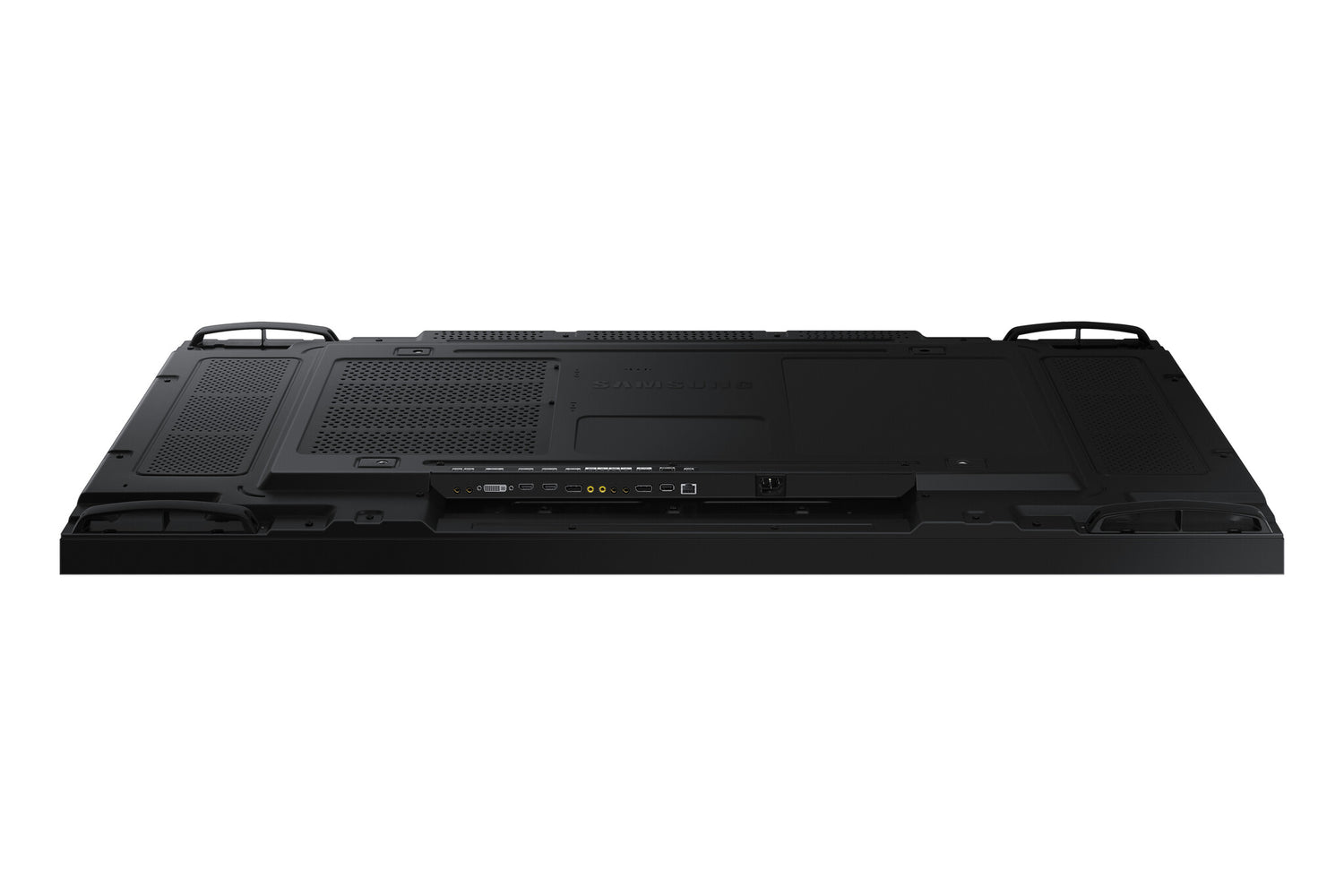

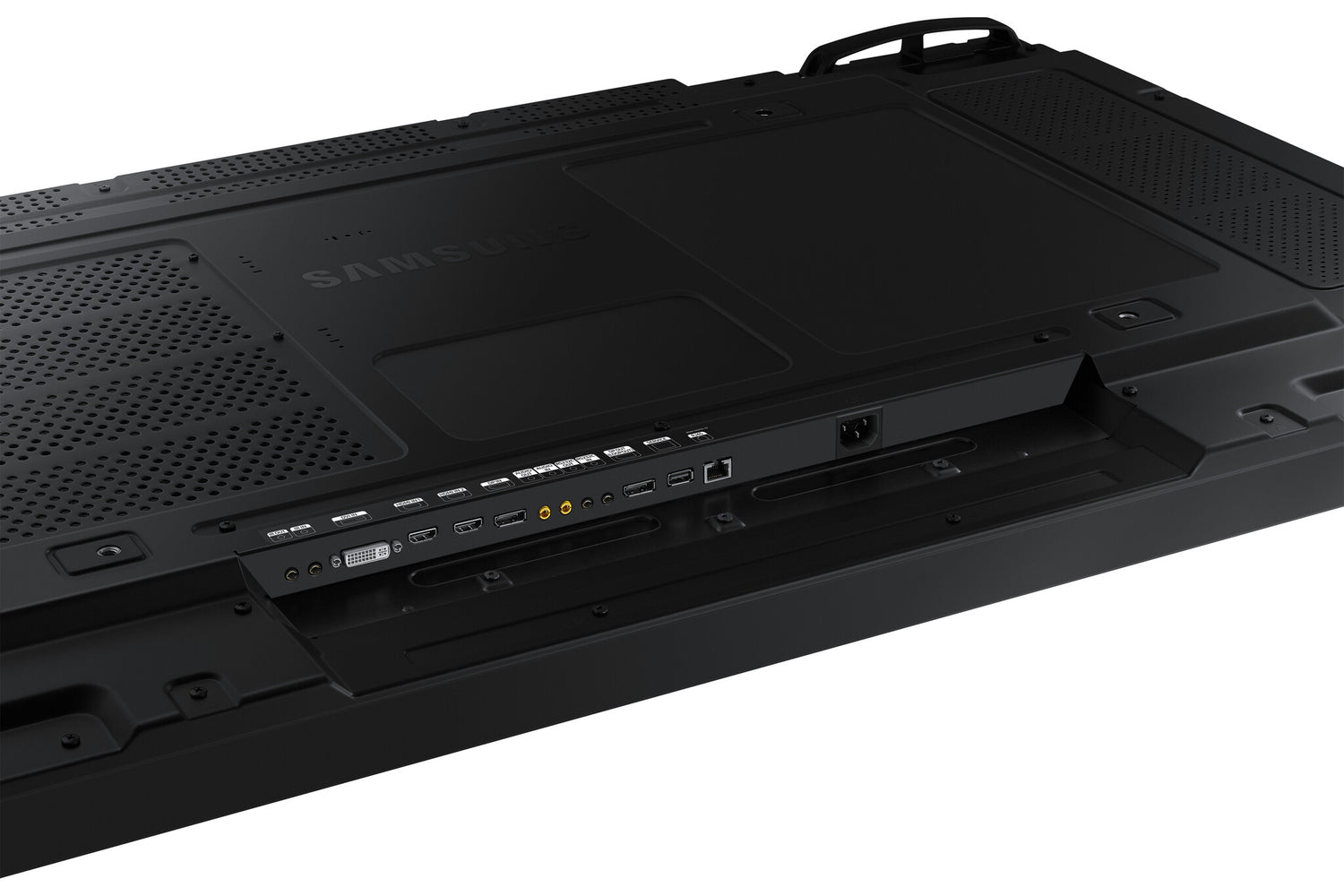

Ports & interfaces
HDMI ports quantity	2
HDMI input ports quantity	1
HDMI version	2.0
DVI port	Yes
DVI-D ports quantity	1
DisplayPorts quantity	1
DisplayPorts in	1
DisplayPort version	1.2
Ethernet LAN	Yes
RS-232 output ports	1
RS-232 input ports	1
Ethernet LAN (RJ-45) ports	1
USB port	Yes
USB ports quantity	1
Video out	Yes
Audio output	Yes
Audio input	Yes
IR input ports quantity	1
HDCP version	2.2
HDCP	Yes

Power
Power consumption (typical)	250 W
Power consumption (sleep)	0.5 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Energy consumption (SDR) per 1000 hours	155 kWh
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz

General
Product family	VMC-R

Technical details
Compliance certificates	CB, Federal Communications Commission (FCC)

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%

Sustainability
Certification	FCC (USA) Part 15, Subpart B Class B CE (Europe) : EN 55032:2015+A11:2020 / EN 55035:2017+A11:2020 / EN IEC 61000-3-2:2019 / EN 61000-3-3:2013+A1:2019 VCCI (Japan) : VCCI-CISPR32 : 2015 KC (Korea) : KS C 9832 / KS C 9835 RCM (Australia/ Newzealand) : AS/NCB (Europe) : IEC62368-1/EN62368-1 CCC (China) : GB 4943.1-2011 (Singapore ) : PSB+IEC62368-1NOM (Mexico ) : Tunerless : NOM-019-SCFI-1998IRAM (Argentina ) : IRAM+IEC62368-1 SIRC (Saudi Arabia ) : SASO+IEC62368-1 BIS (India) : IEC60950-1 / IS13252KC (Kore
Sustainability compliance	Yes

Weight & dimensions
Width	1211 mm
Depth	69.9 mm
Height	681.7 mm
Weight	16.8 kg

Packaging data
Package width	1414 mm
Package depth	257 mm
Package height	844 mm
Package weight	25.1 kg
