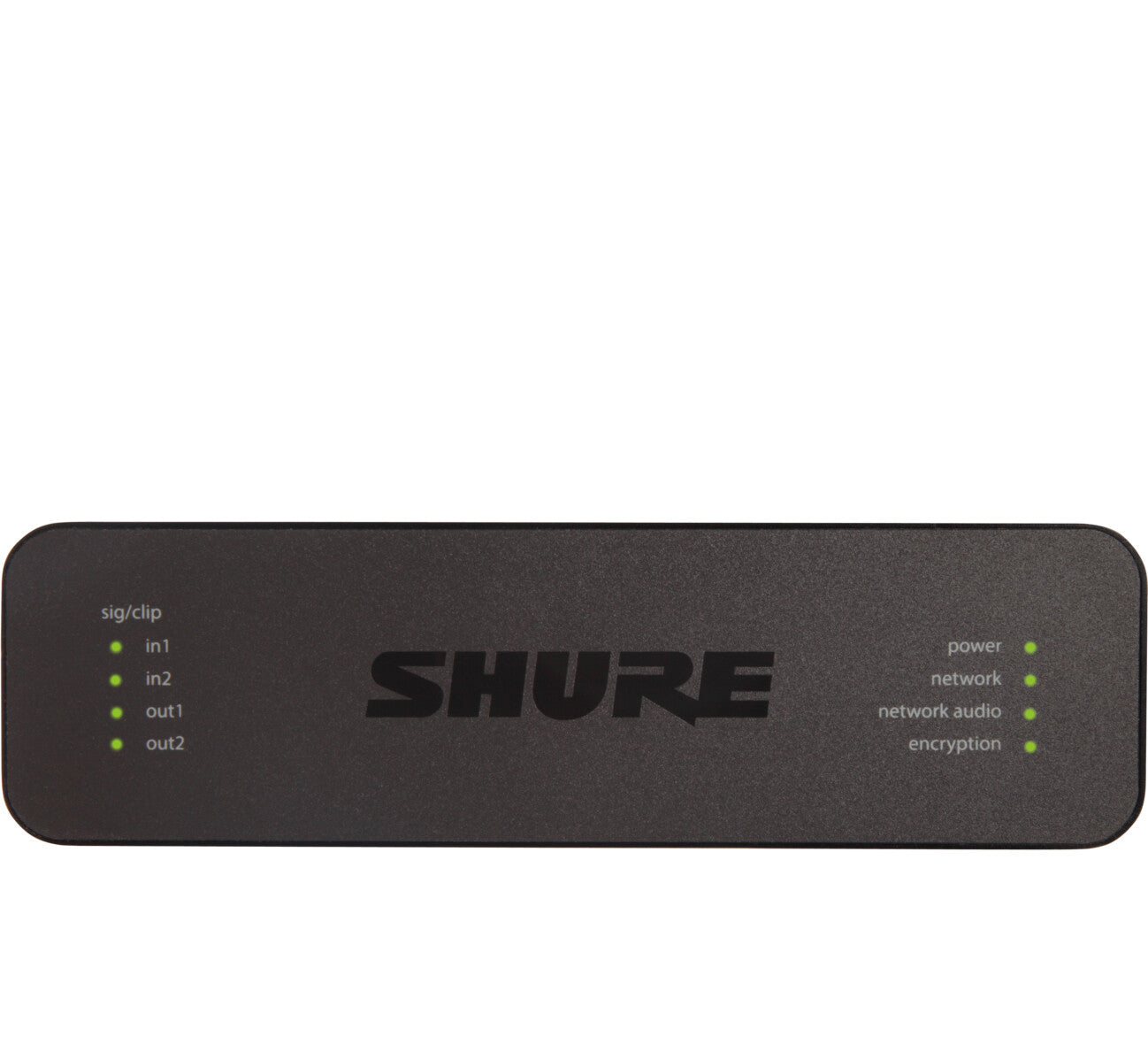

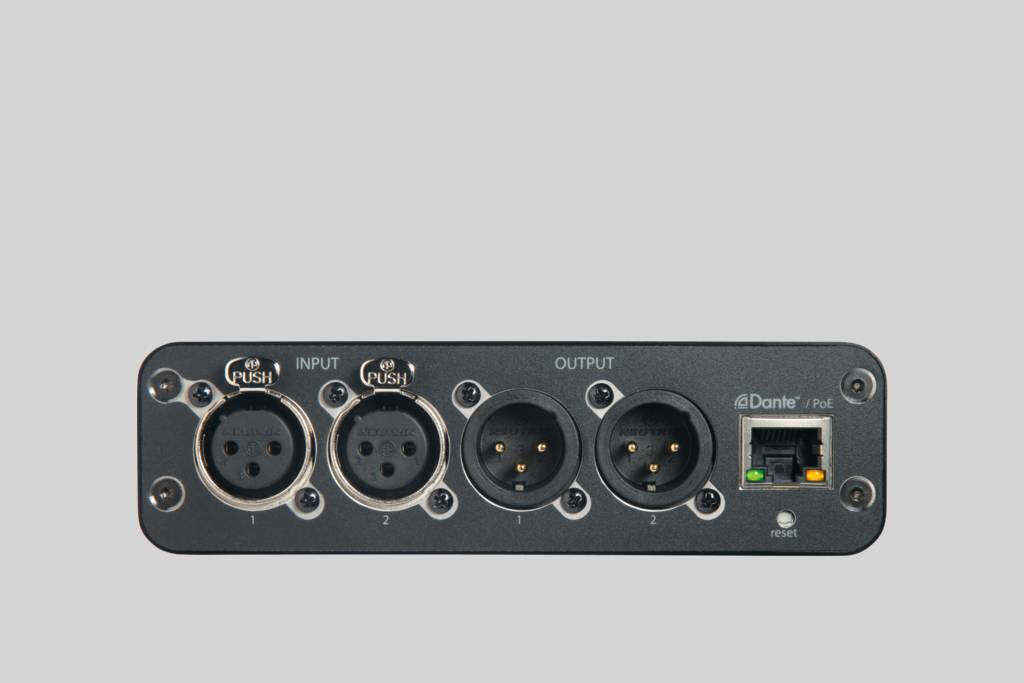

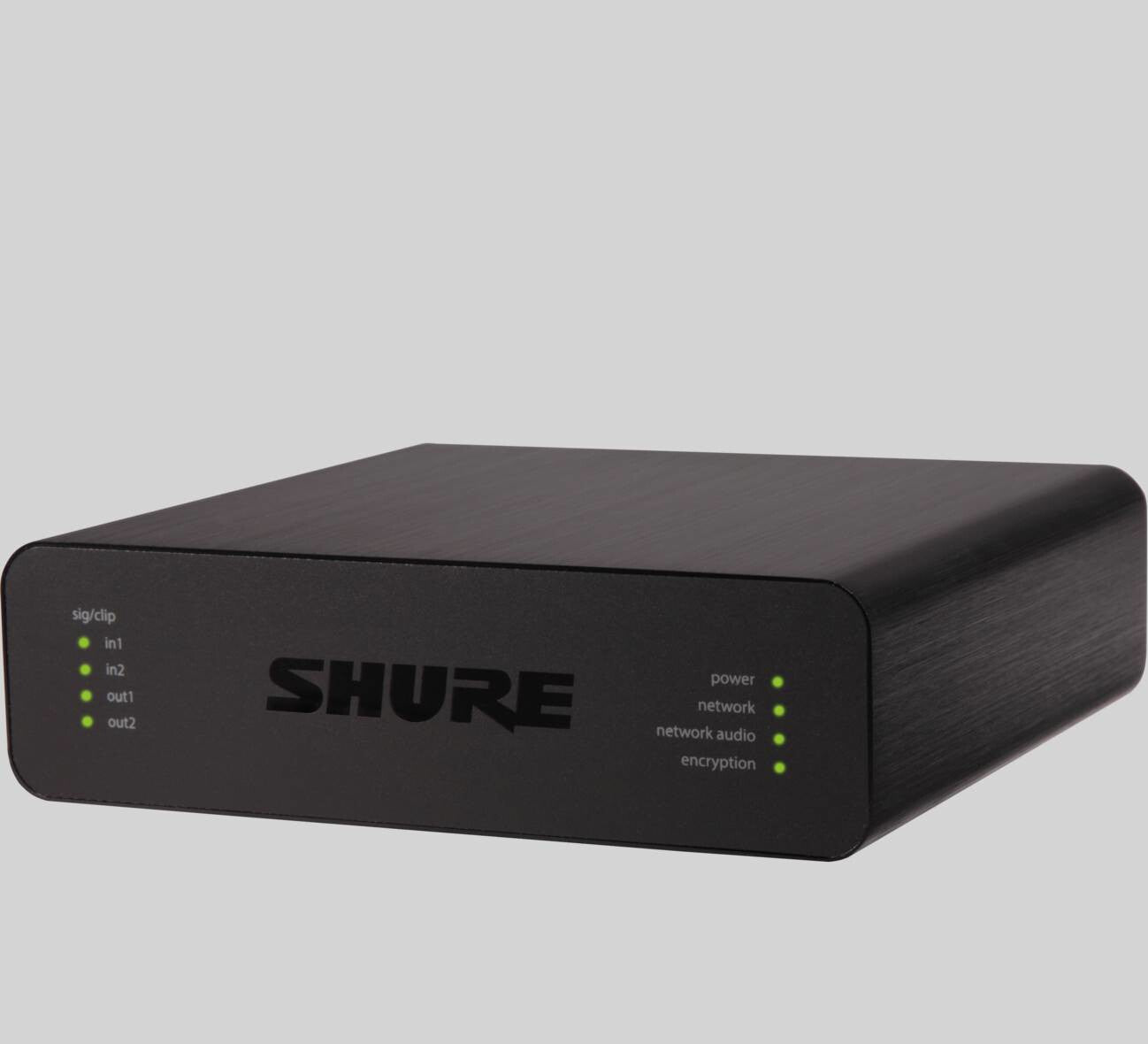

Shure ANI22 Black Ethernet LAN 20 - 20000 Hz
Shure | Varenummer:
500013781
Beskrivelse
Beskrivelse
Audio Network Interface, 3-pin XLR Connector
Audio network interface allows 2 analog mic or line inputs and 2 analog outputs to connect to a Dante network for easy audio routing and convenient browser-based remote control. Audio network interface complements the existing ANI4IN and ANI4OUT products.
More flexibility for every kind of application where it is required to get analog audio onto and from a Dante network: The ANI22 Audio Network Interface complements the existing ANI4IN and ANI4OUT products, and is available with XLR and block connectors. It brings up to two line / mic signals onto or from a Dante network for easy audio routing and convenient browser-based remote control.
Specifikationer
Specifikationer
| Audio | |
|---|---|
| Frequency range | 20 - 20000 Hz |
| Dynamic range | 113 dB |
| Total Harmonic Distortion (THD) + noise | 0.05% |
| Channels quantity | 2 channels |
| Design | |
|---|---|
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| XLR input | 2 |
| XLR out | 2 |
| Power | |
|---|---|
| Power consumption (typical) | 9.8 W |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -6.7 - 40 °C |
| Storage temperature (T-T) | -29 - 74 °C |
| Weight & dimensions | |
|---|---|
| Width | 140 mm |
| Depth | 128 mm |
| Height | 40 mm |
| Weight | 672 g |
