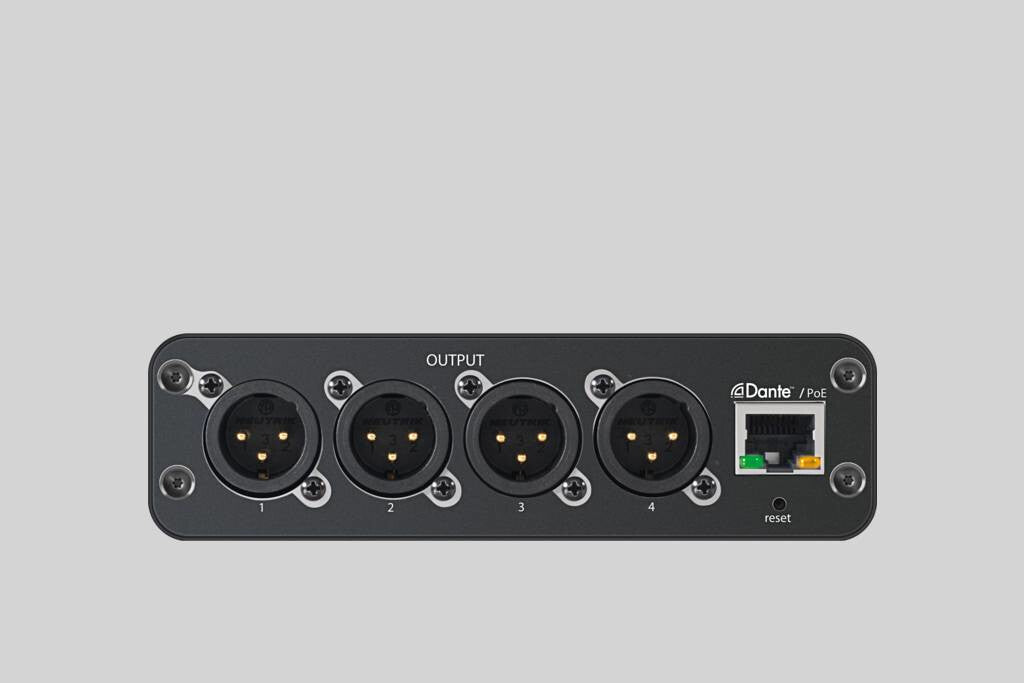

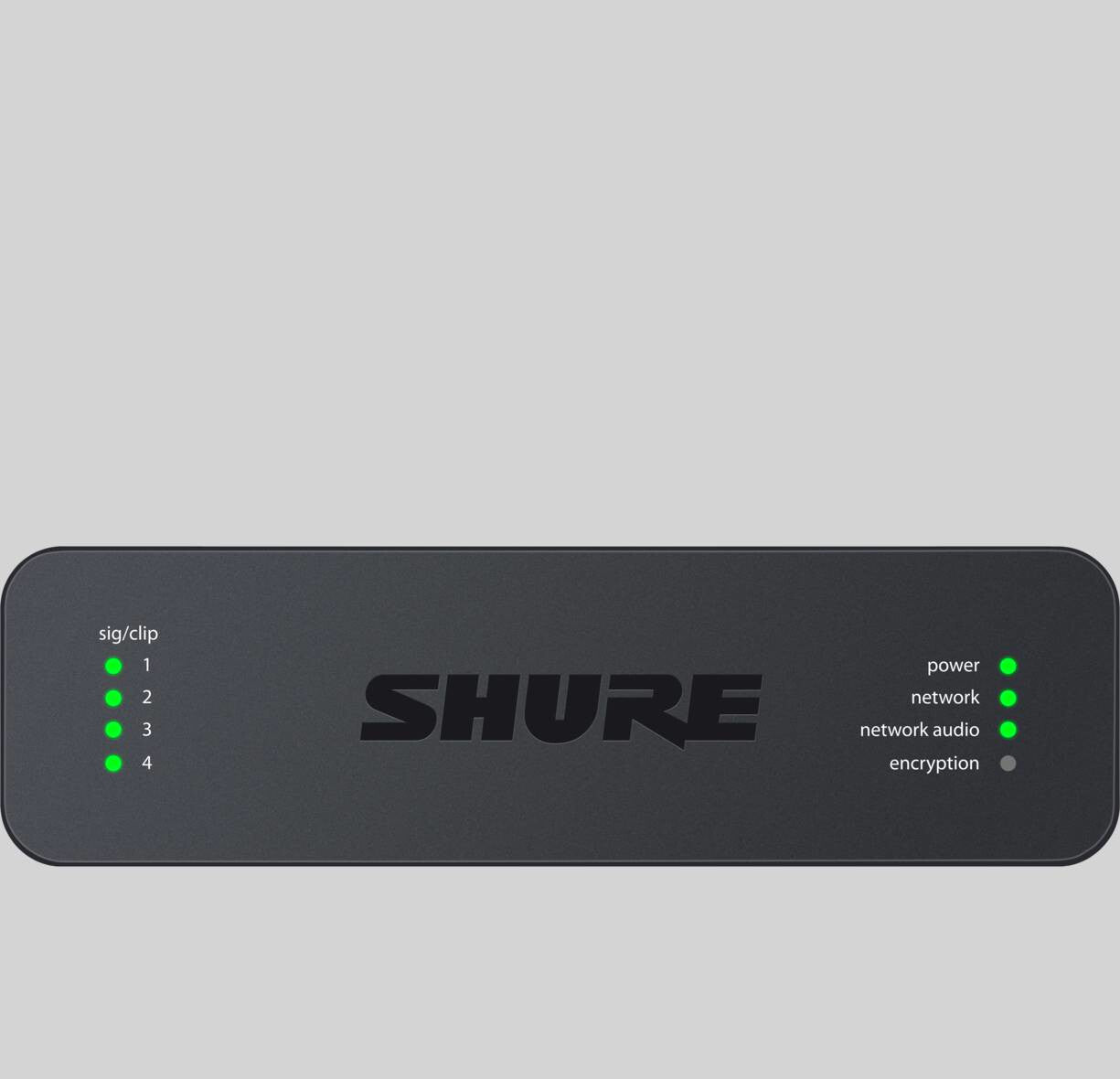

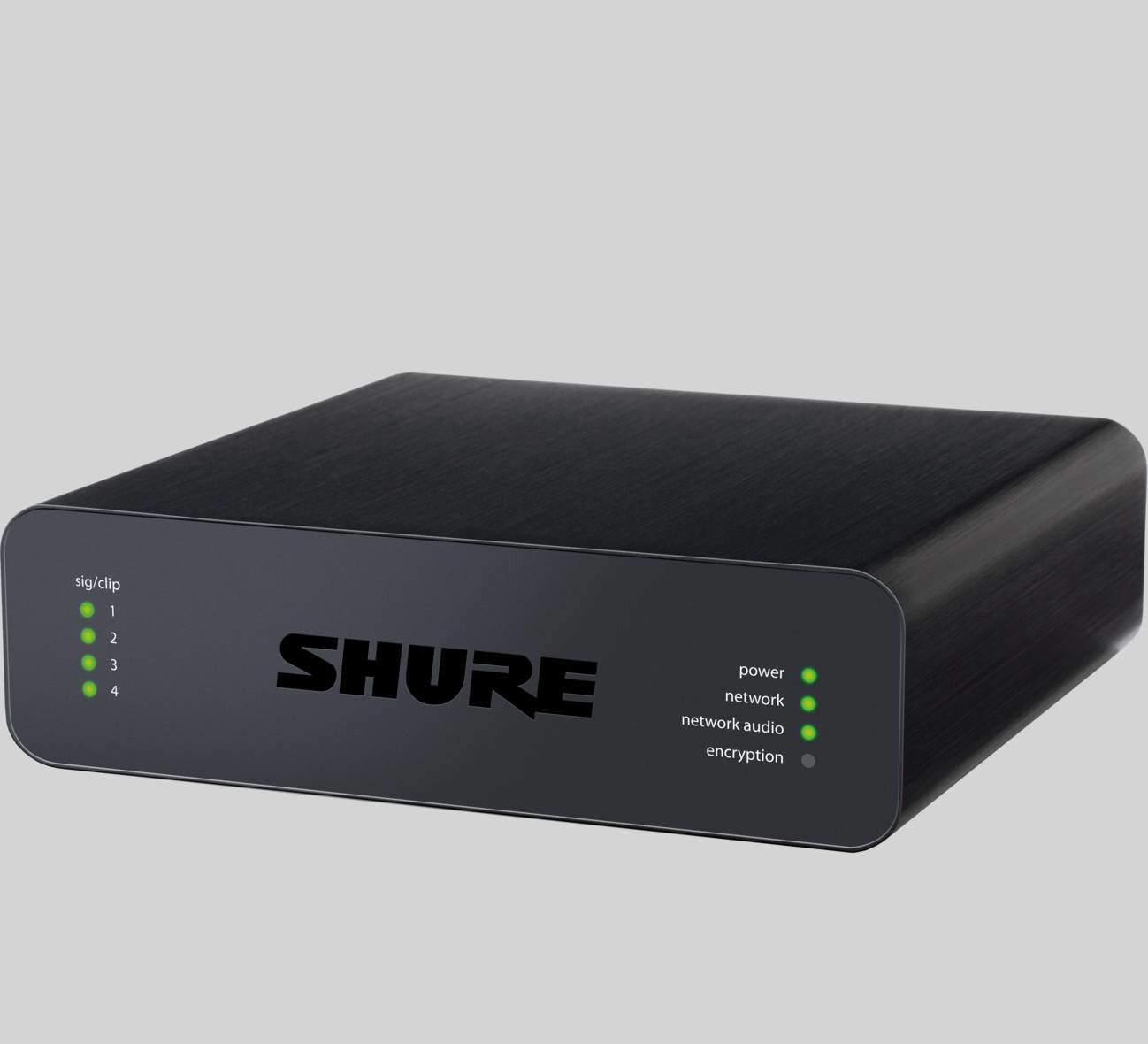

Shure ANI4OUT Black Ethernet LAN 20 - 20000 Hz
Shure | Varenummer:
500012353
Beskrivelse
Beskrivelse
3 Pin XLR, RJ45, PoE, 160 mA, 140 x 128 x 40 mm, 663 g
Audio network interface takes up to 4 analog wired microphones off of Dante for easy audio routing and convenient browser-based remote control.
Specifikationer
Specifikationer
| Audio | |
|---|---|
| Balanced line output level | 20 dB |
| Channels quantity | 4 channels |
| Total Harmonic Distortion (THD) + noise | 0.05% |
| Dynamic range | 117 dB |
| Frequency range | 20 - 20000 Hz |
| Design | |
|---|---|
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| XLR input | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
|---|---|
| External power supply | Yes |
| Power consumption (typical) | 10 W |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -29 - 74 °C |
| Operating temperature (T-T) | -6.7 - 40 °C |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 663 g |
| Height | 40 mm |
| Depth | 128 mm |
| Width | 140 mm |
Download
Download
PDF download:
Shure ANI4OUT Black Ethernet LAN 20 - 20000 Hz
