Shure P300 Black Ethernet LAN 20 - 20000 Hz

Shure  |  Varenummer: 500013983
Stregkode: 0042406525206,042406525206

Beskrivelse

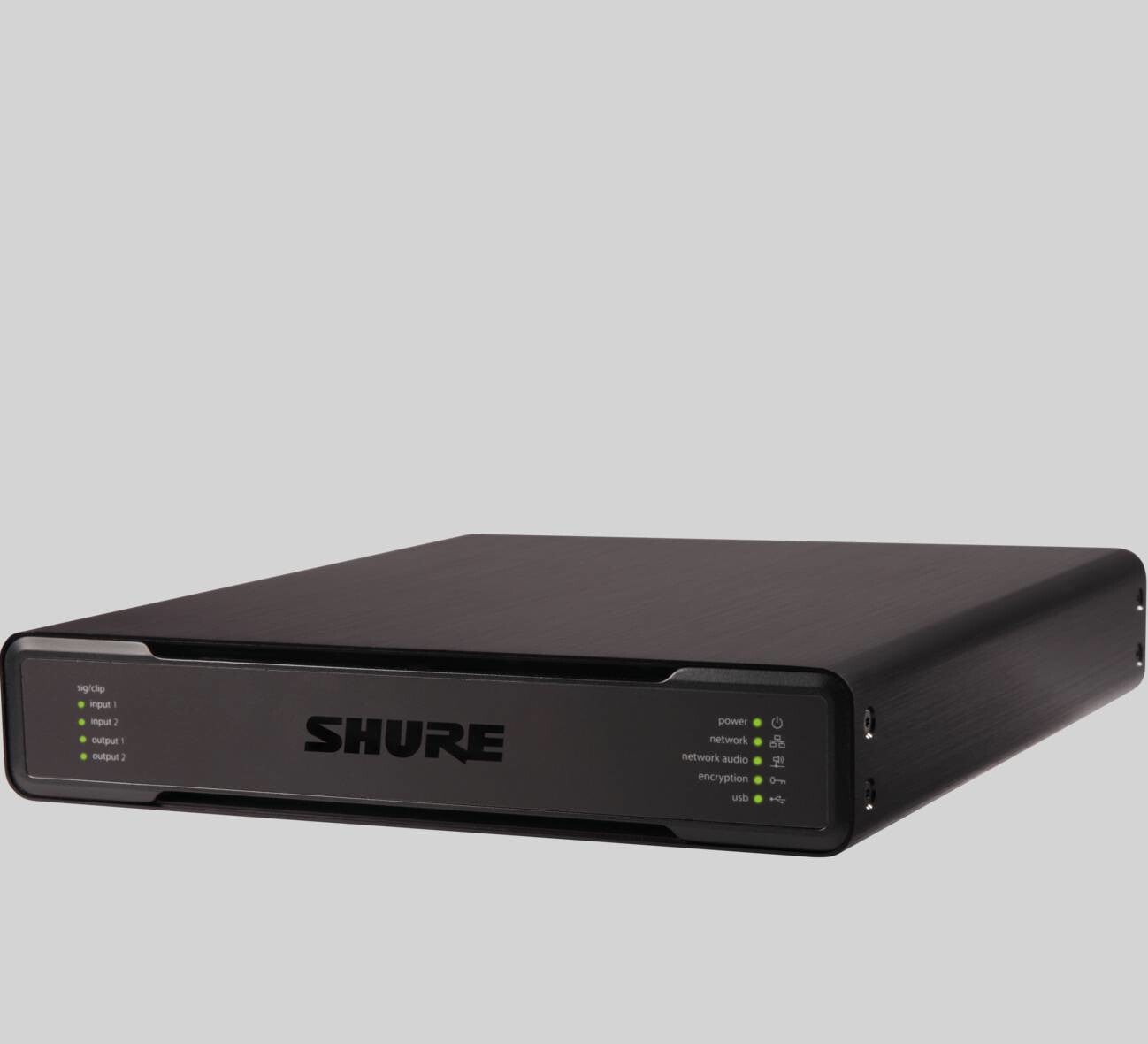

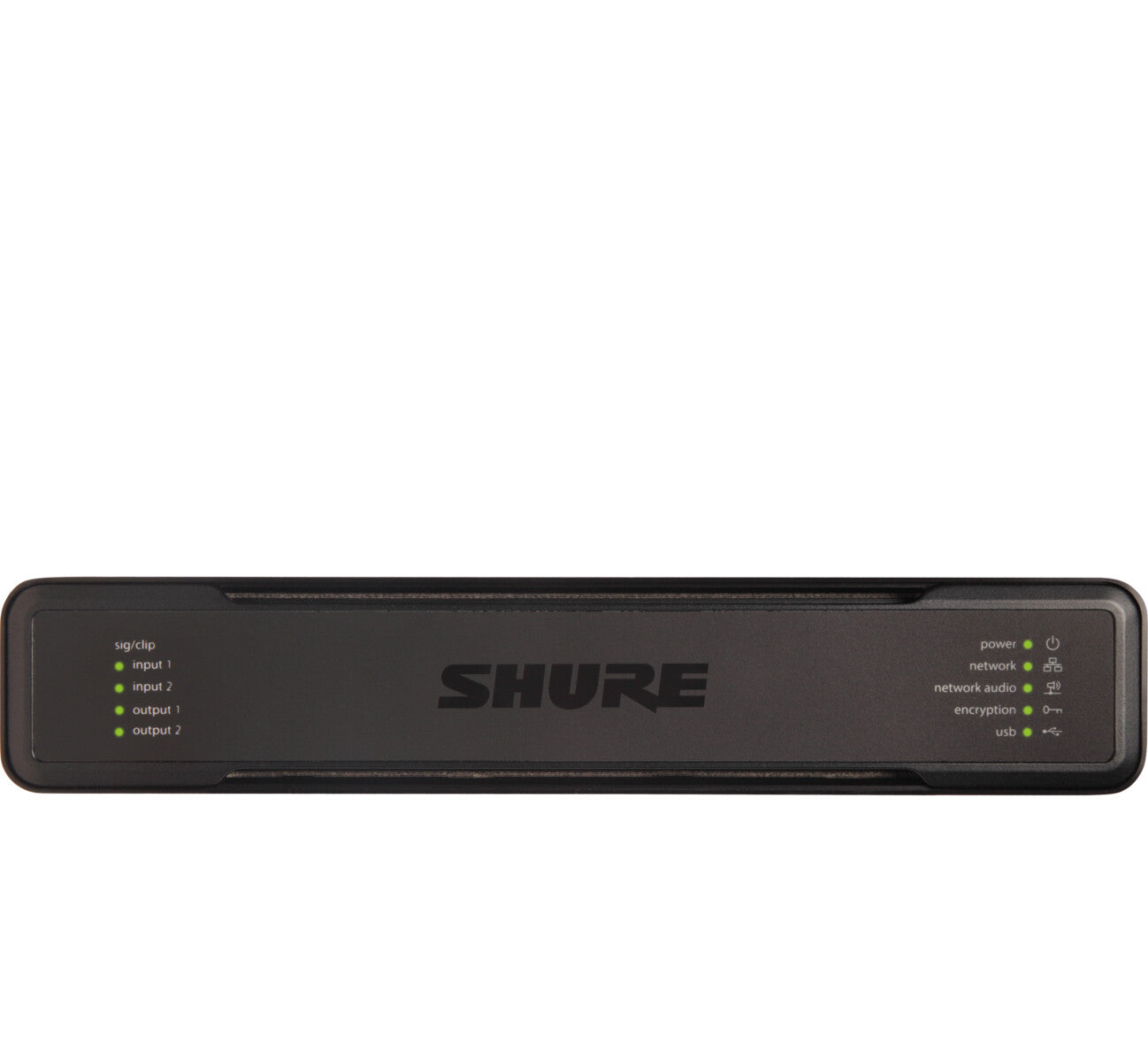

Audio Conferencing Processor, 10 inputs / 10 outputs, 3,5 mm, BLOCK, RJ45, USB

Audio conferencing processor offers IntelliMix DSP algorithms optimized for audio/video conferencing applications. Includes 10 Dante inputs, 2 analog inputs, 8 channels of microphone processing with AEC, delay, compressor, gain control, and more.

The IntelliMix P300 Audio Conferencing Processor offers a predefined matrix and presets to simplify the set up process reducing the lengthy commissioning time often associated with DSP. The unobtrusive form factor allows discrete installations, making it compatible for a wider variety of meeting rooms. Versatile connectivity options provide freedom of choice when joining a room video system including via soft codec, or connecting laptops and mobile devices. Featuring acoustic echo cancellation, noise reduction and automatic gain control for up to 8 Dante channels, the P300 ensures echo- and noise-free conference room audio.

Specifikationer

Audio
Supported sample rates 48 kHz
Channels quantity 10 channels
Total Harmonic Distortion (THD) + noise 0.05%
Frequency range 20 - 20000 Hz
Design
Product colour Black

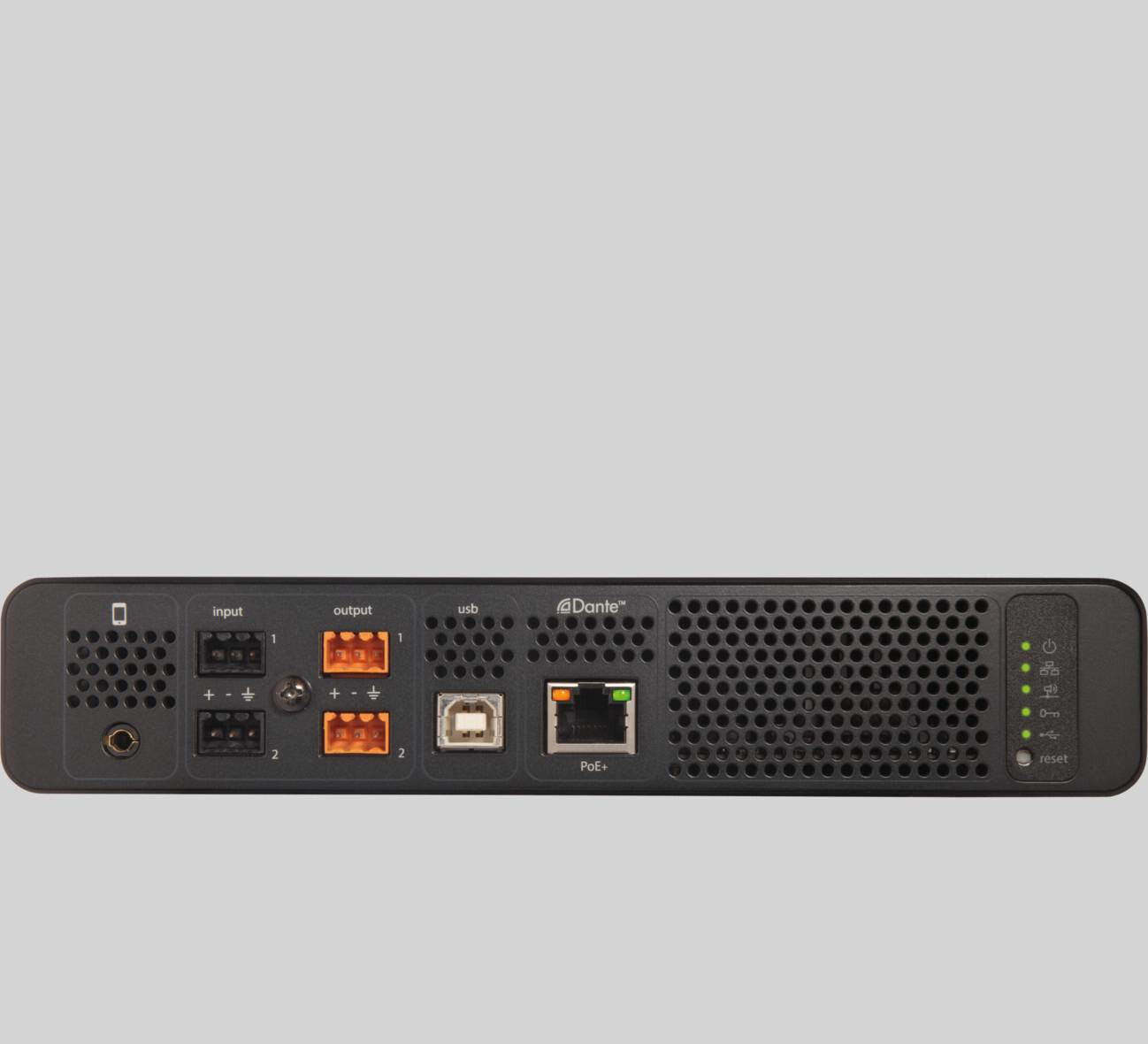

Ports & interfaces
Ethernet LAN (RJ-45) ports 1
USB 2.0 ports quantity 1
USB connector type USB Type-B
Audio connector type 3.5 mm (1/8")
Audio input 2
Audio output 2
Power
Input current 0.16 A
Power consumption (typical) 17.5 W
Network
Ethernet LAN Yes
Operational conditions
Storage temperature (T-T) -29 - 74 °C
Operating temperature (T-T) -6.7 - 50 °C
Weight & dimensions
Weight 1.71 kg
Height 40 mm
Depth 226 mm
Width 210 mm

Download

PDF download:
Shure

Shure P300 Black Ethernet LAN 20 - 20000 Hz
