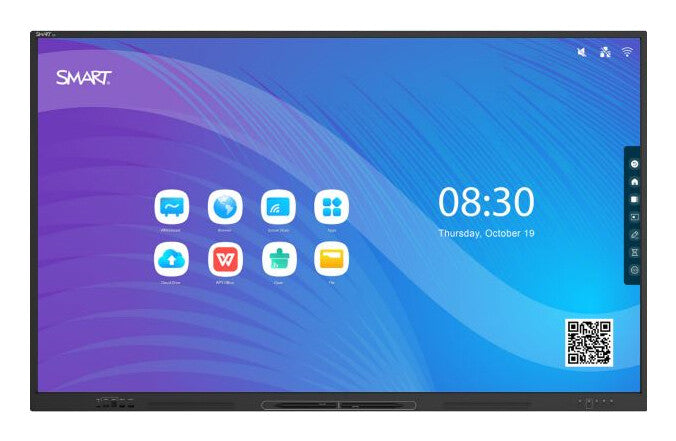

SMART Technologies GX186-V3 Signage Display Interactive flat panel 2.18 m (86") LED Wi-Fi 400 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android
SMART Technologies | Varenummer:
GX186-V3
Beskrivelse
Beskrivelse
86", 3840 x 2160, 16:9, 400 cd/m², 8 ms, 20 W x 2, 8/64 GB, Wi-Fi 6, Bluetooth 5.0, HDMI x 4, 65 kg
Specifikationer
Specifikationer
| Display | |
|---|---|
| Display diagonal | 2.18 m (86") |
| Display technology | LED |
| LED backlight | Yes |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 400 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 20 |
| Multi-touch | Yes |
| Number of simultaneous touchpoints (Android) | 32 |
| Number of simultaneous touchpoints (Windows) | 40 |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Touch response time | 8 ms |
| Native refresh rate | 60 Hz |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| HDMI output ports quantity | 4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| USB port | Yes |
| USB ports quantity | 9 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11ad, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 40 W |
| Design | |
|---|---|
| Product design | Interactive flat panel |
| Product colour | Black |
| Placement supported | Indoor |
| Orientation | Horizontal |
| VESA mounting | Yes |
| Panel mounting interface | 800 x 400 mm |
| Anti-glare screen | Yes |
| Performance | |
|---|---|
| Purpose | Education |
| Ambient light sensor | Yes |
| HDCP version | 1.4/2.2 |
| HDCP | Yes |
| Security algorithms | WEP, WPA, WPA2, WPA3-PSK |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
|---|---|
| Power consumption (typical) | 119 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Computer system | |
|---|---|
| Built-in processor | Yes |
| Processor cores | 4 |
| Internal memory | 8 GB |
| Internal storage capacity | 64 GB |
| Operating system installed | Android |
| Operating system version | 13 |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Weight & dimensions | |
|---|---|
| Display width | 1963 mm |
| Display depth | 88 mm |
| Display height | 1171 mm |
| Display weight | 65 kg |
| Packaging data | |
|---|---|
| Package width | 2165 mm |
| Package depth | 160 mm |
| Package height | 1445 mm |
| Package weight | 90 kg |
| Packaging content | |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Number of stylus pens | 2 |
| Cables included | AC, USB Type-A to USB Type-B |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
| Features | |
|---|---|
| Suitable for indoor use | Yes |
| Wall mountable | Yes |
| Technical details | |
|---|---|
| OPS slot | 1 |
| Compliance certificates | CE, ISED, Low Voltage Directive (LVD), RCM, REACH, UKCA, WEEE, cULus |
