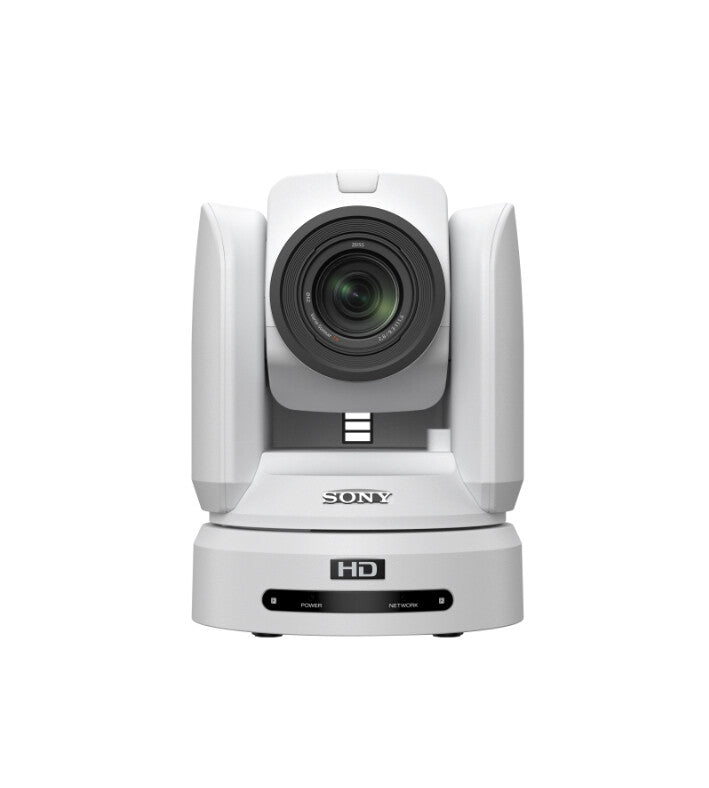

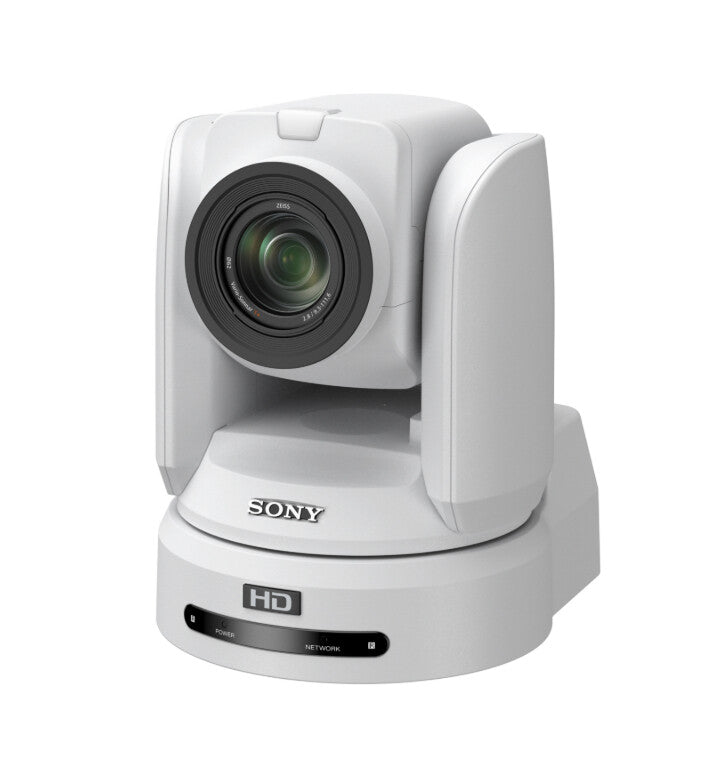

BRC-H800, 1" Exmor R CMOS, 14.2 MP, 1080p, f 9.3-111.6 mm, F 2.8, F 4.5, 2x 3G-SDI, HDMI, RS-422, 198 x 260 x 238 mm, 4300 g, white, AC adapter
Remotely capture broadcast quality Full HD images with smooth, silent PTZ and excellent low-light sensitivity.
The BRC-H800 remote camera combines uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections.
Designed for unattended operation, this compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It's equally at home in TV newsrooms, remote studios and on-air suites, auditoriums, houses of worship, courtrooms or sports stadiums. It's also particularly suited to efficient multi-camera set-ups, under the control of a single operator.
The 1-inch type Exmor R CMOS image sensor captures crisp, low-noise Full HD images at 60p, with excellent low-light sensitivity. The large image sensor also allows the creation of beautiful 'bokeh' effects with a shallow depth of field to suit any artistic intention.
Speedy, near-silent PTZ operation with 12x optical zoom accommodates wide-angle scenes and tightly framed close-ups, with Clear Image Zoom 24x(HD) extending this range even further without visible loss of resolution. Broadcast-friendly features include dual tally lamps for on-air operation, while operational flexibility is enhanced with options for ceiling, table top or tripod mounting. There’s also a broad range of video interfacing and remote control possibilities - plus support for PoE+ and genlock - for smooth integration into any broadcast, professional or corporate AV environment.
| Performance |
| Type |
IP security camera |
| Placement supported |
Indoor |
| Connectivity technology |
Wired |
| PTZ control |
Yes |
| Preset points |
Yes |
| Day/night mode |
Yes |
| Light exposure modes |
Auto, Manual, Shutter priority AE |
| Design |
| Form factor |
Dome |
| Mounting type |
Ceiling |
| Product colour |
White |
| Camera |
| Minimum illumination |
1.7 lx |
| Lens viewing angle, horizontal |
64.6° |
| Tilt angle range |
-30 - 90° |
| Tilt speed |
60 °/sec |
| Pan range |
-170 - 170° |
| Pan speed |
60 °/sec |
| White balance |
Auto, Manual |
| Camera shutter speed |
1/10000s - 1/8 (59.94/29.97); 1/10000s - 1/6 (50/25/23.98) |
| Image sensor |
| Sensor type |
CMOS |
| Number of sensors |
1 |
| Optical sensor size |
25.4 / 0 mm (1 / 0") |
| Lens system |
| Number of lenses |
1 |
| Zoom capability |
Yes |
| Optical zoom |
12x |
| Focal length range |
9.3 - 111.6 mm |
| Auto focus |
Yes |
| Focus |
Motorized/Manual |
| Minimum aperture number |
2.8 |
| Maximum aperture number |
4.5 |
| Closest focusing distance |
0.08 m |
| Video |
| Total megapixels |
20.4 MP |
| Supported video modes |
720p, 1080i, 1080p |
| Gain control type |
Auto/Manual |
| Number of TV lines (horizontal) |
850 |
| Network |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Bluetooth |
No |
| Ports & interfaces |
| DC-in jack |
Yes |
| Interface |
RJ-45/BNC |
| Power |
| Power source type |
DC, PoE |
| Power consumption (max) |
19 W |
| Power consumption (Power over Ethernet (PoE)) |
23 W |
| DC output voltage |
12 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Weight & dimensions |
| Width |
198 mm |
| Depth |
238 mm |
| Height |
260 mm |
| Weight |
4.3 kg |
| Packaging content |
| Number of cameras |
1 |
| Mounting kit |
Yes |
| AC adapter included |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85258900 |
