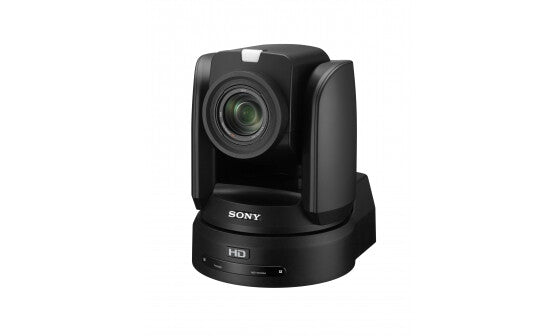

Sony BRC-H800 security camera Dome IP security camera Indoor Ceiling

Sony  |  Varenummer: BRC-H800
Stregkode: 0027242913530

Beskrivelse

20.4 MP, 1.7lux, 12x Zoom, ±170° Pan, -30°-90° Tilt,

Remotely capture broadcast quality Full HD images with smooth, silent PTZ and excellent low-light sensitivity.

The BRC-H800 remote camera combines uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections.
Designed for unattended operation, this compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It's equally at home in TV newsrooms, remote studios and on-air suites, auditoriums, houses of worship, courtrooms or sports stadiums. It's also particularly suited to efficient multi-camera set-ups, under the control of a single operator.
The 1-inch type Exmor R CMOS image sensor captures crisp, low-noise Full HD images at 60p, with excellent low-light sensitivity. The large image sensor also allows the creation of beautiful 'bokeh' effects with a shallow depth of field to suit any artistic intention.
Speedy, near-silent PTZ operation with 12x optical zoom accommodates wide-angle scenes and tightly framed close-ups, with Clear Image Zoom 24x(HD) extending this range even further without visible loss of resolution. Broadcast-friendly features include dual tally lamps for on-air operation, while operational flexibility is enhanced with options for ceiling, table top or tripod mounting. There’s also a broad range of video interfacing and remote control possibilities - plus support for PoE+ and genlock - for smooth integration into any broadcast, professional or corporate AV environment.

Specifikationer

Performance
Type IP security camera
Placement supported Indoor
Preset points Yes
Day/night mode Yes
Light exposure modes Aperture priority AE, Auto, Manual
Design
Form factor Dome
Mounting type Ceiling
Product colour Black
Camera
Minimum illumination 1.7 lx
Lens viewing angle, horizontal 64.6°
Tilt angle range -30 - 90°
Tilt speed 60 °/sec
Pan range -170 - 170°
Pan speed 60 °/sec
White balance Auto, Indoor, Manual, One push, Outdoor
Preset programs quantity 16
Camera shutter speed 1/6 s
Image sensor
Sensor type CMOS
Lens system
Optical zoom 12x
Focal length range 9.3 - 111.6 mm
Focus Motorized/Manual
Video
Gain control type Auto/Manual
Automatic gain control Yes
Flip & mirror Yes
Full HD Yes
Network
Ethernet LAN Yes
Networking standards IEEE 802.1Qaz
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
RS-422 ports 1
HDMI ports quantity 2
Management features
Remotely operated Yes
Power
Power source type PoE
Power consumption (typical) 19 W
Power consumption (Power over Ethernet (PoE)) 23 W
Power over Ethernet (PoE) Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Weight & dimensions
Width 198 mm
Depth 260 mm
Height 238 mm
Weight 4.3 kg
Packaging content
Number of cameras 1
Remote control included Yes
Mounting kit Yes
Screws included Yes
Logistics data
Harmonized System (HS) code 85258900
