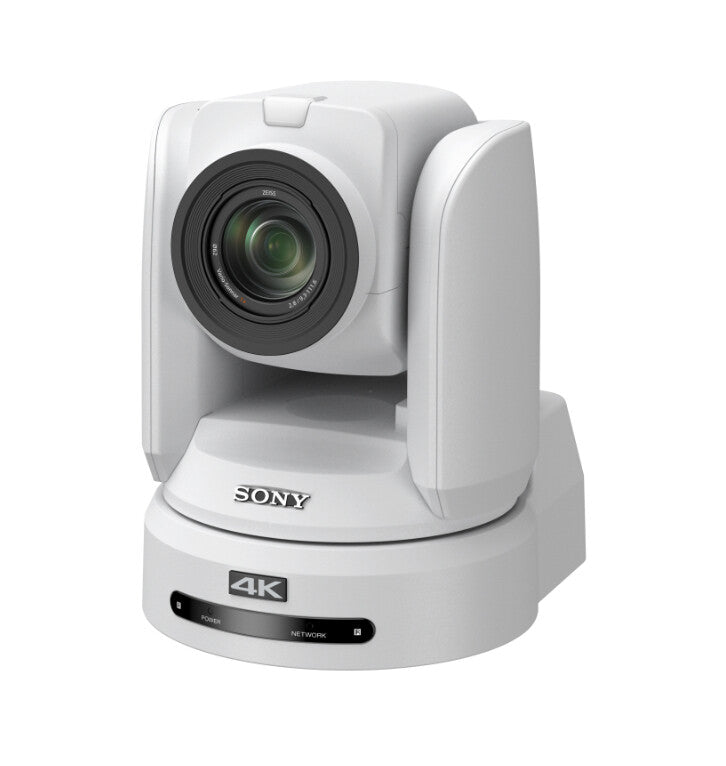

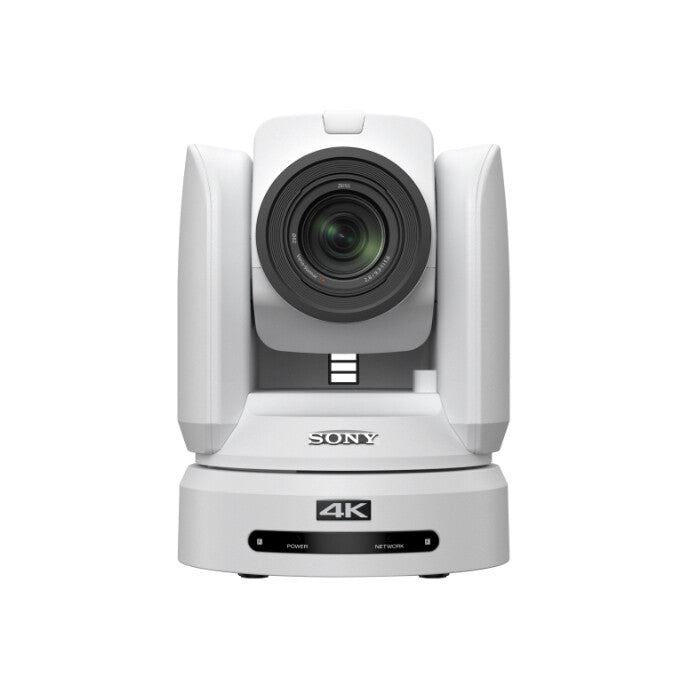

Sony BRC-X1000 Dome IP security camera Indoor

Sony  |  Varenummer: BRC-X1000W/AC

Beskrivelse

BRC-X1000, 1" Exmor R CMOS, 14.2 MP, 2160p, PTZ, RS-422, 3G-SDI, HDMI, 198 x 260 x 238 mm, 4300 g, white, AC adapter

Remotely capture broadcast quality 4K images with smooth, silent PTZ and excellent low-light sensitivity

The BRC-X1000 is Sony's first 4K remote camera, combining uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections.

Designed for remote operation, this compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It's equally at home in TV newsrooms, remote studios and on-air suites, auditoriums, houses of worship, courtrooms or sports stadiums. It's also particularly suited to efficient multi-camera set-ups, under the control of a single operator.

The 1-inch type Exmor R CMOS image sensor captures detail-packed 4K footage at 30p with four times the pixel count of Full HD, and excellent low-light sensitivity. The large image sensor also allows the creation of beautiful 'bokeh' effects with a shallow depth of field to suit any artistic intention.

Speedy, near-silent PTZ operation with 12x optical zoom accommodates wide-angle scenes and tightly framed close-ups, with Clear Image Zoom 18x (4K), 24x(HD) extending this range even further without visible loss of resolution. Broadcast-friendly features include dual tally lamps for on-air operation, while operational flexibility is enhanced with options for ceiling, table top or tripod mounting.

There’s also a broad range of video interfacing and remote control possibilities - plus support for PoE+ and genlock - for smooth integration into any broadcast, professional or corporate AV environment.

Specifikationer

Performance
Light exposure modes Auto, Manual, Shutter priority AE
Antenna gain level (max) 33 dBi
Day/night mode Yes
PTZ control Yes
Connectivity technology Wired
Placement supported Indoor
Type IP security camera
Design
Product colour White
Form factor Dome
Camera
Camera shutter speed 1/10000s - 1/8 (59.94/29.97); 1/10000s - 1/6 (50/25/23.98)
White balance Auto, Indoor, Manual, Outdoor
Pan speed 60 °/sec
Pan range -170 - 170°
Tilt speed 60 °/sec
Tilt angle range -30 - 90°
Lens viewing angle, horizontal 64.6°
Minimum illumination 1.7 lx
Image sensor
Optical sensor size 25.4 / 0 mm (1 / 0")
Number of sensors 1
Sensor type CMOS
Lens system
Maximum aperture number 4.5
Minimum aperture number 2.8
Auto focus Yes
Focal length range 9.3 - 111.6 mm
Optical zoom 12x
Zoom capability Yes
Number of lenses 1
Video
Number of TV lines 1800
Gain control type Auto/Manual
Supported video modes 720p, 1080i, 1080p, 2160p
Total megapixels 20.4 MP
Network
Bluetooth No
Wi-Fi No
Ethernet LAN Yes
Storage
Built-in HDD No
Ports & interfaces
Interface RJ-45
DC-in jack Yes
Power
DC output voltage 12
Power consumption (Power over Ethernet (PoE)) 25.5 W
Power consumption (max) 21.5 W
Power source type DC, PoE
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 4.3 kg
Depth 238 mm
Width 198 mm
Packaging content
AC adapter included Yes
Number of cameras 1
Logistics data
Harmonized System (HS) code 85258900
