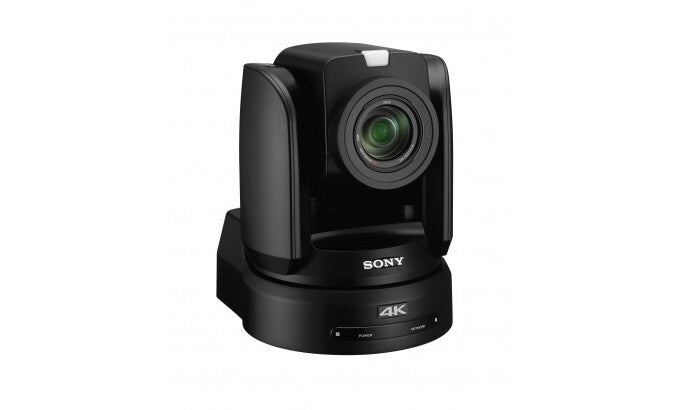

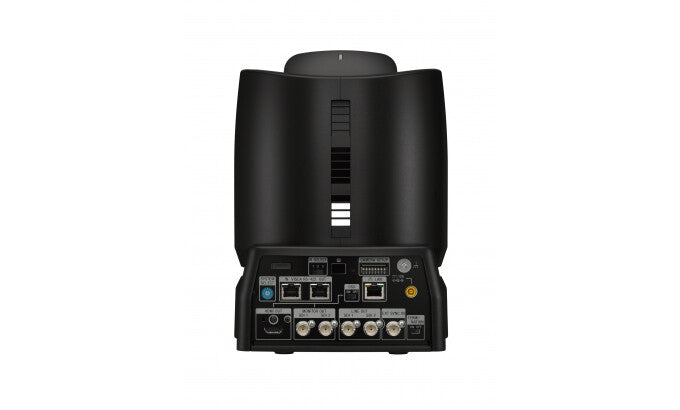

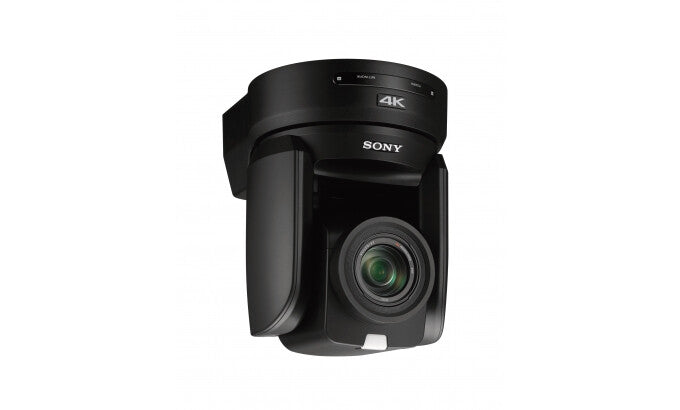

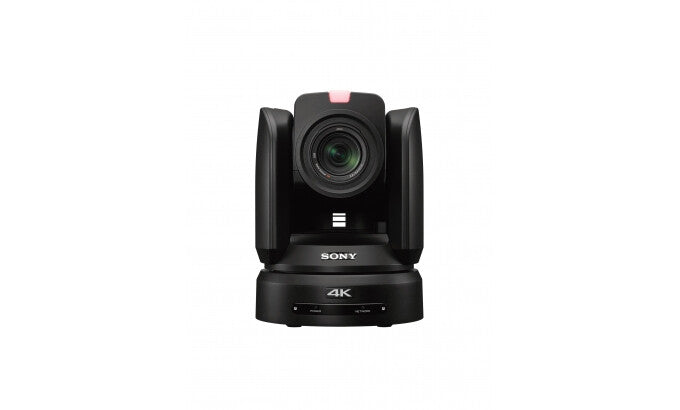

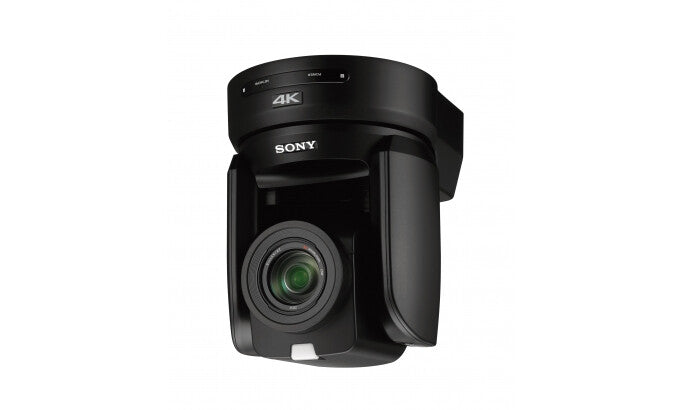

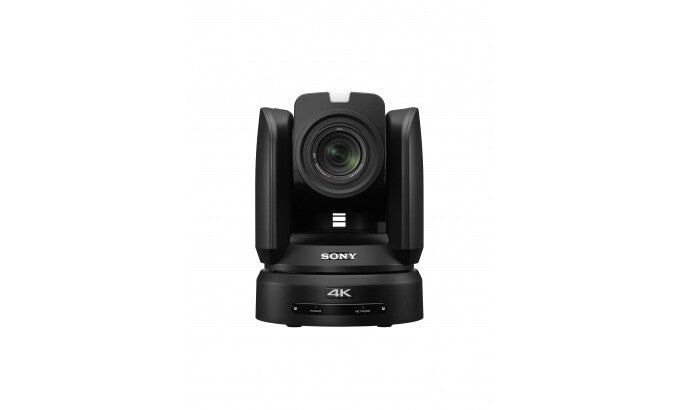

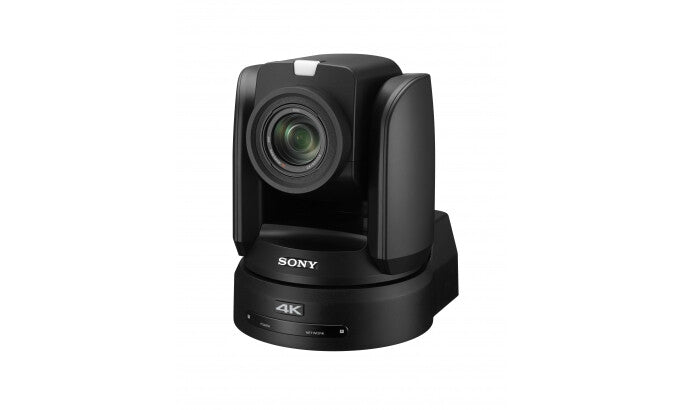

Sony BRC-X1000 security camera Dome IP security camera Indoor Ceiling
Beskrivelse
Beskrivelse
Remotely capture broadcast quality 4K images with smooth, silent PTZ and excellent low-light sensitivity
The BRC-X1000 is Sony's first 4K remote camera, combining uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections.
Designed for remote operation, this compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It's equally at home in TV newsrooms, remote studios and on-air suites, auditoriums, houses of worship, courtrooms or sports stadiums. It's also particularly suited to efficient multi-camera set-ups, under the control of a single operator.
The 1-inch type Exmor R CMOS image sensor captures detail-packed 4K footage at 30p with four times the pixel count of Full HD, and excellent low-light sensitivity. The large image sensor also allows the creation of beautiful 'bokeh' effects with a shallow depth of field to suit any artistic intention.
Speedy, near-silent PTZ operation with 12x optical zoom accommodates wide-angle scenes and tightly framed close-ups, with Clear Image Zoom 18x (4K), 24x(HD) extending this range even further without visible loss of resolution. Broadcast-friendly features include dual tally lamps for on-air operation, while operational flexibility is enhanced with options for ceiling, table top or tripod mounting.
There’s also a broad range of video interfacing and remote control possibilities - plus support for PoE+ and genlock - for smooth integration into any broadcast, professional or corporate AV environment.
Specifikationer
Specifikationer
Performance | |
---|---|
Light exposure modes | Auto, Manual, Shutter priority AE |
Antenna gain level (max) | 33 dBi |
Day/night mode | Yes |
PTZ control | Yes |
Connectivity technology | Wired |
Placement supported | Indoor |
Type | IP security camera |
Design | |
---|---|
Product colour | Black |
Mounting type | Ceiling |
Form factor | Dome |
Camera | |
---|---|
Camera shutter speed | 1/10000s - 1/8 (59.94/29.97), 1/10000s - 1/6 (50/25) |
White balance | Auto, Indoor, Manual, Outdoor |
Pan speed | 60 °/sec |
Pan range | -170 - 170° |
Tilt speed | 60 °/sec |
Tilt angle range | -30 - 90° |
Lens viewing angle, horizontal | 64.6° |
Minimum illumination | 1.7 lx |
Image sensor | |
---|---|
Optical sensor size | 1 |
Sensor type | CMOS |
Lens system | |
---|---|
Maximum aperture number | 4.5 |
Auto focus | Yes |
Focal length range | 9.3 - 111.6 mm |
Optical zoom | 12x |
Zoom capability | Yes |
Video | |
---|---|
Full HD | Yes |
Automatic gain control | Yes |
Frame rate | 60 fps |
Supported video modes | 720p, 1080i, 1080p, 2160p |
Total megapixels | 14.2 MP |
Network | |
---|---|
Networking standards | IEEE 802.3at |
Wi-Fi | No |
Ethernet LAN | Yes |
Storage | |
---|---|
Built-in HDD | No |
Ports & interfaces | |
---|---|
Interface | RS-422 |
DC-in jack | Yes |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
Power | |
---|---|
Power over Ethernet (PoE) | Yes |
DC output current | 13.2 A |
Power source type | PoE |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
---|---|
Weight | 4.3 kg |
Height | 260 mm |
Depth | 238 mm |
Width | 198 mm |
Packaging content | |
---|---|
Number of cameras | 1 |
Logistics data | |
---|---|
Harmonized System (HS) code | 85258900 |
