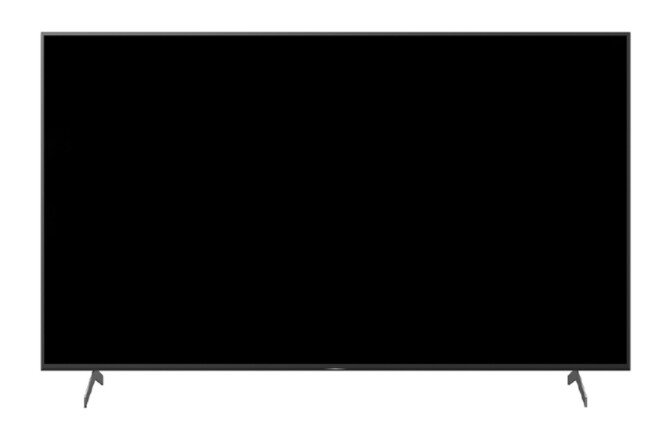

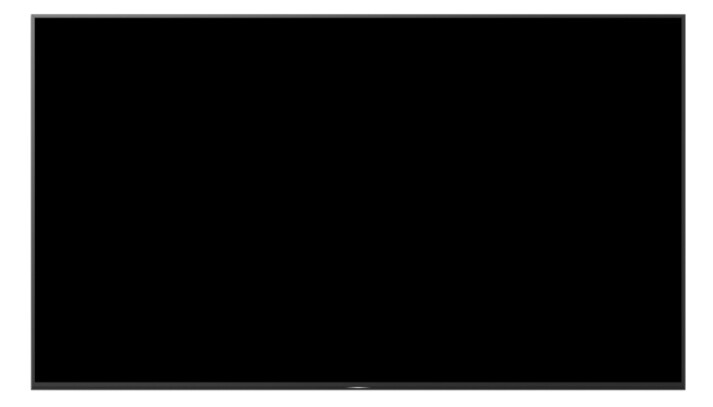

Sony FW-75BZ40H Digital signage flat panel 190.5 cm (75") LCD Wi-Fi 850 cd/m² 4K Ultra HD Black 24/7

Sony  |  Varenummer: FW-75BZ40H/1TM

Beskrivelse

75, 4K UHD, 16:9, 178°, 2x10W RMS, 220-240V, 1674x71x961mm, with Manage for TEOS Pre-Installed, Pre-Configured

Present a better image for your business

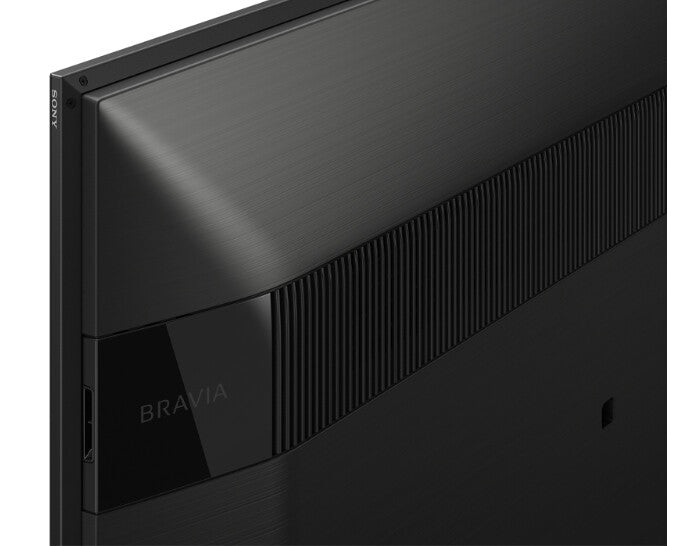

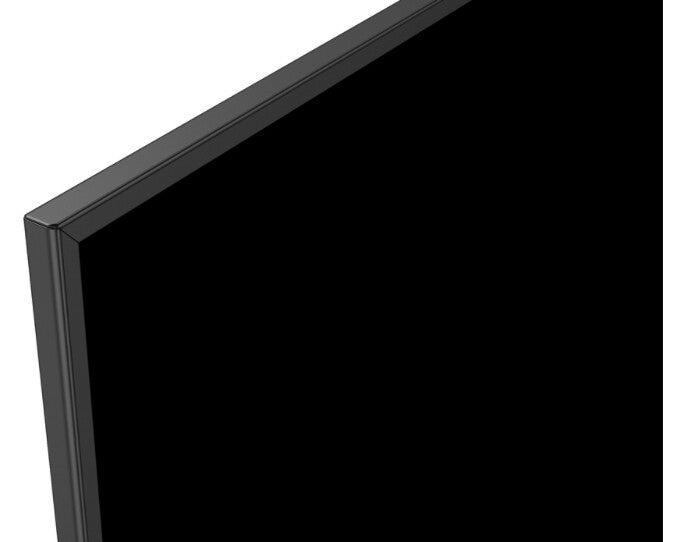

Optimised for professional use, the slim, energy-efficient BRAVIA FW-75BZ40H combines bright 4K HDR image quality with easy operation, flexible networking/control and extensive integration options. Every BRAVIA 4K Professional Display takes full advantage of latest consumer television technologies to ensure vibrant, high-brightness 4K HDR images that add impact to all your content. Beautiful pictures are balanced by Acoustic Multi-Audio™ for clear, immersive sound. The BRAVIA FW-75BZ40H is designed for dependable 24/7 operation in a wide range of B2B applications. Side-mounted terminals allow easy access for cable connections. The display's elegantly minimal design is enhanced further for professional use with a four-sided aluminium bezel and full protective rear. Pro mode allows quick and easy customisation to suit different environments including corporate, education and hospitality, while One Step Setting optimises display settings for signage and conference rooms at the touch of a single button. A powerful SoC platform with improved processing speeds allow apps and animation to run smoothly and efficiently alongside a stress-free user interface for easy operation. Creating attractive digital signage is simple, mixing and displaying media files and online content with no need for additional hardware. The display's Android platform broadens control and customisation options, while a wide range of API (Application Programming Interface) options enable remote control/monitoring and integration with external systems.

4K image resolution (3840 x 2160 pixels)

4K offers four times the detail of Full HD, with a resolution of over 8 million pixels bringing extra clarity to corporate display, education and digital signage applications.

Very high brightness and contrast

The high brightness, high contrast panel with Full Array local dimming is ideal for presenting 4K HDR (High Dynamic Range) content, revealing subtle detail in bright highlights and areas of dark shadow.

See finer detail

4K X-Reality PRO upscales pictures closer to true 4K quality. Images are sharpened and refined in real time, revealing extra detail from lower-resolution picture sources.

Rich, natural colour with TRILUMINOS Display

TRILUMINOS Display maps colours from a wider palette, faithfully reproducing a world of more vivid, lifelike hues and tones.

Smooth, fluid on-screen action

X-Motion Clarity ensures smoother, more natural reproduction of rapidly-moving on-screen images.

Quick set-up with Pro Mode

Customise and store display settings and features, then copy easily to multiple displays via USB flash memory.

One Step Setting

A time-saver in corporate environments, One Step Setting optimises picture and networking settings to suit meeting rooms and signage applications at the touch of a single button.

Easily create digital signage

Integrated support for HTML5 makes it easy to produce compelling digital signage. Combine graphics, text, video and live web content to create attractive signage in minutes with no extra hardware or special training.

Reliable 24/7 operation

BRAVIA is engineered for dependable round-the-clock operation in the most demanding corporate and AV presentation environments.

Cast content with Apple AirPlay2

With Apple AirPlay2 it's easy to stream video and sound to BRAVIA right from an iPhone, iPad or Mac.

Google Chromecast built in

Cast videos and apps from a mobile device directly to BRAVIA with Google Chromecast. Just tap the Cast button on your Android or iOS device screen and instantly enjoy super-sized on BRAVIA.

Versatile remote control

Control BRAVIA remotely – including on/off, input signal select and adjust volume – over IP via RJ45 by web API or via RS-232C.

Connectivity when you need it most

The FW-55BZ40H supports Wi-Fi 5GHz and 2.4GHz as well as Bluetooth 4.2.

Flexible mounting and installation

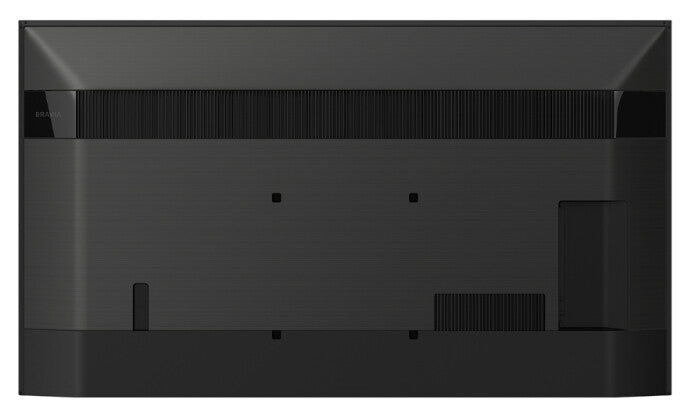

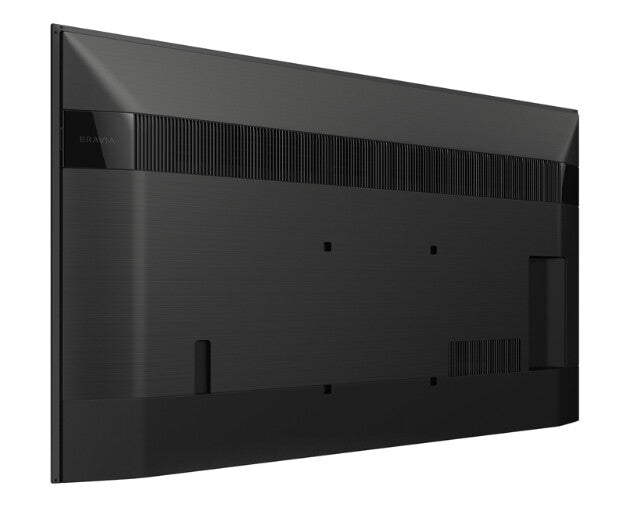

The display offers flexible mounting options (vertical, tilt, and table-top), with VESA-standard mounting for easy integration into a wide range of environments.

Specifikationer

Display
High Dynamic Range (HDR) supported Yes
High Dynamic Range (HDR) technology High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
Viewing angle, vertical 178°
Viewing angle, horizontal 178°
Contrast ratio (dynamic) 600000:1
Contrast ratio (typical) 6000:1
Response time 8 ms
Native aspect ratio 16:9
HD type 4K Ultra HD
Display brightness 850 cd/m²
Display resolution 3840 x 2160 pixels
LED backlighting type Direct-LED
Display technology LCD
Display diagonal 190.5 cm (75")
Ports & interfaces
RS-232C Yes
Composite video in 1
Wi-Fi Yes
Ethernet LAN (RJ-45) ports 1
Ethernet LAN Yes
USB ports quantity 2
USB port Yes
HDMI ports quantity 4
Audio
RMS rated power 20 W
Number of built-in speakers 2
Built-in speaker(s) Yes
Design
Panel mounting interface 300 x 300 mm
VESA mounting Yes
Placement supported Indoor
Product colour Black
Product design Digital signage flat panel
Performance
HDCP Yes
HDCP version 2.3
Operating hours (hours/days) 24/7
Ambient light sensor Yes
Dolby Vision Yes
Apple AirPlay support Yes
Wi-Fi Direct Yes
Miracast Yes
Purpose Education
Power
Energy efficiency scale A to G
AC input frequency 50 - 60 Hz
AC input voltage 220 - 240 V
Energy consumption (HDR) per 1000 hours 249 kWh
Energy consumption (SDR) per 1000 hours 152 kWh
Energy efficiency class (HDR) G
Energy efficiency class (SDR) G
Power consumption (standby) 0.5 W
Power consumption (typical) 227 W
Computer system
Google applications Google Chromecast
Image formats supported JPEG
Audio formats supported ASF, FLAC, LPCM, MP3, WAV, WMA
Video formats supported 3GPP, ASF, AVC, AVCHD, AVI, HEVC, M-JPEG, MOV, MP4, MPEG1, MPEG2, MPEG2-PS, MPEG2-TS, WEBM, WMV, XVID
Weight & dimensions

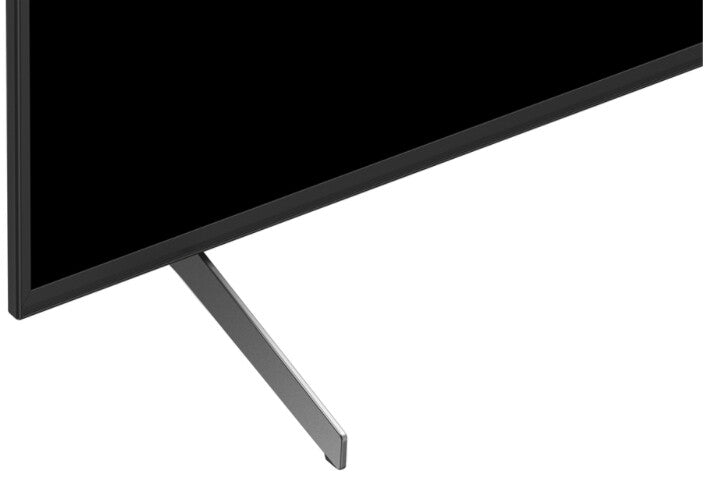

Weight (with stand) 34.4 kg
Height (with stand) 1030 mm
Depth (with stand) 410 mm
Width (with stand) 1674 mm
Weight 32.9 kg
Height 961 mm
Depth 71 mm
Width 1674 mm
Packaging data
Package weight 46 kg
Package height 1110 mm
Package depth 188 mm
Package width 1812 mm
Logistics data
Harmonized System (HS) code 85285210
Technical details
Doesn't contain Mercury
