Sony SRG-A12 8.5 MP Black 3840 x 2160 pixels 60 fps CMOS 25.4 / 2.5 mm (1 / 2.5")

Sony  |  Varenummer: SRG-A12BC
Stregkode: 5013493458642

Beskrivelse

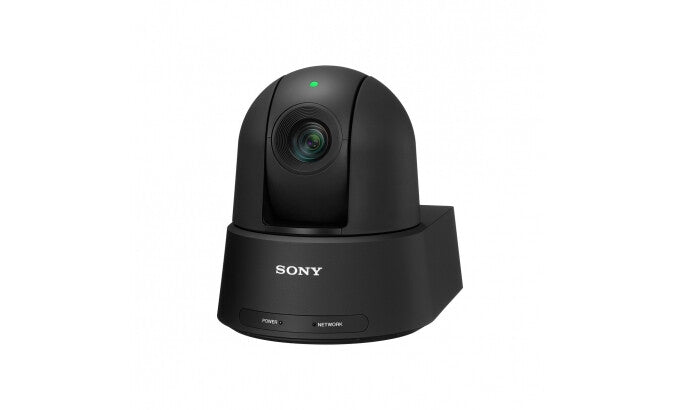

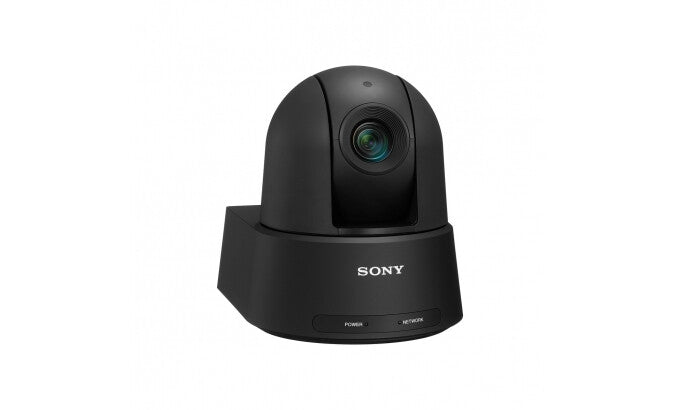

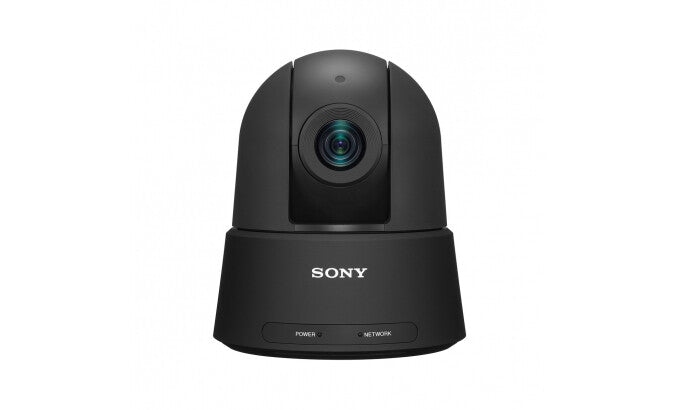

SRG-A12 PTZ camera with PTZ Auto Framing

SRG-A40/ SRG-A12 with PTZ Auto Framing
Revolutionary PTZ Auto Framing technology powered by built-in AI analytics ensures high quality composed shots without operator.
Shooting redefined. AI makes you free.

A Camera that Automatically and Naturally Shoots Video for you
With the advanced PTZ Auto Framing feature, the camera automatically track the target in a comfortable viewing with smooth Pan-Tilt-Zoom movement regardless of posture, movement and what one is wearing.
Since the camera does most of the work automatically, the operator can spend its time efficiently.

PTZ Auto Framing with built-in AI analytics
This camera harnesses powerful AI-powered video analytics that can automatically detect and track the position of a presenter within the camera frame. As the presenter moves, the camera’s pan/tilt/zoom mechanism ensures that the presenter is always framed naturally, without the need for a human camera operator to manually follow their movements.

Automatically and reliably shoots video for you
With Sony’s newly developed AI analytics algorithm, it detects the subject’s skeleton and head position and matches the subject’s detail features even when there are several people in the frame. It achieves accurate framing and consistent tracking.

Choice from three shooting modes
The camera has a choice of three shooting modes; Full body, Waist, and Close up. In each mode, you can adjust picture composition (size, up & down, and left & right) and the SRG-A40 and SRG-A12 can automatically track and keep the subject in the selected optimal position.

Integrated tally lamp
The SRG-A40 and SRG-A12 feature a built-in tally lamp, just like you’d find on professional studio cameras. The lamp illuminates to give presenters visual confirmation of shooting status, or to show that PTZ Auto Framing mode is active. The lamp colour will change from Red (On Air) to Green (PTZ Auto Framing ON).

Remote control of PTZ operation
Pan/Tilt/Zoom camera movements and other functions can all be precisely controlled using the supplied IR remote controller, for convenient wireless control of PTZ functions without needing additional equipment. It can also be controlled using the optional additional RM-IP500 remote controller, just like professional broadcast cameras.

Easy ceiling mounting
The camera comes supplied with a mounting plate for convenient ceiling installation if required.

Light, compact design
The camera’s stylish, compact body fits unobtrusively into any environment.

Choice of colour finishes
The camera is available in a choice of black or while colour finishes, to suit the needs of any application.

Specifikationer

Camera
Megapixel (approx.) 8.5 MP
Camera type Single camera
Sensor type CMOS
Optical sensor size 25.4 / 2.5 mm (1 / 2.5")
Zoom capability Yes
Optical zoom 12x
Focal length range 4.4 - 52.8 mm
Horizontal field of view (wide) 70°
Minimum illumination 1.6 lx
Flip & mirror Yes
Aperture range (F-F) 2 - 3.7
White balance Auto, Daylight, Indoor, Manual, One push, Outdoor
Auto exposure Yes
Light exposure modes Auto, Manual, Shutter priority AE
Focus adjustment Auto/Manual
Gain control type Auto/Manual
PTZ protocols VISCA
PTZ control Yes
Fastest camera shutter speed 1/10000 s
Slowest camera shutter speed 1 s
Maximum working distance (tele) 40 cm
Minimum working distance (wide) 8 cm
Video
Maximum video resolution 3840 x 2160 pixels
Maximum frame rate 60 fps
HD type 4K Ultra HD
Video formats supported H.264, H.265
Supported graphics resolutions 640 x 360, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160
Number of TV lines 1700
Design
Product colour Black
Image stabilizer Yes
Tilt angle range -20 - 90°
Pan range -170 - 170°
Tally light Yes
Tilt speed (max) 126 °/sec
Tilt speed (min) 0.5 °/sec
Pan speed (max) 300 °/sec
Pan speed (min) 0.5 °/sec

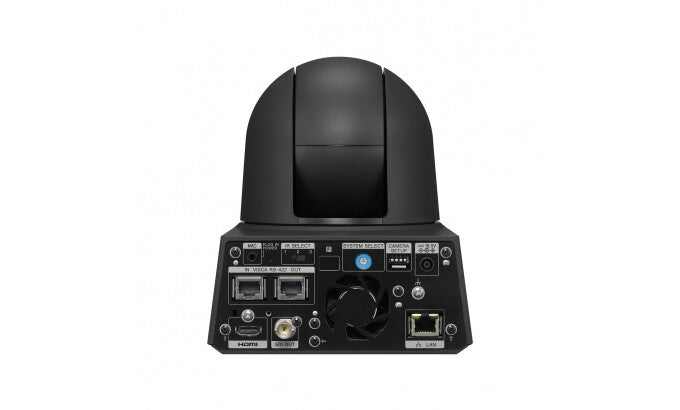

Ports & interfaces
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
DC-in jack Yes
3G-SDI output Yes
Microphone in Yes
VISCA input ports 1
VISCA output ports 1
Power
Power source type AC, DC
DC input voltage 19.5 V
Power consumption (typical) 80 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Network
Bit rate range 512 - 50000 Kbit/s
Bit rate control Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Multi-stream capability 3
Supported network protocols IPv4, IPv6, TCP, UDP, ARP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, VISCA over IP, SRT
System requirements
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supported Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Packaging content
Power supply included Yes
Cables included AC, HDMI
Warranty card Yes
Screws included Yes
Mounting brackets included Yes
Audio
Audio codecs AAC LC 256kbps/ST (IP), AAC LC 128kbps/ST(IP)
Audio channels 2
Performance
Auto framing Yes
Weight & dimensions
Width 156.7 mm
Depth 200 mm
Height 184 mm
Weight 2 kg
