Sony ZRCT-300 video wall processor Black 100 W
Beskrivelse
Beskrivelse
Cutting-edge image processing technology for extraordinary visual experiences
The ZRCT-300 is a dedicated display controller for Sony's modular Micro LED large display system. One ZRCT-300 unit can control up to 64 ZRD-C12A/ZRD-B12A cabinets or 100 ZRD-C15A/ZRD-B15A cabinets to create spectacular high-resolution Micro LED displays.
The powerful processor "X1 for Crystal LED" ensures extraordinarily realistic, finely-detailed images for an overwhelming visual experience on virtually any size and scale.
The controller can accept a wide range of video input signals up to a maximum resolution of 3840 x 2160 pixels, with support for HDR, High Frame Rate and 3D.

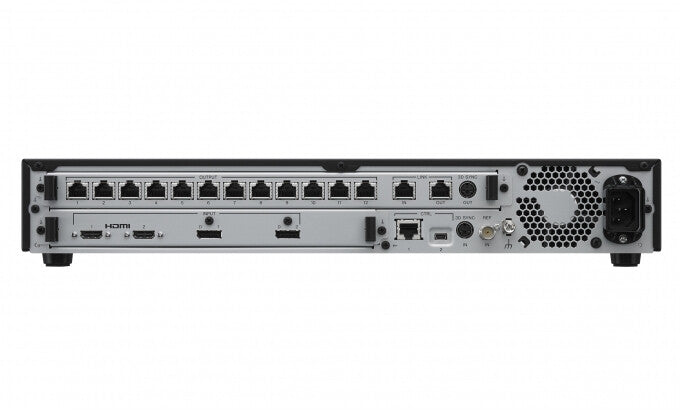

The 1.5U size rack mounting unit features 12x RJ45 output ports, 2x HDMI and 2x DisplayPort video inputs, 3D sync, genlock, network control and maintenance ports together with link input/output ports for interconnection with other ZRCT-300 display controllers to produce even larger displays.
Specifikationer
Specifikationer
| Design | |
|---|---|
| Rack capacity | 1.5U |
| Rack mounting | Yes |
| Fan location | Rear |
| Built-in fan | Yes |
| Product colour | Black |
| Features | |
|---|---|
| Scaled resolutions | 3840 x 2160 |
| Number of displays supported | 100 |
| Ports & interfaces | |
|---|---|
| USB 2.0 Type-A ports quantity | 1 |
| RJ-45 output ports | 12 |
| RJ-45 ports quantity | 15 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.2 |
| HDMI input ports quantity | 2 |
| Power | |
|---|---|
| Input frequency | 50/60 Hz |
| Input voltage | 100 - 240 V |
| Power consumption (max) | 100 W |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 20 - 80% |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Technical details | |
|---|---|
| Pallet net height | 122.5 cm |
| Pallet net length | 120 cm |
| Pallet net width | 100 cm |
| Weight & dimensions | |
|---|---|
| Weight | 6.4 kg |
| Height | 65 mm |
| Depth | 349 mm |
| Width | 440 mm |
Download
Download
Sony ZRCT-300 video wall processor Black 100 W
