High brightness Micro LED video wall modular display cabinet
Unforgettable images to match the largest creative ambitions

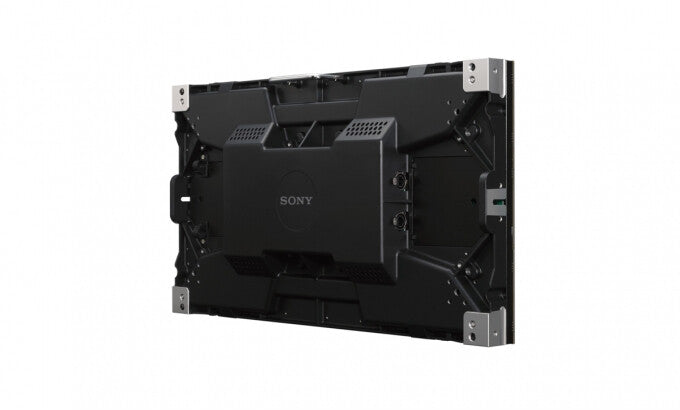

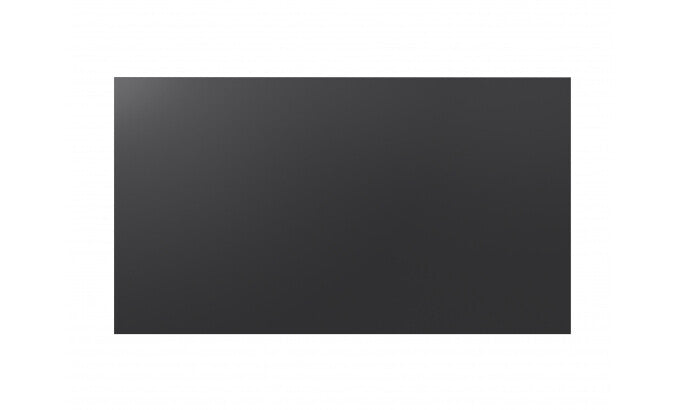

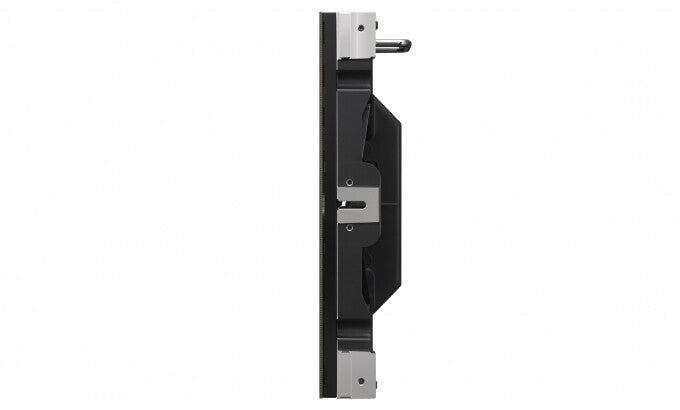

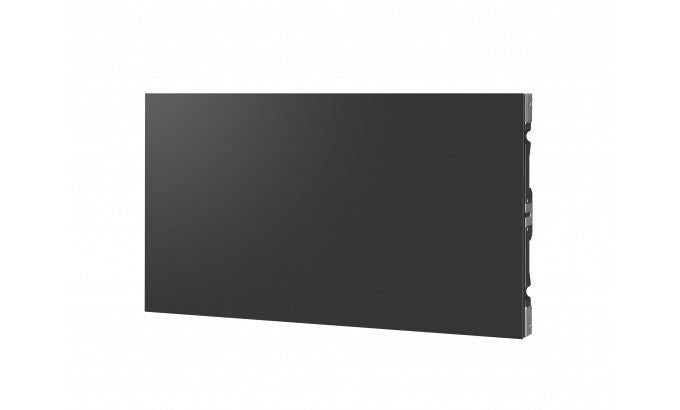

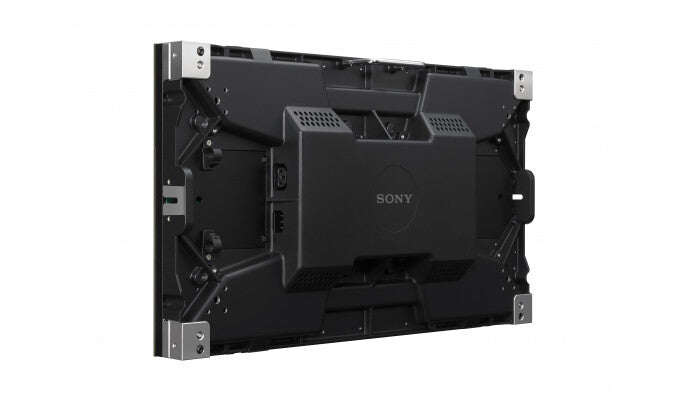

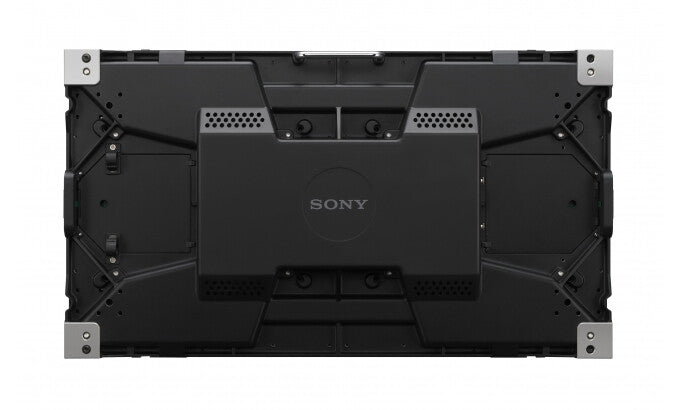

The ZRD-B15A modular display cabinet combines advanced Micro LED technology with powerful processor "X1™ for Crystal LED" to create bigger, bolder, more attention-grabbing visual experiences.
Offering spectacular brightness, the ZRD-B15A is ideal for presenting high-impact HDR content in sunlit corporate lobbies, virtual sets and production backdrops. Cutting-edge picture processing technologies ensure spectacular large-scale images with industry leading clarity, contrast and colour.
The ZRD-B15A features a resolution of 384 x 216 dots, with a pixel pitch of 1.58 mm.
The borderless design of each energy-efficient Micro LED panel allows multiple ZRD-B15A cabinets to be tiled seamlessly, creating super-size high resolution displays with virtually any dimensions or aspect ratio – and no bezels or visible gaps. The slim, light Micro LED panels are easy to install and maintain without requiring special skills or complex equipment.
| Display |
| Display technology |
MicroLED |
| Pixel pitch |
1.58 x 1.58 mm |
| Display brightness |
1700 cd/m² |
| Contrast ratio (typical) |
1000000:1 |
| High Dynamic Range (HDR) supported |
Yes |
| Viewing angle, horizontal |
170° |
| Viewing angle, vertical |
170° |
| Colour gamut |
97% |
| Colour depth |
22 bit |
| Design |
| Placement supported |
Indoor |
| Orientation |
Horizontal |
| Product colour |
Black |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
2 |
| Power |
| Power consumption (typical) |
58 W |
| Power consumption (max) |
150 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Technical details |
| Products per pallet |
12 pc(s) |
| Pallet net width |
80 cm |
| Pallet net length |
120 cm |
| Pallet net height |
127.5 cm |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
20 - 80% |
| Weight & dimensions |
| Width |
608 mm |
| Depth |
76 mm |
| Height |
342 mm |
| Weight |
9.5 kg |
