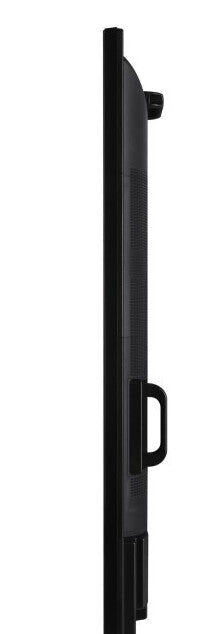

Vestel XN75D-4H Signage Display Digital signage flat panel 190.5 cm (75") Wi-Fi 500 cd/m² 4K Ultra HD Black 24/7

Vestel  |  Varenummer: XN75D-4H

Beskrivelse

75", 3840x2160 (UHD), 2 GB DDR4 / 16 GB eMMC, 500 cd/m², 1684 x 73 x 967 mm

Daisy Chain
The display can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode.

Usb Security
This series lets your USB and your content to be secured within the back cover of the display. The cover is protected with a screw not allowing any outside intervention.

Usb Auto-Play
You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.

Subtle Design
This series’ displays exhibit ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is found to be desirable for digital signage specific design: internal usb cover, detachable power plug and IR extender.

Signal Failover
Our displays have a protection for “No Signal”. If the source is disconnected, the display will either show your customized banner or search for any other signal from video sources. Since blank screen is the worst case scenario for advertisement, failover is one of the critical feature in our signage displays.

Pixel Shifting
The Pixel Shifting feature can be activated in order to reduce the potential risk of image sticking when static content is displayed over long periods of time. The feature periodically shifts the image on the display, without causing any interference of the visual experience.

Open Platform Support
Our SoC supports API (Application Programming Interface) for solution providers/integrators to develop and integrate any HTML5-based to be installed and used on our displays.

External Device Connections
You may want to connect your teleconference system, screen sharing system, set-top box or external PCs via HDMI port. For this purposes, our monitors help you to maximize user experience with HDMI CEC (Consumer Electronics Control) and HDMI Hotplug capabilities.

Display Control
Digital Signage Display SoC enables the users to control our displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time.

Specifikationer

Display
RGB colour space NTSC
Haze rate 3%
Native refresh rate 60 Hz
Panel life 30000 h
Display diagonal (metric) 190.5 cm
Active display area (W x H) 928 x 1650 mm
Display number of colours 1.07 billion colours
Viewing angle, vertical 178°
Viewing angle, horizontal 178°
Contrast ratio (dynamic) 50000:1
Contrast ratio (typical) 1200:1
Response time 8 ms
Touchscreen No
HD type 4K Ultra HD
Display brightness 500 cd/m²
Display resolution 3840 x 2160 pixels
LED backlighting type Direct-LED
Panel type IPS
LED backlight Yes
Display diagonal 190.5 cm (75")
Ports & interfaces
Compatible memory cards MicroSD (TransFlash)
Card reader integrated Yes
RS-232 interface Yes
Audio (L/R) out 1
Wi-Fi Yes
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN data rates 10,100 Mbit/s
Ethernet LAN (RJ-45) ports 1
Ethernet LAN Yes
USB version 2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity 4
USB port Yes
DVI port No
HDMI output ports quantity 1
HDMI input ports quantity 4
HDMI version 2.0
HDMI ports quantity 5
Audio
RMS rated power 24 W
Number of built-in speakers 2
Built-in speaker(s) Yes
Design
Bezel width (top) 1.1 cm
Bezel width (side) 1.1 cm
Bezel width (bottom) 1.1 cm
Panel mounting interface 600 x 400 mm
VESA mounting Yes
Orientation Horizontal/Vertical
Placement supported Indoor
Product colour Black
Product design Digital signage flat panel
Performance
Operating hours (hours/days) 24/7
Purpose Universal
Power
AC input frequency 50 / 60 Hz
AC input voltage 110 - 240 V
Power consumption (max) 320 W
Power consumption (standby) 0.5 W
Power consumption (typical) 240 W
Computer system
Internal storage capacity 16 GB
Internal memory 2 GB
Weight & dimensions
Display weight 37.5 kg
Display height 967 mm
Display depth 73 mm
Display width 1684 mm
Packaging data
Package weight 50.3 kg
Package height 1170 mm
Package depth 210 mm
Package width 1948 mm
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Certificates
Certification CE
Other features
Bluetooth Yes
Bluetooth version 5.1
