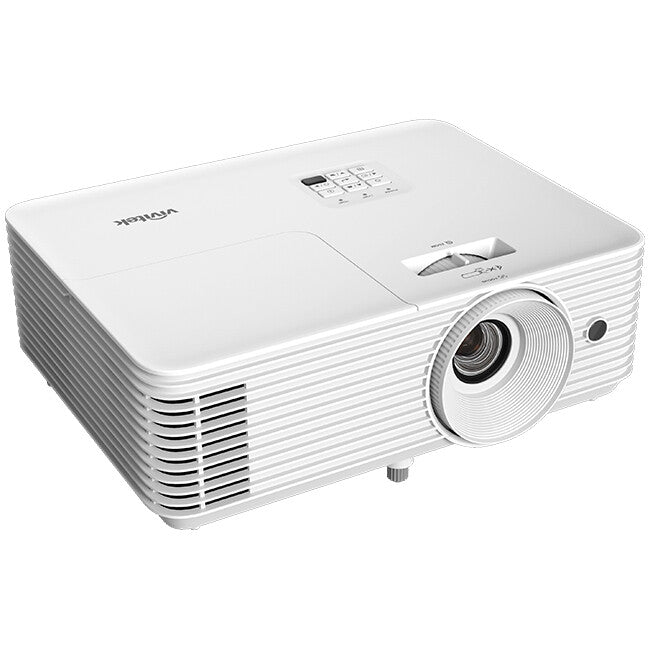

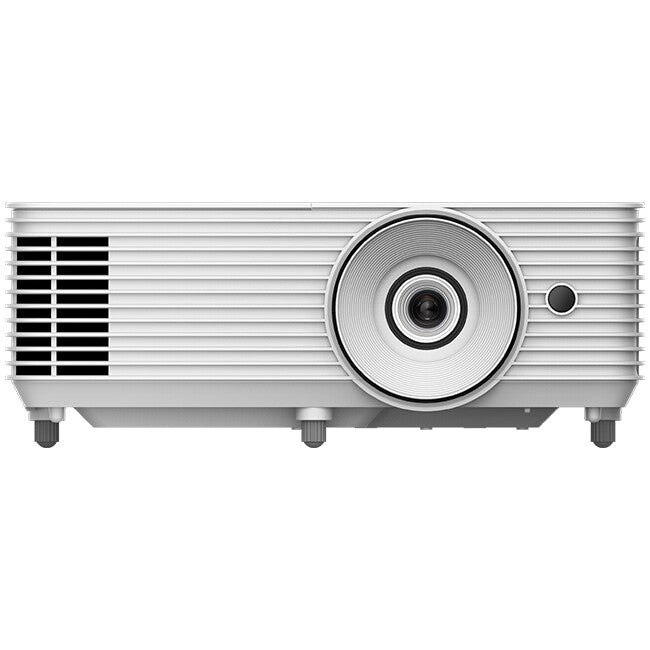

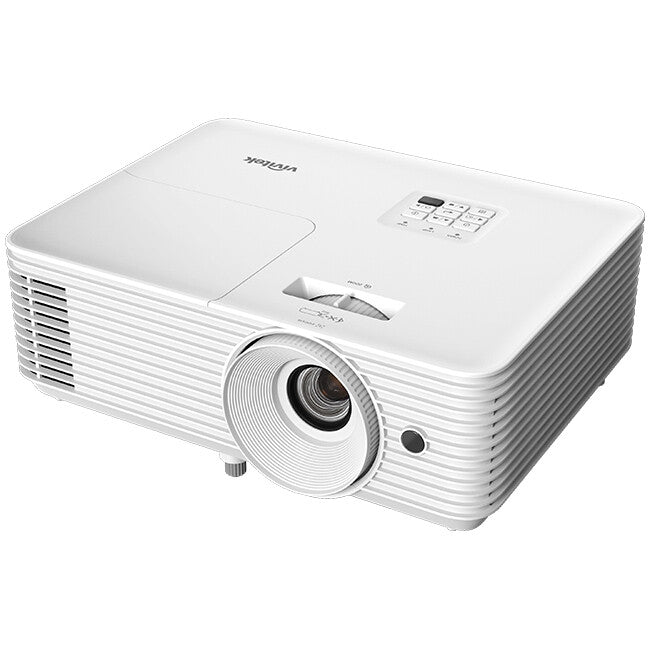

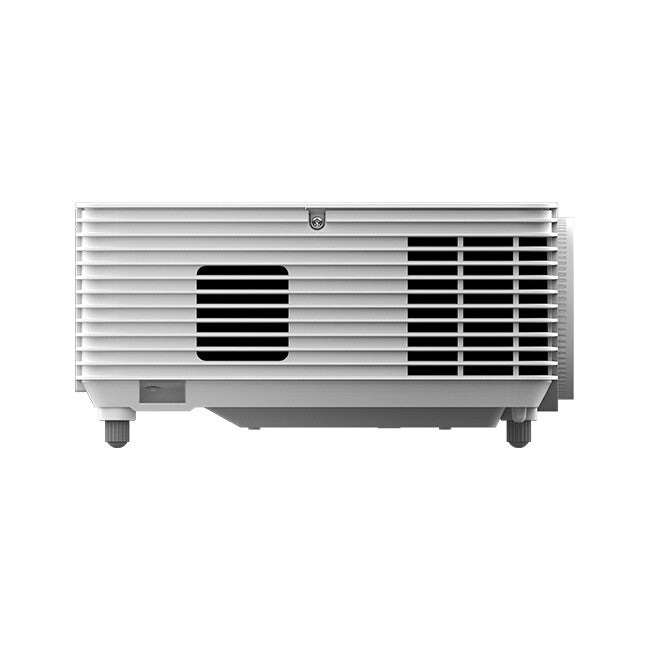

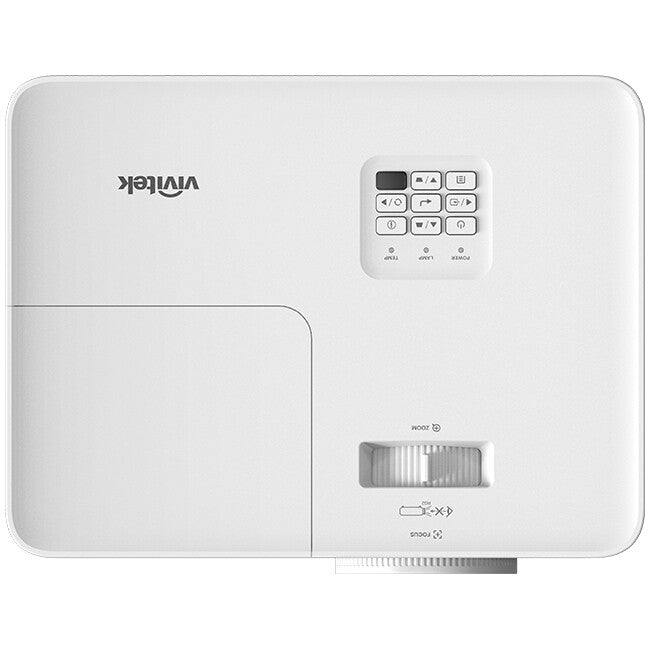

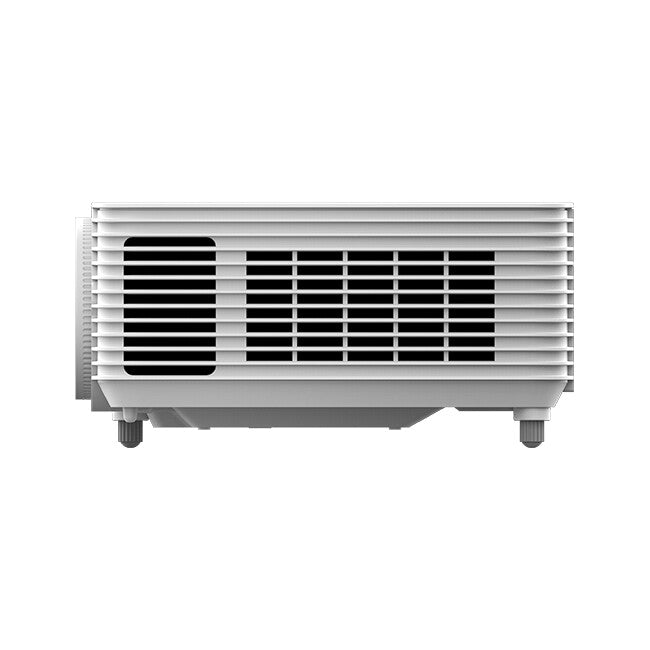

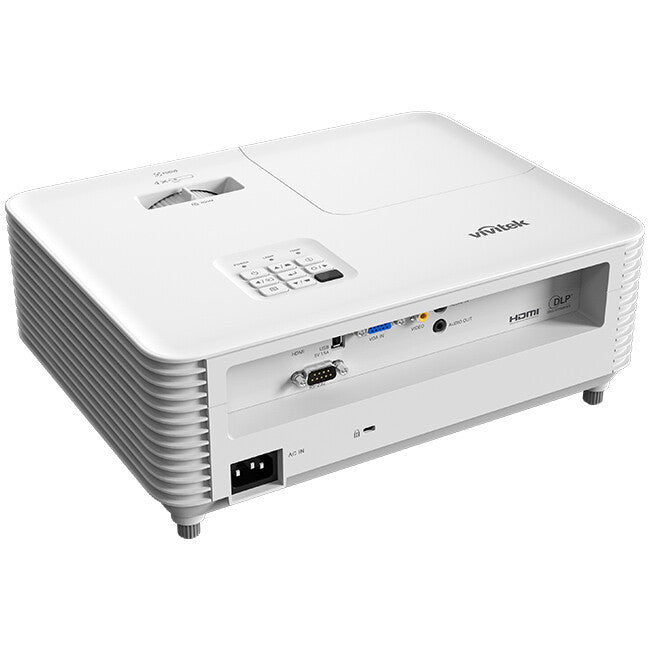

Vivitek DH380 data projector Standard throw projector 4000 ANSI lumens DMD 1080p (1920x1080) 3D White

Vivitek  |  Varenummer: DH380
Stregkode: 813097026132

Beskrivelse

1-Chip DLP 0.65", Full HD (1920 x1080p), 4000lm, 1.48~1.62 : 1, 1.1x, White

The DH380 features a high brightness and 30,000:1 contrast ratio to deliver 300" image even in any bright environment. Compact size, low weight, and quick installation make this series ideal for classrooms and meeting rooms. With top-side cover and energy-saving design, this series is easy to replace lamp and has a long lamp life up to 15,000 hours.

DLP Darkchip3 & BrilliantColor Technology
The DH380 supports DLP® and BrilliantColorTM technologies for distinct and vibrant images. The 6-segment (RGBYCW) color wheel not only makes the image more vivid and saturated, but also reproduces color performance.

Bright Images in Any Environment
Packed with up to 4,000 lumens of brightness and a high contrast ratio 30,000: 1, the DH380 provides sharp and bight images in any environment with ambient light.

Potable & Lightweight
Featured under 3kg, the DH380 is easy to carry and install between home and school or office.

Long Lamp Life
With high-efficiency and energy-saving lamp, this series projector has a long life span of up to 15,000 hours in Eco mode to reduce lamp replacement times.

3D Ready

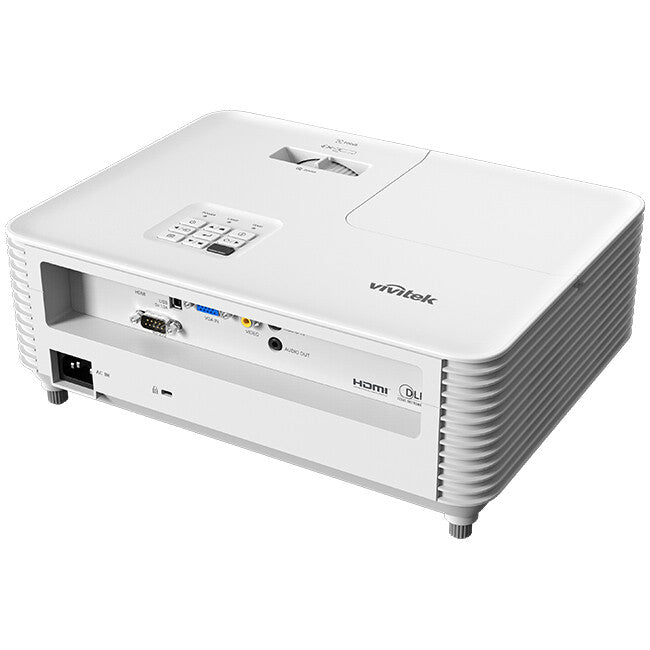

The DH380 features full suite of display connections, including HDMI, composite video, and VGA-in. The HDMI port allows users to project 3D content via DLP Link and Blu-Ray 3D.

Specifikationer

Projector
Projector brightness 4000 ANSI lumens
Projection technology DMD
Projector native resolution 1080p (1920x1080)
Contrast ratio (typical) 30000:1
Native aspect ratio 4:3
Screen size compatibility 694.4 - 7620 mm (27.3 - 300")
Projection distance 1.2 - 12 m
Uniformity 80%
Keystone correction, vertical 40°
Vertical synchronization (max) 120 kHz
Vertical synchronization (min) 23 kHz
Horizontal synchronization (max) 102 kHz
Horizontal synchronization (min) 15 kHz
Light source
Light source type Lamp
Service life of light source 5000 h
Service life of light source (economic mode) 15000 h
Lamp power 203 W
Lens system
Focal length range 22.5 - 25.79 mm
Aperture range (F-F) 2.42 - 2.62
Zoom capability Yes
Zoom type Fixed
Zoom ratio 1.1:1
Throw ratio 1.48 - 1.62 : 1
Offset 116%
Video
Analog signal format system NTSC, PAL, SECAM
3D Yes
Supported video modes 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supported graphics resolutions 1920 x 1200 (WUXGA)

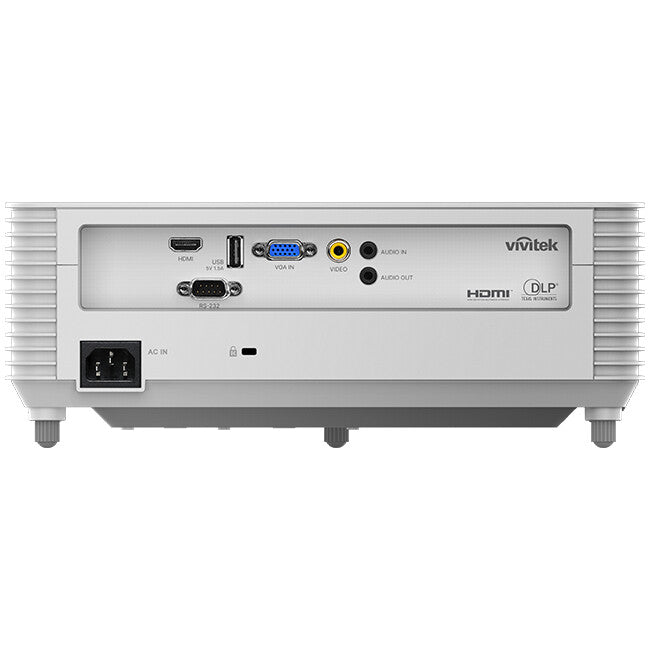

Ports & interfaces
VGA (D-Sub) ports quantity 1
HDMI ports quantity 1
HDMI version 1.4a
Composite video in 1
USB 2.0 Type-A ports quantity 1
Audio (L/R) in 1
Audio (L/R) out 1
Serial interface type RS-232
Features
Noise level 31 dB
Noise level (economic mode) 27 dB
Multimedia
Built-in speaker(s) Yes
Number of built-in speakers 1
RMS rated power 10 W
Design
Product type Standard throw projector
Product colour White
Cable lock slot type Kensington
Cable lock slot Yes
Display
Built-in display Yes
Display diagonal 1.4 cm (0.55")
Display resolution 1920 x 1200 pixels
Power
Power source AC
Power consumption (typical) 240 W
Power consumption (standby) 0.5 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -10 - 60 °C
Weight & dimensions
Weight 2.6 kg
Width 313 mm
Depth 236 mm
Height 120 mm
Packaging content
Remote control included Yes
Batteries included Yes
Manual Yes
Cables included Power, VGA
Logistics data
Quantity per pack 1 pc(s)
